ATLAS_2011_S9126244 Class Reference
Inheritance diagram for ATLAS_2011_S9126244:
Inheritance graph
[legend]

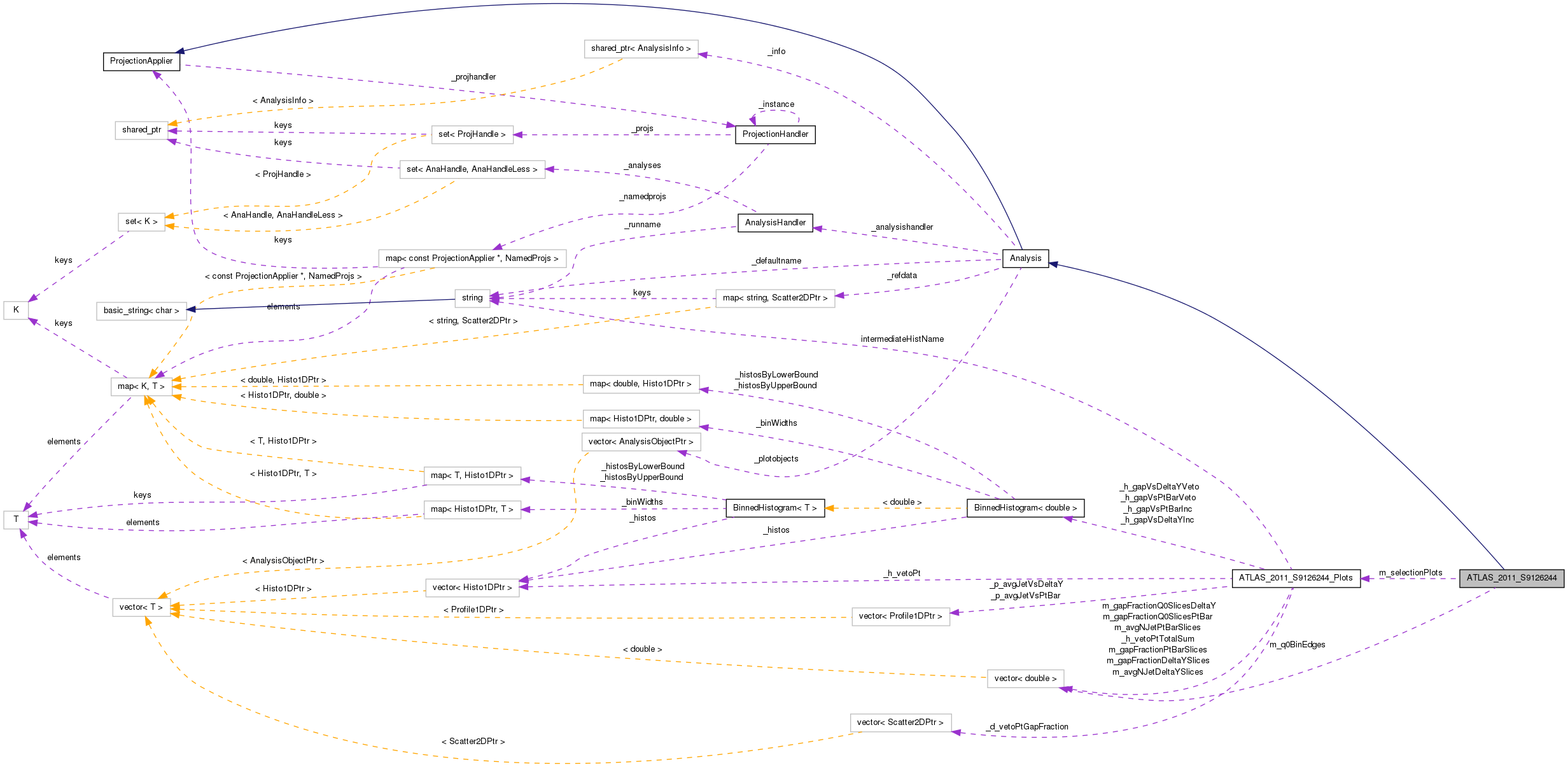

Collaboration diagram for ATLAS_2011_S9126244:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ATLAS_2011_S9126244 ()
 Constructor.
void init ()
 Book histograms and initialise projections before the run.
void initializePlots (ATLAS_2011_S9126244_Plots &plots)
void analyze (const Event &event)
 Perform the per-event analysis.
void analyzeJets (vector< FourMomentum > &jets, ATLAS_2011_S9126244_Plots &plots, const double weight, double vetoPtThreshold)
void finalize ()
 Derive final distributions for each selection.
AnalysisHandler & handler () const
 Access the controlling AnalysisHandler object.
void normalize (Histo1DPtr histo, double norm=1.0, bool includeoverflows=true)
void scale (Histo1DPtr histo, double scale)
Analysis & setCrossSection (double xs)
 Set the cross section from the generator.
void divide (Histo1DPtr h1, Histo1DPtr h2, Scatter2DPtr s) const
void divide (Profile1DPtr p1, Profile1DPtr p2, Scatter2DPtr s) const
void divide (const YODA::Histo1D &h1, const YODA::Histo1D &h2, Scatter2DPtr s) const
void divide (const YODA::Profile1D &p1, const YODA::Profile1D &p2, Scatter2DPtr s) const
const vector< AnalysisObjectPtr > & plots () const
 List of registered plot objects.
Metadata

Metadata is used for querying from the command line and also for building web pages and the analysis pages in the Rivet manual.

const AnalysisInfo & info () const
 Get the actual AnalysisInfo object in which all this metadata is stored.
virtual std::string name () const
 Get the name of the analysis.
virtual std::string inspireId () const
 Get the Inspire ID code for this analysis.
virtual std::string spiresId () const
 Get the SPIRES ID code for this analysis (~deprecated).
virtual std::vector< std::string > authors () const
 Names & emails of paper/analysis authors.
virtual std::string summary () const
 Get a short description of the analysis.
virtual std::string description () const
 Get a full description of the analysis.
virtual std::string runInfo () const
 Information about the events needed as input for this analysis.
virtual std::string experiment () const
 Experiment which performed and published this analysis.
virtual std::string collider () const
 Collider on which the experiment ran.
virtual std::string year () const
 When the original experimental analysis was published.
virtual std::vector< std::string > references () const
 Journal, and preprint references.
virtual std::string bibKey () const
 BibTeX citation key for this article.
virtual std::string bibTeX () const
 BibTeX citation entry for this article.
virtual std::string status () const
 Whether this analysis is trusted (in any way!)
virtual std::vector< std::string > todos () const
 Any work to be done on this analysis.
virtual const std::vector
< PdgIdPair > & 		requiredBeams () const
 Return the allowed pairs of incoming beams required by this analysis.
virtual Analysis & setRequiredBeams (const std::vector< PdgIdPair > &requiredBeams)
 Declare the allowed pairs of incoming beams required by this analysis.
virtual const std::vector
< std::pair< double, double > > & 		requiredEnergies () const
 Sets of valid beam energy pairs, in GeV.
virtual Analysis & setRequiredEnergies (const std::vector< std::pair< double, double > > &requiredEnergies)
 Declare the list of valid beam energy pairs, in GeV.
bool needsCrossSection () const
Analysis & setNeedsCrossSection (bool needed=true)
Internal metadata modifying methods
AnalysisInfo & info ()
 Get the actual AnalysisInfo object in which all this metadata is stored (non-const).
Run conditions
const ParticlePair & beams () const
 Incoming beams for this run.
const PdgIdPair beamIds () const
 Incoming beam IDs for this run.
double sqrtS () const
 Centre of mass energy for this run.
Analysis / beam compatibility testing
bool isCompatible (const ParticlePair &beams) const
 Check if analysis is compatible with the provided beam particle IDs and energies.
bool isCompatible (PdgId beam1, PdgId beam2, double e1, double e2) const
 Check if analysis is compatible with the provided beam particle IDs and energies.
bool isCompatible (const PdgIdPair &beams, const std::pair< double, double > &energies) const
 Check if analysis is compatible with the provided beam particle IDs and energies.
Projection "getting" functions
std::set< ConstProjectionPtr > getProjections () const
 Get the contained projections, including recursion.
template<typename PROJ >
const PROJ & getProjection (const std::string &name) const
 Get the named projection, specifying return type via a template argument.
const Projection & getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const PROJ &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const Projection &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const std::string &name) const
 Apply the named projection on event.

Protected Member Functions

Log & getLog () const
 Get a Log object based on the name() property of the calling analysis object.
double crossSection () const
 Get the process cross-section in pb. Throws if this hasn't been set.
double crossSectionPerEvent () const
size_t numEvents () const
double sumOfWeights () const
void addPlot (AnalysisObjectPtr)
 Add a plot object to the final output list.
ProjectionHandler & getProjHandler () const
 Get a reference to the ProjectionHandler for this thread.
AIDA analysis infrastructure.
const std::string histoDir () const
 Get the canonical histogram "directory" path for this analysis.
const std::string histoPath (const std::string &hname) const
 Get the canonical histogram path for the named histogram in this analysis.
const std::string histoPath (size_t datasetId, size_t xAxisId, size_t yAxisId) const
 Get the canonical histogram path for the numbered histogram in this analysis.
const std::string makeAxisCode (size_t datasetId, size_t xAxisId, size_t yAxisId) const
 Get the internal histogram name for given d, x and y (cf. HepData)
Internal histogram booking (for use by Analysis sub-classes).
const YODA::Scatter2D & referenceData (const string &hname) const
 Get reference data for a named histo.
const YODA::Scatter2D & referenceData (size_t datasetId, size_t xAxisId, size_t yAxisId) const
 Get reference data for a numbered histo.
Histo1DPtr bookHisto1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Histo1DPtr bookHisto1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Histo1DPtr bookHisto1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Histo1DPtr bookHisto1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal profile histogram booking (for use by Analysis sub-classes).
Profile1DPtr bookProfile1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Profile1DPtr bookProfile1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Profile1DPtr bookProfile1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Profile1DPtr bookProfile1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal data point set booking (for use by Analysis sub-classes).
Scatter2DPtr bookScatter2D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Scatter2DPtr bookScatter2D (const std::string &name, size_t npts, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Scatter2DPtr bookScatter2D (const std::string &name, const std::string &title)
Scatter2DPtr bookScatter2D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Projection registration functions
template<typename PROJ >
const PROJ & addProjection (const PROJ &proj, const std::string &name)
const Projection & _addProjection (const Projection &proj, const std::string &name)
 Untemplated function to do the work...

Protected Attributes

string _defaultname
 Name passed to constructor (used to find .info analysis data file, and as a fallback)
shared_ptr< AnalysisInfo > _info
 Pointer to analysis metadata object.
bool _allowProjReg
 Flag to forbid projection registration in analyses until the init phase.

Private Attributes

std::vector< double > m_q0BinEdges
ATLAS_2011_S9126244_Plots m_selectionPlots [3]

Detailed Description

Definition at line 49 of file ATLAS_2011_S9126244.cc.

Constructor & Destructor Documentation

ATLAS_2011_S9126244 ( ) [inline]

Constructor.

Definition at line 53 of file ATLAS_2011_S9126244.cc.

      : Analysis("ATLAS_2011_S9126244")
    {    }

Member Function Documentation

const Projection & _addProjection ( const Projection &  proj,
const std::string &  name
) [protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

                                                                             {
    if (!_allowProjReg) {
      cerr << "Trying to register projection '"
           << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
      exit(2);
    }
    const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
    return reg;
  }
void addPlot ( AnalysisObjectPtr  ao) [protected, inherited]

Add a plot object to the final output list.

Todo:
2D versions of scale and normalize... or ditch these completely?

Definition at line 475 of file Analysis.cc.

References Analysis::_plotobjects.

Referenced by Analysis::bookHisto1D(), Analysis::bookProfile1D(), and Analysis::bookScatter2D().

                                             {
    _plotobjects.push_back(ao);
  }
const PROJ& addProjection ( const PROJ &  proj,
const std::string &  name
) [inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 113 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ATLAS_2010_S8894728::init(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), CMS_2011_S8968497::init(), ATLAS_2011_S8994773::init(), ATLAS_2011_I894867::init(), CMS_2011_S8950903::init(), ATLAS_2010_CONF_2010_049::init(), CMS_2012_I1087342::init(), ALICE_2011_S8909580::init(), ALICE_2011_S8945144::init(), CMS_2011_S8941262::init(), CMS_2011_S8973270::init(), CMS_2011_S8978280::init(), CMS_2011_S9086218::init(), CMS_2011_S9088458::init(), CMS_2011_S9215166::init(), CMS_2012_I1107658::init(), LHCF_2012_I1115479::init(), CDF_2007_S7057202::init(), TOTEM_2012_I1115294::init(), ATLAS_2010_S8591806::init(), D0_2011_I895662::init(), CMS_2011_S8957746::init(), MC_JETS::init(), CDF_2012_NOTE10874::init(), CMS_QCD_10_024::init(), ATLAS_2011_S9002537::init(), CDF_1997_S3541940::init(), UA5_1987_S1640666::init(), MC_DIJET::init(), STAR_2006_S6500200::init(), STAR_2008_S7993412::init(), CDF_2000_S4155203::init(), CDF_2005_S6080774::init(), CDF_2006_S6450792::init(), MC_DIPHOTON::init(), SFM_1984_S1178091::init(), UA5_1982_S875503::init(), H1_1995_S3167097::init(), MC_HJETS::init(), CDF_2008_S8093652::init(), MC_ZJETS::init(), STAR_2006_S6870392::init(), UA5_1989_S1926373::init(), D0_2008_S6879055::init(), CDF_1993_S2742446::init(), CMS_2012_I1102908::init(), CDF_1988_S1865951::init(), E735_1998_S3905616::init(), MC_PHOTONJETS::init(), MC_TTBAR::init(), MC_ZZJETS::init(), CDF_2008_S7782535::init(), ATLAS_2012_I1091481::init(), ATLAS_2012_I1183818::init(), D0_1996_S3324664::init(), ALEPH_1991_S2435284::init(), ATLAS_2010_S8817804::init(), DELPHI_1999_S3960137::init(), CDF_1990_S2089246::init(), OPAL_1998_S3749908::init(), UA5_1986_S1583476::init(), ALEPH_1996_S3196992::init(), MC_IDENTIFIED::init(), MC_LEADJETUE::init(), ALEPH_2002_S4823664::init(), MC_PHOTONJETUE::init(), MC_WJETS::init(), MC_WWJETS::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_2000_S4418603::init(), ATLAS_2011_S8924791::init(), D0_2010_S8570965::init(), CDF_1994_S2952106::init(), JADE_OPAL_2000_S4300807::init(), MC_GENERIC::init(), CDF_2005_S6217184::init(), ATLAS_2011_I954993::init(), D0_2001_S4674421::init(), D0_2007_S7075677::init(), LHCB_2011_I919315::init(), CDF_2008_S7540469::init(), CDF_2008_S7828950::init(), ATLAS_2011_I925932::init(), UA1_1990_S2044935::init(), ZEUS_2001_S4815815::init(), D0_1996_S3214044::init(), ALICE_2010_S8624100::init(), D0_2008_S7554427::init(), D0_2008_S7863608::init(), D0_2010_S8671338::init(), DELPHI_1995_S3137023::init(), ATLAS_2011_S9131140::init(), JADE_1998_S3612880::init(), MC_PHOTONS::init(), OPAL_1997_S3396100::init(), STAR_2006_S6860818::init(), STAR_2009_UE_HELEN::init(), ALEPH_2004_S5765862::init(), D0_2009_S8202443::init(), D0_2009_S8349509::init(), CDF_2008_S8095620::init(), MC_SUSY::init(), EXAMPLE::init(), ATLAS_2011_S9128077::init(), ALICE_2010_S8706239::init(), CDF_2009_NOTE_9936::init(), D0_2000_S4480767::init(), ALICE_2010_S8625980::init(), D0_2009_S8320160::init(), ATLAS_2011_S8971293::init(), CDF_1996_S3108457::init(), CDF_2001_S4563131::init(), CDF_2009_S8383952::init(), CDF_2009_S8436959::init(), CDF_1998_S3618439::init(), CDF_2000_S4266730::init(), D0_2006_S6438750::init(), D0_2008_S7837160::init(), D0_2010_S8566488::init(), DELPHI_2002_069_CONF_603::init(), ATLAS_2012_I1082936::init(), ATLAS_2011_I926145::init(), SLD_2002_S4869273::init(), CDF_1996_S3349578::init(), ALEPH_2001_S4656318::init(), CDF_2001_S4517016::init(), D0_2010_S8821313::init(), MC_WPOL::init(), CDF_1996_S3418421::init(), ATLAS_2011_I944826::init(), D0_2008_S7662670::init(), ATLAS_2010_S8919674::init(), ATLAS_2012_I1083318::init(), UA5_1988_S1867512::init(), ATLAS_2011_S9108483::init(), ATLAS_2012_I1125961::init(), ATLAS_2011_S9212183::init(), CDF_2006_S6653332::init(), CDF_2008_S7541902::init(), ATLAS_2011_S9225137::init(), ATLAS_2012_CONF_2012_104::init(), ATLAS_2011_S8983313::init(), ATLAS_2012_I943401::init(), ATLAS_2012_I1112263::init(), ATLAS_2011_S9212353::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2012_CONF_2012_001::init(), DELPHI_2000_S4328825::init(), OPAL_2002_S5361494::init(), ATLAS_2012_CONF_2012_103::init(), ATLAS_2012_I946427::init(), ATLAS_2012_I1095236::init(), ATLAS_2012_CONF_2012_105::init(), ATLAS_2012_CONF_2012_109::init(), ATLAS_2012_I1190891::init(), SLD_1996_S3398250::init(), ATLAS_2011_S9019561::init(), TASSO_1990_S2148048::init(), ATLAS_2012_I1117704::init(), ATLAS_2012_I1180197::init(), ATLAS_2012_I1084540::init(), ATLAS_2012_I1186556::init(), ATLAS_2011_CONF_2011_098::init(), D0_2008_S7719523::init(), ATLAS_2012_I1082009::init(), ATLAS_2012_I1126136::init(), CDF_2009_S8233977::init(), ATLAS_2012_CONF_2012_153::init(), CDF_2008_NOTE_9351::init(), CDF_2010_S8591881_DY::init(), CDF_2010_S8591881_QCD::init(), CDF_2008_LEADINGJETS::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), ATLAS_2011_S9120807::init(), CDF_2001_S4751469::init(), ATLAS_2010_S8918562::init(), LHCB_2011_I917009::init(), ATLAS_2011_I945498::init(), ATLAS_2011_S9041966::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), ATLAS_2012_I1094568::init(), OPAL_2004_S6132243::init(), ATLAS_2012_I1093738::init(), OPAL_1994_S2927284::init(), ATLAS_2011_S9126244::init(), STAR_2008_S7869363::init(), BABAR_2007_S6895344::init(), MC_VH2BB::init(), BABAR_2005_S6181155::init(), BELLE_2001_S4598261::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), DELPHI_2003_WUD_03_11::init(), CDF_2004_S5839831::init(), CLEO_2004_S5809304::init(), ARGUS_1993_S2653028::init(), OPAL_1998_S3780481::init(), BABAR_2007_S7266081::init(), OPAL_1993_S2692198::init(), ARGUS_1993_S2669951::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), ARGUS_1993_S2789213::init(), SLD_2004_S5693039::init(), BELLE_2006_S6265367::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), Spherocity::Spherocity(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

                                                                       {
      const Projection& reg = _addProjection(proj, name);
      const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
      return rtn;
    }
void analyze ( const Event &  event) [inline, virtual]

Perform the per-event analysis.

Implements Analysis.

Definition at line 175 of file ATLAS_2011_S9126244.cc.

References ATLAS_2011_S9126244::analyzeJets(), Rivet::GeV, ATLAS_2011_S9126244::m_selectionPlots, Jet::momentum(), Rivet::pT(), FourMomentum::rapidity(), and Rivet::rapidity().

                                     {
      const double weight = event.weight();

      // Get minimal list of jets needed to be considered
      double minimumJetPtBar = 50.0*GeV; //of interval defining jets

      vector<FourMomentum> acceptJets;
      foreach (const Jet& jet, applyProjection<FastJets>(event, "AntiKtJets06").jetsByPt(20.0*GeV)) {
        if (fabs(jet.momentum().rapidity()) < 4.4) {
          acceptJets.push_back(jet.momentum());
        }
      }

      // If can't form an interval drop out of the analysis early
      if (acceptJets.size() < 2) {
        return;
      }

      // Analyze leading jet case
      if ((acceptJets[0].pT() + acceptJets[1].pT())/2.0 > minimumJetPtBar) {
        analyzeJets(acceptJets, m_selectionPlots[0], weight, 20.0*GeV);
      }

      // Re-order jets to have forward backward selection
      unsigned int minRapidityJet = 0;
      unsigned int maxRapidityJet = 0;

      for (size_t j=1; j<acceptJets.size(); j++) {
        if (acceptJets[j].rapidity() >
            acceptJets[maxRapidityJet].rapidity()) {
          maxRapidityJet=j;
        }

        if (acceptJets[j].rapidity() <
            acceptJets[minRapidityJet].rapidity()) {
          minRapidityJet=j;
        }
      }

      vector<FourMomentum> fwdBkwdJets;
      fwdBkwdJets.push_back(acceptJets[maxRapidityJet]);
      fwdBkwdJets.push_back(acceptJets[minRapidityJet]);

      for (size_t j=0; j<acceptJets.size(); j++) {
        if (j==minRapidityJet or j==maxRapidityJet){
          continue;
        }
        fwdBkwdJets.push_back(acceptJets[j]);
      }

      if ((fwdBkwdJets[0].pT() + fwdBkwdJets[1].pT())/2.0 > minimumJetPtBar) {
        //Use most forward/backward jets in rapidity to define the interval
        analyzeJets(fwdBkwdJets, m_selectionPlots[1], weight,
                    20.0*GeV);

        //As before but now using PtBar of interval to define veto threshold
        analyzeJets(fwdBkwdJets, m_selectionPlots[2], weight,
                    (fwdBkwdJets[0].pT()+fwdBkwdJets[1].pT())/2.0);
      }
    }
void analyzeJets ( vector< FourMomentum > &  jets,
ATLAS_2011_S9126244_Plots &  plots,
const double  weight,
double  vetoPtThreshold
) [inline]

Definition at line 238 of file ATLAS_2011_S9126244.cc.

References ATLAS_2011_S9126244_Plots::_h_gapVsDeltaYInc, ATLAS_2011_S9126244_Plots::_h_gapVsDeltaYVeto, ATLAS_2011_S9126244_Plots::_h_gapVsPtBarInc, ATLAS_2011_S9126244_Plots::_h_gapVsPtBarVeto, ATLAS_2011_S9126244_Plots::_h_vetoPt, ATLAS_2011_S9126244_Plots::_h_vetoPtTotalSum, ATLAS_2011_S9126244_Plots::_p_avgJetVsDeltaY, ATLAS_2011_S9126244_Plots::_p_avgJetVsPtBar, BinnedHistogram< T >::fill(), Rivet::GeV, ATLAS_2011_S9126244_Plots::m_avgNJetDeltaYSlices, ATLAS_2011_S9126244_Plots::m_avgNJetPtBarSlices, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesDeltaY, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesPtBar, and Rivet::rapidity().

Referenced by ATLAS_2011_S9126244::analyze().

                                                                 {
      // Calculate the interval size, ptBar and veto Pt (if any)
      double intervalSize;
      double ptBar;
      double vetoPt = 0.0*GeV;

      intervalSize = fabs(jets[0].rapidity()-jets[1].rapidity());
      ptBar = (jets[0].pT()+jets[1].pT())/2.0;

      double minY;
      double maxY;
      if (jets[0].rapidity() > jets[1].rapidity()) {
        minY = jets[1].rapidity();
        maxY = jets[0].rapidity();
      } else {
        minY = jets[0].rapidity();
        maxY = jets[1].rapidity();
      }

      for (size_t j=2; j<jets.size(); j++){
        if (jets[j].rapidity() > minY &&
            jets[j].rapidity() < maxY &&
            jets[j].pT() > vetoPt){
          vetoPt = jets[j].pT();
        }
      }

      // Fill the gap fraction vs delta Y histograms
      plots._h_gapVsDeltaYInc.fill(ptBar/GeV, intervalSize, weight);
      if (vetoPt < vetoPtThreshold) {
        plots._h_gapVsDeltaYVeto.fill(ptBar/GeV, intervalSize, weight);
      }

      // Fill the gap fraction vs pt Bar histograms
      plots._h_gapVsPtBarInc.fill(intervalSize, ptBar/GeV,  weight);
      if (vetoPt < vetoPtThreshold) {
        plots._h_gapVsPtBarVeto.fill(intervalSize, ptBar/GeV, weight);
      }

      // Count the number of veto jets present
      int vetoJetsCount=0;
      for (size_t j=2; j<jets.size(); j++){
        if (jets[j].rapidity() > minY &&
            jets[j].rapidity() < maxY &&
            jets[j].pT() > vetoPtThreshold){
          vetoJetsCount += 1;
        }
      }

      // Fill the avg NJet, deltaY slices
      for (int i=0; i<(int)plots.m_avgNJetPtBarSlices.size()-1; i++) {
        if ( intervalSize >= plots.m_avgNJetPtBarSlices[i] &&
             intervalSize < plots.m_avgNJetPtBarSlices[i+1]) {
         plots._p_avgJetVsPtBar[i]->fill(ptBar/GeV, vetoJetsCount, weight);
        }
      }

      // Fill the avg NJet, ptBar slices
      for (int i=0; i<(int)plots.m_avgNJetDeltaYSlices.size()-1; i++) {
        if ( ptBar/GeV >= plots.m_avgNJetDeltaYSlices[i] &&
             ptBar/GeV < plots.m_avgNJetDeltaYSlices[i+1] ) {
          plots._p_avgJetVsDeltaY[i]->fill(intervalSize, vetoJetsCount, weight);
        }
      }

      // Fill the veto pt plots
      int q0PlotCount = 0;
      for (int x=0; x<((int)plots.m_gapFractionQ0SlicesPtBar.size()/2); x++) {
        for (int y=0; y<((int)plots.m_gapFractionQ0SlicesDeltaY.size()/2); y++) {
          // Check if it should be filled
          if ( ptBar/GeV < plots.m_gapFractionQ0SlicesPtBar[x*2] ||
               ptBar/GeV >= plots.m_gapFractionQ0SlicesPtBar[x*2+1] ) {
            q0PlotCount++;
            continue;
          }

          if ( intervalSize < plots.m_gapFractionQ0SlicesDeltaY[y*2] ||
               intervalSize >= plots.m_gapFractionQ0SlicesDeltaY[y*2+1] ) {
            q0PlotCount++;
            continue;
          }

          plots._h_vetoPt[q0PlotCount]->fill(vetoPt, weight);
          plots._h_vetoPtTotalSum[q0PlotCount] += weight;

          q0PlotCount++;
        }
      }
    }
const PROJ& applyProjection ( const Event &  evt,
const PROJ &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 67 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by DISFinalState::project().

                                                                          {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }
const PROJ& applyProjection ( const Event &  evt,
const Projection &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 74 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                                {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }
const PROJ& applyProjection ( const Event &  evt,
const std::string &  name
) const [inline, inherited]

Apply the named projection on event.

Definition at line 81 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                               {
      return pcast<PROJ>(_applyProjection(evt, name));
    }
virtual std::vector<std::string> authors ( ) const [inline, virtual, inherited]

Names & emails of paper/analysis authors.

Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person.

Definition at line 136 of file Analysis.hh.

References AnalysisInfo::authors(), and Analysis::info().

                                                 {
      return info().authors();
    }
const PdgIdPair beamIds ( ) const [inherited]

Incoming beam IDs for this run.

Definition at line 32 of file Analysis.cc.

References AnalysisHandler::beamIds(), and Analysis::handler().

Referenced by UA5_1982_S875503::finalize(), and UA5_1982_S875503::init().

                                          {
    return handler().beamIds();
  }
const ParticlePair & beams ( ) const [inherited]

Incoming beams for this run.

Definition at line 28 of file Analysis.cc.

References AnalysisHandler::beams(), and Analysis::handler().

Referenced by BABAR_2005_S6181155::analyze(), BABAR_2007_S6895344::analyze(), BELLE_2006_S6265367::analyze(), CLEO_2004_S5809304::analyze(), OPAL_1994_S2927284::analyze(), SLD_2004_S5693039::analyze(), SLD_1999_S3743934::analyze(), OPAL_1998_S3780481::analyze(), OPAL_1995_S3198391::analyze(), OPAL_1997_S3608263::analyze(), OPAL_2000_S4418603::analyze(), ALEPH_2002_S4823664::analyze(), DELPHI_1999_S3960137::analyze(), OPAL_1996_S3257789::analyze(), OPAL_1998_S3702294::analyze(), DELPHI_1995_S3137023::analyze(), SLD_2002_S4869273::analyze(), ALEPH_2001_S4656318::analyze(), DELPHI_2002_069_CONF_603::analyze(), OPAL_1998_S3749908::analyze(), OPAL_1997_S3396100::analyze(), ALEPH_1999_S4193598::analyze(), MC_WPOL::analyze(), ALEPH_1996_S3486095::analyze(), ALEPH_2004_S5765862::analyze(), DELPHI_1996_S3430090::analyze(), MC_WPOL::init(), and Analysis::isCompatible().

                                            {
    return handler().beams();
  }
virtual std::string bibKey ( ) const [inline, virtual, inherited]

BibTeX citation key for this article.

Definition at line 189 of file Analysis.hh.

References AnalysisInfo::bibKey(), and Analysis::info().

                                     {
      return info().bibKey();
    }
virtual std::string bibTeX ( ) const [inline, virtual, inherited]

BibTeX citation entry for this article.

Definition at line 194 of file Analysis.hh.

References AnalysisInfo::bibTeX(), and Analysis::info().

                                     {
      return info().bibTeX();
    }
Histo1DPtr bookHisto1D ( const std::string &  name,
size_t  nbins,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 213 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, and Analysis::name().

Referenced by Analysis::bookHisto1D(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), CMS_2011_S8968497::init(), CMS_2011_S8950903::init(), ATLAS_2011_I894867::init(), ATLAS_2010_CONF_2010_049::init(), ALICE_2011_S8909580::init(), ALICE_2011_S8945144::init(), CMS_2011_S8941262::init(), CMS_2011_S8973270::init(), CMS_2011_S8978280::init(), CMS_2011_S9086218::init(), CMS_2011_S9088458::init(), CMS_2012_I1087342::init(), LHCF_2012_I1115479::init(), CDF_2007_S7057202::init(), TOTEM_2012_I1115294::init(), CMS_2011_S9215166::init(), CMS_2012_I1107658::init(), D0_2011_I895662::init(), ATLAS_2010_S8591806::init(), CMS_2011_S8957746::init(), ATLAS_2011_S9002537::init(), MC_DIJET::init(), CDF_1997_S3541940::init(), STAR_2006_S6500200::init(), UA5_1987_S1640666::init(), CMS_QCD_10_024::init(), MC_DIPHOTON::init(), MC_JetAnalysis::init(), CDF_2000_S4155203::init(), CDF_2006_S6450792::init(), SFM_1984_S1178091::init(), CDF_2005_S6080774::init(), UA5_1982_S875503::init(), CDF_1993_S2742446::init(), H1_1995_S3167097::init(), MC_HJETS::init(), MC_ZJETS::init(), STAR_2006_S6870392::init(), CDF_2008_S8093652::init(), UA5_1989_S1926373::init(), D0_2008_S6879055::init(), E735_1998_S3905616::init(), CDF_1988_S1865951::init(), MC_PDFS::init(), MC_PHOTONJETS::init(), MC_TTBAR::init(), MC_ZZJETS::init(), ATLAS_2012_I1091481::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_1998_S3749908::init(), OPAL_2000_S4418603::init(), UA5_1986_S1583476::init(), ALEPH_2002_S4823664::init(), D0_1996_S3324664::init(), ATLAS_2012_I1183818::init(), DELPHI_1999_S3960137::init(), ALEPH_1991_S2435284::init(), CDF_1990_S2089246::init(), ATLAS_2010_S8817804::init(), MC_IDENTIFIED::init(), ALEPH_1996_S3196992::init(), MC_PHOTONJETUE::init(), MC_WJETS::init(), MC_WWJETS::init(), D0_2010_S8570965::init(), JADE_OPAL_2000_S4300807::init(), MC_GENERIC::init(), CDF_1994_S2952106::init(), ATLAS_2011_I954993::init(), LHCB_2011_I919315::init(), CDF_2008_S7540469::init(), CDF_2008_S7828950::init(), UA1_1990_S2044935::init(), ZEUS_2001_S4815815::init(), ATLAS_2011_I925932::init(), D0_2007_S7075677::init(), D0_2001_S4674421::init(), D0_2008_S7863608::init(), D0_2010_S8671338::init(), ALICE_2010_S8624100::init(), DELPHI_1995_S3137023::init(), JADE_1998_S3612880::init(), MC_PHOTONS::init(), ATLAS_2011_S9131140::init(), STAR_2006_S6860818::init(), OPAL_1997_S3396100::init(), D0_1996_S3214044::init(), ALEPH_2004_S5765862::init(), D0_2008_S7554427::init(), D0_2009_S8202443::init(), D0_2009_S8349509::init(), CDF_2008_S8095620::init(), EXAMPLE::init(), ALICE_2010_S8625980::init(), ATLAS_2011_S9128077::init(), MC_SUSY::init(), MC_XS::init(), ALICE_2010_S8706239::init(), CDF_2009_NOTE_9936::init(), D0_2000_S4480767::init(), ATLAS_2011_S8971293::init(), CDF_1998_S3618439::init(), CDF_2000_S4266730::init(), D0_2009_S8320160::init(), CDF_1996_S3108457::init(), CDF_2001_S4563131::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), DELPHI_2002_069_CONF_603::init(), CDF_1996_S3349578::init(), ALEPH_2001_S4656318::init(), ATLAS_2012_I1082936::init(), SLD_2002_S4869273::init(), ATLAS_2011_I926145::init(), D0_2010_S8566488::init(), D0_2008_S7837160::init(), CDF_2001_S4517016::init(), D0_2006_S6438750::init(), D0_2010_S8821313::init(), CDF_1996_S3418421::init(), MC_WPOL::init(), ATLAS_2010_S8919674::init(), ATLAS_2012_I1083318::init(), ATLAS_2011_I944826::init(), D0_2008_S7662670::init(), ATLAS_2011_S9108483::init(), ATLAS_2011_S9212183::init(), CDF_2006_S6653332::init(), CDF_2008_S7541902::init(), ATLAS_2012_I1125961::init(), ATLAS_2012_CONF_2012_109::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2012_I1180197::init(), ATLAS_2012_I946427::init(), ATLAS_2011_S9212353::init(), ATLAS_2012_I1190891::init(), ATLAS_2012_I1117704::init(), ATLAS_2012_I1112263::init(), ATLAS_2012_I943401::init(), ATLAS_2012_CONF_2012_103::init(), ATLAS_2012_CONF_2012_104::init(), ATLAS_2012_CONF_2012_001::init(), ATLAS_2011_S9225137::init(), ATLAS_2012_CONF_2012_105::init(), TASSO_1990_S2148048::init(), ATLAS_2011_S8983313::init(), ATLAS_2012_I1095236::init(), ATLAS_2011_S9019561::init(), ATLAS_2012_I1186556::init(), D0_2008_S7719523::init(), ATLAS_2011_CONF_2011_098::init(), ATLAS_2012_I1082009::init(), ATLAS_2012_I1084540::init(), CDF_2009_S8233977::init(), ATLAS_2012_I1126136::init(), ATLAS_2012_CONF_2012_153::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), ATLAS_2011_S9120807::init(), ATLAS_2010_S8918562::init(), CDF_2001_S4751469::init(), ATLAS_2011_I945498::init(), ATLAS_2011_S9041966::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), OPAL_2004_S6132243::init(), OPAL_1994_S2927284::init(), ATLAS_2012_I1093738::init(), STAR_2008_S7869363::init(), BABAR_2007_S6895344::init(), MC_VH2BB::init(), BELLE_2001_S4598261::init(), BABAR_2005_S6181155::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), DELPHI_2003_WUD_03_11::init(), CDF_2004_S5839831::init(), CLEO_2004_S5809304::init(), ARGUS_1993_S2653028::init(), OPAL_1998_S3780481::init(), BABAR_2007_S7266081::init(), OPAL_1993_S2692198::init(), ARGUS_1993_S2669951::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), ARGUS_1993_S2789213::init(), SLD_2004_S5693039::init(), BELLE_2006_S6265367::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), ATLAS_2011_S9126244::initializePlots(), and ATLAS_2012_I1094568::InitializePlots().

                                                                               {
    const string path = histoPath(hname);
    Histo1DPtr hist( new Histo1D(nbins, lower, upper, path, title) );
    addPlot(hist);
    MSG_TRACE("Made histogram " << hname <<  " for " << name());
    hist->setAnnotation("XLabel", xtitle);
    hist->setAnnotation("YLabel", ytitle);
    return hist;
  }
Histo1DPtr bookHisto1D ( const std::string &  name,
const std::vector< double > &  binedges,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 227 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, and Analysis::name().

                                                         {
    const string path = histoPath(hname);
    Histo1DPtr hist( new Histo1D(binedges, path, title) );
    addPlot(hist);
    MSG_TRACE("Made histogram " << hname <<  " for " << name());
    hist->setAnnotation("XLabel", xtitle);
    hist->setAnnotation("YLabel", ytitle);
    return hist;
  }
Histo1DPtr bookHisto1D ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

Definition at line 198 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, Analysis::name(), and Analysis::referenceData().

  {
    const Scatter2D & refdata = referenceData(hname);
    const string path = histoPath(hname);
    Histo1DPtr hist( new Histo1D(refdata, path) );
    addPlot(hist);
    MSG_TRACE("Made histogram " << hname <<  " for " << name());
    hist->setTitle(title);
    hist->setAnnotation("XLabel", xtitle);
    hist->setAnnotation("YLabel", ytitle);
    return hist;
  }
Histo1DPtr bookHisto1D ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Definition at line 189 of file Analysis.cc.

References Analysis::bookHisto1D(), and Analysis::makeAxisCode().

  {
    const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
    return bookHisto1D(axisCode, title, xtitle, ytitle);
  }
Profile1DPtr bookProfile1D ( const std::string &  name,
size_t  nbins,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 304 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, and Analysis::name().

Referenced by Analysis::bookProfile1D(), ATLAS_2010_S8894728::init(), ATLAS_2011_S8994773::init(), ALICE_2011_S8945144::init(), CMS_2012_I1107658::init(), ATLAS_2010_S8591806::init(), CDF_2012_NOTE10874::init(), STAR_2008_S7993412::init(), CDF_2008_S7782535::init(), D0_1996_S3324664::init(), MC_LEADJETUE::init(), MC_PHOTONJETUE::init(), ATLAS_2011_S8924791::init(), CDF_2005_S6217184::init(), MC_GENERIC::init(), UA1_1990_S2044935::init(), STAR_2006_S6860818::init(), STAR_2009_UE_HELEN::init(), MC_PHOTONS::init(), ALICE_2010_S8706239::init(), ALEPH_2001_S4656318::init(), DELPHI_2002_069_CONF_603::init(), MC_WPOL::init(), CDF_2009_S8233977::init(), CDF_2008_NOTE_9351::init(), CDF_2010_S8591881_DY::init(), CDF_2010_S8591881_QCD::init(), CDF_2008_LEADINGJETS::init(), ATLAS_2010_S8918562::init(), CDF_2001_S4751469::init(), DELPHI_1996_S3430090::init(), CDF_2004_S5839831::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), and ATLAS_2011_S9126244::initializePlots().

                                                                                   {
    const string path = histoPath(hname);
    Profile1DPtr prof( new Profile1D(nbins, lower, upper, path, title) );
    addPlot(prof);
    MSG_TRACE("Made profile histogram " << hname <<  " for " << name());
    prof->setAnnotation("XLabel", xtitle);
    prof->setAnnotation("YLabel", ytitle);
    return prof;
  }
Profile1DPtr bookProfile1D ( const std::string &  name,
const std::vector< double > &  binedges,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 318 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, and Analysis::name().

                                                                                   {
    const string path = histoPath(hname);
    Profile1DPtr prof( new Profile1D(binedges, path, title) );
    addPlot(prof);
    MSG_TRACE("Made profile histogram " << hname <<  " for " << name());
    prof->setAnnotation("XLabel", xtitle);
    prof->setAnnotation("YLabel", ytitle);
    return prof;
  }
Profile1DPtr bookProfile1D ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

Definition at line 289 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, Analysis::name(), and Analysis::referenceData().

  {
    const Scatter2D & refdata = referenceData(hname);
    const string path = histoPath(hname);
    Profile1DPtr prof( new Profile1D(refdata, path) );
    addPlot(prof);
    MSG_TRACE("Made profile histogram " << hname <<  " for " << name());
    prof->setTitle(title);
    prof->setAnnotation("XLabel", xtitle);
    prof->setAnnotation("YLabel", ytitle);
    return prof;
  }
Profile1DPtr bookProfile1D ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Definition at line 281 of file Analysis.cc.

References Analysis::bookProfile1D(), and Analysis::makeAxisCode().

                                                                                   {
    const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
    return bookProfile1D(axisCode, title, xtitle, ytitle);
  }
Scatter2DPtr bookScatter2D ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 343 of file Analysis.cc.

References Analysis::addPlot(), Analysis::histoPath(), MSG_TRACE, and Analysis::name().

Referenced by Analysis::bookScatter2D(), ALEPH_2004_S5765862::finalize(), ATLAS_2010_S8894728::init(), ALICE_2011_S8909580::init(), CMS_2011_S8978280::init(), CMS_2011_S9088458::init(), ATLAS_2011_S9002537::init(), STAR_2006_S6500200::init(), MC_JetAnalysis::init(), CDF_2008_S7782535::init(), CMS_2012_I1102908::init(), MC_WJETS::init(), MC_GENERIC::init(), CDF_1994_S2952106::init(), CDF_2005_S6217184::init(), D0_2001_S4674421::init(), STAR_2006_S6860818::init(), ATLAS_2011_S9128077::init(), MC_XS::init(), D0_2008_S7837160::init(), CDF_1996_S3418421::init(), UA5_1988_S1867512::init(), ATLAS_2012_I1083318::init(), ATLAS_2011_I944826::init(), CDF_2008_S7541902::init(), D0_2008_S7719523::init(), ATLAS_2011_I945498::init(), SLD_2004_S5693039::init(), SLD_1999_S3743934::init(), ATLAS_2011_S9126244::initializePlots(), and ATLAS_2012_I1094568::InitializePlots().

                                                                                   {
    const string path = histoPath(hname);
    Scatter2DPtr dps( new Scatter2D(path, title) );
    addPlot(dps);
    MSG_TRACE("Made data point set " << hname <<  " for " << name());
    dps->setAnnotation("XLabel", xtitle);
    dps->setAnnotation("YLabel", ytitle);
    return dps;
  }
Scatter2DPtr bookScatter2D ( const std::string &  name,
size_t  npts,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set with equally spaced points in a range. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Definition at line 355 of file Analysis.cc.

References Analysis::bookScatter2D().

                                                                                   {
    Scatter2DPtr dps = bookScatter2D(hname, title, xtitle, ytitle);
    const double binwidth = (upper-lower)/npts;
    for (size_t pt = 0; pt < npts; ++pt) {
      const double bincentre = lower + (pt + 0.5) * binwidth;
      // @todo YODA check
      dps->addPoint(bincentre, 0, binwidth/2.0, 0);
      // IMeasurement* meas = dps->point(pt)->coordinate(0);
      // meas->setValue(bincentre);
      // meas->setErrorPlus(binwidth/2.0);
      // meas->setErrorMinus(binwidth/2.0);
    }
    return dps;
  }
Scatter2DPtr bookScatter2D ( const std::string &  name,
const std::string &  title
) [protected, inherited]

Book a 2-dimensional data point set based on the corresponding AIDA data file. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Scatter2DPtr bookScatter2D ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Definition at line 335 of file Analysis.cc.

References Analysis::bookScatter2D(), and Analysis::makeAxisCode().

                                                                                   {
    const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
    return bookScatter2D(axisCode, title, xtitle, ytitle);
  }
virtual std::string collider ( ) const [inline, virtual, inherited]

Collider on which the experiment ran.

Definition at line 174 of file Analysis.hh.

References AnalysisInfo::collider(), and Analysis::info().

                                       {
      return info().collider();
    }
double crossSection ( ) const [protected, inherited]

Get the process cross-section in pb. Throws if this hasn't been set.

Definition at line 145 of file Analysis.cc.

References Analysis::_crossSection, Analysis::_gotCrossSection, and Analysis::name().

Referenced by MC_JetAnalysis::finalize(), CDF_2006_S6450792::finalize(), CMS_2011_S9086218::finalize(), CDF_2008_S7828950::finalize(), D0_2000_S4480767::finalize(), MC_XS::finalize(), CDF_2008_S8093652::finalize(), CDF_2000_S4155203::finalize(), CMS_2011_S8941262::finalize(), CDF_2001_S4563131::finalize(), CMS_2012_I1087342::finalize(), CDF_1998_S3618439::finalize(), BABAR_2005_S6181155::finalize(), D0_2010_S8566488::finalize(), STAR_2006_S6870392::finalize(), CDF_2009_S8383952::finalize(), CDF_2000_S4266730::finalize(), CDF_2001_S4517016::finalize(), CDF_2009_S8436959::finalize(), ATLAS_2011_I894867::finalize(), D0_2011_I895662::finalize(), MC_HJETS::finalize(), MC_ZJETS::finalize(), MC_DIPHOTON::finalize(), CDF_2005_S6080774::finalize(), D0_2006_S6438750::finalize(), CLEO_2004_S5809304::finalize(), D0_2008_S7662670::finalize(), D0_2008_S7863608::finalize(), ATLAS_2010_CONF_2010_049::finalize(), CDF_2009_S8233977::finalize(), MC_WJETS::finalize(), ATLAS_2011_I954993::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2012_I946427::finalize(), CDF_2008_S7541902::finalize(), D0_2010_S8570965::finalize(), D0_2008_S7719523::finalize(), CDF_2006_S6653332::finalize(), ATLAS_2011_I926145::finalize(), ATLAS_2011_S9108483::finalize(), CDF_2008_S7540469::finalize(), MC_WWJETS::finalize(), ATLAS_2010_S8919674::finalize(), ATLAS_2010_S8914702::finalize(), MC_ZZJETS::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2012_CONF_2012_105::finalize(), ATLAS_2011_S9120807::finalize(), BELLE_2006_S6265367::finalize(), ATLAS_2012_I1084540::finalize(), ATLAS_2012_CONF_2012_104::finalize(), ATLAS_2012_I1186556::finalize(), MC_VH2BB::finalize(), ATLAS_2012_CONF_2012_103::finalize(), ATLAS_2012_I1117704::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1093738::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2012_CONF_2012_001::finalize(), ATLAS_2011_S9225137::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), ATLAS_2012_CONF_2012_153::finalize(), ATLAS_2011_S9212353::finalize(), ATLAS_2011_S9041966::finalize(), and ATLAS_2011_I919017::finalize().

                                      {
    if (!_gotCrossSection || std::isnan(_crossSection)) {
      string errMsg = "You did not set the cross section for the analysis " + name();
      throw Error(errMsg);
    }
    return _crossSection;
  }
double crossSectionPerEvent ( ) const [protected, inherited]

Get the process cross-section per generated event in pb. Throws if this hasn't been set.

Definition at line 153 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::sumOfWeights().

Referenced by D0_2010_S8671338::finalize(), CDF_2007_S7057202::finalize(), CDF_1988_S1865951::finalize(), LHCB_2011_I919315::finalize(), ATLAS_2010_S8817804::finalize(), MC_PHOTONJETS::finalize(), ATLAS_2012_I1082936::finalize(), D0_2009_S8349509::finalize(), UA1_1990_S2044935::finalize(), D0_2001_S4674421::finalize(), MC_WPOL::finalize(), ATLAS_2011_S9128077::finalize(), and ATLAS_2011_I945498::finalize().

                                              {
    const double sumW = sumOfWeights();
    assert(sumW != 0.0);
    return _crossSection / sumW;
  }
virtual std::string description ( ) const [inline, virtual, inherited]

Get a full description of the analysis.

Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators.

Definition at line 155 of file Analysis.hh.

References AnalysisInfo::description(), and Analysis::info().

                                          {
      return info().description();
    }
void divide ( Histo1DPtr  h1,
Histo1DPtr  h2,
Scatter2DPtr  s
) const [inherited]

Helper for histogram division. Preserves the path information of the target.

Definition at line 399 of file Analysis.cc.

Referenced by CMS_2011_S8978280::finalize(), ALICE_2011_S8909580::finalize(), STAR_2006_S6500200::finalize(), D0_2008_S7837160::finalize(), MC_WJETS::finalize(), D0_2008_S7719523::finalize(), STAR_2006_S6860818::finalize(), ATLAS_2011_S9128077::finalize(), SLD_2004_S5693039::finalize(), and SLD_1999_S3743934::finalize().

                                                                          {
    // preserve the path info
    std::string path = s->path();
    *s = *h1 / *h2;
    s->setPath( path );
  }
void divide ( Profile1DPtr  p1,
Profile1DPtr  p2,
Scatter2DPtr  s
) const [inherited]

Helper for profile histogram division. Preserves the path information of the target.

Definition at line 406 of file Analysis.cc.

                                                                              {
    // preserve the path info
    std::string path = s->path();
    *s = *p1 / *p2;
    s->setPath( path );
  }
void divide ( const YODA::Histo1D &  h1,
const YODA::Histo1D &  h2,
Scatter2DPtr  s
) const [inherited]

Helper for histogram division. Preserves the path information of the target.

Definition at line 413 of file Analysis.cc.

                                              {
    // preserve the path info
    std::string path = s->path();
    *s = h1 / h2;
    s->setPath( path );
  }
void divide ( const YODA::Profile1D &  p1,
const YODA::Profile1D &  p2,
Scatter2DPtr  s
) const [inherited]

Helper for profile histogram division. Preserves the path information of the target.

Definition at line 422 of file Analysis.cc.

                                              {
    // preserve the path info
    std::string path = s->path();
    *s = p1 / p2;
    s->setPath( path );
  }
virtual std::string experiment ( ) const [inline, virtual, inherited]

Experiment which performed and published this analysis.

Definition at line 169 of file Analysis.hh.

References AnalysisInfo::experiment(), and Analysis::info().

                                         {
      return info().experiment();
    }
void finalize ( ) [inline, virtual]

Derive final distributions for each selection.

Todo:
YODA divide and binEdges foreach (const ATLAS_2011_S9126244_Plots& plots, m_selectionPlots) { Calculate the gap fraction for each slice for (size_t x=0; x<plots._h_gapVsDeltaYVeto.getHistograms().size(); x++) { histogramFactory().divide(histoPath(makeAxisCode(plots.m_gapFractionDeltaYHistIndex+x, 1, plots.selectionType)), (plots._h_gapVsDeltaYVeto.getHistograms()[x]), (plots._h_gapVsDeltaYInc.getHistograms()[x])); histogramFactory().destroy(plots._h_gapVsDeltaYVeto.getHistograms()[x]); histogramFactory().destroy(plots._h_gapVsDeltaYInc.getHistograms()[x]); }

for (size_t x=0; x<plots._h_gapVsPtBarVeto.getHistograms().size(); x++) { histogramFactory().divide(histoPath(makeAxisCode(plots.m_gapFractionPtBarHistIndex+x, 1, plots.selectionType)), (plots._h_gapVsPtBarVeto.getHistograms()[x]), (plots._h_gapVsPtBarInc.getHistograms()[x])); histogramFactory().destroy(plots._h_gapVsPtBarVeto.getHistograms()[x]); histogramFactory().destroy(plots._h_gapVsPtBarInc.getHistograms()[x]); }

for (size_t h=0; h<plots._d_vetoPtGapFraction.size(); h++) { Get the number of bins needed for this slice const BinEdges q0Edges = binEdges(plots.m_gapFractionQ0HistIndex+h, 1, plots.selectionType); finalizeQ0GapFraction(plots._h_vetoPtTotalSum[h], plots._d_vetoPtGapFraction[h], plots._h_vetoPt[h], q0Edges.size()); } }

Reimplemented from Analysis.

Definition at line 331 of file ATLAS_2011_S9126244.cc.

                    {
      /// \todo YODA divide and binEdges
      /// foreach (const ATLAS_2011_S9126244_Plots& plots, m_selectionPlots) {
      ///    // Calculate the gap fraction for each slice
      ///    for (size_t x=0; x<plots._h_gapVsDeltaYVeto.getHistograms().size(); x++) {
      ///      histogramFactory().divide(histoPath(makeAxisCode(plots.m_gapFractionDeltaYHistIndex+x, 1, plots.selectionType)),
      ///                                *(plots._h_gapVsDeltaYVeto.getHistograms()[x]),
      ///                                *(plots._h_gapVsDeltaYInc.getHistograms()[x]));
      ///      histogramFactory().destroy(plots._h_gapVsDeltaYVeto.getHistograms()[x]);
      ///      histogramFactory().destroy(plots._h_gapVsDeltaYInc.getHistograms()[x]);
      ///    }

      ///    for (size_t x=0; x<plots._h_gapVsPtBarVeto.getHistograms().size(); x++) {
      ///      histogramFactory().divide(histoPath(makeAxisCode(plots.m_gapFractionPtBarHistIndex+x, 1, plots.selectionType)),
      ///                                *(plots._h_gapVsPtBarVeto.getHistograms()[x]),
      ///                                *(plots._h_gapVsPtBarInc.getHistograms()[x]));
      ///      histogramFactory().destroy(plots._h_gapVsPtBarVeto.getHistograms()[x]);
      ///      histogramFactory().destroy(plots._h_gapVsPtBarInc.getHistograms()[x]);
      ///    }

      ///    for (size_t h=0; h<plots._d_vetoPtGapFraction.size(); h++) {
      ///      //Get the number of bins needed for this slice
      ///      const BinEdges q0Edges = binEdges(plots.m_gapFractionQ0HistIndex+h, 1, plots.selectionType);
      ///      finalizeQ0GapFraction(plots._h_vetoPtTotalSum[h],
      ///                            plots._d_vetoPtGapFraction[h],
      ///                            plots._h_vetoPt[h],
      ///                            q0Edges.size());
      ///    }
      /// }
    }
Log & getLog ( ) const [protected, inherited]

Get a Log object based on the name() property of the calling analysis object.

Reimplemented from ProjectionApplier.

Definition at line 76 of file Analysis.cc.

References Analysis::name().

                              {
    string logname = "Rivet.Analysis." + name();
    return Log::getLog(logname);
  }
const PROJ& getProjection ( const std::string &  name) const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 49 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

                                                           {
      const Projection& p = getProjHandler().getProjection(*this, name);
      return pcast<PROJ>(p);
    }
const Projection& getProjection ( const std::string &  name) const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 57 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

                                                                 {
      return getProjHandler().getProjection(*this, name);
    }
std::set<ConstProjectionPtr> getProjections ( ) const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 42 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

                                                      {
      return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
    }
ProjectionHandler& getProjHandler ( ) const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 94 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

                                              {
      return _projhandler;
    }
AnalysisHandler& handler ( ) const [inline, inherited]

Access the controlling AnalysisHandler object.

Definition at line 291 of file Analysis.hh.

References Analysis::_analysishandler.

Referenced by Analysis::beamIds(), Analysis::beams(), Analysis::histoDir(), Analysis::numEvents(), Analysis::sqrtS(), and Analysis::sumOfWeights().

{ return *_analysishandler; }
const string histoDir ( ) const [protected, inherited]

Get the canonical histogram "directory" path for this analysis.

Todo:
This doesn't change: calc and cache at first use!

Definition at line 37 of file Analysis.cc.

References Analysis::handler(), Analysis::name(), and AnalysisHandler::runName().

Referenced by Analysis::histoPath().

                                        {
    /// @todo This doesn't change: calc and cache at first use!
    string path = "/" + name();
    if (handler().runName().length() > 0) {
      path = "/" + handler().runName() + path;
    }
    while (find_first(path, "//")) {
      replace_all(path, "//", "/");
    }
    return path;
  }
const string histoPath ( const std::string &  hname) const [protected, inherited]

Get the canonical histogram path for the named histogram in this analysis.

Definition at line 50 of file Analysis.cc.

References Analysis::histoDir().

Referenced by Analysis::bookHisto1D(), Analysis::bookProfile1D(), and Analysis::bookScatter2D().

                                                            {
    const string path = histoDir() + "/" + hname;
    return path;
  }
const string histoPath ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId
) const [protected, inherited]

Get the canonical histogram path for the numbered histogram in this analysis.

Definition at line 56 of file Analysis.cc.

References Analysis::histoDir(), and Analysis::makeAxisCode().

                                                                                         {
    return histoDir() + "/" + makeAxisCode(datasetId, xAxisId, yAxisId);
  }
const AnalysisInfo& info ( ) const [inline, inherited]

Get the actual AnalysisInfo object in which all this metadata is stored.

Definition at line 108 of file Analysis.hh.

References Analysis::_info.

Referenced by Analysis::authors(), Analysis::bibKey(), Analysis::bibTeX(), Analysis::collider(), Analysis::description(), Analysis::experiment(), Analysis::inspireId(), Analysis::name(), Analysis::needsCrossSection(), Analysis::references(), Analysis::requiredBeams(), Analysis::requiredEnergies(), Analysis::runInfo(), Analysis::setNeedsCrossSection(), Analysis::setRequiredBeams(), Analysis::setRequiredEnergies(), Analysis::spiresId(), Analysis::status(), Analysis::summary(), Analysis::todos(), and Analysis::year().

                                     {
      assert(_info.get() != 0 && "No AnalysisInfo object :O");
      return *_info;
    }
AnalysisInfo& info ( ) [inline, inherited]

Get the actual AnalysisInfo object in which all this metadata is stored (non-const).

Definition at line 250 of file Analysis.hh.

References Analysis::_info.

                         {
      assert(_info.get() != 0 && "No AnalysisInfo object :O");
      return *_info;
    }
void init ( ) [inline, virtual]

Book histograms and initialise projections before the run.

Reimplemented from Analysis.

Definition at line 61 of file ATLAS_2011_S9126244.cc.

References ProjectionApplier::addProjection(), FastJets::ANTIKT, ATLAS_2011_S9126244::initializePlots(), ATLAS_2011_S9126244_Plots::intermediateHistName, ATLAS_2011_S9126244_Plots::m_avgNJetDeltaYHistIndex, ATLAS_2011_S9126244_Plots::m_avgNJetDeltaYSlices, ATLAS_2011_S9126244_Plots::m_avgNJetPtBarHistIndex, ATLAS_2011_S9126244_Plots::m_avgNJetPtBarSlices, ATLAS_2011_S9126244_Plots::m_gapFractionDeltaYHistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionDeltaYSlices, ATLAS_2011_S9126244_Plots::m_gapFractionPtBarHistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionPtBarSlices, ATLAS_2011_S9126244_Plots::m_gapFractionQ0HistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesDeltaY, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesPtBar, ATLAS_2011_S9126244::m_q0BinEdges, ATLAS_2011_S9126244::m_selectionPlots, and ATLAS_2011_S9126244_Plots::selectionType.

                {

      // Initialize the lone projection required
      addProjection(FastJets(FinalState(), FastJets::ANTIKT, 0.6), "AntiKtJets06");

      // Make Q0 bins 0->20 then 20 to 195.0 in steps of 5
      m_q0BinEdges += 0.0;
      for (unsigned int x=0; x<36; x++){
        m_q0BinEdges += 20.0 + x*5.0 ;
      }

      // Initialize plots for each selection type
      m_selectionPlots[0].intermediateHistName = "highestPt";
      m_selectionPlots[0].selectionType = 1;
      m_selectionPlots[0].m_gapFractionDeltaYHistIndex = 6;
      m_selectionPlots[0].m_gapFractionPtBarHistIndex = 1;
      m_selectionPlots[0].m_gapFractionQ0HistIndex = 13;
      m_selectionPlots[0].m_avgNJetDeltaYHistIndex = 37;
      m_selectionPlots[0].m_avgNJetPtBarHistIndex = 26;
      m_selectionPlots[0].m_gapFractionDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      m_selectionPlots[0].m_gapFractionPtBarSlices += 1.0, 2.0, 3.0, 4.0, 5.0, 6.0;
      m_selectionPlots[0].m_gapFractionQ0SlicesPtBar += 70.0, 90.0, 120.0, 150.0, 210.0, 240.0;
      m_selectionPlots[0].m_gapFractionQ0SlicesDeltaY += 2.0, 3.0, 4.0, 5.0;
      m_selectionPlots[0].m_avgNJetPtBarSlices += 1.0, 2.0, 3.0, 4.0, 5.0;
      m_selectionPlots[0].m_avgNJetDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      initializePlots(m_selectionPlots[0]);

      m_selectionPlots[1].intermediateHistName = "forwardBackward";
      m_selectionPlots[1].selectionType = 2;
      m_selectionPlots[1].m_gapFractionDeltaYHistIndex = 6;
      m_selectionPlots[1].m_gapFractionPtBarHistIndex = 1;
      m_selectionPlots[1].m_gapFractionQ0HistIndex = 13;
      m_selectionPlots[1].m_avgNJetDeltaYHistIndex = 37;
      m_selectionPlots[1].m_avgNJetPtBarHistIndex = 26;
      m_selectionPlots[1].m_gapFractionDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      m_selectionPlots[1].m_gapFractionPtBarSlices += 1.0, 2.0, 3.0, 4.0, 5.0, 6.0;
      m_selectionPlots[1].m_gapFractionQ0SlicesPtBar += 70.0, 90.0, 120.0, 150.0, 210.0, 240.0;
      m_selectionPlots[1].m_gapFractionQ0SlicesDeltaY += 2.0, 3.0, 4.0, 5.0;
      m_selectionPlots[1].m_avgNJetPtBarSlices += 1.0, 2.0, 3.0, 4.0, 5.0;
      m_selectionPlots[1].m_avgNJetDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      initializePlots(m_selectionPlots[1]);

      m_selectionPlots[2].intermediateHistName = "forwardBackward_PtBarVeto";
      m_selectionPlots[2].selectionType = 1;
      m_selectionPlots[2].m_gapFractionDeltaYHistIndex = 19;
      m_selectionPlots[2].m_avgNJetDeltaYHistIndex = 30;
      m_selectionPlots[2].m_gapFractionDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      m_selectionPlots[2].m_avgNJetDeltaYSlices += 70.0, 90.0, 120.0, 150.0, 180.0, 210.0, 240.0, 270.0;
      initializePlots(m_selectionPlots[2]);
    }
void initializePlots ( ATLAS_2011_S9126244_Plots &  plots) [inline]

Definition at line 113 of file ATLAS_2011_S9126244.cc.

References ATLAS_2011_S9126244_Plots::_d_vetoPtGapFraction, ATLAS_2011_S9126244_Plots::_h_gapVsDeltaYInc, ATLAS_2011_S9126244_Plots::_h_gapVsDeltaYVeto, ATLAS_2011_S9126244_Plots::_h_gapVsPtBarInc, ATLAS_2011_S9126244_Plots::_h_gapVsPtBarVeto, ATLAS_2011_S9126244_Plots::_h_vetoPt, ATLAS_2011_S9126244_Plots::_h_vetoPtTotalSum, ATLAS_2011_S9126244_Plots::_p_avgJetVsDeltaY, ATLAS_2011_S9126244_Plots::_p_avgJetVsPtBar, BinnedHistogram< T >::addHistogram(), Analysis::bookHisto1D(), Analysis::bookProfile1D(), Analysis::bookScatter2D(), ATLAS_2011_S9126244_Plots::intermediateHistName, ATLAS_2011_S9126244_Plots::m_avgNJetDeltaYHistIndex, ATLAS_2011_S9126244_Plots::m_avgNJetDeltaYSlices, ATLAS_2011_S9126244_Plots::m_avgNJetPtBarHistIndex, ATLAS_2011_S9126244_Plots::m_avgNJetPtBarSlices, ATLAS_2011_S9126244_Plots::m_gapFractionDeltaYHistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionDeltaYSlices, ATLAS_2011_S9126244_Plots::m_gapFractionPtBarHistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionPtBarSlices, ATLAS_2011_S9126244_Plots::m_gapFractionQ0HistIndex, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesDeltaY, ATLAS_2011_S9126244_Plots::m_gapFractionQ0SlicesPtBar, ATLAS_2011_S9126244::m_q0BinEdges, and ATLAS_2011_S9126244_Plots::selectionType.

Referenced by ATLAS_2011_S9126244::init().

                                                           {

      // Gap Fraction Vs DeltaY
      for (int x=0; x<((int)plots.m_gapFractionDeltaYSlices.size()-1); x++) {
        std::stringstream vetoHistName;
        std::stringstream inclusiveHistName;

        vetoHistName << "gapDeltaYVeto_" << plots.intermediateHistName << "_" << x;
        inclusiveHistName << "gapDeltaYInclusive_" << plots.intermediateHistName << "_" << x;

        plots._h_gapVsDeltaYVeto.addHistogram(plots.m_gapFractionDeltaYSlices[x], plots.m_gapFractionDeltaYSlices[x+1],
            bookHisto1D(plots.m_gapFractionDeltaYHistIndex+x, 1, plots.selectionType, vetoHistName.str()));
        plots._h_gapVsDeltaYInc.addHistogram(plots.m_gapFractionDeltaYSlices[x], plots.m_gapFractionDeltaYSlices[x+1],
            bookHisto1D(plots.m_gapFractionDeltaYHistIndex+x, 1, plots.selectionType, inclusiveHistName.str()));
      }

      // Average NJet Vs DeltaY
      for (int x=0; x<((int)plots.m_avgNJetDeltaYSlices.size()-1); x++) {
        plots._p_avgJetVsDeltaY += bookProfile1D(plots.m_avgNJetDeltaYHistIndex+x, 1, plots.selectionType);
      }

      // Gap Fraction Vs PtBar
      for (int x=0; x<((int)plots.m_gapFractionPtBarSlices.size()-1); x++) {

        std::stringstream vetoHistName;
        std::stringstream inclusiveHistName;

        vetoHistName << "gapPtBarVeto_" << plots.intermediateHistName << "_" << x;
        inclusiveHistName << "gapPtBarInclusive_" << plots.intermediateHistName << "_" << x;

        plots._h_gapVsPtBarVeto.addHistogram(plots.m_gapFractionPtBarSlices[x], plots.m_gapFractionPtBarSlices[x+1],
            bookHisto1D(plots.m_gapFractionPtBarHistIndex+x, 1, plots.selectionType, vetoHistName.str()));
        plots._h_gapVsPtBarInc.addHistogram(plots.m_gapFractionPtBarSlices[x], plots.m_gapFractionPtBarSlices[x+1],
            bookHisto1D(plots.m_gapFractionPtBarHistIndex+x, 1, plots.selectionType, inclusiveHistName.str()));
      }

      // Average NJet Vs PtBar
      for (int x=0; x<((int)plots.m_avgNJetPtBarSlices.size()-1); x++) {
        plots._p_avgJetVsPtBar += bookProfile1D(plots.m_avgNJetPtBarHistIndex+x, 1, plots.selectionType);
      }

      // Gap fraction Vs Q0
      int q0PlotCount = 0;
      for (int x=0; x<((int)plots.m_gapFractionQ0SlicesPtBar.size()/2); x++) {
        for (int y=0; y<((int)plots.m_gapFractionQ0SlicesDeltaY.size()/2); y++) {
          std::stringstream vetoPtHistName;
          std::stringstream vetoPtGapDataPointName;

          vetoPtHistName << "vetoPt_" << plots.intermediateHistName << "_" << q0PlotCount;
          vetoPtGapDataPointName << "gapQ0GapFractionDataPoints_" << plots.intermediateHistName << "_" << q0PlotCount;

          plots._h_vetoPt += bookHisto1D(vetoPtHistName.str(),
                                             m_q0BinEdges);
          plots._d_vetoPtGapFraction += bookScatter2D(plots.m_gapFractionQ0HistIndex+q0PlotCount, 1, plots.selectionType);
          plots._h_vetoPtTotalSum += 0.0;
          q0PlotCount++;
        }
      }
    }
virtual std::string inspireId ( ) const [inline, virtual, inherited]

Get the Inspire ID code for this analysis.

Definition at line 123 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::inspireId().

                                        {
      return info().inspireId();
    }
bool isCompatible ( const ParticlePair &  beams) const [inherited]

Check if analysis is compatible with the provided beam particle IDs and energies.

Definition at line 95 of file Analysis.cc.

Referenced by Analysis::isCompatible().

                                                             {
    return isCompatible(beams.first.pdgId(),  beams.second.pdgId(),
                        beams.first.energy(), beams.second.energy());
  }
bool isCompatible ( PdgId  beam1,
PdgId  beam2,
double  e1,
double  e2
) const [inherited]

Check if analysis is compatible with the provided beam particle IDs and energies.

Definition at line 101 of file Analysis.cc.

References Analysis::beams(), and Analysis::isCompatible().

                                                                                  {
    PdgIdPair beams(beam1, beam2);
    pair<double,double> energies(e1, e2);
    return isCompatible(beams, energies);
  }
bool isCompatible ( const PdgIdPair &  beams,
const std::pair< double, double > &  energies
) const [inherited]

Check if analysis is compatible with the provided beam particle IDs and energies.

const string makeAxisCode ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId
) const [protected, inherited]

Get the internal histogram name for given d, x and y (cf. HepData)

Definition at line 61 of file Analysis.cc.

Referenced by Analysis::bookHisto1D(), Analysis::bookProfile1D(), Analysis::bookScatter2D(), Analysis::histoPath(), and Analysis::referenceData().

                                                                                            {
    stringstream axisCode;
    axisCode << "d";
    if (datasetId < 10) axisCode << 0;
    axisCode << datasetId;
    axisCode << "-x";
    if (xAxisId < 10) axisCode << 0;
    axisCode << xAxisId;
    axisCode << "-y";
    if (yAxisId < 10) axisCode << 0;
    axisCode << yAxisId;
    return axisCode.str();
  }
virtual std::string name ( ) const [inline, virtual, inherited]

Get the name of the analysis.

By default this is computed by combining the results of the experiment, year and Spires ID metadata methods and you should only override it if there's a good reason why those won't work.

Implements ProjectionApplier.

Definition at line 118 of file Analysis.hh.

References Analysis::_defaultname, Analysis::info(), and AnalysisInfo::name().

Referenced by Analysis::_cacheRefData(), Analysis::Analysis(), Analysis::bookHisto1D(), Analysis::bookProfile1D(), Analysis::bookScatter2D(), Analysis::crossSection(), Analysis::getLog(), Analysis::histoDir(), Analysis::normalize(), Analysis::referenceData(), HistoHandler::registerAnalysisObject(), and Analysis::scale().

                                   {
      return (info().name().empty()) ? _defaultname : info().name();
    }
bool needsCrossSection ( ) const [inline, inherited]

Return true if this analysis needs to know the process cross-section.

Todo:
Remove this and require HepMC >= 2.06

Definition at line 233 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::needsCrossSection().

                                   {
      return info().needsCrossSection();
    }
void normalize ( Histo1DPtr  histo,
double  norm = 1.0,
bool  includeoverflows = true
) [inherited]

Normalize the given histogram, histo, to area = norm.

NB. The histogram is no longer invalidated by this procedure.

Definition at line 431 of file Analysis.cc.

References MSG_ERROR, MSG_TRACE, MSG_WARNING, and Analysis::name().

Referenced by CMS_2011_S8950903::finalize(), CMS_2011_S8968497::finalize(), D0_2010_S8671338::finalize(), CDF_2009_NOTE_9936::finalize(), D0_2007_S7075677::finalize(), BABAR_2005_S6181155::finalize(), D0_2008_S7554427::finalize(), ALICE_2010_S8624100::finalize(), ATLAS_2011_S8971293::finalize(), ALICE_2010_S8625980::finalize(), D0_2009_S8320160::finalize(), CMS_2011_S8957746::finalize(), DELPHI_1995_S3137023::finalize(), CDF_1993_S2742446::finalize(), D0_1996_S3324664::finalize(), SLD_2002_S4869273::finalize(), CDF_1996_S3418421::finalize(), D0_2008_S6879055::finalize(), D0_2010_S8821313::finalize(), EXAMPLE::finalize(), CDF_1996_S3108457::finalize(), CDF_1994_S2952106::finalize(), JADE_1998_S3612880::finalize(), ALEPH_2001_S4656318::finalize(), D0_1996_S3214044::finalize(), ATLAS_2011_I925932::finalize(), DELPHI_2002_069_CONF_603::finalize(), D0_2004_S5992206::finalize(), OPAL_1997_S3396100::finalize(), MC_PHOTONS::finalize(), CMS_2012_I1107658::finalize(), D0_2001_S4674421::finalize(), OPAL_2001_S4553896::finalize(), TASSO_1990_S2148048::finalize(), STAR_2008_S7869363::finalize(), OPAL_1998_S3780481::finalize(), CDF_1997_S3541940::finalize(), DELPHI_2003_WUD_03_11::finalize(), H1_1994_S2919893::finalize(), BELLE_2006_S6265367::finalize(), CDF_2001_S4751469::finalize(), MC_TTBAR::finalize(), ALEPH_2004_S5765862::finalize(), CDF_2004_S5839831::finalize(), CDF_1996_S3349578::finalize(), ALEPH_1996_S3486095::finalize(), DELPHI_1996_S3430090::finalize(), and ATLAS_2011_I919017::safeinvscale().

                                                                               {
    if (!histo) {
      MSG_ERROR("Failed to normalize histo=NULL in analysis " << name() << " (norm=" << norm << ")");
      return;
    }
    MSG_TRACE("Normalizing histo " << histo->path() << " to " << norm);
    try {
      histo->normalize(norm, includeoverflows);
    } catch (YODA::WeightError& we) {
      MSG_WARNING("Could not normalize histo " << histo->path());
      return;
    }
  }
size_t numEvents ( ) const [protected, inherited]

Get the number of events seen (via the analysis handler). Use in the finalize phase only.

Definition at line 82 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::numEvents().

                                   {
    return handler().numEvents();
  }
const vector<AnalysisObjectPtr>& plots ( ) const [inline, inherited]

List of registered plot objects.

Definition at line 521 of file Analysis.hh.

References Analysis::_plotobjects.

                                                    {
      return _plotobjects;
    }
const Scatter2D & referenceData ( const string &  hname) const [protected, inherited]

Get reference data for a named histo.

Definition at line 173 of file Analysis.cc.

References Analysis::_cacheRefData(), Analysis::_refdata, MSG_ERROR, MSG_TRACE, and Analysis::name().

Referenced by ATLAS_2011_S8994773::analyze(), ATLAS_2010_S8894728::analyze(), Analysis::bookHisto1D(), Analysis::bookProfile1D(), ATLAS_2010_S8894728::init(), CMS_2012_I1102908::init(), CDF_1994_S2952106::init(), and Analysis::referenceData().

                                                                     {
    _cacheRefData();
    MSG_TRACE("Using histo bin edges for " << name() << ":" << hname);
    if (!_refdata[hname]) {
      MSG_ERROR("Can't find reference histogram " << hname);
    }
    return *_refdata[hname];
  }
const Scatter2D & referenceData ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId
) const [protected, inherited]

Get reference data for a numbered histo.

Definition at line 183 of file Analysis.cc.

References Analysis::makeAxisCode(), and Analysis::referenceData().

                                                                                                  {
    const string hname = makeAxisCode(datasetId, xAxisId, yAxisId);
    return referenceData(hname);
  }
virtual std::vector<std::string> references ( ) const [inline, virtual, inherited]

Journal, and preprint references.

Definition at line 184 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::references().

                                                    {
      return info().references();
    }
virtual const std::vector<PdgIdPair>& requiredBeams ( ) const [inline, virtual, inherited]

Return the allowed pairs of incoming beams required by this analysis.

Definition at line 210 of file Analysis.hh.

References AnalysisInfo::beams(), and Analysis::info().

                                                              {
      return info().beams();
    }
virtual const std::vector<std::pair<double, double> >& requiredEnergies ( ) const [inline, virtual, inherited]

Sets of valid beam energy pairs, in GeV.

Definition at line 221 of file Analysis.hh.

References AnalysisInfo::energies(), and Analysis::info().

Referenced by Analysis::setRequiredEnergies().

                                                                                {
      return info().energies();
    }
virtual std::string runInfo ( ) const [inline, virtual, inherited]

Information about the events needed as input for this analysis.

Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html)

Definition at line 164 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::runInfo().

                                      {
      return info().runInfo();
    }
void scale ( Histo1DPtr  histo,
double  scale
) [inherited]

Multiplicatively scale the given histogram, histo, by factor scale.

NB. The histogram is no longer invalidated by this procedure.

Definition at line 446 of file Analysis.cc.

References MSG_ERROR, MSG_TRACE, MSG_WARNING, and Analysis::name().

Referenced by MC_JetAnalysis::finalize(), CDF_2006_S6450792::finalize(), ALEPH_1991_S2435284::finalize(), TOTEM_2012_I1115294::finalize(), E735_1998_S3905616::finalize(), ATLAS_2010_S8591806::finalize(), D0_2000_S4480767::finalize(), UA5_1987_S1640666::finalize(), D0_2010_S8671338::finalize(), MC_XS::finalize(), CDF_2008_S8093652::finalize(), CDF_2000_S4155203::finalize(), CMS_2011_S8941262::finalize(), BABAR_2007_S6895344::finalize(), CDF_2001_S4563131::finalize(), CMS_2012_I1087342::finalize(), CDF_1998_S3618439::finalize(), CDF_1990_S2089246::finalize(), CDF_2007_S7057202::finalize(), CDF_1988_S1865951::finalize(), CMS_2010_S8656010::finalize(), UA5_1982_S875503::finalize(), BABAR_2005_S6181155::finalize(), CMS_QCD_10_024::finalize(), STAR_2006_S6870392::finalize(), BELLE_2001_S4598261::finalize(), CDF_2009_S8383952::finalize(), CDF_2000_S4266730::finalize(), CMS_2010_S8547297::finalize(), OPAL_1995_S3198391::finalize(), OPAL_1997_S3608263::finalize(), OPAL_2000_S4418603::finalize(), CDF_2009_S8436959::finalize(), LHCB_2011_I919315::finalize(), ALICE_2010_S8625980::finalize(), OPAL_1994_S2927284::finalize(), ATLAS_2011_I894867::finalize(), MC_PDFS::finalize(), D0_2011_I895662::finalize(), ALEPH_2002_S4823664::finalize(), ALICE_2010_S8706239::finalize(), CMS_2011_S8978280::finalize(), OPAL_1996_S3257789::finalize(), UA5_1989_S1926373::finalize(), MC_HJETS::finalize(), MC_ZJETS::finalize(), ALICE_2011_S8945144::finalize(), MC_IDENTIFIED::finalize(), OPAL_1998_S3702294::finalize(), CDF_2005_S6080774::finalize(), DELPHI_1999_S3960137::finalize(), MC_DIPHOTON::finalize(), ALICE_2011_S8909580::finalize(), D0_2006_S6438750::finalize(), BABAR_2007_S7266081::finalize(), ATLAS_2011_S9131140::finalize(), UA5_1986_S1583476::finalize(), STAR_2006_S6500200::finalize(), CLEO_2004_S5809304::finalize(), D0_2008_S7662670::finalize(), SFM_1984_S1178091::finalize(), CMS_2011_S9215166::finalize(), D0_2008_S6879055::finalize(), D0_2008_S7863608::finalize(), ARGUS_1993_S2653028::finalize(), ATLAS_2010_CONF_2010_049::finalize(), ALEPH_1999_S4193598::finalize(), H1_1995_S3167097::finalize(), CDF_2009_S8233977::finalize(), MC_PHOTONJETS::finalize(), MC_WJETS::finalize(), OPAL_1998_S3749908::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2011_I954993::finalize(), D0_2009_S8349509::finalize(), ATLAS_2012_I946427::finalize(), ATLAS_2012_I1082009::finalize(), D0_2010_S8570965::finalize(), ARGUS_1993_S2669951::finalize(), CMS_2012_I1107658::finalize(), UA1_1990_S2044935::finalize(), D0_2009_S8202443::finalize(), MC_WPOL::finalize(), MC_GENERIC::finalize(), ALEPH_1996_S3196992::finalize(), ATLAS_2012_I1091481::finalize(), D0_2008_S7719523::finalize(), CDF_2008_S8095620::finalize(), CDF_2006_S6653332::finalize(), STAR_2006_S6860818::finalize(), OPAL_1998_S3780481::finalize(), ARGUS_1993_S2789213::finalize(), ATLAS_2011_S9128077::finalize(), ATLAS_2010_S8918562::finalize(), ATLAS_2011_I926145::finalize(), OPAL_1993_S2692198::finalize(), JADE_OPAL_2000_S4300807::finalize(), ATLAS_2011_S9108483::finalize(), MC_WWJETS::finalize(), CDF_2008_S7540469::finalize(), ATLAS_2010_S8919674::finalize(), ATLAS_2010_S8914702::finalize(), MC_ZZJETS::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2012_I1183818::finalize(), OPAL_2004_S6132243::finalize(), H1_1994_S2919893::finalize(), ATLAS_2012_CONF_2012_105::finalize(), ATLAS_2011_S9120807::finalize(), BELLE_2006_S6265367::finalize(), ATLAS_2012_I1084540::finalize(), ATLAS_2012_CONF_2012_104::finalize(), ATLAS_2012_I1186556::finalize(), MC_VH2BB::finalize(), ATLAS_2011_I945498::finalize(), ATLAS_2012_CONF_2012_103::finalize(), H1_2000_S4129130::finalize(), ATLAS_2011_I944826::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2012_I1117704::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1093738::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2012_CONF_2012_001::finalize(), SLD_1999_S3743934::finalize(), ATLAS_2011_S9225137::finalize(), ALEPH_1996_S3486095::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), DELPHI_1996_S3430090::finalize(), ATLAS_2012_CONF_2012_153::finalize(), ATLAS_2011_S9212353::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), ATLAS_2011_S9041966::finalize(), ATLAS_2011_I919017::safeinvscale(), and BinnedHistogram< T >::scale().

                                                     {
    if (!histo) {
      MSG_ERROR("Failed to scale histo=NULL in analysis " << name() << " (scale=" << scale << ")");
      return;
    }
    MSG_TRACE("Scaling histo " << histo->path() << "by factor " << scale);
    try {
      histo->scaleW(scale);
    } catch (YODA::WeightError& we) {
      MSG_WARNING("Could not normalize histo " << histo->path());
      return;
    }
    // // Transforming the histo into a scatter after scaling
    // vector<double> x, y, ex, ey;
    // for (size_t i = 0, N = histo->numBins(); i < N; ++i) {
    //   x.push_back( histo->bin(i).midpoint() );
    //   ex.push_back(histo->bin(i).width()*0.5);
    //   y.push_back(histo->bin(i).height()*scale);
    //   ey.push_back(histo->bin(i).heightErr()*scale);
    // }
    // string title = histo->title();
    // Scatter2DPtr dps( new Scatter2D(x, y, ex, ey, hpath, title) );
    // addPlot(dps);
  }
Analysis & setCrossSection ( double  xs) [inherited]

Set the cross section from the generator.

Normalize the given histogram, histo, to area = norm.

NB. The histogram is no longer invalidated by this procedure. Multiplicatively scale the given histogram, histo, by factor scale.

NB. The histogram is no longer invalidated by this procedure.

Definition at line 139 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::_gotCrossSection.

                                               {
    _crossSection = xs;
    _gotCrossSection = true;
    return *this;
  }
Analysis& setNeedsCrossSection ( bool  needed = true) [inline, inherited]

Declare whether this analysis needs to know the process cross-section from the generator.

Todo:
Remove this and require HepMC >= 2.06

Definition at line 238 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::setNeedsCrossSection().

Referenced by ATLAS_2011_I945498::ATLAS_2011_I945498(), ATLAS_2011_I954993::ATLAS_2011_I954993(), and MC_JetAnalysis::MC_JetAnalysis().

                                                     {
      info().setNeedsCrossSection(needed);
      return *this;
    }
virtual Analysis& setRequiredBeams ( const std::vector< PdgIdPair > &  requiredBeams) [inline, virtual, inherited]

Declare the allowed pairs of incoming beams required by this analysis.

Definition at line 214 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::setBeams().

                                                                                  {
      info().setBeams(requiredBeams);
      return *this;
    }
virtual Analysis& setRequiredEnergies ( const std::vector< std::pair< double, double > > &  requiredEnergies) [inline, virtual, inherited]

Declare the list of valid beam energy pairs, in GeV.

Definition at line 225 of file Analysis.hh.

References Analysis::info(), Analysis::requiredEnergies(), and AnalysisInfo::setEnergies().

                                                                                                       {
      info().setEnergies(requiredEnergies);
      return *this;
    }
virtual std::string spiresId ( ) const [inline, virtual, inherited]

Get the SPIRES ID code for this analysis (~deprecated).

Definition at line 128 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::spiresId().

                                       {
      return info().spiresId();
    }
double sqrtS ( ) const [inherited]

Centre of mass energy for this run.

Definition at line 24 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sqrtS().

Referenced by PDG_HADRON_MULTIPLICITIES::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), SLD_2004_S5693039::analyze(), CMS_2011_S9215166::analyze(), SFM_1984_S1178091::analyze(), ALICE_2010_S8625980::analyze(), UA1_1990_S2044935::analyze(), JADE_1998_S3612880::analyze(), TASSO_1990_S2148048::analyze(), MC_TTBAR::analyze(), ATLAS_2010_S8894728::analyze(), ATLAS_2010_S8918562::analyze(), ALEPH_2004_S5765862::analyze(), CDF_2004_S5839831::analyze(), ALICE_2010_S8625980::finalize(), JADE_1998_S3612880::finalize(), UA1_1990_S2044935::finalize(), ATLAS_2010_S8918562::finalize(), ALEPH_2004_S5765862::finalize(), CDF_2004_S5839831::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), ATLAS_2010_S8894728::init(), CMS_2010_S8547297::init(), ATLAS_2011_S8994773::init(), CMS_2011_S9215166::init(), CDF_2012_NOTE10874::init(), CMS_QCD_10_024::init(), MC_JetAnalysis::init(), SFM_1984_S1178091::init(), MC_DIPHOTON::init(), MC_HJETS::init(), MC_ZJETS::init(), UA5_1989_S1926373::init(), CDF_1988_S1865951::init(), MC_PHOTONJETS::init(), MC_ZZJETS::init(), ATLAS_2012_I1091481::init(), CDF_1990_S2089246::init(), MC_WJETS::init(), MC_WWJETS::init(), UA5_1986_S1583476::init(), JADE_OPAL_2000_S4300807::init(), UA1_1990_S2044935::init(), ALICE_2010_S8624100::init(), MC_PHOTONS::init(), ALEPH_2004_S5765862::init(), JADE_1998_S3612880::init(), ALICE_2010_S8625980::init(), MC_WPOL::init(), ATLAS_2011_I944826::init(), UA5_1988_S1867512::init(), TASSO_1990_S2148048::init(), LHCB_2011_I917009::init(), ATLAS_2010_S8918562::init(), OPAL_2004_S6132243::init(), CDF_2004_S5839831::init(), PDG_HADRON_MULTIPLICITIES::init(), and PDG_HADRON_MULTIPLICITIES_RATIOS::init().

                               {
    return handler().sqrtS();
  }
virtual std::string status ( ) const [inline, virtual, inherited]

Whether this analysis is trusted (in any way!)

Definition at line 199 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::status().

                                     {
      return (info().status().empty()) ? "UNVALIDATED" : info().status();
    }
virtual std::string summary ( ) const [inline, virtual, inherited]

Get a short description of the analysis.

Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details.

Definition at line 145 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::summary().

                                      {
      return info().summary();
    }
double sumOfWeights ( ) const [protected, inherited]

Get the sum of event weights seen (via the analysis handler). Use in the finalize phase only.

Definition at line 87 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sumOfWeights().

Referenced by Analysis::crossSectionPerEvent(), MC_JetAnalysis::finalize(), CDF_2006_S6450792::finalize(), ALEPH_1991_S2435284::finalize(), CMS_2011_S9086218::finalize(), D0_2000_S4480767::finalize(), LHCF_2012_I1115479::finalize(), CDF_2008_S7828950::finalize(), MC_XS::finalize(), CDF_2008_S8093652::finalize(), CMS_2011_S8941262::finalize(), BABAR_2007_S6895344::finalize(), CDF_2000_S4155203::finalize(), CMS_2012_I1087342::finalize(), CDF_2001_S4563131::finalize(), CDF_1998_S3618439::finalize(), CMS_2010_S8656010::finalize(), BABAR_2005_S6181155::finalize(), D0_2010_S8566488::finalize(), STAR_2006_S6870392::finalize(), CDF_2009_S8383952::finalize(), CMS_2010_S8547297::finalize(), CDF_2000_S4266730::finalize(), OPAL_1995_S3198391::finalize(), CDF_2001_S4517016::finalize(), OPAL_1997_S3608263::finalize(), OPAL_2000_S4418603::finalize(), OPAL_1994_S2927284::finalize(), CDF_2009_S8436959::finalize(), MC_PDFS::finalize(), ATLAS_2011_I894867::finalize(), D0_2011_I895662::finalize(), ALEPH_2002_S4823664::finalize(), CMS_2011_S8978280::finalize(), OPAL_1996_S3257789::finalize(), MC_HJETS::finalize(), MC_ZJETS::finalize(), MC_IDENTIFIED::finalize(), ALICE_2011_S8945144::finalize(), DELPHI_1999_S3960137::finalize(), MC_DIPHOTON::finalize(), OPAL_1998_S3702294::finalize(), CDF_2005_S6080774::finalize(), D0_2006_S6438750::finalize(), ALICE_2011_S8909580::finalize(), DELPHI_1995_S3137023::finalize(), STAR_2006_S6500200::finalize(), CLEO_2004_S5809304::finalize(), D0_2008_S7662670::finalize(), D0_2008_S7863608::finalize(), ATLAS_2010_CONF_2010_049::finalize(), CDF_2009_S8233977::finalize(), MC_WJETS::finalize(), OPAL_1998_S3749908::finalize(), OPAL_1997_S3396100::finalize(), ATLAS_2011_I954993::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2012_I946427::finalize(), D0_2010_S8570965::finalize(), CDF_2008_S7541902::finalize(), MC_GENERIC::finalize(), ALEPH_1996_S3196992::finalize(), ATLAS_2012_I1091481::finalize(), D0_2008_S7719523::finalize(), CDF_2006_S6653332::finalize(), STAR_2006_S6860818::finalize(), OPAL_1998_S3780481::finalize(), OPAL_1993_S2692198::finalize(), ATLAS_2011_I926145::finalize(), JADE_OPAL_2000_S4300807::finalize(), ATLAS_2011_S9108483::finalize(), MC_WWJETS::finalize(), CDF_2008_S7540469::finalize(), ATLAS_2010_S8919674::finalize(), ATLAS_2010_S8914702::finalize(), MC_ZZJETS::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2012_CONF_2012_105::finalize(), ATLAS_2011_S9120807::finalize(), BELLE_2006_S6265367::finalize(), ATLAS_2012_I1084540::finalize(), ATLAS_2012_CONF_2012_104::finalize(), ATLAS_2012_I1186556::finalize(), MC_VH2BB::finalize(), ATLAS_2012_CONF_2012_103::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2012_I1117704::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1093738::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2012_CONF_2012_001::finalize(), SLD_1999_S3743934::finalize(), ATLAS_2011_S9225137::finalize(), ALEPH_1996_S3486095::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), ATLAS_2012_CONF_2012_153::finalize(), ATLAS_2011_S9212353::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), and ATLAS_2011_S9041966::finalize().

                                      {
    return handler().sumOfWeights();
  }
virtual std::vector<std::string> todos ( ) const [inline, virtual, inherited]

Any work to be done on this analysis.

Definition at line 204 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::todos().

                                               {
      return info().todos();
    }
virtual std::string year ( ) const [inline, virtual, inherited]

When the original experimental analysis was published.

Definition at line 179 of file Analysis.hh.

References Analysis::info(), and AnalysisInfo::year().

                                   {
      return info().year();
    }

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 140 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

string _defaultname [protected, inherited]

Name passed to constructor (used to find .info analysis data file, and as a fallback)

Definition at line 542 of file Analysis.hh.

Referenced by Analysis::Analysis(), and Analysis::name().

shared_ptr<AnalysisInfo> _info [protected, inherited]

Pointer to analysis metadata object.

Definition at line 545 of file Analysis.hh.

Referenced by Analysis::Analysis(), and Analysis::info().

std::vector<double> m_q0BinEdges [private]
Todo:
YODA void finalizeQ0GapFraction(double totalWeightSum, Scatter2DPtr gapFractionDP, Histo1DPtr vetoPtHist, int binNumber) { double vetoPtWeightSum = 0.0; for (int x=0; x<binNumber-1; x++) { vetoPtWeightSum += vetoPtHist->bin(x).area();

//Alternatively try saving as data points IDataPoint* currentPoint = gapFractionDP->point(x); IMeasurement* xCoord = currentPoint->coordinate(0); IMeasurement* yCoord = currentPoint->coordinate(1); //Calculate the efficiency uncertainty double efficiency = vetoPtWeightSum/totalWeightSum; double efficiencyError = std::sqrt(efficiency*(1.0-efficiency)/totalWeightSum); if (totalWeightSum==0.) efficiency = efficiencyError = 0.; xCoord->setValue(m_q0BinEdges[x+1]); xCoord->setErrorPlus(2.5); xCoord->setErrorMinus(2.5); yCoord->setValue(efficiency); yCoord->setErrorPlus(efficiencyError); yCoord->setErrorMinus(efficiencyError); } histogramFactory().destroy(vetoPtHist); }

Definition at line 396 of file ATLAS_2011_S9126244.cc.

Referenced by ATLAS_2011_S9126244::init(), and ATLAS_2011_S9126244::initializePlots().

ATLAS_2011_S9126244_Plots m_selectionPlots[3] [private]

Definition at line 402 of file ATLAS_2011_S9126244.cc.

Referenced by ATLAS_2011_S9126244::analyze(), and ATLAS_2011_S9126244::init().

The documentation for this class was generated from the following file:
Generated on Fri Dec 21 2012 15:04:05 for The Rivet MC analysis system by   doxygen 1.7.6.1
