#include <AnalysisHandler.hh>

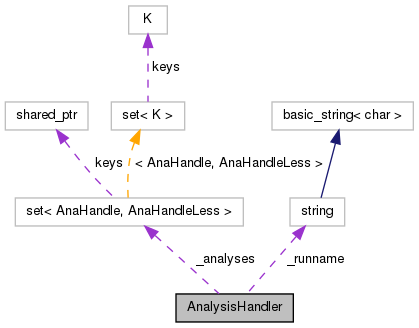

Collaboration diagram for AnalysisHandler:

Public Member Functions
void	writeData (const std::string &filename)
	Write all analyses' plots to the named file.
Constructors and destructors. */
	AnalysisHandler (const string &runname="")
	Preferred constructor, with optional run name.
	~AnalysisHandler ()
	Destructor The destructor is not virtual, as this class should not be inherited from.
Handle analyses
std::vector< std::string >	analysisNames () const
	Get a list of the currently registered analyses' names.
const std::set< AnaHandle, AnaHandleLess > &	analyses () const
	Get the collection of currently registered analyses.
AnalysisHandler &	addAnalysis (const std::string &analysisname)
AnalysisHandler &	removeAnalysis (const std::string &analysisname)
	Remove an analysis from the run list using its name.
AnalysisHandler &	addAnalyses (const std::vector< std::string > &analysisnames)
AnalysisHandler &	removeAnalyses (const std::vector< std::string > &analysisnames)
	Remove analyses from the run list using their names.
AnalysisHandler &	addAnalysis (Analysis *analysis)
	Add an analysis to the run list by object.
Main init/execute/finalise
void	init (const GenEvent &event)
	Initialize a run, with the run beams taken from the example event.
void	analyze (const GenEvent &event)
void	finalize ()
Private Member Functions
Log &	getLog () const
	Get a logger object.
AnalysisHandler &	operator= (const AnalysisHandler &)
	AnalysisHandler (const AnalysisHandler &)
Private Attributes
set< AnaHandle, AnaHandleLess >	_analyses
	The collection of Analysis objects to be used.
Run properties
std::string	_runname
	Run name.
size_t	_numEvents
	Number of events seen.
double	_sumOfWeights
	Sum of event weights seen.
double	_xs
	Cross-section known to AH.
ParticlePair	_beams
	Beams used by this run.
bool	_initialised
	Flag to check if init has been called.
bool	_ignoreBeams
	Flag whether input event beams should be ignored in compatibility check.
string	runName () const
	Get the name of this run.
size_t	numEvents () const
double	sumOfWeights () const
void	setSumOfWeights (const double &sum)
bool	needCrossSection () const
	Is cross-section information required by at least one child analysis?
AnalysisHandler &	setCrossSection (double xs)
	Set the cross-section for the process being generated.
double	crossSection () const
	Get the cross-section known to the handler.
bool	hasCrossSection () const
	Whether the handler knows about a cross-section.
AnalysisHandler &	setRunBeams (const ParticlePair &beams)
	Set beams for this run.
const ParticlePair &	beams () const
	Get beam IDs for this run, usually determined from the first event.
PdgIdPair	beamIds () const
	Get beam IDs for this run, usually determined from the first event.
double	sqrtS () const
	Get energy for this run, usually determined from the first event.
void	setIgnoreBeams (bool ignore=true)
	Setter for _ignoreBeams.

Detailed Description

A class which handles a number of analysis objects to be applied to generated events. An Analysis' AnalysisHandler is also responsible for handling the final writing-out of histograms.

Definition at line 29 of file AnalysisHandler.hh.

Constructor & Destructor Documentation

AnalysisHandler ( const string & runname = "" )

Preferred constructor, with optional run name.

Definition at line 22 of file AnalysisHandler.cc.

    : _runname(runname), _numEvents(0),
      _sumOfWeights(0.0), _xs(-1.0),
      _initialised(false), _ignoreBeams(false)
  {}

~AnalysisHandler ( )

Destructor The destructor is not virtual, as this class should not be inherited from.

Definition at line 28 of file AnalysisHandler.cc.

{}

AnalysisHandler ( const AnalysisHandler & ) [private]

The copy constructor is private and must never be called. In fact, it should not even be implemented.

Member Function Documentation

AnalysisHandler & addAnalyses ( const std::vector< std::string > & analysisnames )

Add analyses to the run list using their names. The actual Analysis' to be used will be obtained via AnalysisHandler::addAnalysis(string), which in turn uses AnalysisHandler::getAnalysis(string). If no matching analysis is found for a given name, no analysis is added, but also no error is thrown.

Definition at line 232 of file AnalysisHandler.cc.

References AnalysisHandler::addAnalysis().

                                                                                         {
    foreach (const string& aname, analysisnames) {
      //MSG_DEBUG("Adding analysis '" << aname << "'");
      addAnalysis(aname);
    }
    return *this;
  }

AnalysisHandler & addAnalysis ( const std::string & analysisname )

Add an analysis to the run list using its name. The actual Analysis to be used will be obtained via AnalysisHandler::getAnalysis(string). If no matching analysis is found, no analysis is added (i.e. the null pointer is checked and discarded.

Todo:: Might we want to be able to run an analysis twice, with different params? Requires avoiding histo tree clashes, i.e. storing the histos on the analysis objects.

Definition at line 165 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, AnalysisLoader::getAnalysis(), MSG_DEBUG, and MSG_WARNING.

Referenced by AnalysisHandler::addAnalyses().

                                                                          {
    // Check for a duplicate analysis
    /// @todo Might we want to be able to run an analysis twice, with different params?
    ///       Requires avoiding histo tree clashes, i.e. storing the histos on the analysis objects.
    foreach (const AnaHandle& a, _analyses) {
      if (a->name() == analysisname) {
        MSG_WARNING("Analysis '" << analysisname << "' already registered: skipping duplicate");
        return *this;
      }
    }
    AnaHandle analysis( AnalysisLoader::getAnalysis(analysisname) );
    if (analysis.get() != 0) { // < Check for null analysis.
      MSG_DEBUG("Adding analysis '" << analysisname << "'");
      analysis->_analysishandler = this;
      _analyses.insert(analysis);
    } else {
      MSG_WARNING("Analysis '" << analysisname << "' not found.");
    }
    return *this;
  }

AnalysisHandler & addAnalysis ( Analysis * analysis )

Add an analysis to the run list by object.

Definition at line 273 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, and Analysis::_analysishandler.

                                                                  {
    analysis->_analysishandler = this;
    _analyses.insert(AnaHandle(analysis));
    return *this;
  }

const std::set<AnaHandle, AnaHandleLess>& analyses ( ) const [inline]

Get the collection of currently registered analyses.

Definition at line 121 of file AnalysisHandler.hh.

References AnalysisHandler::_analyses.

Referenced by AnalysisHandler::init().

                                                             {
      return _analyses;
    }

std::vector< std::string > analysisNames ( ) const

Get a list of the currently registered analyses' names.

Definition at line 223 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses.

Referenced by Run::init(), and AnalysisHandler::init().

                                                            {
    std::vector<std::string> rtn;
    foreach (AnaHandle a, _analyses) {
      rtn.push_back(a->name());
    }
    return rtn;
  }

void analyze ( const GenEvent & event )

Analyze the given event. This function will call the AnalysisBase::analyze() function of all included analysis objects.

Definition at line 94 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, AnalysisHandler::_beams, AnalysisHandler::_initialised, AnalysisHandler::_numEvents, AnalysisHandler::_sumOfWeights, AnalysisHandler::beamIds(), AnalysisHandler::beams(), Rivet::compatible(), Rivet::fuzzyEquals(), Rivet::GeV, AnalysisHandler::init(), MSG_DEBUG, AnalysisHandler::setCrossSection(), AnalysisHandler::sqrtS(), and Rivet::toBeamsString().

Referenced by Run::processEvent().

                                                  {
    // Call init with event as template if not already initialised
    if (!_initialised) {
      init(ge);
    }
    // Proceed with event analysis
    assert(_initialised);
    // Ensure that beam details match those from first event
    const PdgIdPair beams = Rivet::beamIds(ge);
    const double sqrts = Rivet::sqrtS(ge);
    if (!compatible(beams, _beams) || !fuzzyEquals(sqrts, sqrtS())) {
      cerr     << "Event beams mismatch: "
               << toBeamsString(beams) << " @ " << sqrts/GeV << " GeV" << " vs. first beams "
               << this->beams() << " @ " << this->sqrtS()/GeV << " GeV" << endl;
      exit(1);
    }


    Event event(ge);
    _numEvents++;
    // Weights
    const double weight = event.weight();
    _sumOfWeights += weight;
    MSG_DEBUG("Event #" << _numEvents << " weight = " << weight);
    #ifdef HEPMC_HAS_CROSS_SECTION
    if (ge.cross_section()) {
      const double xs = ge.cross_section()->cross_section();
      setCrossSection(xs);
    }
    #endif
    foreach (AnaHandle a, _analyses) {
      //MSG_DEBUG("About to run analysis " << a->name());
      try {
        a->analyze(event);
      } catch (const Error& err) {
        cerr     << "Error in " << a->name() << "::analyze method: "
                 << err.what() << endl;
        exit(1);
      }
      //MSG_DEBUG("Finished running analysis " << a->name());
    }
  }

PdgIdPair beamIds ( ) const

Get beam IDs for this run, usually determined from the first event.

Definition at line 280 of file AnalysisHandler.cc.

References AnalysisHandler::beams().

Referenced by AnalysisHandler::analyze(), and Analysis::beamIds().

                                           {
    return Rivet::beamIds(beams());
  }

const ParticlePair& beams ( ) const [inline]

Get beam IDs for this run, usually determined from the first event.

Definition at line 98 of file AnalysisHandler.hh.

References AnalysisHandler::_beams.

Referenced by AnalysisHandler::analyze(), AnalysisHandler::beamIds(), Analysis::beams(), AnalysisHandler::init(), AnalysisHandler::setRunBeams(), and AnalysisHandler::sqrtS().

                                      {
      return _beams;
    }

double crossSection ( ) const [inline]

Get the cross-section known to the handler.

Definition at line 82 of file AnalysisHandler.hh.

References AnalysisHandler::_xs.

Referenced by Run::crossSection(), and AnalysisHandler::hasCrossSection().

                                {
      return _xs;
    }

void finalize ( )

Finalize a run. This function calls the AnalysisBase::finalize() functions of all included analysis objects.

Definition at line 138 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, AnalysisHandler::_initialised, AnalysisHandler::_numEvents, and MSG_INFO.

                                 {
    assert(_initialised);
    MSG_INFO("Finalising analyses");
    foreach (AnaHandle a, _analyses) {
      try {
        a->finalize();
      } catch (const Error& err) {
        cerr     << "Error in " << a->name() << "::finalize method: "
                 << err.what() << endl;
        exit(1);
      }
    }

    // Print out number of events processed
    MSG_INFO("Processed " << _numEvents << " event" << (_numEvents == 1 ? "" : "s"));

    // // Delete analyses
    // MSG_DEBUG("Deleting analyses");
    // _analyses.clear();

    // Print out MCnet boilerplate
    cout << endl;
    cout << "The MCnet usage guidelines apply to Rivet: see http://www.montecarlonet.org/GUIDELINES" << endl;
    cout << "Please acknowledge plots made with Rivet analyses, and cite arXiv:1003.0694 (http://arxiv.org/abs/1003.0694)" << endl;
  }

Log & getLog ( ) const [private]

Get a logger object.

Definition at line 32 of file AnalysisHandler.cc.

                                     {
    return Log::getLog("Rivet.Analysis.Handler");
  }

bool hasCrossSection ( ) const

Whether the handler knows about a cross-section.

Definition at line 268 of file AnalysisHandler.cc.

References AnalysisHandler::crossSection().

Referenced by Run::processEvent().

                                              {
    return (!std::isnan(crossSection()));
  }

void init ( const GenEvent & event )

Initialize a run, with the run beams taken from the example event.

Definition at line 37 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, AnalysisHandler::_ignoreBeams, AnalysisHandler::_initialised, AnalysisHandler::_numEvents, AnalysisHandler::_sumOfWeights, AnalysisHandler::analyses(), AnalysisHandler::analysisNames(), Rivet::beams(), AnalysisHandler::beams(), MSG_DEBUG, MSG_WARNING, AnalysisHandler::removeAnalysis(), AnalysisHandler::setRunBeams(), and Rivet::toUpper().

Referenced by AnalysisHandler::analyze(), and Run::init().

                                               {
    assert(!_initialised);
    setRunBeams(Rivet::beams(ge));
    MSG_DEBUG("Initialising the analysis handler");
    _numEvents = 0;
    _sumOfWeights = 0.0;

    // Check that analyses are beam-compatible, and remove those that aren't
    const size_t num_anas_requested = analysisNames().size();
    vector<string> anamestodelete;
    foreach (const AnaHandle a, _analyses) {
      if ((!a->isCompatible(beams())) && (!_ignoreBeams)) {
        //MSG_DEBUG(a->name() << " requires beams " << a->requiredBeams() << " @ " << a->requiredEnergies() << " GeV");
        anamestodelete.push_back(a->name());
      }
    }
    foreach (const string& aname, anamestodelete) {
      MSG_WARNING("Analysis '" << aname << "' is incompatible with the provided beams: removing");
      removeAnalysis(aname);
    }
    if (num_anas_requested > 0 && analysisNames().size() == 0) {
      cerr << "All analyses were incompatible with the first event's beams\n"
           << "Exiting, since this probably wasn't intentional!" << endl;
      exit(1);
    }

    // Warn if any analysis' status is not unblemished
    foreach (const AnaHandle a, analyses()) {
      if (toUpper(a->status()) == "PRELIMINARY") {
        MSG_WARNING("Analysis '" << a->name() << "' is preliminary: be careful, it may change and/or be renamed!");
      } else if (toUpper(a->status()) == "OBSOLETE") {
        MSG_WARNING("Analysis '" << a->name() << "' is obsolete: please update!");
      } else if (toUpper(a->status()).find("UNVALIDATED") != string::npos) {
        MSG_WARNING("Analysis '" << a->name() << "' is unvalidated: be careful, it may be broken!");
      }
    }

    // Initialize the remaining analyses
    foreach (AnaHandle a, _analyses) {
      MSG_DEBUG("Initialising analysis: " << a->name());
      try {
        // Allow projection registration in the init phase onwards
        a->_allowProjReg = true;
        a->init();
        //MSG_DEBUG("Checking consistency of analysis: " << a->name());
        //a->checkConsistency();
      } catch (const Error& err) {
        cerr << "Error in " << a->name() << "::init method: " << err.what() << endl;
        exit(1);
      }
      MSG_DEBUG("Done initialising analysis: " << a->name());
    }
    _initialised = true;
    MSG_DEBUG("Analysis handler initialised");
  }

bool needCrossSection ( ) const

Is cross-section information required by at least one child analysis?

Definition at line 249 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses.

Referenced by Run::processEvent().

                                               {
    bool rtn = false;
    foreach (const AnaHandle a, _analyses) {
      if (!rtn) rtn = a->needsCrossSection();
      if (rtn) break;
    }
    return rtn;
  }

size_t numEvents ( ) const

Get the number of events seen. Should only really be used by external steering code or analyses in the finalize phase.

Definition at line 214 of file AnalysisHandler.cc.

References AnalysisHandler::_numEvents.

Referenced by Analysis::numEvents().

{ return _numEvents; }

AnalysisHandler& operator= ( const AnalysisHandler & ) [private]

The assignment operator is private and must never be called. In fact, it should not even be implemented.

AnalysisHandler & removeAnalyses ( const std::vector< std::string > & analysisnames )

Remove analyses from the run list using their names.

Definition at line 241 of file AnalysisHandler.cc.

References AnalysisHandler::removeAnalysis().

                                                                                            {
    foreach (const string& aname, analysisnames) {
      removeAnalysis(aname);
    }
    return *this;
  }

AnalysisHandler & removeAnalysis ( const std::string & analysisname )

Remove an analysis from the run list using its name.

Definition at line 187 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, and MSG_DEBUG.

Referenced by AnalysisHandler::init(), and AnalysisHandler::removeAnalyses().

                                                                             {
    shared_ptr<Analysis> toremove;
    foreach (const AnaHandle a, _analyses) {
      if (a->name() == analysisname) {
        toremove = a;
        break;
      }
    }
    if (toremove.get() != 0) {
      MSG_DEBUG("Removing analysis '" << analysisname << "'");
      _analyses.erase(toremove);
    }
    return *this;
  }

string runName ( ) const

Get the name of this run.

Definition at line 213 of file AnalysisHandler.cc.

References AnalysisHandler::_runname.

Referenced by Analysis::histoDir().

{ return _runname; }

AnalysisHandler & setCrossSection ( double xs )

Set the cross-section for the process being generated.

Definition at line 259 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses, and AnalysisHandler::_xs.

Referenced by AnalysisHandler::analyze(), Run::init(), and Run::processEvent().

                                                             {
    _xs = xs;
    foreach (AnaHandle a, _analyses) {
      a->setCrossSection(xs);
    }
    return *this;
  }

void setIgnoreBeams ( bool ignore = true )

Setter for _ignoreBeams.

Definition at line 289 of file AnalysisHandler.cc.

References AnalysisHandler::_ignoreBeams.

                                                  {
    _ignoreBeams=ignore;
  }

AnalysisHandler& setRunBeams ( const ParticlePair & beams ) [inline]

Set beams for this run.

Definition at line 91 of file AnalysisHandler.hh.

References AnalysisHandler::_beams, AnalysisHandler::beams(), Rivet::GeV, MSG_DEBUG, and AnalysisHandler::sqrtS().

Referenced by AnalysisHandler::init().

                                                            {
      _beams = beams;
      MSG_DEBUG("Setting run beams = " << beams << " @ " << sqrtS()/GeV << " GeV");
      return *this;
    }

void setSumOfWeights ( const double & sum )

Set sum of weights. This is useful if Rivet is steered externally and the analyses are run for a sub-contribution of the events (but of course have to be normalised to the total sum of weights)

Definition at line 218 of file AnalysisHandler.cc.

References AnalysisHandler::_sumOfWeights.

                                                         {
    _sumOfWeights=sum;
  }

double sqrtS ( ) const

Get energy for this run, usually determined from the first event.

Definition at line 285 of file AnalysisHandler.cc.

References AnalysisHandler::beams().

Referenced by AnalysisHandler::analyze(), AnalysisHandler::setRunBeams(), and Analysis::sqrtS().

                                      {
    return Rivet::sqrtS(beams());
  }

double sumOfWeights ( ) const

Get the sum of the event weights seen - the weighted equivalent of the number of events. Should only really be used by external steering code or analyses in the finalize phase.

Definition at line 215 of file AnalysisHandler.cc.

References AnalysisHandler::_sumOfWeights.

Referenced by Analysis::sumOfWeights().

{ return _sumOfWeights; }

void writeData ( const std::string & filename )

Write all analyses' plots to the named file.

Definition at line 202 of file AnalysisHandler.cc.

References AnalysisHandler::_analyses.

                                                        {
    vector<AnalysisObjectPtr> allPlots;
    foreach (const AnaHandle a, _analyses) {
      vector<AnalysisObjectPtr> plots = a->plots();
      sort(plots.begin(), plots.end(), AOSortByPath);
      allPlots.insert(allPlots.end(), plots.begin(), plots.end());
    }
    WriterYODA::write(filename, allPlots.begin(), allPlots.end());
  }
