Project out quarks from the hard process in $e^+ e^- \to Z^0$ events. More...

#include <InitialQuarks.hh>

Inheritance diagram for InitialQuarks:

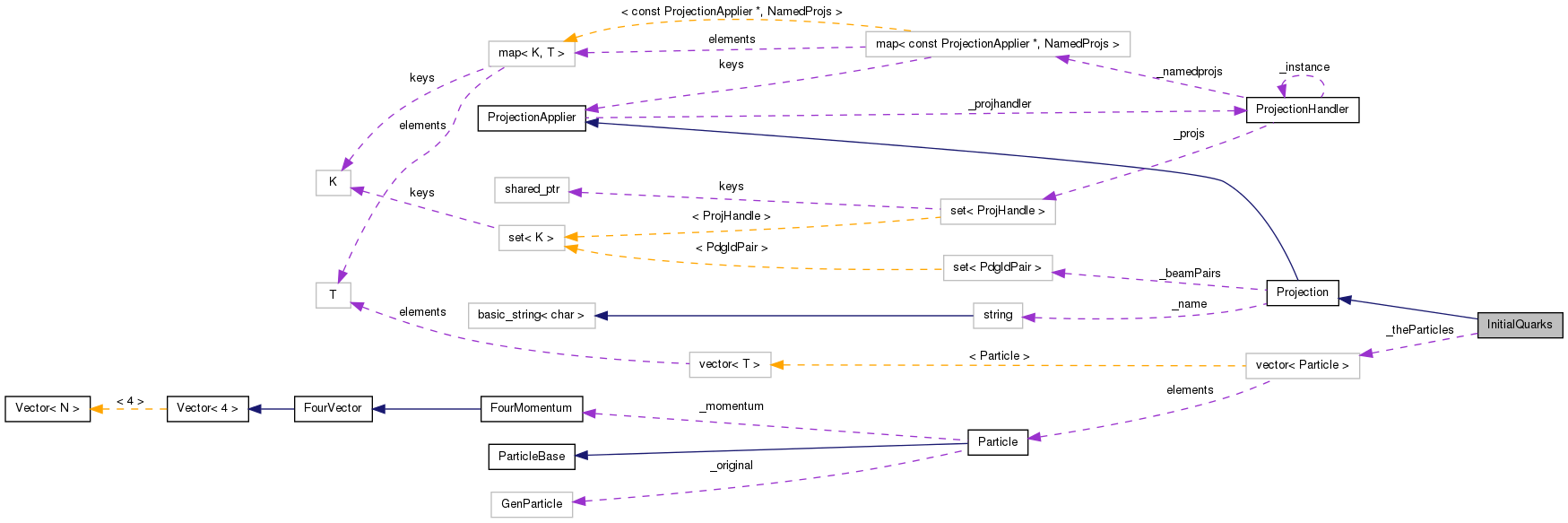

Collaboration diagram for InitialQuarks:

Public Member Functions
virtual const Particles &	particles () const
	Access the projected final-state particles.
virtual bool	empty () const
	Is this final state empty?
bool	before (const Projection &p) const
virtual const std::set< PdgIdPair >	beamPairs () const
virtual std::string	name () const
	Get the name of the projection.
Projection &	addPdgIdPair (PdgId beam1, PdgId beam2)
	Add a colliding beam pair.
Log &	getLog () const
	Get a Log object based on the getName() property of the calling projection object.
void	setName (const std::string &name)
	Used by derived classes to set their name.
Standard constructors and destructors.
	InitialQuarks ()
virtual const Projection *	clone () const
	Clone on the heap.
Projection "getting" functions
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ >
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
virtual void	project (const Event &e)
	Apply the projection to the event.
virtual int	compare (const Projection &p) const
	Compare projections.
Cmp< Projection >	mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection >	mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
Projection registration functions
template<typename PROJ >
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
Particles	_theParticles
	The final-state particles.
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Friends
class	Event
	Event is a friend.
class	Cmp< Projection >
	The Cmp specialization for Projection is a friend.

Detailed Description

Project out quarks from the hard process in $e^+ e^- \to Z^0$ events.

Warning:: This is a very dangerous and specific projection! Use e.g. PID::hasBottom and friends instead whenever possible

Definition at line 16 of file InitialQuarks.hh.

Constructor & Destructor Documentation

InitialQuarks ( ) [inline]

The default constructor. May specify the minimum and maximum pseudorapidity $\eta$ and the min $ p_T $ (in GeV).

Definition at line 23 of file InitialQuarks.hh.

References Projection::setName().

Referenced by InitialQuarks::clone().

                    {
      setName("InitialQuarks");
    }

Member Function Documentation

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)		`[protected, inherited]`

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

                                                                             {
    if (!_allowProjReg) {
      cerr << "Trying to register projection '"
           << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
      exit(2);
    }
    const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
    return reg;
  }

Projection& addPdgIdPair	(	PdgId	beam1,
		PdgId	beam2
	)		`[inline, inherited]`

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

                                                       {
      _beamPairs.insert(PdgIdPair(beam1, beam2));
      return *this;
    }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)		`[inline, protected, inherited]`

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 116 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

                                                                       {
      const Projection& reg = _addProjection(proj, name);
      const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
      return rtn;
    }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)		const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 70 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by DISFinalState::project().

                                                                          {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)		const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 77 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                                {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)		const `[inline, inherited]`

Apply the named projection on event.

Definition at line 84 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                               {
      return pcast<PROJ>(_applyProjection(evt, name));
    }

const set< PdgIdPair > beamPairs ( ) const [virtual, inherited]

Return the allowed beam pairs on which this projection can operate, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Todo:: Remove the beam constraints system from projections.

Definition at line 35 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

                                                   {
    set<PdgIdPair> ret = _beamPairs;
    set<ConstProjectionPtr> projs = getProjections();
    for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
      ConstProjectionPtr p = *ip;
      getLog() << Log::TRACE << "Proj addr = " << p << endl;
      if (p) ret = intersection(ret, p->beamPairs());
    }
    return ret;
  }

bool before ( const Projection & p ) const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 24 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

                                                   {
    const std::type_info& thisid = typeid(*this);
    const std::type_info& otherid = typeid(p);
    if (thisid == otherid) {
      return compare(p) < 0;
    } else {
      return thisid.before(otherid);
    }
  }

virtual const Projection* clone ( ) const [inline, virtual]

Clone on the heap.

Implements Projection.

Definition at line 29 of file InitialQuarks.hh.

References InitialQuarks::InitialQuarks().

                                            {
      return new InitialQuarks(*this);
    }

int compare ( const Projection & p ) const [protected, virtual]

Compare projections.

Implements Projection.

Definition at line 11 of file InitialQuarks.cc.

References Rivet::EQUIVALENT.

                                                      {
    return EQUIVALENT;
  }

virtual bool empty ( ) const [inline, virtual]

Is this final state empty?

Definition at line 38 of file InitialQuarks.hh.

References InitialQuarks::_theParticles.

{ return _theParticles.empty(); }

Log& getLog ( ) const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by Projection::beamPairs(), InvMassFinalState::calc(), ChargedFinalState::project(), InitialQuarks::project(), PromptFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), UnstableFinalState::project(), and VetoedFinalState::project().

                        {
      string logname = "Rivet.Projection." + name();
      return Log::getLog(logname);
    }

const PROJ& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 52 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

                                                           {
      const Projection& p = getProjHandler().getProjection(*this, name);
      return pcast<PROJ>(p);
    }

const Projection& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 60 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

                                                                 {
      return getProjHandler().getProjection(*this, name);
    }

std::set<ConstProjectionPtr> getProjections ( ) const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 45 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

                                                      {
      return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
    }

ProjectionHandler& getProjHandler ( ) const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

                                              {
      return _projhandler;
    }

Cmp< Projection > mkNamedPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const `[protected, inherited]`

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 47 of file Projection.cc.

References Rivet::pcmp().

                                                                     {
    return pcmp(*this, otherparent, pname);
  }

Cmp< Projection > mkPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const `[protected, inherited]`

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 53 of file Projection.cc.

References Rivet::pcmp().

                                                                {
    return pcmp(*this, otherparent, pname);
  }

virtual std::string name ( ) const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ProjectionHandler::registerProjection(), and Projection::setName().

                                   {
      return _name;
    }

virtual const Particles& particles ( ) const [inline, virtual]

Access the projected final-state particles.

Definition at line 35 of file InitialQuarks.hh.

References InitialQuarks::_theParticles.

Referenced by SLD_2004_S5693039::analyze(), OPAL_1998_S3780481::analyze(), SLD_1999_S3743934::analyze(), SLD_1996_S3398250::analyze(), OPAL_2002_S5361494::analyze(), and DELPHI_2000_S4328825::analyze().

{ return _theParticles; }

void project ( const Event & e ) [protected, virtual]

Apply the projection to the event.

Implements Projection.

Definition at line 16 of file InitialQuarks.cc.

References InitialQuarks::_theParticles, Rivet::PID::ELECTRON, Rivet::Cuts::eta, Rivet::PID::GAMMA, Event::genEvent(), Projection::getLog(), Rivet::inRange(), Log::isActive(), MSG_DEBUG, MSG_TRACE, Rivet::particles(), Rivet::particles_in(), Rivet::particles_out(), Rivet::Cuts::pT, Log::TRACE, and Rivet::PID::ZBOSON.

                                            {
    _theParticles.clear();

    foreach (const GenParticle* p, Rivet::particles(e.genEvent())) {
      const GenVertex* pv = p->production_vertex();
      const GenVertex* dv = p->end_vertex();
      const PdgId pid = abs(p->pdg_id());
      bool passed = inRange((long)pid, 1, 6);
      if (passed) {
        if (pv != 0) {
          foreach (const GenParticle* pp, particles_in(pv)) {
            // Only accept if parent is electron or Z0
            const PdgId pid = abs(pp->pdg_id());
            passed = (pid == PID::ELECTRON || abs(pp->pdg_id()) == PID::ZBOSON || abs(pp->pdg_id()) == PID::GAMMA);
          }
        } else {
          passed = false;
        }
      }

      if (getLog().isActive(Log::TRACE)) {
        const int st = p->status();
        const double pT = p->momentum().perp();
        const double eta = p->momentum().eta();
        MSG_TRACE(std::boolalpha
                  << "ID = " << p->pdg_id() << ", status = " << st << ", pT = " << pT
                  << ", eta = " << eta << ": result = " << passed);
        if (pv != 0) {
          foreach (const GenParticle* pp, particles_in(pv)) {
            MSG_TRACE(std::boolalpha << " parent ID = " << pp->pdg_id());
          }
        }
        if (dv != 0) {
          foreach (const GenParticle* pp, particles_out(dv)) {
            MSG_TRACE(std::boolalpha << " child ID  = " << pp->pdg_id());
          }
        }
      }
      if (passed) _theParticles.push_back(Particle(*p));
    }
    MSG_DEBUG("Number of initial quarks = " << _theParticles.size());
    if (!_theParticles.empty()) {
      for (size_t i = 0; i < _theParticles.size(); i++) {
        MSG_DEBUG("Initial quark[" << i << "] = " << _theParticles[i].pid());
      }
    }
  }

void setName ( const std::string & name ) [inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name, and Projection::name().

Referenced by FastJets::_initBase(), Beam::Beam(), BeamThrust::BeamThrust(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ConstLossyFinalState::ConstLossyFinalState(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), DressedLeptons::DressedLeptons(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), HeavyHadrons::HeavyHadrons(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), PrimaryHadrons::PrimaryHadrons(), PromptFinalState::PromptFinalState(), Sphericity::Sphericity(), Spherocity::Spherocity(), TauFinder::TauFinder(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), VetoedFinalState::VetoedFinalState(), VisibleFinalState::VisibleFinalState(), WFinder::WFinder(), and ZFinder::ZFinder().

                                        {
      _name = name;
    }

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 35 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 32 of file Projection.hh.

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 143 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

Particles _theParticles [protected]

The final-state particles.

Definition at line 53 of file InitialQuarks.hh.

Referenced by InitialQuarks::empty(), InitialQuarks::particles(), and InitialQuarks::project().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
