WFinder Class Reference

Convenience finder of leptonically decaying Ws. More...

#include <WFinder.hh>

Inheritance diagram for WFinder:

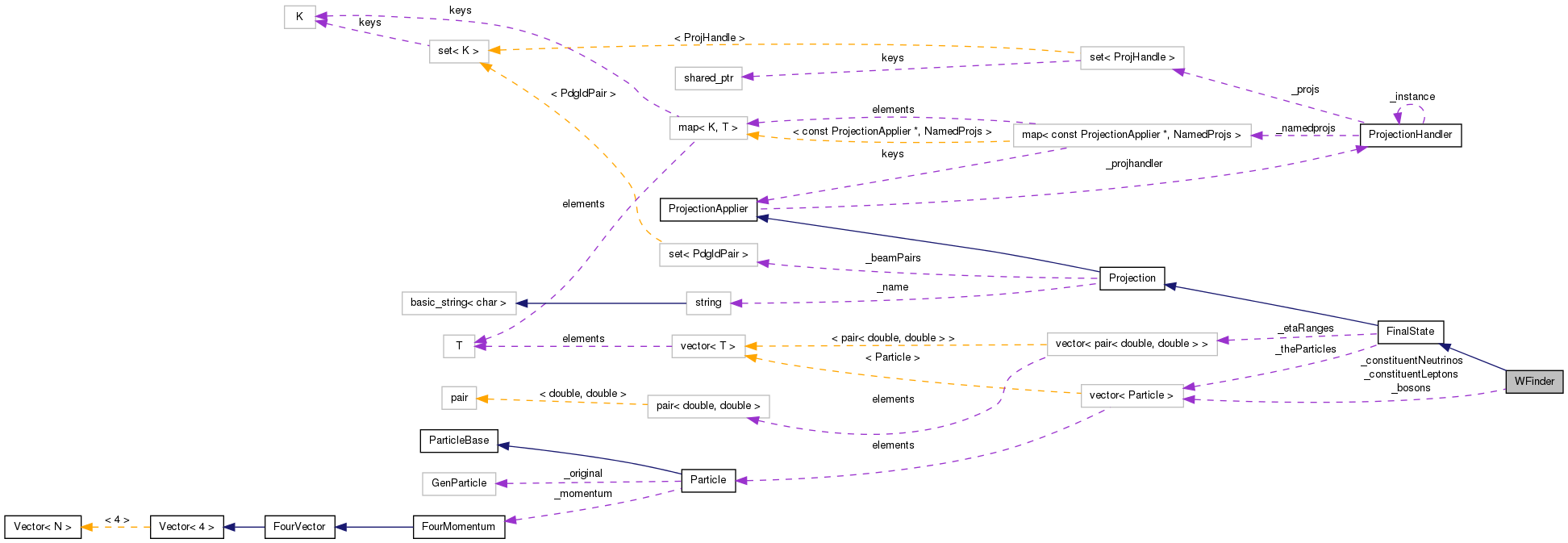

Collaboration diagram for WFinder:

List of all members.

Public Types
typedef Particle	entity_type
typedef ParticleVector	collection_type
Public Member Functions
const ParticleVector &	bosons () const
	Access to the found bosons (currently either 0 or 1)
const vector< Particle > &	constituentLeptons () const
const vector< Particle > &	constituentNeutrinos () const
const FinalState &	remainingFinalState () const
void	clear ()
	Clear the projection.
virtual const ParticleVector &	particles () const
	Get the final-state particles.
template<typename F >
const ParticleVector &	particles (F sorter) const
	Get the final-state particles, ordered by supplied sorting function object.
const ParticleVector &	particlesByPt () const
	Get the final-state particles, ordered by decreasing .
const ParticleVector &	particlesByP () const
	Get the final-state particles, ordered by decreasing .
const ParticleVector &	particlesByE () const
	Get the final-state particles, ordered by decreasing .
const ParticleVector &	particlesByEt () const
	Get the final-state particles, ordered by decreasing .
const ParticleVector &	particlesByEta () const
	Get the final-state particles, ordered by increasing .
const ParticleVector &	particlesByModEta () const
	Get the final-state particles, ordered by increasing .
virtual size_t	size () const
	Access the projected final-state particles.
virtual bool	empty () const
	Is this final state empty?
virtual bool	isEmpty () const
virtual double	ptMin () const
	Minimum- requirement.
const collection_type &	entities () const
	Template-usable interface common to JetAlg.
bool	before (const Projection &p) const
virtual const std::set< PdgIdPair >	beamPairs () const
virtual std::string	name () const
	Get the name of the projection.
Projection &	addPdgIdPair (PdgId beam1, PdgId beam2)
	Add a colliding beam pair.
Log &	getLog () const
	Get a Log object based on the getName() property of the calling projection object.
void	setName (const std::string &name)
	Used by derived classes to set their name.
Constructors
	WFinder (const FinalState &inputfs, double etaMin, double etaMax, double pTmin, PdgId pid, double minmass, double maxmass, double missingET, double dRmax, bool clusterPhotons=true, bool trackPhotons=false, double masstarget=80.4, bool useTransverseMass=false)
	WFinder (const FinalState &inputfs, const std::vector< std::pair< double, double > > &etaRanges, double pTmin, PdgId pid, double minmass, const double maxmass, double missingET, double dRmax, bool clusterPhotons=true, bool trackPhotons=false, double masstarget=80.4, bool useTransverseMass=false)
	WFinder (double, double, double, PdgId, double, double, double, double, bool clusterPhotons=true, bool trackPhotons=false, double masstarget=80.4, bool useTransverseMass=false)
	WFinder (const std::vector< std::pair< double, double > > &, double, PdgId, double, double, double, double, bool clusterPhotons=true, bool trackPhotons=false, double masstarget=80.4, bool useTransverseMass=false)
virtual const Projection *	clone () const
	Clone on the heap.
Projection "getting" functions
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ >
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
void	project (const Event &e)
	Apply the projection on the supplied event.
int	compare (const Projection &p) const
	Compare projections.
bool	accept (const Particle &p) const
	Decide if a particle is to be accepted or not.
Cmp< Projection >	mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection >	mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
Projection registration functions
template<typename PROJ >
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
vector< pair< double, double > >	_etaRanges
	The ranges allowed for pseudorapidity.
double	_ptmin
	The minimum allowed transverse momentum.
ParticleVector	_theParticles
	The final-state particles.
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Private Member Functions
void	_init (const FinalState &inputfs, const std::vector< std::pair< double, double > > &etaRanges, double pTmin, PdgId pid, double minmass, double maxmass, double missingET, double dRmax, bool clusterPhotons, bool trackPhotons, double masstarget, bool useTransverseMass)
	Common implementation of constructor operation, taking FS params.
Private Attributes
double	_minmass
	Transverse mass cuts.
double	_maxmass
double	_masstarget
bool	_useTransverseMass
double	_etMiss
	Missing ET cut.
bool	_trackPhotons
PdgId	_pid
	Lepton flavour.
PdgId	_nu_pid
	Neutrino flavour.
ParticleVector	_bosons
	list of found bosons (currently either 0 or 1)
ParticleVector	_constituentLeptons
	Constituent leptons (currently either 0 or 1)
ParticleVector	_constituentNeutrinos
	Constituent neutrinos (currently either 0 or 1)
Friends
class	Event
	Event is a friend.
class	Cmp< Projection >
	The Cmp specialization for Projection is a friend.

---

Detailed Description

Convenience finder of leptonically decaying Ws.

Chain together different projections as convenience for finding W's from two leptons in the final state, including photon clustering.

Definition at line 20 of file WFinder.hh.

---

Member Typedef Documentation

typedef ParticleVector collection_type [inherited]

Definition at line 93 of file FinalState.hh.

typedef Particle entity_type [inherited]

Definition at line 92 of file FinalState.hh.

---

Constructor & Destructor Documentation

WFinder	(	const FinalState &	inputfs,
		double	etaMin,
		double	etaMax,
		double	pTmin,
		PdgId	pid,
		double	minmass,
		double	maxmass,
		double	missingET,
		double	dRmax,
		bool	clusterPhotons = true,
		bool	trackPhotons = false,
		double	masstarget = 80.4,
		bool	useTransverseMass = false
	)

Constructor taking single eta/pT bounds

Parameters:

inputfs	Input final state
etaMin,etaMax,pTmin	charged lepton cuts
pid	type of the charged lepton
minmass,maxmass	(transverse) mass window
missingET	minimal amount of missing ET (neutrinos) required
dRmax	maximum dR of photons around charged lepton to take into account for W reconstruction (only relevant if one of the following are true)
clusterPhotons	whether such photons are supposed to be clustered to the lepton object and thus W mom
trackPhotons	whether such photons should be added to _theParticles (cf. _trackPhotons)
useTransverseMass	whether mass window should be applied using mT

Definition at line 15 of file WFinder.cc.

References WFinder::_init().

Referenced by WFinder::clone().

                                           {
    vector<pair<double, double> > etaRanges;
    etaRanges += std::make_pair(etaMin, etaMax);
    _init(inputfs, etaRanges, pTmin, pid, minmass, maxmass, missingET,
          dRmax, clusterPhotons, trackPhotons, masstarget, useTransverseMass);
  }

WFinder	(	const FinalState &	inputfs,
		const std::vector< std::pair< double, double > > &	etaRanges,
		double	pTmin,
		PdgId	pid,
		double	minmass,
		const double	maxmass,
		double	missingET,
		double	dRmax,
		bool	clusterPhotons = true,
		bool	trackPhotons = false,
		double	masstarget = 80.4,
		bool	useTransverseMass = false
	)

Constructor taking multiple eta/pT bounds

Parameters:

inputfs	Input final state
etaRanges,pTmin	charged lepton cuts
pid	type of the charged lepton
minmass,maxmass	(transverse) mass window
missingET	minimal amount of missing ET (neutrinos) required
dRmax	maximum dR of photons around charged lepton to take into account for W reconstruction (only relevant if one of the following are true)
clusterPhotons	whether such photons are supposed to be clustered to the lepton object and thus W mom
trackPhotons	whether such photons should be added to _theParticles (cf. _trackPhotons)
useTransverseMass	whether mass window should be applied using mT

Definition at line 31 of file WFinder.cc.

References WFinder::_init().

                                           {
    _init(inputfs, etaRanges, pTmin, pid, minmass, maxmass, missingET,
          dRmax, clusterPhotons, trackPhotons, masstarget, useTransverseMass);
  }

WFinder	(	double	etaMin,
		double	etaMax,
		double	pTmin,
		PdgId	pid,
		double	minmass,
		double	maxmass,
		double	missingET,
		double	dRmax,
		bool	clusterPhotons = true,
		bool	trackPhotons = false,
		double	masstarget = 80.4,
		bool	useTransverseMass = false
	)

Deprecated:

Constructors without inputfs -- only for backwards compatibility

Definition at line 45 of file WFinder.cc.

References WFinder::_init().

                                           {
    vector<pair<double, double> > etaRanges;
    etaRanges += std::make_pair(etaMin, etaMax);
    FinalState inputfs;
    _init(inputfs, etaRanges, pTmin, pid, minmass, maxmass, missingET,
          dRmax, clusterPhotons, trackPhotons, masstarget, useTransverseMass);
  }

WFinder	(	const std::vector< std::pair< double, double > > &	etaRanges,
		double	pTmin,
		PdgId	pid,
		double	minmass,
		double	maxmass,
		double	missingET,
		double	dRmax,
		bool	clusterPhotons = true,
		bool	trackPhotons = false,
		double	masstarget = 80.4,
		bool	useTransverseMass = false
	)

Deprecated:

Constructors without inputfs -- only for backwards compatibility

Definition at line 61 of file WFinder.cc.

References WFinder::_init().

                                           {
    FinalState inputfs;
    _init(inputfs, etaRanges, pTmin, pid, minmass, maxmass, missingET,
          dRmax, clusterPhotons, trackPhotons, masstarget, useTransverseMass);
  }

---

Member Function Documentation

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)		[protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

                                                                             {
    if (!_allowProjReg) {
      cerr << "Trying to register projection '"
           << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
      exit(2);
    }
    const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
    return reg;
  }

void _init	(	const FinalState &	inputfs,
		const std::vector< std::pair< double, double > > &	etaRanges,
		double	pTmin,
		PdgId	pid,
		double	minmass,
		double	maxmass,
		double	missingET,
		double	dRmax,
		bool	clusterPhotons,
		bool	trackPhotons,
		double	masstarget,
		bool	useTransverseMass
	)		[private]

Common implementation of constructor operation, taking FS params.

Definition at line 75 of file WFinder.cc.

References WFinder::_etMiss, WFinder::_masstarget, WFinder::_maxmass, WFinder::_minmass, WFinder::_nu_pid, WFinder::_pid, WFinder::_trackPhotons, WFinder::_useTransverseMass, IdentifiedFinalState::acceptIdPair(), IdentifiedFinalState::acceptNeutrinos(), ProjectionApplier::addProjection(), VetoedFinalState::addVetoOnThisFinalState(), Rivet::ELECTRON, Rivet::MUON, Rivet::NU_E, Rivet::NU_MU, and Projection::setName().

Referenced by WFinder::WFinder().

  {
    setName("WFinder");

    _minmass = minmass;
    _maxmass = maxmass;
    _masstarget = masstarget;
    _pid = pid;
    _trackPhotons = trackPhotons;
    _useTransverseMass = useTransverseMass;

    // Check that the arguments are legal
    assert(abs(_pid) == ELECTRON || abs(_pid) == MUON);
    _nu_pid = abs(_pid) + 1;
    assert(abs(_nu_pid) == NU_E || abs(_nu_pid) == NU_MU);

    // Don't make pT or eta cuts on the neutrino
    IdentifiedFinalState neutrinos(inputfs);
    neutrinos.acceptNeutrinos();
    addProjection(neutrinos, "Neutrinos");

    // Lepton clusters
    IdentifiedFinalState bareleptons(inputfs);
    bareleptons.acceptIdPair(pid);
    LeptonClusters leptons(inputfs, bareleptons, dRmax,
                           clusterPhotons,
                           etaRanges, pTmin);
    addProjection(leptons, "LeptonClusters");

    // Add MissingMomentum proj to calc MET
    MissingMomentum vismom(inputfs);
    addProjection(vismom, "MissingET");
    // Set ETmiss
    _etMiss = missingET;

    VetoedFinalState remainingFS;
    remainingFS.addVetoOnThisFinalState(*this);
    addProjection(remainingFS, "RFS");
  }

bool accept

(

const Particle &

p

)

const [protected, inherited]

Decide if a particle is to be accepted or not.

Definition at line 95 of file FinalState.cc.

References FinalState::_etaRanges, FinalState::_ptmin, FourVector::eta(), Rivet::eta(), Particle::genParticle(), Particle::hasGenParticle(), Particle::momentum(), FourMomentum::pT(), and Rivet::pT().

Referenced by InvMassFinalState::calc(), LeptonClusters::project(), LeadingParticlesFinalState::project(), and FinalState::project().

                                                 {
    // Not having s.c. == 1 should never happen!
    assert(!p.hasGenParticle() || p.genParticle().status() == 1);

    // Check pT cut
    if (_ptmin > 0.0) {
      const double pT = p.momentum().pT();
      if (pT < _ptmin) return false;
    }

    // Check eta cuts
    if (!_etaRanges.empty()) {
      bool eta_pass = false;
      const double eta = p.momentum().eta();
      typedef pair<double,double> EtaPair;
      foreach (const EtaPair& etacuts, _etaRanges) {
        if (eta > etacuts.first && eta < etacuts.second) {
          eta_pass = true;
          break;
        }
      }
      if (!eta_pass) return false;
    }

    return true;
  }

Projection& addPdgIdPair	(	PdgId	beam1,
		PdgId	beam2
	)		[inline, inherited]

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

                                                       {
      _beamPairs.insert(PdgIdPair(beam1, beam2));
      return *this;
    }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)		[inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 113 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ATLAS_2010_S8894728::init(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), CMS_2011_S8968497::init(), ATLAS_2011_S8994773::init(), ATLAS_2011_I894867::init(), CMS_2011_S8950903::init(), ATLAS_2010_CONF_2010_049::init(), CMS_2012_I1087342::init(), ALICE_2011_S8909580::init(), ALICE_2011_S8945144::init(), CMS_2011_S8941262::init(), CMS_2011_S8973270::init(), CMS_2011_S8978280::init(), CMS_2011_S9086218::init(), CMS_2011_S9088458::init(), CMS_2011_S9215166::init(), CMS_2012_I1107658::init(), LHCF_2012_I1115479::init(), CDF_2007_S7057202::init(), TOTEM_2012_I1115294::init(), ATLAS_2010_S8591806::init(), D0_2011_I895662::init(), CMS_2011_S8957746::init(), MC_JETS::init(), CDF_2012_NOTE10874::init(), CMS_QCD_10_024::init(), ATLAS_2011_S9002537::init(), CDF_1997_S3541940::init(), UA5_1987_S1640666::init(), MC_DIJET::init(), STAR_2006_S6500200::init(), STAR_2008_S7993412::init(), CDF_2000_S4155203::init(), CDF_2005_S6080774::init(), CDF_2006_S6450792::init(), MC_DIPHOTON::init(), SFM_1984_S1178091::init(), UA5_1982_S875503::init(), STAR_2006_S6870392::init(), UA5_1989_S1926373::init(), D0_2008_S6879055::init(), CDF_1993_S2742446::init(), H1_1995_S3167097::init(), MC_HJETS::init(), CDF_2008_S8093652::init(), MC_ZJETS::init(), CMS_2012_I1102908::init(), CDF_1988_S1865951::init(), E735_1998_S3905616::init(), MC_PHOTONJETS::init(), MC_TTBAR::init(), MC_ZZJETS::init(), CDF_2008_S7782535::init(), ATLAS_2012_I1091481::init(), ATLAS_2012_I1183818::init(), D0_1996_S3324664::init(), ALEPH_1991_S2435284::init(), ATLAS_2010_S8817804::init(), DELPHI_1999_S3960137::init(), CDF_1990_S2089246::init(), OPAL_1998_S3749908::init(), UA5_1986_S1583476::init(), ALEPH_1996_S3196992::init(), MC_IDENTIFIED::init(), MC_LEADJETUE::init(), ALEPH_2002_S4823664::init(), MC_PHOTONJETUE::init(), MC_WJETS::init(), MC_WWJETS::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_2000_S4418603::init(), ATLAS_2011_S8924791::init(), D0_2010_S8570965::init(), CDF_1994_S2952106::init(), JADE_OPAL_2000_S4300807::init(), MC_GENERIC::init(), CDF_2005_S6217184::init(), ATLAS_2011_I954993::init(), D0_2001_S4674421::init(), D0_2007_S7075677::init(), LHCB_2011_I919315::init(), CDF_2008_S7540469::init(), CDF_2008_S7828950::init(), ATLAS_2011_I925932::init(), UA1_1990_S2044935::init(), ZEUS_2001_S4815815::init(), D0_1996_S3214044::init(), ALICE_2010_S8624100::init(), D0_2008_S7554427::init(), D0_2008_S7863608::init(), D0_2010_S8671338::init(), DELPHI_1995_S3137023::init(), ATLAS_2011_S9131140::init(), JADE_1998_S3612880::init(), MC_PHOTONS::init(), OPAL_1997_S3396100::init(), STAR_2006_S6860818::init(), STAR_2009_UE_HELEN::init(), ALEPH_2004_S5765862::init(), D0_2000_S4480767::init(), ALICE_2010_S8625980::init(), D0_2009_S8202443::init(), D0_2009_S8349509::init(), CDF_2008_S8095620::init(), MC_SUSY::init(), EXAMPLE::init(), ATLAS_2011_S9128077::init(), ALICE_2010_S8706239::init(), CDF_2009_NOTE_9936::init(), D0_2009_S8320160::init(), ATLAS_2011_S8971293::init(), CDF_1996_S3108457::init(), CDF_1998_S3618439::init(), CDF_2000_S4266730::init(), CDF_2001_S4563131::init(), CDF_2009_S8383952::init(), CDF_2009_S8436959::init(), D0_2006_S6438750::init(), D0_2008_S7837160::init(), D0_2010_S8566488::init(), DELPHI_2002_069_CONF_603::init(), ATLAS_2012_I1082936::init(), ATLAS_2011_I926145::init(), SLD_2002_S4869273::init(), CDF_1996_S3349578::init(), ALEPH_2001_S4656318::init(), CDF_2001_S4517016::init(), D0_2010_S8821313::init(), MC_WPOL::init(), CDF_1996_S3418421::init(), ATLAS_2011_I944826::init(), D0_2008_S7662670::init(), ATLAS_2010_S8919674::init(), ATLAS_2012_I1083318::init(), UA5_1988_S1867512::init(), ATLAS_2011_S9108483::init(), CDF_2006_S6653332::init(), CDF_2008_S7541902::init(), ATLAS_2012_I1125961::init(), ATLAS_2011_S9212183::init(), ATLAS_2012_CONF_2012_109::init(), ATLAS_2012_I1095236::init(), DELPHI_2000_S4328825::init(), ATLAS_2012_CONF_2012_104::init(), SLD_1996_S3398250::init(), ATLAS_2011_S8983313::init(), ATLAS_2012_CONF_2012_001::init(), ATLAS_2011_S9212353::init(), ATLAS_2012_CONF_2012_103::init(), ATLAS_2012_I943401::init(), ATLAS_2012_I946427::init(), OPAL_2002_S5361494::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2012_I1190891::init(), ATLAS_2012_I1112263::init(), ATLAS_2011_S9019561::init(), ATLAS_2011_S9225137::init(), ATLAS_2012_I1180197::init(), TASSO_1990_S2148048::init(), ATLAS_2012_I1117704::init(), ATLAS_2012_CONF_2012_105::init(), ATLAS_2012_I1186556::init(), D0_2008_S7719523::init(), ATLAS_2012_I1082009::init(), ATLAS_2011_CONF_2011_098::init(), ATLAS_2012_I1084540::init(), ATLAS_2012_I1126136::init(), CDF_2009_S8233977::init(), ATLAS_2012_CONF_2012_153::init(), CDF_2008_NOTE_9351::init(), CDF_2010_S8591881_DY::init(), CDF_2010_S8591881_QCD::init(), CDF_2008_LEADINGJETS::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), ATLAS_2011_S9120807::init(), CDF_2001_S4751469::init(), ATLAS_2010_S8918562::init(), LHCB_2011_I917009::init(), ATLAS_2011_I945498::init(), ATLAS_2011_S9041966::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), ATLAS_2012_I1094568::init(), OPAL_2004_S6132243::init(), ATLAS_2012_I1093738::init(), OPAL_1994_S2927284::init(), ATLAS_2011_S9126244::init(), STAR_2008_S7869363::init(), BABAR_2007_S6895344::init(), MC_VH2BB::init(), BABAR_2005_S6181155::init(), BELLE_2001_S4598261::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), DELPHI_2003_WUD_03_11::init(), CDF_2004_S5839831::init(), CLEO_2004_S5809304::init(), ARGUS_1993_S2653028::init(), OPAL_1998_S3780481::init(), BABAR_2007_S7266081::init(), OPAL_1993_S2692198::init(), ARGUS_1993_S2669951::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), ARGUS_1993_S2789213::init(), SLD_2004_S5693039::init(), BELLE_2006_S6265367::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), Spherocity::Spherocity(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

                                                                       {
      const Projection& reg = _addProjection(proj, name);
      const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
      return rtn;
    }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)		const [inline, inherited]

Apply the supplied projection on event.

Definition at line 67 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by DISFinalState::project().

                                                                          {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)		const [inline, inherited]

Apply the supplied projection on event.

Definition at line 74 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                                {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)		const [inline, inherited]

Apply the named projection on event.

Definition at line 81 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                               {
      return pcast<PROJ>(_applyProjection(evt, name));
    }

const set< PdgIdPair > beamPairs

(

)

const [virtual, inherited]

Return the BeamConstraints for this projection, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Definition at line 39 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

                                                   {
    set<PdgIdPair> ret = _beamPairs;
    set<ConstProjectionPtr> projs = getProjections();
    for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
      ConstProjectionPtr p = *ip;
      getLog() << Log::TRACE << "Proj addr = " << p << endl;
      if (p) ret = intersection(ret, p->beamPairs());
    }
    return ret;
  }

bool before

(

const Projection &

p

)

const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 28 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

                                                   {
    const std::type_info& thisid = typeid(*this);
    const std::type_info& otherid = typeid(p);
    if (thisid == otherid) {
      return compare(p) < 0;
    } else {
      return thisid.before(otherid);
    }
  }

const ParticleVector& bosons

(

)

const [inline]

Access to the found bosons (currently either 0 or 1)

Definition at line 92 of file WFinder.hh.

References WFinder::_bosons.

Referenced by D0_2000_S4480767::analyze(), ATLAS_2011_I925932::analyze(), D0_2008_S7837160::analyze(), MC_WJETS::analyze(), MC_WPOL::analyze(), MC_WWJETS::analyze(), and ATLAS_2011_I926145::analyze().

{ return _bosons; }

void clear

(

)

[inline]

Clear the projection.

Definition at line 119 of file WFinder.hh.

References WFinder::_bosons, WFinder::_constituentLeptons, WFinder::_constituentNeutrinos, and FinalState::_theParticles.

Referenced by WFinder::project().

                 {
      _theParticles.clear();
      _bosons.clear();
      _constituentLeptons.clear();
      _constituentNeutrinos.clear();
    }

virtual const Projection* clone

(

)

const [inline, virtual]

Clone on the heap.

Reimplemented from FinalState.

Definition at line 85 of file WFinder.hh.

References WFinder::WFinder().

                                            {
      return new WFinder(*this);
    }

int compare

(

const Projection &

p

)

const [protected, virtual]

Compare projections.

Reimplemented from FinalState.

Definition at line 131 of file WFinder.cc.

References WFinder::_etMiss, WFinder::_maxmass, WFinder::_minmass, WFinder::_pid, WFinder::_trackPhotons, WFinder::_useTransverseMass, Rivet::cmp(), Rivet::EQUIVALENT, and Projection::mkNamedPCmp().

                                                {
    PCmp LCcmp = mkNamedPCmp(p, "LeptonClusters");
    if (LCcmp != EQUIVALENT) return LCcmp;

    const WFinder& other = dynamic_cast<const WFinder&>(p);
    return (cmp(_minmass, other._minmass) || cmp(_maxmass, other._maxmass) ||
            cmp(_useTransverseMass, other._useTransverseMass) ||
            cmp(_etMiss, other._etMiss) ||
            cmp(_pid, other._pid) || cmp(_trackPhotons, other._trackPhotons));
  }

const vector<Particle>& constituentLeptons

(

)

const [inline]

Access to the W constituent clustered leptons (currently either of size 0 if no boson was found or 1 if one boson was found)

Definition at line 96 of file WFinder.hh.

References WFinder::_constituentLeptons.

Referenced by ATLAS_2011_I925932::analyze(), D0_2008_S7837160::analyze(), MC_WJETS::analyze(), MC_WPOL::analyze(), and MC_WWJETS::analyze().

{ return _constituentLeptons; }

const vector<Particle>& constituentNeutrinos

(

)

const [inline]

Access to the W constituent neutrinos (currently either of size 0 if no boson was found or 1 if one boson was found)

Definition at line 100 of file WFinder.hh.

References WFinder::_constituentNeutrinos.

Referenced by ATLAS_2011_I925932::analyze(), and MC_WWJETS::analyze().

{ return _constituentNeutrinos; }

virtual bool empty

(

)

const [inline, virtual, inherited]

Is this final state empty?

Definition at line 82 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by STAR_2008_S7993412::analyze(), STAR_2006_S6870392::analyze(), CDF_2008_S7540469::analyze(), CMS_2011_S9215166::analyze(), MC_PHOTONJETS::analyze(), and D0_2008_S7662670::analyze().

{ return _theParticles.empty(); }

const collection_type& entities

(

)

const [inline, inherited]

Template-usable interface common to JetAlg.

Definition at line 96 of file FinalState.hh.

References FinalState::particles().

                                            {
      return particles();
    }

Log& getLog

(

)

const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by Projection::beamPairs(), InvMassFinalState::calc(), ChargedFinalState::project(), InitialQuarks::project(), UnstableFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), and VetoedFinalState::project().

                        {
      string logname = "Rivet.Projection." + name();
      return Log::getLog(logname);
    }

const PROJ& getProjection

(

const std::string &

name

)

const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 49 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

                                                           {
      const Projection& p = getProjHandler().getProjection(*this, name);
      return pcast<PROJ>(p);
    }

const Projection& getProjection

(

const std::string &

name

)

const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 57 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

                                                                 {
      return getProjHandler().getProjection(*this, name);
    }

std::set<ConstProjectionPtr> getProjections

(

)

const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 42 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

                                                      {
      return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
    }

ProjectionHandler& getProjHandler

(

)

const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 94 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

                                              {
      return _projhandler;
    }

virtual bool isEmpty

(

)

const [inline, virtual, inherited]

Deprecated:

Is this final state empty?

Definition at line 84 of file FinalState.hh.

References FinalState::_theParticles.

{ return _theParticles.empty(); }

Cmp< Projection > mkNamedPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 51 of file Projection.cc.

References Rivet::pcmp().

Referenced by BeamThrust::compare(), ChargedLeptons::compare(), Multiplicity::compare(), FParameter::compare(), CentralEtHCM::compare(), DISLepton::compare(), MergedFinalState::compare(), DISKinematics::compare(), DISFinalState::compare(), ChargedFinalState::compare(), ClusteredPhotons::compare(), NeutralFinalState::compare(), VisibleFinalState::compare(), LeptonClusters::compare(), LeadingParticlesFinalState::compare(), ParisiTensor::compare(), Spherocity::compare(), MissingMomentum::compare(), FoxWolframMoments::compare(), LossyFinalState< ConstRandomFilter >::compare(), Thrust::compare(), InvMassFinalState::compare(), Sphericity::compare(), Hemispheres::compare(), ZFinder::compare(), IdentifiedFinalState::compare(), WFinder::compare(), JetShape::compare(), VetoedFinalState::compare(), and FastJets::compare().

                                                                     {
    return pcmp(*this, otherparent, pname);
  }

Cmp< Projection > mkPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 57 of file Projection.cc.

References Rivet::pcmp().

                                                                {
    return pcmp(*this, otherparent, pname);
  }

virtual std::string name

(

)

const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ClusteredPhotons::project(), ProjectionHandler::registerProjection(), and Projection::setName().

                                   {
      return _name;
    }

virtual const ParticleVector& particles

(

)

const [inline, virtual, inherited]

Get the final-state particles.

Definition at line 39 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by BABAR_2005_S6181155::analyze(), CLEO_2004_S5809304::analyze(), BABAR_2007_S6895344::analyze(), BELLE_2001_S4598261::analyze(), BELLE_2006_S6265367::analyze(), ARGUS_1993_S2653028::analyze(), BABAR_2007_S7266081::analyze(), OPAL_1994_S2927284::analyze(), ARGUS_1993_S2789213::analyze(), ARGUS_1993_S2669951::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), H1_2000_S4129130::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), OPAL_1993_S2692198::analyze(), SLD_2004_S5693039::analyze(), TOTEM_2012_I1115294::analyze(), CMS_2010_S8656010::analyze(), LHCF_2012_I1115479::analyze(), ATLAS_2010_S8591806::analyze(), ALICE_2011_S8909580::analyze(), ALICE_2011_S8945144::analyze(), OPAL_1998_S3780481::analyze(), SLD_1999_S3743934::analyze(), STAR_2008_S7993412::analyze(), OPAL_1995_S3198391::analyze(), OPAL_1997_S3608263::analyze(), OPAL_2000_S4418603::analyze(), ALEPH_2002_S4823664::analyze(), H1_1994_S2919893::analyze(), OPAL_1996_S3257789::analyze(), OPAL_1998_S3702294::analyze(), DELPHI_1999_S3960137::analyze(), E735_1998_S3905616::analyze(), UA5_1982_S875503::analyze(), CMS_QCD_10_024::analyze(), ATLAS_2011_S9002537::analyze(), CMS_2010_S8547297::analyze(), CMS_2011_S8978280::analyze(), DELPHI_1995_S3137023::analyze(), SLD_2002_S4869273::analyze(), CDF_1990_S2089246::analyze(), CDF_1988_S1865951::analyze(), ALEPH_2001_S4656318::analyze(), DELPHI_2002_069_CONF_603::analyze(), ALICE_2010_S8706239::analyze(), CDF_2008_S7540469::analyze(), CMS_2011_S8973270::analyze(), OPAL_2002_S5361494::analyze(), SLD_1996_S3398250::analyze(), DELPHI_2000_S4328825::analyze(), CMS_2011_S9215166::analyze(), LHCB_2011_I919315::analyze(), MC_DIJET::analyze(), OPAL_1998_S3749908::analyze(), SFM_1984_S1178091::analyze(), MC_IDENTIFIED::analyze(), MC_LEADJETUE::analyze(), STAR_2006_S6500200::analyze(), OPAL_1997_S3396100::analyze(), D0_2006_S6438750::analyze(), ALICE_2010_S8625980::analyze(), ATLAS_2011_I925932::analyze(), UA5_1986_S1583476::analyze(), CDF_2009_S8233977::analyze(), STAR_2006_S6860818::analyze(), MC_PHOTONJETS::analyze(), CMS_2011_S8884919::analyze(), LHCB_2010_S8758301::analyze(), ATLAS_2012_I1082009::analyze(), CDF_2008_S8095620::analyze(), STAR_2009_UE_HELEN::analyze(), CDF_2006_S6653332::analyze(), UA1_1990_S2044935::analyze(), ALEPH_1999_S4193598::analyze(), D0_2001_S4674421::analyze(), CDF_2008_S7541902::analyze(), MC_PHOTONJETUE::analyze(), JADE_1998_S3612880::analyze(), ATLAS_2012_I1183818::analyze(), CDF_2010_S8591881_QCD::analyze(), CDF_2010_S8591881_DY::analyze(), CDF_2008_LEADINGJETS::analyze(), TASSO_1990_S2148048::analyze(), LHCB_2011_I917009::analyze(), MC_GENERIC::analyze(), D0_2008_S7719523::analyze(), H1_1995_S3167097::analyze(), CDF_2008_NOTE_9351::analyze(), ATLAS_2012_I1084540::analyze(), STAR_2008_S7869363::analyze(), ATLAS_2011_I926145::analyze(), ATLAS_2010_S8919674::analyze(), ATLAS_2010_S8894728::analyze(), DELPHI_2003_WUD_03_11::analyze(), MC_SUSY::analyze(), ATLAS_2012_I1093738::analyze(), ALEPH_1996_S3486095::analyze(), ALEPH_2004_S5765862::analyze(), ATLAS_2011_I944826::analyze(), DELPHI_1996_S3430090::analyze(), BeamThrust::calc(), FParameter::calc(), Spherocity::calc(), Thrust::calc(), Sphericity::calc(), FinalState::entities(), ATLAS_2010_S8918562::fillPtEtaNch(), FinalState::particlesByE(), FinalState::particlesByEt(), FinalState::particlesByEta(), FinalState::particlesByModEta(), FinalState::particlesByP(), FinalState::particlesByPt(), ChargedLeptons::project(), Multiplicity::project(), CentralEtHCM::project(), DISLepton::project(), MergedFinalState::project(), TriggerCDFRun2::project(), TriggerCDFRun0Run1::project(), NonHadronicFinalState::project(), ChargedFinalState::project(), HadronicFinalState::project(), NeutralFinalState::project(), ClusteredPhotons::project(), VisibleFinalState::project(), TriggerUA5::project(), LossyFinalState< ConstRandomFilter >::project(), LeptonClusters::project(), LeadingParticlesFinalState::project(), FoxWolframMoments::project(), MissingMomentum::project(), InvMassFinalState::project(), Hemispheres::project(), IdentifiedFinalState::project(), FinalState::project(), and VetoedFinalState::project().

{ return _theParticles; }

const ParticleVector& particles

(

F

sorter

)

const [inline, inherited]

Get the final-state particles, ordered by supplied sorting function object.

Definition at line 43 of file FinalState.hh.

References FinalState::_theParticles.

                                                    {
      std::sort(_theParticles.begin(), _theParticles.end(), sorter);
      return _theParticles;
    }

const ParticleVector& particlesByE

(

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Definition at line 59 of file FinalState.hh.

References Rivet::cmpParticleByE(), and FinalState::particles().

                                               {
      return particles(cmpParticleByE);
    }

const ParticleVector& particlesByEt

(

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Definition at line 64 of file FinalState.hh.

References Rivet::cmpParticleByEt(), and FinalState::particles().

                                                {
      return particles(cmpParticleByEt);
    }

const ParticleVector& particlesByEta

(

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Definition at line 69 of file FinalState.hh.

References Rivet::cmpParticleByAscPseudorapidity(), and FinalState::particles().

Referenced by ATLAS_2011_I894867::analyze(), ATLAS_2012_I1091481::analyze(), and ATLAS_2012_I1084540::fillMap().

                                                 {
      return particles(cmpParticleByAscPseudorapidity);
    }

const ParticleVector& particlesByModEta

(

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Definition at line 74 of file FinalState.hh.

References Rivet::cmpParticleByAscAbsPseudorapidity(), and FinalState::particles().

                                                    {
      return particles(cmpParticleByAscAbsPseudorapidity);
    }

const ParticleVector& particlesByP

(

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Definition at line 54 of file FinalState.hh.

References Rivet::cmpParticleByP(), and FinalState::particles().

                                               {
      return particles(cmpParticleByP);
    }

const ParticleVector& particlesByPt

(

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Definition at line 49 of file FinalState.hh.

References Rivet::cmpParticleByPt(), and FinalState::particles().

Referenced by ATLAS_2011_S8994773::analyze(), CDF_2012_NOTE10874::analyze(), MC_PHOTONJETUE::analyze(), ATLAS_2010_S8894728::analyze(), and ATLAS_2012_I1091481::analyze().

                                                {
      return particles(cmpParticleByPt);
    }

void project

(

const Event &

e

)

[protected, virtual]

Apply the projection on the supplied event.

Todo:

Restrict missing momentum eta range? Use vectorET()?

Reimplemented from FinalState.

Definition at line 143 of file WFinder.cc.

References WFinder::_bosons, WFinder::_constituentLeptons, WFinder::_constituentNeutrinos, WFinder::_etMiss, WFinder::_masstarget, WFinder::_maxmass, WFinder::_minmass, WFinder::_nu_pid, WFinder::_pid, FinalState::_theParticles, WFinder::_trackPhotons, WFinder::_useTransverseMass, InvMassFinalState::calc(), WFinder::clear(), LeptonClusters::clusteredLeptons(), ClusteredLepton::constituentLepton(), ClusteredLepton::constituentPhotons(), Rivet::GeV, Particle::momentum(), MSG_DEBUG, InvMassFinalState::particlePairs(), Particle::pdgId(), Rivet::PID::threeCharge(), InvMassFinalState::useTransverseMass(), Rivet::WMINUSBOSON, and Rivet::WPLUSBOSON.

                                      {
    clear();

    const LeptonClusters& leptons = applyProjection<LeptonClusters>(e, "LeptonClusters");
    const FinalState& neutrinos = applyProjection<FinalState>(e, "Neutrinos");

    // Make and register an invariant mass final state for the W decay leptons
    vector<pair<PdgId, PdgId> > l_nu_ids;
    l_nu_ids += make_pair(abs(_pid), -abs(_nu_pid));
    l_nu_ids += make_pair(-abs(_pid), abs(_nu_pid));
    InvMassFinalState imfs(l_nu_ids, _minmass, _maxmass, _masstarget);
    imfs.useTransverseMass(_useTransverseMass);
    ParticleVector tmp;
    tmp.insert(tmp.end(), leptons.clusteredLeptons().begin(), leptons.clusteredLeptons().end());
    tmp.insert(tmp.end(), neutrinos.particles().begin(), neutrinos.particles().end());
    imfs.calc(tmp);

    if (imfs.particlePairs().size() < 1) return;

    ParticlePair Wconstituents(imfs.particlePairs()[0]);
    Particle p1(Wconstituents.first), p2(Wconstituents.second);

    if (PID::threeCharge(p1)==0) {
      _constituentLeptons += p2;
      _constituentNeutrinos += p1;
    }
    else {
      _constituentLeptons += p1;
      _constituentNeutrinos += p2;
    }

    FourMomentum pW = p1.momentum() + p2.momentum();
    const int w3charge = PID::threeCharge(p1) + PID::threeCharge(p2);
    assert(abs(w3charge) == 3);
    const int wcharge = w3charge/3;

    stringstream msg;
    string wsign = (wcharge == 1) ? "+" : "-";
    string wstr = "W" + wsign;
    msg << wstr << " reconstructed from: " << "\n"
        << "   " << p1.momentum() << " " << p1.pdgId() << "\n"
        << " + " << p2.momentum() << " " << p2.pdgId();
    MSG_DEBUG(msg.str());

    // Check missing ET
    const MissingMomentum& vismom = applyProjection<MissingMomentum>(e, "MissingET");
    /// @todo Restrict missing momentum eta range? Use vectorET()?
    if (vismom.scalarEt() < _etMiss) {
      MSG_DEBUG("Not enough missing ET: " << vismom.scalarEt()/GeV
                << " GeV vs. " << _etMiss/GeV << " GeV");
      return;
    }

    // Make W Particle and insert into particles list
    const PdgId wpid = (wcharge == 1) ? WPLUSBOSON : WMINUSBOSON;
    _bosons.push_back(Particle(wpid, pW));

    // Find the LeptonClusters and neutrinos which survived the IMFS cut such that we can
    // extract their original particles
    foreach (const Particle& p, _constituentNeutrinos) {
      _theParticles.push_back(p);
    }
    foreach (const Particle& p, _constituentLeptons) {
      foreach (const ClusteredLepton& l, leptons.clusteredLeptons()) {
        if (p.pdgId()==l.pdgId() && p.momentum()==l.momentum()) {
          _theParticles.push_back(l.constituentLepton());
          if (_trackPhotons) {
            _theParticles.insert(_theParticles.end(),
                                 l.constituentPhotons().begin(),
                                 l.constituentPhotons().end());
          }
        }
      }
    }
  }

virtual double ptMin

(

)

const [inline, virtual, inherited]

Minimum- requirement.

Definition at line 87 of file FinalState.hh.

References FinalState::_ptmin.

{ return _ptmin; }

const FinalState & remainingFinalState

(

)

const

Access to the remaining particles, after the W and clustered photons have been removed from the full final state (e.g. for running a jet finder on it)

Definition at line 127 of file WFinder.cc.

Referenced by MC_WJETS::init().

                                                       {
    return getProjection<FinalState>("RFS");
  }

void setName

(

const std::string &

name

)

[inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name, and Projection::name().

Referenced by ZFinder::_init(), WFinder::_init(), FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), Beam::Beam(), BeamThrust::BeamThrust(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), ConstLossyFinalState::ConstLossyFinalState(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), Spherocity::Spherocity(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

                                        {
      _name = name;
    }

virtual size_t size

(

)

const [inline, virtual, inherited]

Access the projected final-state particles.

Definition at line 79 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by TOTEM_2012_I1115294::analyze(), ATLAS_2010_S8591806::analyze(), UA5_1982_S875503::analyze(), ATLAS_2011_S9002537::analyze(), ATLAS_2011_S8994773::analyze(), CDF_2009_NOTE_9936::analyze(), SLD_1996_S3398250::analyze(), CDF_2012_NOTE10874::analyze(), DELPHI_2000_S4328825::analyze(), OPAL_2002_S5361494::analyze(), ALICE_2010_S8625980::analyze(), STAR_2006_S6500200::analyze(), UA5_1986_S1583476::analyze(), CDF_2009_S8233977::analyze(), ALICE_2010_S8624100::analyze(), STAR_2006_S6860818::analyze(), ALEPH_1999_S4193598::analyze(), UA1_1990_S2044935::analyze(), MC_PHOTONJETUE::analyze(), ATLAS_2012_I1183818::analyze(), MC_GENERIC::analyze(), ATLAS_2011_I926145::analyze(), ATLAS_2010_S8894728::analyze(), ATLAS_2010_S8919674::analyze(), OPAL_2004_S6132243::analyze(), MC_SUSY::analyze(), ATLAS_2010_S8918562::analyze(), and ATLAS_2010_S8918562::fillPtEtaNch().

{ return _theParticles.size(); }

---

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 36 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 33 of file Projection.hh.

---

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 140 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

ParticleVector _bosons [private]

list of found bosons (currently either 0 or 1)

Definition at line 164 of file WFinder.hh.

Referenced by WFinder::bosons(), WFinder::clear(), and WFinder::project().

ParticleVector _constituentLeptons [private]

Constituent leptons (currently either 0 or 1)

Definition at line 167 of file WFinder.hh.

Referenced by WFinder::clear(), WFinder::constituentLeptons(), and WFinder::project().

ParticleVector _constituentNeutrinos [private]

Constituent neutrinos (currently either 0 or 1)

Definition at line 170 of file WFinder.hh.

Referenced by WFinder::clear(), WFinder::constituentNeutrinos(), and WFinder::project().

vector<pair<double,double> > _etaRanges [protected, inherited]

The ranges allowed for pseudorapidity.

Definition at line 116 of file FinalState.hh.

Referenced by FinalState::accept(), FinalState::compare(), FinalState::FinalState(), UnstableFinalState::project(), and FinalState::project().

double _etMiss [private]

Missing ET cut.

Definition at line 147 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

double _masstarget [private]

Definition at line 143 of file WFinder.hh.

Referenced by WFinder::_init(), and WFinder::project().

double _maxmass [private]

Definition at line 143 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

double _minmass [private]

Transverse mass cuts.

Definition at line 143 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

PdgId _nu_pid [private]

Neutrino flavour.

Definition at line 161 of file WFinder.hh.

Referenced by WFinder::_init(), and WFinder::project().

PdgId _pid [private]

Lepton flavour.

Definition at line 158 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

double _ptmin [protected, inherited]

The minimum allowed transverse momentum.

Definition at line 119 of file FinalState.hh.

Referenced by FinalState::accept(), FinalState::compare(), UnstableFinalState::project(), FinalState::project(), and FinalState::ptMin().

ParticleVector _theParticles [mutable, protected, inherited]

The final-state particles.

Definition at line 122 of file FinalState.hh.

Referenced by InvMassFinalState::calc(), ChargedLeptons::chargedLeptons(), ZFinder::clear(), WFinder::clear(), FinalState::empty(), FinalState::isEmpty(), FinalState::particles(), ChargedLeptons::project(), MergedFinalState::project(), ChargedFinalState::project(), NonHadronicFinalState::project(), DISFinalState::project(), HadronicFinalState::project(), NeutralFinalState::project(), ClusteredPhotons::project(), VisibleFinalState::project(), UnstableFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeptonClusters::project(), LeadingParticlesFinalState::project(), ZFinder::project(), FinalState::project(), IdentifiedFinalState::project(), WFinder::project(), VetoedFinalState::project(), and FinalState::size().

bool _trackPhotons [private]

Switch for tracking of photons (whether to add them to _theParticles) This is relevant when the ZFinder::_theParticles are to be excluded from e.g. the input to a jet finder, to specify whether the clustered photons are to be excluded as well. (Yes, some experiments make a difference between clusterPhotons and trackPhotons!)

Definition at line 155 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

bool _useTransverseMass [private]

Definition at line 144 of file WFinder.hh.

Referenced by WFinder::_init(), WFinder::compare(), and WFinder::project().

---

The documentation for this class was generated from the following files:

• WFinder.hh
• WFinder.cc
