STAR_2009_UE_HELEN Class Reference

Inheritance diagram for STAR_2009_UE_HELEN:

Inheritance graph
[legend]

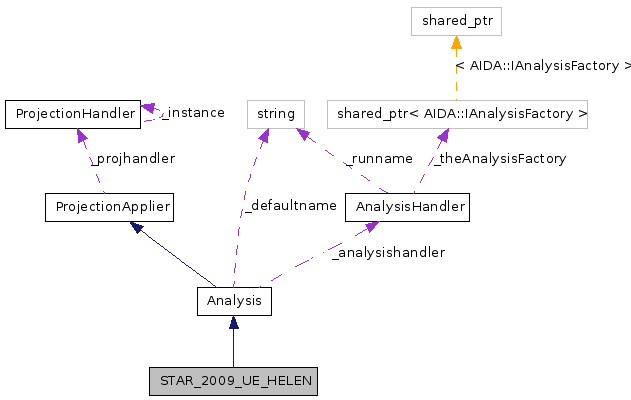

Collaboration diagram for STAR_2009_UE_HELEN:

Collaboration graph
[legend]

List of all members.

Detailed Description

STAR underlying event.

Author:
Hendrik Hoeth

Definition at line 17 of file STAR_2009_UE_HELEN.cc.


Public Member Functions

 STAR_2009_UE_HELEN ()
 Constructor.
virtual bool isCompatible (PdgId beam1, PdgId beam2) const
 Is this analysis able to run on the supplied pair of beams?
virtual bool isCompatible (const PdgIdPair &beams) const
 Is this analysis able to run on the PdgIdPair beams ?
AnalysisHandler & handler () const
 Access the controlling AnalysisHandler object.
void normalize (AIDA::IHistogram1D *&histo, double norm=1.0)
void scale (AIDA::IHistogram1D *&histo, double scale)
Analysis & setCrossSection (double xs)
 Set the cross section from the generator.
bool needsCrossSection () const
 Return true if this analysis needs to know the process cross-section.
Analysis methods
void init ()
void analyze (const Event &e)
void finalize ()
Metadata
Metadata is used for querying from the command line and also for building web pages and the analysis pages in the Rivet manual.

virtual const AnalysisInfo & info () const
 Get the actual AnalysisInfo object in which all this metadata is stored.
virtual std::string name () const
 Get the name of the analysis.
virtual std::string spiresId () const
 Get a the SPIRES/Inspire ID code for this analysis.
virtual std::vector< std::string > authors () const
 Names & emails of paper/analysis authors.
virtual std::string summary () const
 Get a short description of the analysis.
virtual std::string description () const
 Get a full description of the analysis.
virtual std::string runInfo () const
 Information about the events needed as input for this analysis.
virtual std::string experiment () const
 Experiment which performed and published this analysis.
virtual std::string collider () const
 Collider on which the experiment ran.
virtual const std::vector
< PdgIdPair > & 		requiredBeams () const
 Return the pair of incoming beams required by this analysis.
virtual const std::vector
< std::pair< double, double > > & 		energies () const
 Sets of valid beam energy pairs, in GeV.
virtual std::string year () const
 When the original experimental analysis was published.
virtual std::vector< std::string > references () const
 Journal, and preprint references.
virtual std::string bibKey () const
 BibTeX citation key for this article.
virtual std::string bibTeX () const
 BibTeX citation entry for this article.
virtual std::string status () const
 Whether this analysis is trusted (in any way!).
virtual std::vector< std::string > todos () const
 Any work to be done on this analysis.
Run conditions
const ParticlePair & beams () const
 Incoming beams for this run.
const PdgIdPair beamIds () const
 Incoming beam IDs for this run.
double sqrtS () const
 Centre of mass energy for this run.
Projection "getting" functions
std::set< ConstProjectionPtr > getProjections () const
 Get the contained projections, including recursion.
template<typename PROJ>
const PROJ & getProjection (const std::string &name) const
 Get the named projection, specifying return type via a template argument.
const Projection & getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ>
const PROJ & applyProjection (const Event &evt, const PROJ &proj) const
 Apply the supplied projection on event.
template<typename PROJ>
const PROJ & applyProjection (const Event &evt, const Projection &proj) const
 Apply the supplied projection on event.
template<typename PROJ>
const PROJ & applyProjection (const Event &evt, const std::string &name) const
 Apply the named projection on event.

Protected Member Functions

Log & getLog () const
 Get a Log object based on the name() property of the calling analysis object.
double crossSection () const
 Get the process cross-section in pb. Throws if this hasn't been set.
double crossSectionPerEvent () const
size_t numEvents () const
double sumOfWeights () const
Analysis & setBeams (PdgId beam1, PdgId beam2)
Analysis & setNeedsCrossSection (bool needed)
 Declare whether this analysis needs to know the process cross-section from the generator.
ProjectionHandler & getProjHandler () const
 Get a reference to the ProjectionHandler for this thread.
AIDA analysis infrastructure.
AIDA::IAnalysisFactory & analysisFactory ()
 Access the AIDA analysis factory of the controlling AnalysisHandler object.
AIDA::ITree & tree ()
 Access the AIDA tree of the controlling AnalysisHandler object.
AIDA::IHistogramFactory & histogramFactory ()
 Access the AIDA histogram factory of the controlling AnalysisHandler object.
AIDA::IDataPointSetFactory & datapointsetFactory ()
 Access the AIDA histogram factory of the controlling AnalysisHandler object.
const std::string histoDir () const
 Get the canonical histogram "directory" path for this analysis.
const std::string histoPath (const std::string &hname) const
 Get the canonical histogram path for the named histogram in this analysis.
Internal histogram booking (for use by Analysis sub-classes).
const BinEdges & binEdges (const std::string &hname) const
 Get bin edges for a named histo (using ref AIDA caching).
const BinEdges & binEdges (size_t datasetId, size_t xAxisId, size_t yAxisId) const
 Get bin edges for a numbered histo (using ref AIDA caching).
BinEdges logBinEdges (size_t nbins, double lower, double upper)
 Get bin edges with logarithmic widths.
AIDA::IHistogram1D * bookHistogram1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D * bookHistogram1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D * bookHistogram1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D * bookHistogram1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal profile histogram booking (for use by Analysis sub-classes).
AIDA::IProfile1D * bookProfile1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D * bookProfile1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D * bookProfile1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D * bookProfile1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal data point set booking (for use by Analysis sub-classes).
AIDA::IDataPointSet * bookDataPointSet (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IDataPointSet * bookDataPointSet (const std::string &name, size_t npts, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IDataPointSet * bookDataPointSet (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Projection registration functions
template<typename PROJ>
const PROJ & addProjection (const PROJ &proj, const std::string &name)
const Projection & _addProjection (const Projection &proj, const std::string &name)
 Untemplated function to do the work...

Protected Attributes

string _defaultname
 Name passed to constructor (used to find .info analysis data file, and as a fallback).
shared_ptr< AnalysisInfo > _info
 Pointer to analysis metadata object.
bool _allowProjReg
 Flag to forbid projection registration in analyses until the init phase.

Private Attributes

AIDA::IProfile1D * _hist_pmaxnchg
AIDA::IProfile1D * _hist_pminnchg
AIDA::IProfile1D * _hist_anchg

Friends

class Projectionhandler

Constructor & Destructor Documentation

STAR_2009_UE_HELEN (  )  [inline]

Constructor.

Definition at line 21 of file STAR_2009_UE_HELEN.cc.

References Rivet::PROTON, and Analysis::setBeams().

00022       : Analysis("STAR_2009_UE_HELEN")
00023     {
00024       setBeams(PROTON, PROTON);
00025     }

Member Function Documentation

void init (  )  [inline, virtual]

Initialize this analysis object. A concrete class should here book all necessary histograms. An overridden function must make sure it first calls the base class function.

Implements Analysis.

Definition at line 31 of file STAR_2009_UE_HELEN.cc.

References STAR_2009_UE_HELEN::_hist_anchg, STAR_2009_UE_HELEN::_hist_pmaxnchg, STAR_2009_UE_HELEN::_hist_pminnchg, ProjectionApplier::addProjection(), VetoedFinalState::addVetoPairId(), Analysis::bookProfile1D(), Rivet::GeV, Rivet::K0L, Rivet::NEUTRON, FastJets::SISCONE, and VetoedFinalState::vetoNeutrinos().

00031                 {
00032       // Charged final state, |eta|<1, pT>0.2GeV
00033       const ChargedFinalState cfs(-1.0, 1.0, 0.2*GeV);
00034       addProjection(cfs, "CFS");
00035
00036       // Neutral final state, |eta|<1, ET>0.2GeV (needed for the jets)
00037       const NeutralFinalState nfs(-1.0, 1.0, 0.2*GeV);
00038       addProjection(nfs, "NFS");
00039
00040       // STAR can't see neutrons and K^0_L
00041       VetoedFinalState vfs(nfs);
00042       vfs.vetoNeutrinos();
00043       vfs.addVetoPairId(K0L);
00044       vfs.addVetoPairId(NEUTRON);
00045       addProjection(vfs, "VFS");
00046
00047       // Jets are reconstructed from charged and neutral particles,
00048       // and the cuts are different (pT vs. ET), so we need to merge them.
00049       const MergedFinalState jfs(cfs, vfs);
00050       addProjection(jfs, "JFS");
00051
00052       // SISCone, R = 0.7, overlap_threshold = 0.75
00053       addProjection(FastJets(jfs, FastJets::SISCONE, 0.7), "AllJets");
00054
00055       // Book histograms
00056       _hist_pmaxnchg   = bookProfile1D( 1, 1, 1);
00057       _hist_pminnchg   = bookProfile1D( 2, 1, 1);
00058       _hist_anchg      = bookProfile1D( 3, 1, 1);
00059     }

void analyze ( const Event &  event  )  [inline, virtual]

Analyze one event. A concrete class should here apply the necessary projections on the event and fill the relevant histograms. An overridden function must make sure it first calls the base class function.

Implements Analysis.

Definition at line 63 of file STAR_2009_UE_HELEN.cc.

References STAR_2009_UE_HELEN::_hist_anchg, STAR_2009_UE_HELEN::_hist_pmaxnchg, STAR_2009_UE_HELEN::_hist_pminnchg, Log::DEBUG, Rivet::deltaPhi(), Analysis::getLog(), Particle::momentum(), Rivet::momentum(), FinalState::particles(), FourVector::phi(), Rivet::phi(), Rivet::PI, FourMomentum::pT(), Rivet::pT(), and vetoEvent.

00063                                  {
00064       const FinalState& cfs = applyProjection<ChargedFinalState>(e, "CFS");
00065       if (cfs.particles().size() < 1) {
00066         getLog() << Log::DEBUG << "Failed multiplicity cut" << endl;
00067         vetoEvent;
00068       }
00069
00070       const Jets& alljets = applyProjection<FastJets>(e, "AllJets").jetsByPt();
00071       getLog() << Log::DEBUG << "Total jet multiplicity = " << alljets.size() << endl;
00072
00073       // The jet acceptance region is |eta|<(1-R)=0.3  (with R = jet radius)
00074       // Jets also must have a neutral energy fraction of < 0.7
00075       Jets jets;
00076       foreach (const Jet jet, alljets) {
00077         if (jet.neutralEnergy() < 0.7 && fabs(jet.momentum().eta()) < 0.3)
00078           jets.push_back(jet);
00079       }
00080
00081       // This analysis requires a di-jet like event.
00082       // WARNING: There is more data in preparation, some of which
00083       //          does _not_ have this constraint!
00084       if (jets.size() != 2) {
00085         getLog() << Log::DEBUG << "Failed jet multiplicity cut" << endl;
00086         vetoEvent;
00087       }
00088
00089       // The di-jet constraints in this analysis are:
00090       // - 2 and only 2 jets in the acceptance region
00091       // - delta(Phi) between the jets is > 150 degrees
00092       // - Pt_awayjet/Pt_towards_jet > 0.7
00093       if (deltaPhi(jets[0].momentum().phi(), jets[1].momentum().phi()) <= 5*PI/6 ||
00094           jets[1].momentum().pT()/jets[0].momentum().pT() <= 0.7)
00095       {
00096         getLog() << Log::DEBUG << "Failed di-jet criteria" << endl;
00097         vetoEvent;
00098       }
00099
00100       // Now lets start ...
00101       const double jetphi = jets[0].momentum().phi();
00102       const double jetpT  = jets[0].momentum().pT();
00103
00104       // Get the event weight
00105       const double weight = e.weight();
00106
00107       size_t numTrans1(0), numTrans2(0), numAway(0);
00108
00109       // Calculate all the charged stuff
00110       foreach (const Particle& p, cfs.particles()) {
00111         const double dPhi = deltaPhi(p.momentum().phi(), jetphi);
00112         const double pT = p.momentum().pT();
00113         const double phi = p.momentum().phi();
00114         double rotatedphi = phi - jetphi;
00115         while (rotatedphi < 0) rotatedphi += 2*PI;
00116
00117         // @TODO: WARNING: The following lines are a hack to correct
00118         //        for the STAR tracking efficiency. Once we have the
00119         //        final numbers (corrected to hadron level), we need
00120         //        to remove this!!!!
00121         if (1.0*rand()/RAND_MAX > 0.87834-exp(-1.48994-0.788432*pT)) {
00122           continue;
00123         }
00124         // -------- end of efficiency hack -------
00125
00126         if (dPhi < PI/3.0) {
00127           // toward
00128         }
00129         else if (dPhi < 2*PI/3.0) {
00130           if (rotatedphi <= PI) {
00131             ++numTrans1;
00132           }
00133           else {
00134             ++numTrans2;
00135           }
00136         }
00137         else {
00138           ++numAway;
00139         }
00140       } // end charged particle loop
00141
00142       // Fill the histograms
00143       _hist_pmaxnchg->fill(jetpT, (numTrans1>numTrans2 ? numTrans1 : numTrans2)/(2*PI/3), weight);
00144       _hist_pminnchg->fill(jetpT, (numTrans1<numTrans2 ? numTrans1 : numTrans2)/(2*PI/3), weight);
00145       _hist_anchg->fill(jetpT, numAway/(PI*0.7*0.7), weight); // jet area = pi*R^2
00146
00147     }

void finalize (  )  [inline, virtual]

Finalize this analysis object. A concrete class should here make all necessary operations on the histograms. Writing the histograms to a file is, however, done by the Rivet class. An overridden function must make sure it first calls the base class function.

Implements Analysis.

Definition at line 150 of file STAR_2009_UE_HELEN.cc.

00150                     {
00151       //
00152     }

const AnalysisInfo & info (  )  const [virtual, inherited]

Get the actual AnalysisInfo object in which all this metadata is stored.

Definition at line 126 of file Analysis.cc.

References Analysis::_info.

Referenced by Analysis::energies(), and Analysis::requiredBeams().

00126                                            {
00127     assert(_info.get() != 0);
00128     return *_info;
00129   }

string name (  )  const [virtual, inherited]

Get the name of the analysis.

By default this is computed by combining the results of the experiment, year and Spires ID metadata methods and you should only override it if there's a good reason why those won't work.

Implements ProjectionApplier.

Definition at line 131 of file Analysis.cc.

References Analysis::_defaultname, and Analysis::_info.

Referenced by Analysis::_cacheBinEdges(), Analysis::_cacheXAxisData(), Analysis::_makeHistoDir(), Analysis::crossSection(), Analysis::getLog(), Analysis::histoDir(), Analysis::normalize(), HistoHandler::registerAnalysisObject(), and Analysis::scale().

00131                               {
00132     if (_info && !_info->name().empty()) return _info->name();
00133     return _defaultname;
00134   }

string spiresId (  )  const [virtual, inherited]

Get a the SPIRES/Inspire ID code for this analysis.

Definition at line 136 of file Analysis.cc.

References Analysis::_info.

00136                                   {
00137     if (!_info) return "NONE";
00138     return _info->spiresId();
00139   }

vector< string > authors (  )  const [virtual, inherited]

Names & emails of paper/analysis authors.

Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person.

Definition at line 141 of file Analysis.cc.

References Analysis::_info.

00141                                          {
00142     if (!_info) return std::vector<std::string>();
00143     return _info->authors();
00144   }

string summary (  )  const [virtual, inherited]

Get a short description of the analysis.

Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details.

Definition at line 146 of file Analysis.cc.

References Analysis::_info.

00146                                  {
00147     if (!_info) return "NONE";
00148     return _info->summary();
00149   }

string description (  )  const [virtual, inherited]

Get a full description of the analysis.

Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators.

Definition at line 151 of file Analysis.cc.

References Analysis::_info.

00151                                      {
00152     if (!_info) return "NONE";
00153     return _info->description();
00154   }

string runInfo (  )  const [virtual, inherited]

Information about the events needed as input for this analysis.

Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html)

Definition at line 156 of file Analysis.cc.

References Analysis::_info.

00156                                  {
00157     if (!_info) return "NONE";
00158     return _info->runInfo();
00159   }

string experiment (  )  const [virtual, inherited]

Experiment which performed and published this analysis.

Definition at line 165 of file Analysis.cc.

References Analysis::_info.

00165                                     {
00166     if (!_info) return "NONE";
00167     return _info->experiment();
00168   }

string collider (  )  const [virtual, inherited]

Collider on which the experiment ran.

Definition at line 170 of file Analysis.cc.

References Analysis::_info.

00170                                   {
00171     if (!_info) return "NONE";
00172     return _info->collider();
00173   }

const vector< PdgIdPair > & requiredBeams (  )  const [virtual, inherited]

Return the pair of incoming beams required by this analysis.

Definition at line 205 of file Analysis.cc.

References AnalysisInfo::beams(), and Analysis::info().

Referenced by Analysis::isCompatible().

00205                                                          {
00206     return info().beams();
00207   }

const std::vector< std::pair< double, double > > & energies (  )  const [virtual, inherited]

Sets of valid beam energy pairs, in GeV.

Definition at line 161 of file Analysis.cc.

References AnalysisInfo::energies(), and Analysis::info().

00161                                                                      {
00162     return info().energies();
00163   }

string year (  )  const [virtual, inherited]

When the original experimental analysis was published.

When the refereed paper on which this is based was published, according to SPIRES.

Definition at line 175 of file Analysis.cc.

References Analysis::_info.

00175                               {
00176     if (!_info) return "NONE";
00177     return _info->year();
00178   }

vector< string > references (  )  const [virtual, inherited]

Journal, and preprint references.

Definition at line 180 of file Analysis.cc.

References Analysis::_info.

00180                                             {
00181     if (!_info) return vector<string>();
00182     return _info->references();
00183   }

string bibKey (  )  const [virtual, inherited]

BibTeX citation key for this article.

Definition at line 185 of file Analysis.cc.

References Analysis::_info.

00185                                 {
00186     if (!_info) return "";
00187     return _info->bibKey();
00188   }

string bibTeX (  )  const [virtual, inherited]

BibTeX citation entry for this article.

Definition at line 190 of file Analysis.cc.

References Analysis::_info.

00190                                 {
00191     if (!_info) return "";
00192     return _info->bibTeX();
00193   }

string status (  )  const [virtual, inherited]

Whether this analysis is trusted (in any way!).

Definition at line 195 of file Analysis.cc.

References Analysis::_info.

00195                                 {
00196     if (!_info) return "UNVALIDATED";
00197     return _info->status();
00198   }

vector< string > todos (  )  const [virtual, inherited]

Any work to be done on this analysis.

Definition at line 200 of file Analysis.cc.

References Analysis::_info.

00200                                        {
00201     if (!_info) return vector<string>();
00202     return _info->todos();
00203   }

const ParticlePair & beams (  )  const [inherited]

Incoming beams for this run.

Definition at line 79 of file Analysis.cc.

References AnalysisHandler::beams(), and Analysis::handler().

Referenced by OPAL_1998_S3780481::analyze(), DELPHI_2002_069_CONF_603::analyze(), DELPHI_1995_S3137023::analyze(), BELLE_2006_S6265367::analyze(), ALEPH_2004_S5765862::analyze(), ALEPH_1996_S3486095::analyze(), and Analysis::isCompatible().

00079                                             {
00080     return handler().beams();
00081   }

const PdgIdPair beamIds (  )  const [inherited]

Incoming beam IDs for this run.

Definition at line 83 of file Analysis.cc.

References AnalysisHandler::beamIds(), and Analysis::handler().

Referenced by UA5_1982_S875503::finalize(), and UA5_1982_S875503::init().

00083                                           {
00084     return handler().beamIds();
00085   }

double sqrtS (  )  const [inherited]

Centre of mass energy for this run.

Definition at line 75 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sqrtS().

Referenced by UA1_1990_S2044935::analyze(), SFM_1984_S1178091::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), CDF_2004_S5839831::analyze(), ALEPH_2004_S5765862::analyze(), UA1_1990_S2044935::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), CDF_2004_S5839831::finalize(), CDF_2002_S4796047::finalize(), ALEPH_2004_S5765862::finalize(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1986_S1583476::init(), UA1_1990_S2044935::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), MC_DIPHOTON::init(), JADE_OPAL_2000_S4300807::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), and ALEPH_2004_S5765862::init().

00075                                {
00076     return handler().sqrtS();
00077   }

bool isCompatible ( PdgId  beam1,
PdgId  beam2
) const [virtual, inherited]

Is this analysis able to run on the supplied pair of beams?

Todo:
Deprecate?

Definition at line 220 of file Analysis.cc.

References Analysis::beams().

00220                                                             {
00221     PdgIdPair beams(beam1, beam2);
00222     return isCompatible(beams);
00223   }

bool isCompatible ( const PdgIdPair &  beams  )  const [virtual, inherited]

Is this analysis able to run on the PdgIdPair beams ?

Todo:
Deprecate?

Todo:
Need to also check internal consistency of the analysis' beam requirements with those of the projections it uses.

Definition at line 227 of file Analysis.cc.

References Rivet::compatible(), and Analysis::requiredBeams().

00227                                                           {
00228     foreach (const PdgIdPair& bp, requiredBeams()) {
00229       if (compatible(beams, bp)) return true;
00230     }
00231     return false;
00232     /// @todo Need to also check internal consistency of the analysis'
00233     /// beam requirements with those of the projections it uses.
00234   }

AnalysisHandler & handler (  )  const [inherited]

Access the controlling AnalysisHandler object.

Definition at line 269 of file Analysis.cc.

References Analysis::_analysishandler.

Referenced by Analysis::analysisFactory(), Analysis::beamIds(), Analysis::beams(), Analysis::datapointsetFactory(), Analysis::histoDir(), Analysis::histogramFactory(), Analysis::numEvents(), Analysis::sqrtS(), Analysis::sumOfWeights(), and Analysis::tree().

00269                                            {
00270     return *_analysishandler;
00271   }

void normalize ( AIDA::IHistogram1D *&  histo,
double  norm = 1.0
) [inherited]

Normalize the given histogram, histo. After this call the histogram will have been transformed to a DataPointSet with the same name and path. It has the same effect as scale(histo, norm/sumOfWeights).

Parameters:
histo The histogram to be normalised.
norm The new area of the histogram.
Warning:
The old histogram will be deleted, and its pointer set to zero.

Definition at line 512 of file Analysis.cc.

References Log::ERROR, Analysis::getLog(), Analysis::name(), Analysis::scale(), Log::TRACE, Analysis::tree(), and Log::WARN.

Referenced by STAR_2008_S7869363::finalize(), OPAL_2001_S4553896::finalize(), OPAL_1998_S3780481::finalize(), H1_1994_S2919893::finalize(), ExampleAnalysis::finalize(), DELPHI_2002_069_CONF_603::finalize(), DELPHI_1995_S3137023::finalize(), D0_2010_S8671338::finalize(), D0_2009_S8320160::finalize(), D0_2008_S7554427::finalize(), D0_2008_S6879055::finalize(), D0_2007_S7075677::finalize(), D0_2004_S5992206::finalize(), D0_2001_S4674421::finalize(), D0_1996_S3324664::finalize(), D0_1996_S3214044::finalize(), CDF_2009_NOTE_9936::finalize(), CDF_2004_S5839831::finalize(), CDF_2002_S4796047::finalize(), CDF_2001_S4751469::finalize(), CDF_1997_S3541940::finalize(), CDF_1996_S3418421::finalize(), CDF_1996_S3349578::finalize(), CDF_1996_S3108457::finalize(), CDF_1993_S2742446::finalize(), ALEPH_2004_S5765862::finalize(), and ALEPH_1996_S3486095::finalize().

00512                                                                 {
00513     if (!histo) {
00514       getLog() << Log::ERROR << "Failed to normalise histo=NULL in analysis "
00515                << name() << " (norm=" << norm << ")" << endl;
00516       return;
00517     }
00518     const string hpath = tree().findPath(dynamic_cast<const AIDA::IManagedObject&>(*histo));
00519     getLog() << Log::TRACE << "Normalizing histo " << hpath << " to " << norm << endl;
00520
00521     double oldintg = 0.0;
00522     int nBins = histo->axis().bins();
00523     for (int iBin = 0; iBin != nBins; ++iBin) {
00524       // Leaving out factor of binWidth because AIDA's "height" already includes a width factor.
00525       oldintg += histo->binHeight(iBin); // * histo->axis().binWidth(iBin);
00526     }
00527     if (oldintg == 0.0) {
00528       getLog() << Log::WARN << "Histo " << hpath << " has null integral during normalisation" << endl;
00529       return;
00530     }
00531
00532     // Scale by the normalisation factor.
00533     scale(histo, norm/oldintg);
00534   }

void scale ( AIDA::IHistogram1D *&  histo,
double  scale
) [inherited]

Multiplicatively scale the given histogram, histo. After this call the histogram will have been transformed to a DataPointSet with the same name and path.

Parameters:
histo The histogram to be scaled.
scale The factor used to multiply the histogram bin heights.
Warning:
The old histogram will be deleted, and its pointer set to zero.

Definition at line 537 of file Analysis.cc.

References Analysis::datapointsetFactory(), Log::ERROR, Analysis::getLog(), Analysis::name(), Log::TRACE, and Analysis::tree().

Referenced by UA5_1989_S1926373::finalize(), UA5_1987_S1640666::finalize(), UA5_1986_S1583476::finalize(), UA5_1982_S875503::finalize(), UA1_1990_S2044935::finalize(), STAR_2006_S6870392::finalize(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), SFM_1984_S1178091::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), OPAL_2004_S6132243::finalize(), OPAL_1998_S3780481::finalize(), MC_ZZJETS::finalize(), MC_ZJETS::finalize(), MC_WWJETS::finalize(), MC_WJETS::finalize(), MC_TTBAR::finalize(), MC_PHOTONJETS::finalize(), MC_JetAnalysis::finalize(), MC_HJETS::finalize(), MC_GENERIC::finalize(), MC_DIPHOTON::finalize(), JADE_OPAL_2000_S4300807::finalize(), H1_2000_S4129130::finalize(), H1_1994_S2919893::finalize(), E735_1998_S3905616::finalize(), D0_2010_S8570965::finalize(), D0_2009_S8349509::finalize(), D0_2009_S8202443::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7719523::finalize(), D0_2008_S7662670::finalize(), D0_2006_S6438750::finalize(), D0_2000_S4480767::finalize(), CDF_2009_S8436959::finalize(), CDF_2009_S8383952::finalize(), CDF_2009_S8233977::finalize(), CDF_2008_S8093652::finalize(), CDF_2008_S7540469::finalize(), CDF_2007_S7057202::finalize(), CDF_2006_S6450792::finalize(), CDF_2005_S6080774::finalize(), CDF_2001_S4563131::finalize(), CDF_2000_S4266730::finalize(), CDF_2000_S4155203::finalize(), CDF_1998_S3618439::finalize(), CDF_1990_S2089246::finalize(), CDF_1988_S1865951::finalize(), ATLAS_2010_S8591806::finalize(), ALEPH_2004_S5765862::finalize(), ALEPH_1996_S3486095::finalize(), ALEPH_1996_S3196992::finalize(), ALEPH_1991_S2435284::finalize(), Analysis::normalize(), and BinnedHistogram::scale().

00537                                                              {
00538     if (!histo) {
00539       getLog() << Log::ERROR << "Failed to scale histo=NULL in analysis "
00540           << name() << " (scale=" << scale << ")" << endl;
00541       return;
00542     }
00543     const string hpath = tree().findPath(dynamic_cast<const AIDA::IManagedObject&>(*histo));
00544     getLog() << Log::TRACE << "Scaling histo " << hpath << endl;
00545
00546     vector<double> x, y, ex, ey;
00547     for (size_t i = 0, N = histo->axis().bins(); i < N; ++i) {
00548       x.push_back(0.5 * (histo->axis().binLowerEdge(i) + histo->axis().binUpperEdge(i)));
00549       ex.push_back(histo->axis().binWidth(i)*0.5);
00550
00551       // "Bin height" is a misnomer in the AIDA spec: width is neglected.
00552       // We'd like to do this: y.push_back(histo->binHeight(i) * scale);
00553       y.push_back(histo->binHeight(i)*scale/histo->axis().binWidth(i));
00554
00555       // "Bin error" is a misnomer in the AIDA spec: width is neglected.
00556       // We'd like to do this: ey.push_back(histo->binError(i) * scale);
00557       ey.push_back(histo->binError(i)*scale/histo->axis().binWidth(i));
00558     }
00559
00560     string title = histo->title();
00561     string xtitle = histo->xtitle();
00562     string ytitle = histo->ytitle();
00563
00564     tree().mkdir("/tmpnormalize");
00565     tree().mv(hpath, "/tmpnormalize");
00566
00567     AIDA::IDataPointSet* dps = datapointsetFactory().createXY(hpath, title, x, y, ex, ey);
00568     dps->setXTitle(xtitle);
00569     dps->setYTitle(ytitle);
00570
00571     tree().rm(tree().findPath(dynamic_cast<AIDA::IManagedObject&>(*histo)));
00572     tree().rmdir("/tmpnormalize");
00573
00574     // Set histo pointer to null - it can no longer be used.
00575     histo = 0;
00576   }

Analysis & setCrossSection ( double  xs  )  [inherited]

Set the cross section from the generator.

Definition at line 237 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::_gotCrossSection.

00237                                                {
00238     _crossSection = xs;
00239     _gotCrossSection = true;
00240     return *this;
00241   }

bool needsCrossSection (  )  const [inherited]

Return true if this analysis needs to know the process cross-section.

Todo:
Deprecate, eventually

Definition at line 244 of file Analysis.cc.

References Analysis::_needsCrossSection.

00244                                          {
00245     return _needsCrossSection;
00246   }

Log & getLog (  )  const [protected, inherited]

Get a Log object based on the name() property of the calling analysis object.

Reimplemented from ProjectionApplier.

Definition at line 107 of file Analysis.cc.

References Log::getLog(), and Analysis::name().

Referenced by Analysis::_cacheBinEdges(), Analysis::_cacheXAxisData(), CDF_2004_S5839831::_calcTransCones(), CDF_1996_S3349578::_fiveJetAnalysis(), CDF_1996_S3349578::_fourJetAnalysis(), D0_1996_S3214044::_safeMass(), CDF_1997_S3541940::_safeMass(), CDF_1996_S3349578::_safeMass(), CDF_1996_S3349578::_threeJetAnalysis(), ZEUS_2001_S4815815::analyze(), UA5_1986_S1583476::analyze(), UA1_1990_S2044935::analyze(), STAR_2009_UE_HELEN::analyze(), STAR_2008_S7993412::analyze(), STAR_2006_S6870392::analyze(), STAR_2006_S6860818::analyze(), STAR_2006_S6500200::analyze(), SFM_1984_S1178091::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), OPAL_1998_S3780481::analyze(), MC_SUSY::analyze(), MC_PHOTONJETUE::analyze(), MC_LEADINGJETS::analyze(), MC_JetAnalysis::analyze(), MC_GENERIC::analyze(), H1_1994_S2919893::analyze(), DELPHI_2002_069_CONF_603::analyze(), DELPHI_1995_S3137023::analyze(), D0_2009_S8349509::analyze(), D0_2009_S8202443::analyze(), D0_2008_S7863608::analyze(), D0_2008_S7837160::analyze(), D0_2008_S7719523::analyze(), D0_2008_S7662670::analyze(), D0_2008_S7554427::analyze(), D0_2008_S6879055::analyze(), D0_2007_S7075677::analyze(), D0_2004_S5992206::analyze(), D0_1998_S3711838::analyze(), CDF_2009_S8383952::analyze(), CDF_2008_S8095620::analyze(), CDF_2008_S7782535::analyze(), CDF_2008_S7540469::analyze(), CDF_2008_NOTE_9351::analyze(), CDF_2008_LEADINGJETS::analyze(), CDF_2006_S6653332::analyze(), CDF_2005_S6217184::analyze(), CDF_2004_S5839831::analyze(), CDF_2001_S4751469::analyze(), CDF_2000_S4155203::analyze(), CDF_1994_S2952106::analyze(), CDF_1991_S2313472::analyze(), BELLE_2006_S6265367::analyze(), ALEPH_1996_S3486095::analyze(), ALEPH_1991_S2435284::analyze(), CDF_2009_S8057893::CDF_2009_S8057893::analyze(), UA5_1986_S1583476::finalize(), UA1_1990_S2044935::finalize(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), D0_2001_S4674421::finalize(), CDF_2009_S8233977::finalize(), CDF_2006_S6653332::finalize(), ZEUS_2001_S4815815::init(), JADE_OPAL_2000_S4300807::init(), ALEPH_2004_S5765862::init(), Analysis::normalize(), and Analysis::scale().

00107                               {
00108     string logname = "Rivet.Analysis." + name();
00109     return Log::getLog(logname);
00110   }

double crossSection (  )  const [protected, inherited]

Get the process cross-section in pb. Throws if this hasn't been set.

Definition at line 254 of file Analysis.cc.

References Analysis::_crossSection, Analysis::_gotCrossSection, and Analysis::name().

Referenced by STAR_2006_S6870392::finalize(), MC_ZZJETS::finalize(), MC_ZJETS::finalize(), MC_WWJETS::finalize(), MC_WJETS::finalize(), MC_JetAnalysis::finalize(), MC_HJETS::finalize(), MC_DIPHOTON::finalize(), D0_2010_S8570965::finalize(), D0_2010_S8566488::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7719523::finalize(), D0_2008_S7662670::finalize(), D0_2006_S6438750::finalize(), D0_2000_S4480767::finalize(), CDF_2009_S8436959::finalize(), CDF_2009_S8383952::finalize(), CDF_2009_S8233977::finalize(), CDF_2008_S8093652::finalize(), CDF_2008_S7828950::finalize(), CDF_2008_S7541902::finalize(), CDF_2008_S7540469::finalize(), CDF_2006_S6653332::finalize(), CDF_2006_S6450792::finalize(), CDF_2005_S6080774::finalize(), CDF_2001_S4563131::finalize(), CDF_2001_S4517016::finalize(), CDF_2000_S4266730::finalize(), CDF_2000_S4155203::finalize(), and CDF_1998_S3618439::finalize().

00254                                       {
00255     if (!_gotCrossSection || _crossSection < 0) {
00256       string errMsg = "You did not set the cross section for the analysis " + name();
00257       throw Error(errMsg);
00258     }
00259     return _crossSection;
00260   }

double crossSectionPerEvent (  )  const [protected, inherited]

Get the process cross-section per generated event in pb. Throws if this hasn't been set.

Definition at line 262 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::sumOfWeights().

Referenced by UA1_1990_S2044935::finalize(), MC_PHOTONJETS::finalize(), D0_2001_S4674421::finalize(), CDF_2007_S7057202::finalize(), and CDF_1988_S1865951::finalize().

00262                                               {
00263     const double sumW = sumOfWeights();
00264     assert(sumW > 0);
00265     return _crossSection / sumW;
00266   }

size_t numEvents (  )  const [protected, inherited]

Get the number of events seen (via the analysis handler). Use in the finalize phase only.

Definition at line 113 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::numEvents().

00113                                    {
00114     return handler().numEvents();
00115   }

double sumOfWeights (  )  const [protected, inherited]

Get the sum of event weights seen (via the analysis handler). Use in the finalize phase only.

Definition at line 118 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sumOfWeights().

Referenced by Analysis::crossSectionPerEvent(), STAR_2006_S6870392::finalize(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), OPAL_1998_S3780481::finalize(), OPAL_1993_S2692198::finalize(), MC_ZZJETS::finalize(), MC_ZJETS::finalize(), MC_WWJETS::finalize(), MC_WJETS::finalize(), MC_TTBAR::finalize(), MC_JetAnalysis::finalize(), MC_HJETS::finalize(), MC_GENERIC::finalize(), MC_DIPHOTON::finalize(), JADE_OPAL_2000_S4300807::finalize(), DELPHI_1995_S3137023::finalize(), D0_2010_S8570965::finalize(), D0_2010_S8566488::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7719523::finalize(), D0_2008_S7662670::finalize(), D0_2006_S6438750::finalize(), D0_2000_S4480767::finalize(), CDF_2009_S8436959::finalize(), CDF_2009_S8383952::finalize(), CDF_2009_S8233977::finalize(), CDF_2008_S8093652::finalize(), CDF_2008_S7828950::finalize(), CDF_2008_S7541902::finalize(), CDF_2008_S7540469::finalize(), CDF_2006_S6653332::finalize(), CDF_2006_S6450792::finalize(), CDF_2005_S6080774::finalize(), CDF_2001_S4563131::finalize(), CDF_2001_S4517016::finalize(), CDF_2000_S4266730::finalize(), CDF_2000_S4155203::finalize(), CDF_1998_S3618439::finalize(), ALEPH_2004_S5765862::finalize(), ALEPH_1996_S3486095::finalize(), ALEPH_1996_S3196992::finalize(), and ALEPH_1991_S2435284::finalize().

00118                                       {
00119     return handler().sumOfWeights();
00120   }

IAnalysisFactory & analysisFactory (  )  [protected, inherited]

Access the AIDA analysis factory of the controlling AnalysisHandler object.

Definition at line 55 of file Analysis.cc.

References AnalysisHandler::analysisFactory(), and Analysis::handler().

00055                                               {
00056     return handler().analysisFactory();
00057   }

ITree & tree (  )  [protected, inherited]

Access the AIDA tree of the controlling AnalysisHandler object.

Definition at line 60 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::tree().

Referenced by Analysis::_makeHistoDir(), Analysis::normalize(), and Analysis::scale().

00060                         {
00061     return handler().tree();
00062   }

IHistogramFactory & histogramFactory (  )  [protected, inherited]

Access the AIDA histogram factory of the controlling AnalysisHandler object.

Definition at line 65 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::histogramFactory().

Referenced by STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), MC_WJETS::finalize(), MC_JetAnalysis::finalize(), MC_GENERIC::finalize(), H1_1995_S3167097::finalize(), D0_2008_S7837160::finalize(), and D0_2008_S7719523::finalize().

00065                                                 {
00066     return handler().histogramFactory();
00067   }

IDataPointSetFactory & datapointsetFactory (  )  [protected, inherited]

Access the AIDA histogram factory of the controlling AnalysisHandler object.

Definition at line 70 of file Analysis.cc.

References AnalysisHandler::datapointsetFactory(), and Analysis::handler().

Referenced by Analysis::scale().

00070                                                       {
00071     return handler().datapointsetFactory();
00072   }

const string histoDir (  )  const [protected, inherited]

Get the canonical histogram "directory" path for this analysis.

Todo:
This doesn't change: calc and cache at Analysis construction!

Definition at line 88 of file Analysis.cc.

References Analysis::handler(), Analysis::name(), and AnalysisHandler::runName().

Referenced by Analysis::_makeHistoDir(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), MC_WJETS::finalize(), D0_2008_S7837160::finalize(), and D0_2008_S7719523::finalize().

00088                                         {
00089     /// @todo This doesn't change: calc and cache at Analysis construction!
00090     string path = "/" + name();
00091     if (handler().runName().length() > 0) {
00092       path = "/" + handler().runName() + path;
00093     }
00094     while (find_first(path, "//")) {
00095       replace_all(path, "//", "/");
00096     }
00097     return path;
00098   }

const std::string histoPath ( const std::string &  hname  )  const [protected, inherited]

Get the canonical histogram path for the named histogram in this analysis.

Referenced by MC_JetAnalysis::finalize(), and MC_GENERIC::finalize().

const BinEdges& binEdges ( const std::string &  hname  )  const [protected, inherited]

Get bin edges for a named histo (using ref AIDA caching).

Referenced by Analysis::binEdges(), and D0_2008_S7837160::init().

const BinEdges & binEdges ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId
) const [protected, inherited]

Get bin edges for a numbered histo (using ref AIDA caching).

Definition at line 311 of file Analysis.cc.

References Analysis::binEdges(), and Rivet::makeAxisCode().

00311                                                                                            {
00312     const string hname = makeAxisCode(datasetId, xAxisId, yAxisId);
00313     return binEdges(hname);
00314   }

BinEdges logBinEdges ( size_t  nbins,
double  lower,
double  upper
) [protected, inherited]

Get bin edges with logarithmic widths.

Definition at line 317 of file Analysis.cc.

Referenced by MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), and MC_DIPHOTON::init().

00317                                                                          {
00318     assert(lower>0.0);
00319     assert(upper>lower);
00320     double loglower=log10(lower);
00321     double logupper=log10(upper);
00322     vector<double> binedges;
00323     double stepwidth=(logupper-loglower)/double(nbins);
00324     for (size_t i=0; i<=nbins; ++i) {
00325       binedges.push_back(pow(10.0, loglower+double(i)*stepwidth));
00326     }
00327     return binedges;
00328   }

AIDA::IHistogram1D* bookHistogram1D ( const std::string &  name,
size_t  nbins,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8591806::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), and ALEPH_1991_S2435284::init().

AIDA::IHistogram1D* bookHistogram1D ( const std::string &  name,
const std::vector< double > &  binedges,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IHistogram1D* bookHistogram1D ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

AIDA::IHistogram1D* bookHistogram1D ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

AIDA::IProfile1D* bookProfile1D ( const std::string &  name,
size_t  nbins,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by UA5_1988_S1867512::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2006_S6860818::init(), MC_PHOTONJETUE::init(), MC_LEADINGJETS::init(), H1_2000_S4129130::init(), H1_1994_S2919893::init(), DELPHI_2002_069_CONF_603::init(), D0_1996_S3324664::init(), CDF_2009_S8233977::init(), CDF_2008_S7782535::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2005_S6217184::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), and ATLAS_2010_S8591806::init().

AIDA::IProfile1D* bookProfile1D ( const std::string &  name,
const std::vector< double > &  binedges,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IProfile1D* bookProfile1D ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

AIDA::IProfile1D* bookProfile1D ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 1D profile histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

AIDA::IDataPointSet* bookDataPointSet ( const std::string &  name,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by ALEPH_2004_S5765862::finalize(), STAR_2006_S6860818::init(), OPAL_1993_S2692198::init(), MC_JetAnalysis::init(), JADE_OPAL_2000_S4300807::init(), D0_2001_S4674421::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_1996_S3418421::init(), CDF_1994_S2952106::init(), and ALEPH_2004_S5765862::init().

AIDA::IDataPointSet* bookDataPointSet ( const std::string &  name,
size_t  npts,
double  lower,
double  upper,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set with equally spaced points in a range. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IDataPointSet* bookDataPointSet ( size_t  datasetId,
size_t  xAxisId,
size_t  yAxisId,
const std::string &  title = "",
const std::string &  xtitle = "",
const std::string &  ytitle = ""
) [protected, inherited]

Book a 2-dimensional data point set based on the corresponding AIDA data file. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property. Book a 2-dimensional data point set based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Analysis & setBeams ( PdgId  beam1,
PdgId  beam2
) [protected, inherited]

Set the colliding beam pair.

Deprecated:
Use .info file and AnalysisInfo class instead
Todo:
Deprecate?

Definition at line 211 of file Analysis.cc.

References Analysis::_info.

Referenced by ALEPH_1991_S2435284::ALEPH_1991_S2435284(), ALEPH_1996_S3196992::ALEPH_1996_S3196992(), ALEPH_1996_S3486095::ALEPH_1996_S3486095(), ALEPH_2004_S5765862::ALEPH_2004_S5765862(), BELLE_2006_S6265367::BELLE_2006_S6265367(), CDF_1988_S1865951::CDF_1988_S1865951(), CDF_1990_S2089246::CDF_1990_S2089246(), CDF_1991_S2313472::CDF_1991_S2313472(), CDF_1993_S2742446::CDF_1993_S2742446(), CDF_1994_S2952106::CDF_1994_S2952106(), CDF_1996_S3108457::CDF_1996_S3108457(), CDF_1996_S3349578::CDF_1996_S3349578(), CDF_1996_S3418421::CDF_1996_S3418421(), CDF_1997_S3541940::CDF_1997_S3541940(), CDF_1998_S3618439::CDF_1998_S3618439(), CDF_2000_S4155203::CDF_2000_S4155203(), CDF_2000_S4266730::CDF_2000_S4266730(), CDF_2001_S4517016::CDF_2001_S4517016(), CDF_2001_S4563131::CDF_2001_S4563131(), CDF_2001_S4751469::CDF_2001_S4751469(), CDF_2002_S4796047::CDF_2002_S4796047(), CDF_2004_S5839831::CDF_2004_S5839831(), CDF_2005_S6080774::CDF_2005_S6080774(), CDF_2005_S6217184::CDF_2005_S6217184(), CDF_2006_S6450792::CDF_2006_S6450792(), CDF_2006_S6653332::CDF_2006_S6653332(), CDF_2007_S7057202::CDF_2007_S7057202(), CDF_2008_LEADINGJETS::CDF_2008_LEADINGJETS(), CDF_2008_NOTE_9351::CDF_2008_NOTE_9351(), CDF_2008_S7540469::CDF_2008_S7540469(), CDF_2008_S7541902::CDF_2008_S7541902(), CDF_2008_S7782535::CDF_2008_S7782535(), CDF_2008_S7828950::CDF_2008_S7828950(), CDF_2008_S8093652::CDF_2008_S8093652(), CDF_2008_S8095620::CDF_2008_S8095620(), CDF_2009_NOTE_9936::CDF_2009_NOTE_9936(), CDF_2009_S8057893::CDF_2009_S8057893::CDF_2009_S8057893(), CDF_2009_S8233977::CDF_2009_S8233977(), CDF_2009_S8383952::CDF_2009_S8383952(), CDF_2009_S8436959::CDF_2009_S8436959(), D0_1996_S3214044::D0_1996_S3214044(), D0_1996_S3324664::D0_1996_S3324664(), D0_1998_S3711838::D0_1998_S3711838(), D0_2001_S4674421::D0_2001_S4674421(), D0_2004_S5992206::D0_2004_S5992206(), D0_2006_S6438750::D0_2006_S6438750(), D0_2007_S7075677::D0_2007_S7075677(), D0_2008_S6879055::D0_2008_S6879055(), D0_2008_S7554427::D0_2008_S7554427(), D0_2008_S7662670::D0_2008_S7662670(), D0_2008_S7719523::D0_2008_S7719523(), D0_2008_S7837160::D0_2008_S7837160(), D0_2008_S7863608::D0_2008_S7863608(), D0_2009_S8202443::D0_2009_S8202443(), D0_2009_S8320160::D0_2009_S8320160(), D0_2009_S8349509::D0_2009_S8349509(), D0_2010_S8566488::D0_2010_S8566488(), D0_2010_S8570965::D0_2010_S8570965(), D0_2010_S8671338::D0_2010_S8671338(), DELPHI_1995_S3137023::DELPHI_1995_S3137023(), DELPHI_2002_069_CONF_603::DELPHI_2002_069_CONF_603(), E735_1998_S3905616::E735_1998_S3905616(), H1_1994_S2919893::H1_1994_S2919893(), H1_1995_S3167097::H1_1995_S3167097(), H1_2000_S4129130::H1_2000_S4129130(), JADE_OPAL_2000_S4300807::JADE_OPAL_2000_S4300807(), OPAL_1993_S2692198::OPAL_1993_S2692198(), OPAL_1998_S3780481::OPAL_1998_S3780481(), OPAL_2001_S4553896::OPAL_2001_S4553896(), PDG_HADRON_MULTIPLICITIES::PDG_HADRON_MULTIPLICITIES(), PDG_HADRON_MULTIPLICITIES_RATIOS::PDG_HADRON_MULTIPLICITIES_RATIOS(), SFM_1984_S1178091::SFM_1984_S1178091(), STAR_2006_S6500200::STAR_2006_S6500200(), STAR_2006_S6860818::STAR_2006_S6860818(), STAR_2006_S6870392::STAR_2006_S6870392(), STAR_2008_S7869363::STAR_2008_S7869363(), STAR_2008_S7993412::STAR_2008_S7993412(), STAR_2009_UE_HELEN::STAR_2009_UE_HELEN(), UA1_1990_S2044935::UA1_1990_S2044935(), UA5_1986_S1583476::UA5_1986_S1583476(), UA5_1987_S1640666::UA5_1987_S1640666(), UA5_1988_S1867512::UA5_1988_S1867512(), UA5_1989_S1926373::UA5_1989_S1926373(), and ZEUS_2001_S4815815::ZEUS_2001_S4815815().

00211                                                        {
00212     assert(_info.get() != 0);
00213     _info->_beams.clear();
00214     _info->_beams += make_pair(beam1, beam2);
00215     return *this;
00216   }

Analysis & setNeedsCrossSection ( bool  needed  )  [protected, inherited]

Declare whether this analysis needs to know the process cross-section from the generator.

Todo:
Deprecate, eventually

Definition at line 249 of file Analysis.cc.

References Analysis::_needsCrossSection.

Referenced by ATLAS_2010_S8591806::ATLAS_2010_S8591806(), CDF_1991_S2313472::CDF_1991_S2313472(), CDF_1993_S2742446::CDF_1993_S2742446(), CDF_1996_S3108457::CDF_1996_S3108457(), CDF_1998_S3618439::CDF_1998_S3618439(), CDF_2000_S4155203::CDF_2000_S4155203(), CDF_2000_S4266730::CDF_2000_S4266730(), CDF_2001_S4517016::CDF_2001_S4517016(), CDF_2001_S4563131::CDF_2001_S4563131(), CDF_2005_S6080774::CDF_2005_S6080774(), CDF_2006_S6450792::CDF_2006_S6450792(), CDF_2006_S6653332::CDF_2006_S6653332(), CDF_2007_S7057202::CDF_2007_S7057202(), CDF_2008_S7540469::CDF_2008_S7540469(), CDF_2008_S7541902::CDF_2008_S7541902(), CDF_2008_S7828950::CDF_2008_S7828950(), CDF_2008_S8093652::CDF_2008_S8093652(), CDF_2009_NOTE_9936::CDF_2009_NOTE_9936(), CDF_2009_S8233977::CDF_2009_S8233977(), CDF_2009_S8383952::CDF_2009_S8383952(), CDF_2009_S8436959::CDF_2009_S8436959(), D0_1996_S3214044::D0_1996_S3214044(), D0_1996_S3324664::D0_1996_S3324664(), D0_1998_S3711838::D0_1998_S3711838(), D0_2000_S4480767::D0_2000_S4480767(), D0_2001_S4674421::D0_2001_S4674421(), D0_2006_S6438750::D0_2006_S6438750(), D0_2008_S7662670::D0_2008_S7662670(), D0_2008_S7719523::D0_2008_S7719523(), D0_2008_S7863608::D0_2008_S7863608(), D0_2010_S8566488::D0_2010_S8566488(), D0_2010_S8570965::D0_2010_S8570965(), MC_DIPHOTON::MC_DIPHOTON(), MC_HJETS::MC_HJETS(), MC_JetAnalysis::MC_JetAnalysis(), MC_JETS::MC_JETS(), MC_PHOTONJETS::MC_PHOTONJETS(), MC_WJETS::MC_WJETS(), MC_WWJETS::MC_WWJETS(), MC_ZJETS::MC_ZJETS(), MC_ZZJETS::MC_ZZJETS(), OPAL_2001_S4553896::OPAL_2001_S4553896(), STAR_2006_S6870392::STAR_2006_S6870392(), STAR_2008_S7869363::STAR_2008_S7869363(), and UA1_1990_S2044935::UA1_1990_S2044935().

00249                                                       {
00250     _needsCrossSection = needed;
00251     return *this;
00252   }

std::set<ConstProjectionPtr> getProjections (  )  const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 58 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00058                                                       {
00059       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00060     }

const PROJ& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 65 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by Rivet::pcmp(), and Hemispheres::project().

00065                                                            {
00066       const Projection& p = getProjHandler().getProjection(*this, name);
00067       return pcast<PROJ>(p);
00068     }

const Projection& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 73 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00073                                                                  {
00074       return getProjHandler().getProjection(*this, name);
00075     }

const PROJ& applyProjection ( const Event &  evt,
const PROJ &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 83 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00083                                                                           {
00084       return pcast<PROJ>(_applyProjection(evt, proj));
00085     }

const PROJ& applyProjection ( const Event &  evt,
const Projection &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 90 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00090                                                                                 {
00091       return pcast<PROJ>(_applyProjection(evt, proj));
00092     }

const PROJ& applyProjection ( const Event &  evt,
const std::string &  name
) const [inline, inherited]

Apply the named projection on event.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00097                                                                                {
00098       return pcast<PROJ>(_applyProjection(evt, name));
00099     }

ProjectionHandler& getProjHandler (  )  const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 110 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00110                                               {
00111       assert(_projhandler);
00112       return *_projhandler;
00113     }

const PROJ& addProjection ( const PROJ &  proj,
const std::string &  name
) [inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 130 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8591806::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< Rivet::ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), and VetoedFinalState::VetoedFinalState().

00130                                                                        {
00131       const Projection& reg = _addProjection(proj, name);
00132       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00133       return rtn;
00134     }

const Projection & _addProjection ( const Projection &  proj,
const std::string &  name
) [protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, Log::ERROR, ProjectionApplier::getLog(), ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       getLog() << Log::ERROR << "Trying to register projection '"
00037                << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

Friends And Related Function Documentation

friend class Projectionhandler [friend, inherited]

Definition at line 38 of file ProjectionApplier.hh.

Member Data Documentation

AIDA::IProfile1D* _hist_pmaxnchg [private]

Definition at line 159 of file STAR_2009_UE_HELEN.cc.

Referenced by STAR_2009_UE_HELEN::analyze(), and STAR_2009_UE_HELEN::init().

AIDA::IProfile1D* _hist_pminnchg [private]

Definition at line 160 of file STAR_2009_UE_HELEN.cc.

Referenced by STAR_2009_UE_HELEN::analyze(), and STAR_2009_UE_HELEN::init().

AIDA::IProfile1D* _hist_anchg [private]

Definition at line 161 of file STAR_2009_UE_HELEN.cc.

Referenced by STAR_2009_UE_HELEN::analyze(), and STAR_2009_UE_HELEN::init().

string _defaultname [protected, inherited]

Name passed to constructor (used to find .info analysis data file, and as a fallback).

Definition at line 422 of file Analysis.hh.

Referenced by Analysis::name().

shared_ptr<AnalysisInfo> _info [protected, inherited]

Pointer to analysis metadata object.

Definition at line 425 of file Analysis.hh.

Referenced by Analysis::authors(), Analysis::bibKey(), Analysis::bibTeX(), Analysis::collider(), Analysis::description(), Analysis::experiment(), Analysis::info(), Analysis::name(), Analysis::references(), Analysis::runInfo(), Analysis::setBeams(), Analysis::spiresId(), Analysis::status(), Analysis::summary(), Analysis::todos(), and Analysis::year().

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 157 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection().

The documentation for this class was generated from the following file:
