AnalysisInfo Class Reference

#include <AnalysisInfo.hh>

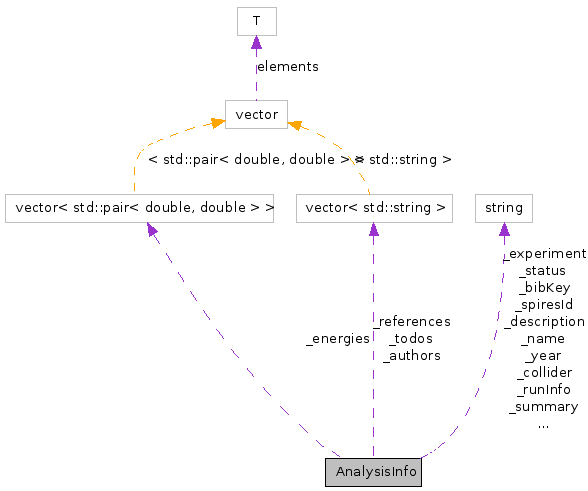

Collaboration diagram for AnalysisInfo:

Detailed Description

Definition at line 11 of file AnalysisInfo.hh.


Public Member Functions
bool	needsCrossSection () const
	Return true if this analysis needs to know the process cross-section.
Standard constructors and destructors.
	AnalysisInfo ()
	The default constructor.
	~AnalysisInfo ()
	The destructor.
Metadata
Metadata is used for querying from the command line and also for building web pages and the analysis pages in the Rivet manual.
std::string	name () const
const std::string &	spiresId () const
	Get a description of the analysis.
const std::vector< std::string > &	authors () const
	Names & emails of paper/analysis authors. Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person.
const std::string &	summary () const
	Get a short description of the analysis. Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details.
const std::string &	description () const
	Get a full description of the analysis. Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators.
const std::string &	runInfo () const
	Information about the events needed as input for this analysis. Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html).
const std::vector< std::pair < PdgId, PdgId > > &	beams () const
	Beam particle types.
const std::vector< std::pair < double, double > > &	energies () const
	Sets of valid beam energy pairs.
const std::string &	experiment () const
	Experiment which performed and published this analysis.
const std::string &	collider () const
	Collider on which the experiment ran.
const std::string &	year () const
	When the original experimental analysis was published. When the refereed paper on which this is based was published, according to SPIRES.
const std::vector< std::string > &	references () const
	Journal, and preprint references.
const std::string &	bibKey () const
	BibTeX citation key for this article.
const std::string &	bibTeX () const
	BibTeX citation entry for this article.
const std::string &	status () const
	Whether this analysis is trusted (in any way!).
const std::vector< std::string > &	todos () const
	Any work to be done on this analysis.
Static Public Member Functions
static AnalysisInfo *	make (const std::string &name)
	Static factory method: returns null pointer if no metadata found.
Private Member Functions
void	clear ()
Private Attributes
std::string	_name
std::string	_spiresId
std::vector< std::string >	_authors
std::string	_summary
std::string	_description
std::string	_runInfo
std::string	_experiment
std::string	_collider
std::vector< std::pair< PdgId, PdgId > >	_beams
std::vector< std::pair< double, double > >	_energies
std::string	_year
std::vector< std::string >	_references
std::string	_bibKey
std::string	_bibTeX
std::string	_status
std::vector< std::string >	_todos
bool	_needsCrossSection
Friends
class	Analysis

Constructor & Destructor Documentation

AnalysisInfo ( ) [inline]

The default constructor.

Definition at line 25 of file AnalysisInfo.hh.

References AnalysisInfo::clear().

Referenced by AnalysisInfo::make().

00025 { clear(); }

~AnalysisInfo ( ) [inline]

The destructor.

Definition at line 28 of file AnalysisInfo.hh.

00028 { }

Member Function Documentation

AnalysisInfo * make ( const std::string & ananame ) [static]

Static factory method: returns null pointer if no metadata found.

Static factory method.

Ideas: search RIVET_INFO_PATH etc. for <name>.info.yaml how to determine the name? only populate pointer on Analysis when requested use smart pointer: deletes automatically when Analysis goes out of scope

Todo:: Use system-independent separator (e.g. Boost.File)

If no ana data file found, return null AI

Definition at line 23 of file AnalysisInfo.cc.

References AnalysisInfo::_authors, AnalysisInfo::_beams, AnalysisInfo::_bibKey, AnalysisInfo::_bibTeX, AnalysisInfo::_collider, AnalysisInfo::_description, AnalysisInfo::_energies, AnalysisInfo::_experiment, AnalysisInfo::_name, AnalysisInfo::_needsCrossSection, AnalysisInfo::_references, AnalysisInfo::_runInfo, AnalysisInfo::_spiresId, AnalysisInfo::_status, AnalysisInfo::_summary, AnalysisInfo::_todos, AnalysisInfo::_year, AnalysisInfo::AnalysisInfo(), Rivet::ANY, AnalysisInfo::authors(), Log::DEBUG, AnalysisInfo::energies(), Log::ERROR, Log::getLog(), Rivet::getRivetDataPath(), Rivet::make_pdgid_pair(), Rivet::s, Rivet::split(), AnalysisInfo::todos(), Log::TRACE, and Log::WARN.

00023                                                            {
00024     // Build the list of directories to search
00025     vector<string> dirs;
00026     char* env = 0;
00027     // First try to use the Rivet data path variable
00028     env = getenv("RIVET_INFO_PATH");
00029     if (env) dirs += split(env);
00030     // Then try to use the Rivet data install path
00031     dirs += getRivetDataPath();
00032     // And the current dir
00033     dirs += ".";
00034
00035     bool found = false;
00036     string datapath = "";
00037     foreach (const string& d, dirs) {
00038       if (d.empty()) continue;
00039       /// @todo Use system-independent separator (e.g. Boost.File)
00040       datapath = d + "/" + ananame + ".info";
00041       Log::getLog("Rivet.AnalysisInfo")
00042         << Log::TRACE << "Looking for analysis data file '" << datapath << "'" << endl;
00043       if (access(datapath.c_str(), R_OK) == 0) {
00044         found = true;
00045         break;
00046       }
00047     }
00048
00049     // Returned AI, in semi-null state
00050     AnalysisInfo* ai = new AnalysisInfo();
00051     ai->_beams += make_pair(ANY,ANY);
00052     ai->_name = ananame;
00053
00054     /// If no ana data file found, return null AI
00055     if (!found) return ai;
00056
00057     // Read data from YAML document
00058     Log::getLog("Rivet.AnalysisInfo")
00059       << Log::DEBUG << "Reading analysis data from " << datapath << endl;
00060     std::ifstream io(datapath.c_str());
00061     YAML::Parser parser(io);
00062     YAML::Node doc;
00063     try {
00064       parser.GetNextDocument(doc);
00065       //cout << doc << endl;
00066     } catch (const YAML::ParserException& ex) {
00067       Log::getLog("Rivet.AnalysisInfo")
00068         << Log::ERROR << "Parse error when reading analysis data from "
00069         << datapath << endl;
00070       return ai;
00071     }
00072
00073     for (YAML::Iterator it = doc.begin(); it != doc.end(); ++it) {
00074       string key;
00075       it.first() >> key;
00076       stringstream sec;
00077       // sec << it.second();
00078       // const string secstr = sec.str().substr(0, sec.str().length()-1);
00079       // Log::getLog("Rivet.AnalysisInfo")
00080       //   << Log::TRACE << key << ": " << secstr << endl;
00081       try {
00082         if (key == "Name") {
00083           it.second() >> ai->_name;
00084         } else if (key == "Summary") {
00085           it.second() >> ai->_summary;
00086         } else if (key == "Experiment") {
00087           it.second() >> ai->_experiment;
00088         } else if (key == "Beams") {
00089           const YAML::Node& beampairs = it.second();
00090           vector<PdgIdPair> beam_pairs;
00091           if (beampairs.size() == 2 &&
00092               beampairs[0].GetType() == YAML::CT_SCALAR &&
00093               beampairs[1].GetType() == YAML::CT_SCALAR) {
00094             string bstr0, bstr1;
00095             beampairs[0] >> bstr0;
00096             beampairs[1] >> bstr1;
00097             beam_pairs += make_pdgid_pair(bstr0, bstr1);
00098           } else {
00099             for (YAML::Iterator bpi = beampairs.begin(); bpi != beampairs.end(); ++bpi) {
00100               const YAML::Node& bp = *bpi;
00101               if (bp.size() == 2 &&
00102                   bp[0].GetType() == YAML::CT_SCALAR &&
00103                   bp[1].GetType() == YAML::CT_SCALAR) {
00104                 string bstr0, bstr1;
00105                 bp[0] >> bstr0;
00106                 bp[1] >> bstr1;
00107                 beam_pairs += make_pdgid_pair(bstr0, bstr1);
00108               } else {
00109                 assert(0 && "Beam ID pairs have to be either a 2-tuple or a list of 2-tuples of particle names");
00110               }
00111             }
00112           }
00113           ai->_beams = beam_pairs;
00114         }
00115         else if (key == "Energies") {
00116           const YAML::Node& energies = it.second();
00117           vector<pair<double,double> > beam_energy_pairs;
00118           for (YAML::Iterator be = energies.begin(); be != energies.end(); ++be) {
00119             if (be->GetType() == YAML::CT_SCALAR) {
00120               // If beam energy is a scalar, then assume symmetric beams each with half that energy
00121               double sqrts;
00122               *be >> sqrts;
00123               beam_energy_pairs += make_pair(sqrts/2.0, sqrts/2.0);
00124             } else if (be->GetType() == YAML::CT_SEQUENCE) {
00125               const YAML::Node& beseq = *be;
00126               // If the sub-sequence is of length 1, then it's another scalar sqrt(s)!
00127               if (beseq.size() == 1) {
00128                 double sqrts;
00129                 (*be)[0] >> sqrts;
00130                 beam_energy_pairs += make_pair(sqrts/2.0, sqrts/2.0);
00131               } else if (beseq.size() == 2) {
00132                 vector<double> beamenergies;
00133                 double beamenergy0, beamenergy1;
00134                 beseq[0] >> beamenergy0;
00135                 beseq[1] >> beamenergy1;
00136                 beam_energy_pairs += make_pair(beamenergy0, beamenergy1);
00137               } else {
00138                 assert(0 && "Beam energies have to be a list of either numbers or pairs of numbers");
00139               }
00140             } else {
00141               assert(0 && "Beam energies have to be a list of either numbers or pairs of numbers");
00142             }
00143           }
00144           ai->_energies = beam_energy_pairs;
00145         } else if (key == "Collider") {
00146           it.second() >> ai->_collider;
00147         } else if (key == "SpiresID") {
00148           it.second() >> ai->_spiresId;
00149         } else if (key == "BibKey") {
00150           it.second() >> ai->_bibKey;
00151         } else if (key == "BibTeX") {
00152           it.second() >> ai->_bibTeX;//Body;
00153         } else if (key == "Status") {
00154           it.second() >> ai->_status;
00155         } else if (key == "ToDo") {
00156           const YAML::Node& todos = it.second();
00157           for (YAML::Iterator todo = todos.begin(); todo != todos.end(); ++todo) {
00158             string s;
00159             *todo >> s;
00160             ai->_todos += s;
00161           }
00162         } else if (key == "NeedCrossSection") {
00163           it.second() >> ai->_needsCrossSection;
00164         } else if (key == "RunInfo") {
00165           it.second() >> ai->_runInfo;
00166         } else if (key == "Description") {
00167           it.second() >> ai->_description;
00168         } else if (key == "Year") {
00169           it.second() >> ai->_year;
00170         } else if (key == "Authors") {
00171           const YAML::Node& authors = it.second();
00172           for (YAML::Iterator a = authors.begin(); a != authors.end(); ++a) {
00173             string astr;
00174             *a >> astr;
00175             ai->_authors += astr;
00176           }
00177         } else if (key == "References") {
00178           const YAML::Node& refs = it.second();
00179           for (YAML::Iterator r = refs.begin(); r != refs.end(); ++r) {
00180             string rstr;
00181             *r >> rstr;
00182             ai->_references += rstr;
00183           }
00184         }
00185       } catch (const YAML::RepresentationException& ex) {
00186         Log::getLog("Rivet.Analysis")
00187           << Log::WARN << "Type error when reading analysis data '"
00188           << key << "' from " << datapath << endl;
00189       }
00190     }
00191     Log::getLog("Rivet.AnalysisInfo") << Log::TRACE << "AnalysisInfo pointer = " << ai << endl;
00192     return ai;
00193   }

std::string name ( ) const [inline]

Get the name of the analysis. By default this is computed by combining the results of the experiment, year and Spires ID metadata methods and you should only override it if there's a good reason why those won't work.

Definition at line 43 of file AnalysisInfo.hh.

References AnalysisInfo::_name, AnalysisInfo::experiment(), AnalysisInfo::spiresId(), and AnalysisInfo::year().

Referenced by Rivet::toString().

00043                            {
00044       if (!_name.empty()) return _name;
00045       if (!experiment().empty() && !year().empty() && !spiresId().empty()) {
00046         return experiment() + "_" + year() + "_S" + spiresId();
00047       }
00048       return "";
00049     }

const std::string& spiresId ( ) const [inline]

Get a description of the analysis.

Definition at line 52 of file AnalysisInfo.hh.

References AnalysisInfo::_spiresId.

Referenced by AnalysisInfo::name().

00052 { return _spiresId; }

const std::vector<std::string>& authors ( ) const [inline]

Names & emails of paper/analysis authors. Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person.

Definition at line 57 of file AnalysisInfo.hh.

References AnalysisInfo::_authors.

Referenced by AnalysisInfo::make().

00057 { return _authors; }

const std::string& summary ( ) const [inline]

Get a short description of the analysis. Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details.

Definition at line 63 of file AnalysisInfo.hh.

References AnalysisInfo::_summary.

Referenced by Rivet::toString().

00063 { return _summary; }

const std::string& description ( ) const [inline]

Get a full description of the analysis. Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators.

Definition at line 70 of file AnalysisInfo.hh.

References AnalysisInfo::_description.

00070 { return _description; }

const std::string& runInfo ( ) const [inline]

Information about the events needed as input for this analysis. Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html).

Definition at line 76 of file AnalysisInfo.hh.

References AnalysisInfo::_runInfo.

00076 { return _runInfo; }

const std::vector<std::pair<PdgId,PdgId> >& beams ( ) const [inline]

Beam particle types.

Definition at line 79 of file AnalysisInfo.hh.

References AnalysisInfo::_beams.

Referenced by Analysis::requiredBeams().

00079 { return _beams; }

const std::vector<std::pair<double,double> >& energies ( ) const [inline]

Sets of valid beam energy pairs.

Definition at line 82 of file AnalysisInfo.hh.

References AnalysisInfo::_energies.

Referenced by Analysis::energies(), and AnalysisInfo::make().

00082 { return _energies; }

const std::string& experiment ( ) const [inline]

Experiment which performed and published this analysis.

Definition at line 85 of file AnalysisInfo.hh.

References AnalysisInfo::_experiment.

Referenced by AnalysisInfo::name().

00085 { return _experiment; }

const std::string& collider ( ) const [inline]

Collider on which the experiment ran.

Definition at line 88 of file AnalysisInfo.hh.

References AnalysisInfo::_collider.

00088 { return _collider; }

const std::string& year ( ) const [inline]

When the original experimental analysis was published. When the refereed paper on which this is based was published, according to SPIRES.

Definition at line 93 of file AnalysisInfo.hh.

References AnalysisInfo::_year.

Referenced by AnalysisInfo::name().

00093 { return _year; }

const std::vector<std::string>& references ( ) const [inline]

Journal, and preprint references.

Definition at line 96 of file AnalysisInfo.hh.

References AnalysisInfo::_references.

00096 { return _references; }

const std::string& bibKey ( ) const [inline]

BibTeX citation key for this article.

Definition at line 99 of file AnalysisInfo.hh.

References AnalysisInfo::_bibKey.

00099 { return _bibKey;}

const std::string& bibTeX ( ) const [inline]

BibTeX citation entry for this article.

Definition at line 102 of file AnalysisInfo.hh.

References AnalysisInfo::_bibTeX.

00102                                     {
00103       //return "@Article{" + bibKey() + ",\n" + _bibTeXBody + "\n}";
00104       return _bibTeX;
00105     }

const std::string& status ( ) const [inline]

Whether this analysis is trusted (in any way!).

Definition at line 108 of file AnalysisInfo.hh.

References AnalysisInfo::_status.

Referenced by Rivet::toString().

00108 { return _status; }

const std::vector<std::string>& todos ( ) const [inline]

Any work to be done on this analysis.

Definition at line 111 of file AnalysisInfo.hh.

References AnalysisInfo::_todos.

Referenced by AnalysisInfo::make().

00111 { return _todos; }

bool needsCrossSection ( ) const [inline]

Return true if this analysis needs to know the process cross-section.

Definition at line 115 of file AnalysisInfo.hh.

References AnalysisInfo::_needsCrossSection.

00115 { return _needsCrossSection; }

void clear ( ) [inline, private]

Definition at line 139 of file AnalysisInfo.hh.

References AnalysisInfo::_authors, AnalysisInfo::_beams, AnalysisInfo::_bibKey, AnalysisInfo::_bibTeX, AnalysisInfo::_collider, AnalysisInfo::_description, AnalysisInfo::_energies, AnalysisInfo::_experiment, AnalysisInfo::_name, AnalysisInfo::_needsCrossSection, AnalysisInfo::_references, AnalysisInfo::_runInfo, AnalysisInfo::_spiresId, AnalysisInfo::_status, AnalysisInfo::_summary, AnalysisInfo::_todos, and AnalysisInfo::_year.

Referenced by AnalysisInfo::AnalysisInfo().

00139                  {
00140       _name = "";
00141       _spiresId = "";
00142       _authors.clear();
00143       _summary = "";
00144       _description = "";
00145       _runInfo = "";
00146       _experiment = "";
00147       _collider = "";
00148       _beams.clear();
00149       _energies.clear();
00150       _year = "";
00151       _references.clear();
00152       _bibKey = "";
00153       _bibTeX = "";
00154       //_bibTeXBody = "";
00155       _status = "";
00156       _todos.clear();
00157       _needsCrossSection = false;
00158     }
