CDF_2001_S4751469 Class Reference

Inheritance diagram for CDF_2001_S4751469:

[legend]

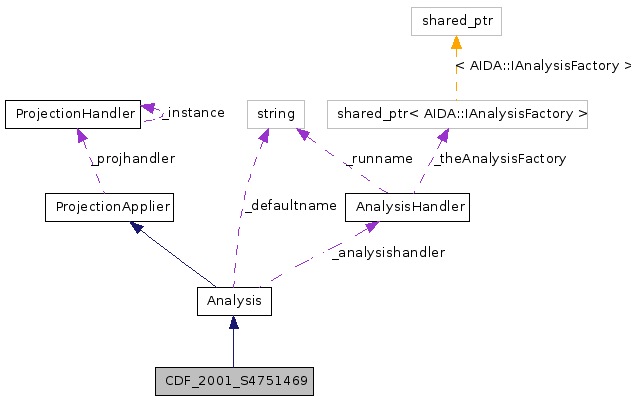

Collaboration diagram for CDF_2001_S4751469:

[legend]

List of all members.

Detailed Description

Definition at line 32 of file CDF_2001_S4751469.cc.


Public Member Functions
	CDF_2001_S4751469 ()
virtual bool	isCompatible (PdgId beam1, PdgId beam2) const
	Is this analysis able to run on the supplied pair of beams?
virtual bool	isCompatible (const PdgIdPair &beams) const
	Is this analysis able to run on the PdgIdPair beams ?
AnalysisHandler &	handler () const
	Access the controlling AnalysisHandler object.
void	normalize (AIDA::IHistogram1D *&histo, double norm=1.0)
void	scale (AIDA::IHistogram1D *&histo, double scale)
Analysis &	setCrossSection (double xs)
	Set the cross section from the generator.
bool	needsCrossSection () const
	Return true if this analysis needs to know the process cross-section.
Analysis methods
void	init ()
void	analyze (const Event &event)
	Do the analysis.
void	finalize ()
	Normalize histos.
Metadata
Metadata is used for querying from the command line and also for building web pages and the analysis pages in the Rivet manual.
virtual const AnalysisInfo &	info () const
	Get the actual AnalysisInfo object in which all this metadata is stored.
virtual std::string	name () const
	Get the name of the analysis.
virtual std::string	spiresId () const
	Get a the SPIRES/Inspire ID code for this analysis.
virtual std::vector< std::string >	authors () const
	Names & emails of paper/analysis authors.
virtual std::string	summary () const
	Get a short description of the analysis.
virtual std::string	description () const
	Get a full description of the analysis.
virtual std::string	runInfo () const
	Information about the events needed as input for this analysis.
virtual std::string	experiment () const
	Experiment which performed and published this analysis.
virtual std::string	collider () const
	Collider on which the experiment ran.
virtual const std::vector < PdgIdPair > &	requiredBeams () const
	Return the pair of incoming beams required by this analysis.
virtual const std::vector < std::pair< double, double > > &	energies () const
	Sets of valid beam energy pairs, in GeV.
virtual std::string	year () const
	When the original experimental analysis was published.
virtual std::vector< std::string >	references () const
	Journal, and preprint references.
virtual std::string	bibKey () const
	BibTeX citation key for this article.
virtual std::string	bibTeX () const
	BibTeX citation entry for this article.
virtual std::string	status () const
	Whether this analysis is trusted (in any way!).
virtual std::vector< std::string >	todos () const
	Any work to be done on this analysis.
Run conditions
const ParticlePair &	beams () const
	Incoming beams for this run.
const PdgIdPair	beamIds () const
	Incoming beam IDs for this run.
double	sqrtS () const
	Centre of mass energy for this run.
Projection "getting" functions
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ>
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
Log &	getLog () const
	Get a Log object based on the name() property of the calling analysis object.
double	crossSection () const
	Get the process cross-section in pb. Throws if this hasn't been set.
double	crossSectionPerEvent () const
size_t	numEvents () const
double	sumOfWeights () const
Analysis &	setBeams (PdgId beam1, PdgId beam2)
Analysis &	setNeedsCrossSection (bool needed)
	Declare whether this analysis needs to know the process cross-section from the generator.
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
AIDA analysis infrastructure.
AIDA::IAnalysisFactory &	analysisFactory ()
	Access the AIDA analysis factory of the controlling AnalysisHandler object.
AIDA::ITree &	tree ()
	Access the AIDA tree of the controlling AnalysisHandler object.
AIDA::IHistogramFactory &	histogramFactory ()
	Access the AIDA histogram factory of the controlling AnalysisHandler object.
AIDA::IDataPointSetFactory &	datapointsetFactory ()
	Access the AIDA histogram factory of the controlling AnalysisHandler object.
const std::string	histoDir () const
	Get the canonical histogram "directory" path for this analysis.
const std::string	histoPath (const std::string &hname) const
	Get the canonical histogram path for the named histogram in this analysis.
Internal histogram booking (for use by Analysis sub-classes).
const BinEdges &	binEdges (const std::string &hname) const
	Get bin edges for a named histo (using ref AIDA caching).
const BinEdges &	binEdges (size_t datasetId, size_t xAxisId, size_t yAxisId) const
	Get bin edges for a numbered histo (using ref AIDA caching).
BinEdges	logBinEdges (size_t nbins, double lower, double upper)
	Get bin edges with logarithmic widths.
AIDA::IHistogram1D *	bookHistogram1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D *	bookHistogram1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D *	bookHistogram1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IHistogram1D *	bookHistogram1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal profile histogram booking (for use by Analysis sub-classes).
AIDA::IProfile1D *	bookProfile1D (const std::string &name, size_t nbins, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D *	bookProfile1D (const std::string &name, const std::vector< double > &binedges, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D *	bookProfile1D (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IProfile1D *	bookProfile1D (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Internal data point set booking (for use by Analysis sub-classes).
AIDA::IDataPointSet *	bookDataPointSet (const std::string &name, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IDataPointSet *	bookDataPointSet (const std::string &name, size_t npts, double lower, double upper, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
AIDA::IDataPointSet *	bookDataPointSet (size_t datasetId, size_t xAxisId, size_t yAxisId, const std::string &title="", const std::string &xtitle="", const std::string &ytitle="")
Projection registration functions
template<typename PROJ>
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
string	_defaultname
	Name passed to constructor (used to find .info analysis data file, and as a fallback).
shared_ptr< AnalysisInfo >	_info
	Pointer to analysis metadata object.
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Private Attributes
double	_totalNumTrans2
	Sum total number of charged particles in the trans region, in 3 $p_\perp^\text{lead}$ bins.
double	_totalNumTrans5
double	_totalNumTrans30
double	_sumWeightsPtLead2
	Sum the total number of events in 3 $p_\perp^\text{lead}$ bins.
double	_sumWeightsPtLead5
double	_sumWeightsPtLead30
Histogram collections
AIDA::IProfile1D *	_hist_num_dphi_2
AIDA::IProfile1D *	_hist_num_dphi_5
AIDA::IProfile1D *	_hist_num_dphi_30
AIDA::IProfile1D *	_hist_pt_dphi_2
AIDA::IProfile1D *	_hist_pt_dphi_5
AIDA::IProfile1D *	_hist_pt_dphi_30
AIDA::IProfile1D *	_numvsDeltaPhi2
AIDA::IProfile1D *	_numvsDeltaPhi5
AIDA::IProfile1D *	_numvsDeltaPhi30
AIDA::IProfile1D *	_pTvsDeltaPhi2
AIDA::IProfile1D *	_pTvsDeltaPhi5
AIDA::IProfile1D *	_pTvsDeltaPhi30
AIDA::IProfile1D *	_ptsumTowardMB
AIDA::IProfile1D *	_ptsumTransMB
AIDA::IProfile1D *	_ptsumAwayMB
AIDA::IProfile1D *	_ptsumTowardJ20
AIDA::IProfile1D *	_ptsumTransJ20
AIDA::IProfile1D *	_ptsumAwayJ20
AIDA::IProfile1D *	_numTowardMB
AIDA::IProfile1D *	_numTransMB
AIDA::IProfile1D *	_numAwayMB
AIDA::IProfile1D *	_numTowardJ20
AIDA::IProfile1D *	_numTransJ20
AIDA::IProfile1D *	_numAwayJ20
AIDA::IHistogram1D *	_ptTrans2
	Histogram of distribution for 3 different $p_{T1}$ IR cutoffs.
AIDA::IHistogram1D *	_ptTrans5
AIDA::IHistogram1D *	_ptTrans30
Friends
class	Projectionhandler

Constructor & Destructor Documentation

CDF_2001_S4751469 ( ) [inline]

Constructor: cuts on final state are $-1 < \eta < 1$ and $ p_T > 0.5 $ GeV.

Definition at line 37 of file CDF_2001_S4751469.cc.

References Rivet::ANTIPROTON, Rivet::PROTON, and Analysis::setBeams().

00038       : Analysis("CDF_2001_S4751469"),
00039         _totalNumTrans2(0), _totalNumTrans5(0), _totalNumTrans30(0),
00040         _sumWeightsPtLead2(0),_sumWeightsPtLead5(0), _sumWeightsPtLead30(0)
00041     {
00042       setBeams(PROTON, ANTIPROTON);
00043     }

Member Function Documentation

void init ( ) [inline, virtual]

Initialize this analysis object. A concrete class should here book all necessary histograms. An overridden function must make sure it first calls the base class function.

Implements Analysis.

Definition at line 50 of file CDF_2001_S4751469.cc.

00050                 {
00051       addProjection(TriggerCDFRun0Run1(), "Trigger");
00052       // Randomly discard 8% of charged particles as a kind of hacky detector correction.
00053       const ChargedFinalState cfs(-1.0, 1.0, 0.5*GeV);
00054       const ConstLossyFinalState lfs(cfs, 0.08);
00055
00056       // const LossyFinalState<StarRandomFilter> lfs(cfs, StarRandomFilter());
00057       addProjection(lfs, "FS");
00058       addProjection(FastJets(lfs, FastJets::TRACKJET, 0.7), "TrackJet");
00059
00060       _numvsDeltaPhi2 =  bookProfile1D(1, 1, 1);
00061       _numvsDeltaPhi5 =  bookProfile1D(1, 1, 2);
00062       _numvsDeltaPhi30 = bookProfile1D(1, 1, 3);
00063       _pTvsDeltaPhi2 =   bookProfile1D(2, 1, 1);
00064       _pTvsDeltaPhi5 =   bookProfile1D(2, 1, 2);
00065       _pTvsDeltaPhi30 =  bookProfile1D(2, 1, 3);
00066
00067       _numTowardMB = bookProfile1D(3, 1, 1);
00068       _numTransMB = bookProfile1D(3, 1, 2);
00069       _numAwayMB = bookProfile1D(3, 1, 3);
00070       _numTowardJ20 = bookProfile1D(4, 1, 1);
00071       _numTransJ20 = bookProfile1D(4, 1, 2);
00072       _numAwayJ20 = bookProfile1D(4, 1, 3);
00073
00074       _ptsumTowardMB = bookProfile1D(5, 1, 1);
00075       _ptsumTransMB = bookProfile1D(5, 1, 2);
00076       _ptsumAwayMB = bookProfile1D(5, 1, 3);
00077       _ptsumTowardJ20 = bookProfile1D(6, 1, 1);
00078       _ptsumTransJ20 = bookProfile1D(6, 1, 2);
00079       _ptsumAwayJ20 = bookProfile1D(6, 1, 3);
00080
00081       _ptTrans2 = bookHistogram1D(7, 1, 1);
00082       _ptTrans5 = bookHistogram1D(7, 1, 2);
00083       _ptTrans30 = bookHistogram1D(7, 1, 3);
00084     }

void analyze ( const Event & event ) [inline, virtual]

Do the analysis.

Todo:: Copy the permanent histos to get the binnings more robustly

Implements Analysis.

Definition at line 88 of file CDF_2001_S4751469.cc.

00088                                      {
00089       // Trigger
00090       const bool trigger = applyProjection<TriggerCDFRun0Run1>(event, "Trigger").minBiasDecision();
00091       if (!trigger) vetoEvent;
00092
00093       // Analyse, with pT > 0.5 GeV AND |eta| < 1
00094       const JetAlg& tj = applyProjection<JetAlg>(event, "TrackJet");
00095
00096       // Final state (lossy) charged particles
00097       const FinalState& fs = applyProjection<FinalState>(event, "FS");
00098
00099       // Get jets, sorted by pT
00100       const Jets jets = tj.jetsByPt();
00101       if (jets.empty()) {
00102         vetoEvent;
00103       }
00104
00105       Jet leadingJet = jets.front();
00106       const double phiLead = leadingJet.ptWeightedPhi();
00107       const double ptLead = leadingJet.ptSum();
00108
00109       // Cut on highest pT jet: combined 0.5 GeV < pT(lead) < 50 GeV
00110       if (ptLead/GeV < 0.5) vetoEvent;
00111       if (ptLead/GeV > 50.0) vetoEvent;
00112
00113       // Get the event weight
00114       const double weight = event.weight();
00115
00116       // Count sum of all event weights in three pT_lead regions
00117       if (ptLead/GeV > 2.0) {
00118         _sumWeightsPtLead2 += weight;
00119       }
00120       if (ptLead/GeV > 5.0) {
00121         _sumWeightsPtLead5 += weight;
00122       }
00123       if (ptLead/GeV > 30.0) {
00124         _sumWeightsPtLead30 += weight;
00125       }
00126
00127       // Run over tracks
00128       double ptSumToward(0.0), ptSumAway(0.0), ptSumTrans(0.0);
00129       size_t numToward(0), numTrans(0), numAway(0);
00130
00131       // Temporary histos that bin N and pT in dphi
00132       /// @todo Copy the permanent histos to get the binnings more robustly
00133       LWH::Profile1D hist_num_dphi_2(50, 0, 180), hist_num_dphi_5(50, 0, 180), hist_num_dphi_30(50, 0, 180);
00134       LWH::Profile1D hist_pt_dphi_2(50, 0, 180), hist_pt_dphi_5(50, 0, 180), hist_pt_dphi_30(50, 0, 180);
00135
00136       foreach (const Particle& p, fs.particles()) {
00137         // Calculate DeltaPhi(p,leadingJet)
00138         const double dPhi = deltaPhi(p.momentum().phi(), phiLead);
00139         const double pT = p.momentum().pT();
00140
00141         if (dPhi < PI/3.0) {
00142           ptSumToward += pT;
00143           ++numToward;
00144         }
00145         else if (dPhi < 2*PI/3.0) {
00146           ptSumTrans += pT;
00147           ++numTrans;
00148           // Fill transverse pT distributions
00149           if (ptLead/GeV > 2.0) {
00150             _ptTrans2->fill(pT/GeV, weight);
00151             _totalNumTrans2 += weight;
00152           }
00153           if (ptLead/GeV > 5.0) {
00154             _ptTrans5->fill(pT/GeV, weight);
00155             _totalNumTrans5 += weight;
00156           }
00157           if (ptLead/GeV > 30.0) {
00158             _ptTrans30->fill(pT/GeV, weight);
00159             _totalNumTrans30 += weight;
00160           }
00161         }
00162         else {
00163           ptSumAway += pT;
00164           ++numAway;
00165         }
00166
00167         // Fill tmp histos to bin event's track Nch & pT in dphi
00168         const double dPhideg = 180*dPhi/PI;
00169         if (ptLead/GeV > 2.0) {
00170           hist_num_dphi_2.fill(dPhideg, 1);
00171           hist_pt_dphi_2.fill (dPhideg, pT/GeV);
00172         }
00173         if (ptLead/GeV > 5.0) {
00174           hist_num_dphi_5.fill(dPhideg, 1);
00175           hist_pt_dphi_5.fill (dPhideg, pT/GeV);
00176         }
00177         if (ptLead/GeV > 30.0) {
00178           hist_num_dphi_30.fill(dPhideg, 1);
00179           hist_pt_dphi_30.fill (dPhideg, pT/GeV);
00180         }
00181       }
00182
00183       // Update the "proper" dphi profile histograms
00184       for (int i = 0; i < 50; i++) {
00185         if (ptLead/GeV > 2.0) {
00186           _numvsDeltaPhi2->fill(hist_num_dphi_2.binMean(i), hist_num_dphi_2.binHeight(i), weight);
00187           _pTvsDeltaPhi2->fill(hist_pt_dphi_2.binMean(i), hist_pt_dphi_2.binHeight(i), weight);
00188         }
00189         if (ptLead/GeV > 5.0) {
00190           _numvsDeltaPhi5->fill(hist_num_dphi_5.binMean(i), hist_num_dphi_5.binHeight(i), weight);
00191           _pTvsDeltaPhi5->fill(hist_pt_dphi_5.binMean(i), hist_pt_dphi_5.binHeight(i), weight);
00192         }
00193         if (ptLead/GeV > 30.0) {
00194           _numvsDeltaPhi30->fill(hist_num_dphi_30.binMean(i), hist_num_dphi_30.binHeight(i), weight);
00195           _pTvsDeltaPhi30->fill(hist_pt_dphi_30.binMean(i), hist_pt_dphi_30.binHeight(i), weight);
00196         }
00197       }
00198
00199       // Log some event details about pT
00200       getLog() << Log::DEBUG
00201                << "pT [lead; twd, away, trans] = ["
00202                << ptLead << "; "
00203                << ptSumToward << ", "
00204                << ptSumAway << ", "
00205                << ptSumTrans << "]"
00206                << endl;
00207
00208       // Update the pT profile histograms
00209       _ptsumTowardMB->fill(ptLead/GeV, ptSumToward/GeV, weight);
00210       _ptsumTowardJ20->fill(ptLead/GeV, ptSumToward/GeV, weight);
00211
00212       _ptsumTransMB->fill(ptLead/GeV, ptSumTrans/GeV, weight);
00213       _ptsumTransJ20->fill(ptLead/GeV, ptSumTrans/GeV, weight);
00214
00215       _ptsumAwayMB->fill(ptLead/GeV, ptSumAway/GeV, weight);
00216       _ptsumAwayJ20->fill(ptLead/GeV, ptSumAway/GeV, weight);
00217
00218       // Log some event details about Nch
00219       getLog() << Log::DEBUG
00220                << "N [twd, away, trans] = ["
00221                << numToward << ", "
00222                << numTrans << ", "
00223                << numAway << "]"
00224                << endl;
00225
00226       // Update the N_track profile histograms
00227       _numTowardMB->fill(ptLead/GeV, numToward, weight);
00228       _numTowardJ20->fill(ptLead/GeV, numToward, weight);
00229
00230       _numTransMB->fill(ptLead/GeV, numTrans, weight);
00231       _numTransJ20->fill(ptLead/GeV, numTrans, weight);
00232
00233       _numAwayMB->fill(ptLead/GeV, numAway, weight);
00234       _numAwayJ20->fill(ptLead/GeV, numAway, weight);
00235     }

void finalize ( ) [inline, virtual]

Normalize histos.

Implements Analysis.

Definition at line 239 of file CDF_2001_S4751469.cc.

References CDF_2001_S4751469::_ptTrans2, CDF_2001_S4751469::_ptTrans30, CDF_2001_S4751469::_ptTrans5, CDF_2001_S4751469::_sumWeightsPtLead2, CDF_2001_S4751469::_sumWeightsPtLead30, CDF_2001_S4751469::_sumWeightsPtLead5, CDF_2001_S4751469::_totalNumTrans2, CDF_2001_S4751469::_totalNumTrans30, CDF_2001_S4751469::_totalNumTrans5, and Analysis::normalize().

00239                     {
00240       normalize(_ptTrans2, _totalNumTrans2 / _sumWeightsPtLead2);
00241       normalize(_ptTrans5, _totalNumTrans5 / _sumWeightsPtLead5);
00242       normalize(_ptTrans30, _totalNumTrans30 / _sumWeightsPtLead30);
00243     }

const AnalysisInfo & info ( ) const [virtual, inherited]

Get the actual AnalysisInfo object in which all this metadata is stored.

Definition at line 126 of file Analysis.cc.

References Analysis::_info.

Referenced by Analysis::energies(), and Analysis::requiredBeams().

00126                                            {
00127     assert(_info.get() != 0);
00128     return *_info;
00129   }

string name ( ) const [virtual, inherited]

Get the name of the analysis.

By default this is computed by combining the results of the experiment, year and Spires ID metadata methods and you should only override it if there's a good reason why those won't work.

Implements ProjectionApplier.

Definition at line 131 of file Analysis.cc.

References Analysis::_defaultname, and Analysis::_info.

Referenced by Analysis::_cacheBinEdges(), Analysis::_cacheXAxisData(), Analysis::_makeHistoDir(), Analysis::crossSection(), Analysis::getLog(), Analysis::histoDir(), Analysis::normalize(), HistoHandler::registerAnalysisObject(), and Analysis::scale().

00131                               {
00132     if (_info && !_info->name().empty()) return _info->name();
00133     return _defaultname;
00134   }

string spiresId ( ) const [virtual, inherited]

Get a the SPIRES/Inspire ID code for this analysis.

Definition at line 136 of file Analysis.cc.

References Analysis::_info.

00136                                   {
00137     if (!_info) return "NONE";
00138     return _info->spiresId();
00139   }

vector< string > authors ( ) const [virtual, inherited]

Names & emails of paper/analysis authors.

Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person.

Definition at line 141 of file Analysis.cc.

References Analysis::_info.

00141                                          {
00142     if (!_info) return std::vector<std::string>();
00143     return _info->authors();
00144   }

string summary ( ) const [virtual, inherited]

Get a short description of the analysis.

Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details.

Definition at line 146 of file Analysis.cc.

References Analysis::_info.

00146                                  {
00147     if (!_info) return "NONE";
00148     return _info->summary();
00149   }

string description ( ) const [virtual, inherited]

Get a full description of the analysis.

Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators.

Definition at line 151 of file Analysis.cc.

References Analysis::_info.

00151                                      {
00152     if (!_info) return "NONE";
00153     return _info->description();
00154   }

string runInfo ( ) const [virtual, inherited]

Information about the events needed as input for this analysis.

Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html)

Definition at line 156 of file Analysis.cc.

References Analysis::_info.

00156                                  {
00157     if (!_info) return "NONE";
00158     return _info->runInfo();
00159   }

string experiment ( ) const [virtual, inherited]

Experiment which performed and published this analysis.

Definition at line 165 of file Analysis.cc.

References Analysis::_info.

00165                                     {
00166     if (!_info) return "NONE";
00167     return _info->experiment();
00168   }

string collider ( ) const [virtual, inherited]

Collider on which the experiment ran.

Definition at line 170 of file Analysis.cc.

References Analysis::_info.

00170                                   {
00171     if (!_info) return "NONE";
00172     return _info->collider();
00173   }

const vector< PdgIdPair > & requiredBeams ( ) const [virtual, inherited]

Return the pair of incoming beams required by this analysis.

Definition at line 205 of file Analysis.cc.

References AnalysisInfo::beams(), and Analysis::info().

Referenced by Analysis::isCompatible().

00205                                                          {
00206     return info().beams();
00207   }

const std::vector< std::pair< double, double > > & energies ( ) const [virtual, inherited]

Sets of valid beam energy pairs, in GeV.

Definition at line 161 of file Analysis.cc.

References AnalysisInfo::energies(), and Analysis::info().

00161                                                                      {
00162     return info().energies();
00163   }

string year ( ) const [virtual, inherited]

When the original experimental analysis was published.

When the refereed paper on which this is based was published, according to SPIRES.

Definition at line 175 of file Analysis.cc.

References Analysis::_info.

00175                               {
00176     if (!_info) return "NONE";
00177     return _info->year();
00178   }

vector< string > references ( ) const [virtual, inherited]

Journal, and preprint references.

Definition at line 180 of file Analysis.cc.

References Analysis::_info.

00180                                             {
00181     if (!_info) return vector<string>();
00182     return _info->references();
00183   }

string bibKey ( ) const [virtual, inherited]

BibTeX citation key for this article.

Definition at line 185 of file Analysis.cc.

References Analysis::_info.

00185                                 {
00186     if (!_info) return "";
00187     return _info->bibKey();
00188   }

string bibTeX ( ) const [virtual, inherited]

BibTeX citation entry for this article.

Definition at line 190 of file Analysis.cc.

References Analysis::_info.

00190                                 {
00191     if (!_info) return "";
00192     return _info->bibTeX();
00193   }

string status ( ) const [virtual, inherited]

Whether this analysis is trusted (in any way!).

Definition at line 195 of file Analysis.cc.

References Analysis::_info.

00195                                 {
00196     if (!_info) return "UNVALIDATED";
00197     return _info->status();
00198   }

vector< string > todos ( ) const [virtual, inherited]

Any work to be done on this analysis.

Definition at line 200 of file Analysis.cc.

References Analysis::_info.

00200                                        {
00201     if (!_info) return vector<string>();
00202     return _info->todos();
00203   }

const ParticlePair & beams ( ) const [inherited]

Incoming beams for this run.

Definition at line 79 of file Analysis.cc.

References AnalysisHandler::beams(), and Analysis::handler().

Referenced by OPAL_1998_S3780481::analyze(), DELPHI_2002_069_CONF_603::analyze(), DELPHI_1995_S3137023::analyze(), BELLE_2006_S6265367::analyze(), ALEPH_2004_S5765862::analyze(), ALEPH_1996_S3486095::analyze(), and Analysis::isCompatible().

00079                                             {
00080     return handler().beams();
00081   }

const PdgIdPair beamIds ( ) const [inherited]

Incoming beam IDs for this run.

Definition at line 83 of file Analysis.cc.

References AnalysisHandler::beamIds(), and Analysis::handler().

Referenced by UA5_1982_S875503::finalize(), and UA5_1982_S875503::init().

00083                                           {
00084     return handler().beamIds();
00085   }

double sqrtS ( ) const [inherited]

Centre of mass energy for this run.

Definition at line 75 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sqrtS().

Referenced by UA1_1990_S2044935::analyze(), SFM_1984_S1178091::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), CDF_2004_S5839831::analyze(), ALEPH_2004_S5765862::analyze(), UA1_1990_S2044935::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), CDF_2004_S5839831::finalize(), CDF_2002_S4796047::finalize(), ALEPH_2004_S5765862::finalize(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1986_S1583476::init(), UA1_1990_S2044935::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), MC_DIPHOTON::init(), JADE_OPAL_2000_S4300807::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), and ALEPH_2004_S5765862::init().

00075                                {
00076     return handler().sqrtS();
00077   }

bool isCompatible	(	PdgId	beam1,
		PdgId	beam2
	)			const `[virtual, inherited]`

Is this analysis able to run on the supplied pair of beams?

Todo:: Deprecate?

Definition at line 220 of file Analysis.cc.

References Analysis::beams().

00220                                                             {
00221     PdgIdPair beams(beam1, beam2);
00222     return isCompatible(beams);
00223   }

bool isCompatible ( const PdgIdPair & beams ) const [virtual, inherited]

Is this analysis able to run on the PdgIdPair beams ?

Todo:: Deprecate?

Todo:: Need to also check internal consistency of the analysis' beam requirements with those of the projections it uses.

Definition at line 227 of file Analysis.cc.

References Rivet::compatible(), and Analysis::requiredBeams().

00227                                                           {
00228     foreach (const PdgIdPair& bp, requiredBeams()) {
00229       if (compatible(beams, bp)) return true;
00230     }
00231     return false;
00232     /// @todo Need to also check internal consistency of the analysis'
00233     /// beam requirements with those of the projections it uses.
00234   }

AnalysisHandler & handler ( ) const [inherited]

Access the controlling AnalysisHandler object.

Definition at line 269 of file Analysis.cc.

References Analysis::_analysishandler.

Referenced by Analysis::analysisFactory(), Analysis::beamIds(), Analysis::beams(), Analysis::datapointsetFactory(), Analysis::histoDir(), Analysis::histogramFactory(), Analysis::numEvents(), Analysis::sqrtS(), Analysis::sumOfWeights(), and Analysis::tree().

00269                                            {
00270     return *_analysishandler;
00271   }

void normalize	(	AIDA::IHistogram1D *&	histo,
		double	norm = `1.0`
	)			`[inherited]`

Normalize the given histogram, histo. After this call the histogram will have been transformed to a DataPointSet with the same name and path. It has the same effect as scale(histo, norm/sumOfWeights).

Parameters:

	histo	The histogram to be normalised.
	norm	The new area of the histogram.

Warning:: The old histogram will be deleted, and its pointer set to zero.

Definition at line 512 of file Analysis.cc.

References Log::ERROR, Analysis::getLog(), Analysis::name(), Analysis::scale(), Log::TRACE, Analysis::tree(), and Log::WARN.

Referenced by STAR_2008_S7869363::finalize(), OPAL_2001_S4553896::finalize(), OPAL_1998_S3780481::finalize(), H1_1994_S2919893::finalize(), ExampleAnalysis::finalize(), DELPHI_2002_069_CONF_603::finalize(), DELPHI_1995_S3137023::finalize(), D0_2010_S8671338::finalize(), D0_2009_S8320160::finalize(), D0_2008_S7554427::finalize(), D0_2008_S6879055::finalize(), D0_2007_S7075677::finalize(), D0_2004_S5992206::finalize(), D0_2001_S4674421::finalize(), D0_1996_S3324664::finalize(), D0_1996_S3214044::finalize(), CDF_2009_NOTE_9936::finalize(), CDF_2004_S5839831::finalize(), CDF_2002_S4796047::finalize(), CDF_2001_S4751469::finalize(), CDF_1997_S3541940::finalize(), CDF_1996_S3418421::finalize(), CDF_1996_S3349578::finalize(), CDF_1996_S3108457::finalize(), CDF_1993_S2742446::finalize(), ALEPH_2004_S5765862::finalize(), and ALEPH_1996_S3486095::finalize().

00512                                                                 {
00513     if (!histo) {
00514       getLog() << Log::ERROR << "Failed to normalise histo=NULL in analysis "
00515                << name() << " (norm=" << norm << ")" << endl;
00516       return;
00517     }
00518     const string hpath = tree().findPath(dynamic_cast<const AIDA::IManagedObject&>(*histo));
00519     getLog() << Log::TRACE << "Normalizing histo " << hpath << " to " << norm << endl;
00520
00521     double oldintg = 0.0;
00522     int nBins = histo->axis().bins();
00523     for (int iBin = 0; iBin != nBins; ++iBin) {
00524       // Leaving out factor of binWidth because AIDA's "height" already includes a width factor.
00525       oldintg += histo->binHeight(iBin); // * histo->axis().binWidth(iBin);
00526     }
00527     if (oldintg == 0.0) {
00528       getLog() << Log::WARN << "Histo " << hpath << " has null integral during normalisation" << endl;
00529       return;
00530     }
00531
00532     // Scale by the normalisation factor.
00533     scale(histo, norm/oldintg);
00534   }

void scale	(	AIDA::IHistogram1D *&	histo,
		double	scale
	)			`[inherited]`

Multiplicatively scale the given histogram, histo. After this call the histogram will have been transformed to a DataPointSet with the same name and path.

Parameters:

	histo	The histogram to be scaled.
	scale	The factor used to multiply the histogram bin heights.

Warning:: The old histogram will be deleted, and its pointer set to zero.

Definition at line 537 of file Analysis.cc.

References Analysis::datapointsetFactory(), Log::ERROR, Analysis::getLog(), Analysis::name(), Log::TRACE, and Analysis::tree().

Referenced by UA5_1989_S1926373::finalize(), UA5_1987_S1640666::finalize(), UA5_1986_S1583476::finalize(), UA5_1982_S875503::finalize(), UA1_1990_S2044935::finalize(), STAR_2006_S6870392::finalize(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), SFM_1984_S1178091::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), OPAL_2004_S6132243::finalize(), OPAL_1998_S3780481::finalize(), MC_ZZJETS::finalize(), MC_ZJETS::finalize(), MC_WWJETS::finalize(), MC_WJETS::finalize(), MC_TTBAR::finalize(), MC_PHOTONJETS::finalize(), MC_JetAnalysis::finalize(), MC_HJETS::finalize(), MC_GENERIC::finalize(), MC_DIPHOTON::finalize(), JADE_OPAL_2000_S4300807::finalize(), H1_2000_S4129130::finalize(), H1_1994_S2919893::finalize(), E735_1998_S3905616::finalize(), D0_2010_S8570965::finalize(), D0_2009_S8349509::finalize(), D0_2009_S8202443::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7719523::finalize(), D0_2008_S7662670::finalize(), D0_2006_S6438750::finalize(), D0_2000_S4480767::finalize(), CDF_2009_S8436959::finalize(), CDF_2009_S8383952::finalize(), CDF_2009_S8233977::finalize(), CDF_2008_S8093652::finalize(), CDF_2008_S7540469::finalize(), CDF_2007_S7057202::finalize(), CDF_2006_S6450792::finalize(), CDF_2005_S6080774::finalize(), CDF_2001_S4563131::finalize(), CDF_2000_S4266730::finalize(), CDF_2000_S4155203::finalize(), CDF_1998_S3618439::finalize(), CDF_1990_S2089246::finalize(), CDF_1988_S1865951::finalize(), ATLAS_2010_S8591806::finalize(), ALEPH_2004_S5765862::finalize(), ALEPH_1996_S3486095::finalize(), ALEPH_1996_S3196992::finalize(), ALEPH_1991_S2435284::finalize(), Analysis::normalize(), and BinnedHistogram::scale().

00537                                                              {
00538     if (!histo) {
00539       getLog() << Log::ERROR << "Failed to scale histo=NULL in analysis "
00540           << name() << " (scale=" << scale << ")" << endl;
00541       return;
00542     }
00543     const string hpath = tree().findPath(dynamic_cast<const AIDA::IManagedObject&>(*histo));
00544     getLog() << Log::TRACE << "Scaling histo " << hpath << endl;
00545
00546     vector<double> x, y, ex, ey;
00547     for (size_t i = 0, N = histo->axis().bins(); i < N; ++i) {
00548       x.push_back(0.5 * (histo->axis().binLowerEdge(i) + histo->axis().binUpperEdge(i)));
00549       ex.push_back(histo->axis().binWidth(i)*0.5);
00550
00551       // "Bin height" is a misnomer in the AIDA spec: width is neglected.
00552       // We'd like to do this: y.push_back(histo->binHeight(i) * scale);
00553       y.push_back(histo->binHeight(i)*scale/histo->axis().binWidth(i));
00554
00555       // "Bin error" is a misnomer in the AIDA spec: width is neglected.
00556       // We'd like to do this: ey.push_back(histo->binError(i) * scale);
00557       ey.push_back(histo->binError(i)*scale/histo->axis().binWidth(i));
00558     }
00559
00560     string title = histo->title();
00561     string xtitle = histo->xtitle();
00562     string ytitle = histo->ytitle();
00563
00564     tree().mkdir("/tmpnormalize");
00565     tree().mv(hpath, "/tmpnormalize");
00566
00567     AIDA::IDataPointSet* dps = datapointsetFactory().createXY(hpath, title, x, y, ex, ey);
00568     dps->setXTitle(xtitle);
00569     dps->setYTitle(ytitle);
00570
00571     tree().rm(tree().findPath(dynamic_cast<AIDA::IManagedObject&>(*histo)));
00572     tree().rmdir("/tmpnormalize");
00573
00574     // Set histo pointer to null - it can no longer be used.
00575     histo = 0;
00576   }

Analysis & setCrossSection ( double xs ) [inherited]

Set the cross section from the generator.

Definition at line 237 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::_gotCrossSection.

00237                                                {
00238     _crossSection = xs;
00239     _gotCrossSection = true;
00240     return *this;
00241   }

bool needsCrossSection ( ) const [inherited]

Return true if this analysis needs to know the process cross-section.

Todo:: Deprecate, eventually

Definition at line 244 of file Analysis.cc.

References Analysis::_needsCrossSection.

00244                                          {
00245     return _needsCrossSection;
00246   }

Log & getLog ( ) const [protected, inherited]

Get a Log object based on the name() property of the calling analysis object.

Reimplemented from ProjectionApplier.

Definition at line 107 of file Analysis.cc.

References Log::getLog(), and Analysis::name().

00107                               {
00108     string logname = "Rivet.Analysis." + name();
00109     return Log::getLog(logname);
00110   }

double crossSection ( ) const [protected, inherited]

Get the process cross-section in pb. Throws if this hasn't been set.

Definition at line 254 of file Analysis.cc.

References Analysis::_crossSection, Analysis::_gotCrossSection, and Analysis::name().

00254                                       {
00255     if (!_gotCrossSection || _crossSection < 0) {
00256       string errMsg = "You did not set the cross section for the analysis " + name();
00257       throw Error(errMsg);
00258     }
00259     return _crossSection;
00260   }

double crossSectionPerEvent ( ) const [protected, inherited]

Get the process cross-section per generated event in pb. Throws if this hasn't been set.

Definition at line 262 of file Analysis.cc.

References Analysis::_crossSection, and Analysis::sumOfWeights().

Referenced by UA1_1990_S2044935::finalize(), MC_PHOTONJETS::finalize(), D0_2001_S4674421::finalize(), CDF_2007_S7057202::finalize(), and CDF_1988_S1865951::finalize().

00262                                               {
00263     const double sumW = sumOfWeights();
00264     assert(sumW > 0);
00265     return _crossSection / sumW;
00266   }

size_t numEvents ( ) const [protected, inherited]

Get the number of events seen (via the analysis handler). Use in the finalize phase only.

Definition at line 113 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::numEvents().

00113                                    {
00114     return handler().numEvents();
00115   }

double sumOfWeights ( ) const [protected, inherited]

Get the sum of event weights seen (via the analysis handler). Use in the finalize phase only.

Definition at line 118 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::sumOfWeights().

Referenced by Analysis::crossSectionPerEvent(), STAR_2006_S6870392::finalize(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), OPAL_1998_S3780481::finalize(), OPAL_1993_S2692198::finalize(), MC_ZZJETS::finalize(), MC_ZJETS::finalize(), MC_WWJETS::finalize(), MC_WJETS::finalize(), MC_TTBAR::finalize(), MC_JetAnalysis::finalize(), MC_HJETS::finalize(), MC_GENERIC::finalize(), MC_DIPHOTON::finalize(), JADE_OPAL_2000_S4300807::finalize(), DELPHI_1995_S3137023::finalize(), D0_2010_S8570965::finalize(), D0_2010_S8566488::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7719523::finalize(), D0_2008_S7662670::finalize(), D0_2006_S6438750::finalize(), D0_2000_S4480767::finalize(), CDF_2009_S8436959::finalize(), CDF_2009_S8383952::finalize(), CDF_2009_S8233977::finalize(), CDF_2008_S8093652::finalize(), CDF_2008_S7828950::finalize(), CDF_2008_S7541902::finalize(), CDF_2008_S7540469::finalize(), CDF_2006_S6653332::finalize(), CDF_2006_S6450792::finalize(), CDF_2005_S6080774::finalize(), CDF_2001_S4563131::finalize(), CDF_2001_S4517016::finalize(), CDF_2000_S4266730::finalize(), CDF_2000_S4155203::finalize(), CDF_1998_S3618439::finalize(), ALEPH_2004_S5765862::finalize(), ALEPH_1996_S3486095::finalize(), ALEPH_1996_S3196992::finalize(), and ALEPH_1991_S2435284::finalize().

00118                                       {
00119     return handler().sumOfWeights();
00120   }

IAnalysisFactory & analysisFactory ( ) [protected, inherited]

Access the AIDA analysis factory of the controlling AnalysisHandler object.

Definition at line 55 of file Analysis.cc.

References AnalysisHandler::analysisFactory(), and Analysis::handler().

00055                                               {
00056     return handler().analysisFactory();
00057   }

ITree & tree ( ) [protected, inherited]

Access the AIDA tree of the controlling AnalysisHandler object.

Definition at line 60 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::tree().

Referenced by Analysis::_makeHistoDir(), Analysis::normalize(), and Analysis::scale().

00060                         {
00061     return handler().tree();
00062   }

IHistogramFactory & histogramFactory ( ) [protected, inherited]

Access the AIDA histogram factory of the controlling AnalysisHandler object.

Definition at line 65 of file Analysis.cc.

References Analysis::handler(), and AnalysisHandler::histogramFactory().

Referenced by STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), MC_WJETS::finalize(), MC_JetAnalysis::finalize(), MC_GENERIC::finalize(), H1_1995_S3167097::finalize(), D0_2008_S7837160::finalize(), and D0_2008_S7719523::finalize().

00065                                                 {
00066     return handler().histogramFactory();
00067   }

IDataPointSetFactory & datapointsetFactory ( ) [protected, inherited]

Access the AIDA histogram factory of the controlling AnalysisHandler object.

Definition at line 70 of file Analysis.cc.

References AnalysisHandler::datapointsetFactory(), and Analysis::handler().

Referenced by Analysis::scale().

00070                                                       {
00071     return handler().datapointsetFactory();
00072   }

const string histoDir ( ) const [protected, inherited]

Get the canonical histogram "directory" path for this analysis.

Todo:: This doesn't change: calc and cache at Analysis construction!

Definition at line 88 of file Analysis.cc.

References Analysis::handler(), Analysis::name(), and AnalysisHandler::runName().

Referenced by Analysis::_makeHistoDir(), STAR_2006_S6860818::finalize(), STAR_2006_S6500200::finalize(), MC_WJETS::finalize(), D0_2008_S7837160::finalize(), and D0_2008_S7719523::finalize().

00088                                         {
00089     /// @todo This doesn't change: calc and cache at Analysis construction!
00090     string path = "/" + name();
00091     if (handler().runName().length() > 0) {
00092       path = "/" + handler().runName() + path;
00093     }
00094     while (find_first(path, "//")) {
00095       replace_all(path, "//", "/");
00096     }
00097     return path;
00098   }

const std::string histoPath ( const std::string & hname ) const [protected, inherited]

Get the canonical histogram path for the named histogram in this analysis.

Referenced by MC_JetAnalysis::finalize(), and MC_GENERIC::finalize().

const BinEdges& binEdges ( const std::string & hname ) const [protected, inherited]

Get bin edges for a named histo (using ref AIDA caching).

Referenced by Analysis::binEdges(), and D0_2008_S7837160::init().

const BinEdges & binEdges	(	size_t	datasetId,
		size_t	xAxisId,
		size_t	yAxisId
	)			const `[protected, inherited]`

Get bin edges for a numbered histo (using ref AIDA caching).

Definition at line 311 of file Analysis.cc.

References Analysis::binEdges(), and Rivet::makeAxisCode().

00311                                                                                            {
00312     const string hname = makeAxisCode(datasetId, xAxisId, yAxisId);
00313     return binEdges(hname);
00314   }

BinEdges logBinEdges	(	size_t	nbins,
		double	lower,
		double	upper
	)			`[protected, inherited]`

Get bin edges with logarithmic widths.

Definition at line 317 of file Analysis.cc.

Referenced by MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), and MC_DIPHOTON::init().

00317                                                                          {
00318     assert(lower>0.0);
00319     assert(upper>lower);
00320     double loglower=log10(lower);
00321     double logupper=log10(upper);
00322     vector<double> binedges;
00323     double stepwidth=(logupper-loglower)/double(nbins);
00324     for (size_t i=0; i<=nbins; ++i) {
00325       binedges.push_back(pow(10.0, loglower+double(i)*stepwidth));
00326     }
00327     return binedges;
00328   }

AIDA::IHistogram1D* bookHistogram1D	(	const std::string &	name,
		size_t	nbins,
		double	lower,
		double	upper,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_JetAnalysis::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8591806::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), and ALEPH_1991_S2435284::init().

AIDA::IHistogram1D* bookHistogram1D	(	const std::string &	name,
		const std::vector< double > &	binedges,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IHistogram1D* bookHistogram1D	(	const std::string &	name,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

AIDA::IHistogram1D* bookHistogram1D	(	size_t	datasetId,
		size_t	xAxisId,
		size_t	yAxisId,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

AIDA::IProfile1D* bookProfile1D	(	const std::string &	name,
		size_t	nbins,
		double	lower,
		double	upper,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D profile histogram with nbins uniformly distributed across the range lower - upper . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by UA5_1988_S1867512::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2006_S6860818::init(), MC_PHOTONJETUE::init(), MC_LEADINGJETS::init(), H1_2000_S4129130::init(), H1_1994_S2919893::init(), DELPHI_2002_069_CONF_603::init(), D0_1996_S3324664::init(), CDF_2009_S8233977::init(), CDF_2008_S7782535::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2005_S6217184::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), and ATLAS_2010_S8591806::init().

AIDA::IProfile1D* bookProfile1D	(	const std::string &	name,
		const std::vector< double > &	binedges,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D profile histogram with non-uniform bins defined by the vector of bin edges binedges . (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IProfile1D* bookProfile1D	(	const std::string &	name,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D profile histogram based on the name in the corresponding AIDA file. The binnings will be obtained by reading the bundled AIDA data record file with the same filename as the analysis' name() property.

AIDA::IProfile1D* bookProfile1D	(	size_t	datasetId,
		size_t	xAxisId,
		size_t	yAxisId,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 1D profile histogram based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

AIDA::IDataPointSet* bookDataPointSet	(	const std::string &	name,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 2-dimensional data point set. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

Referenced by ALEPH_2004_S5765862::finalize(), STAR_2006_S6860818::init(), OPAL_1993_S2692198::init(), MC_JetAnalysis::init(), JADE_OPAL_2000_S4300807::init(), D0_2001_S4674421::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_1996_S3418421::init(), CDF_1994_S2952106::init(), and ALEPH_2004_S5765862::init().

AIDA::IDataPointSet* bookDataPointSet	(	const std::string &	name,
		size_t	npts,
		double	lower,
		double	upper,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 2-dimensional data point set with equally spaced points in a range. (NB. this returns a pointer rather than a reference since it will have to be stored in the analysis class - there's no point in forcing users to explicitly get the pointer from a reference before they can use it!)

AIDA::IDataPointSet* bookDataPointSet	(	size_t	datasetId,
		size_t	xAxisId,
		size_t	yAxisId,
		const std::string &	title = `""`,
		const std::string &	xtitle = `""`,
		const std::string &	ytitle = `""`
	)			`[protected, inherited]`

Book a 2-dimensional data point set based on the corresponding AIDA data file. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property. Book a 2-dimensional data point set based on the paper, dataset and x/y-axis IDs in the corresponding HepData record. The binnings (x-errors) will be obtained by reading the bundled AIDA data record file of the same filename as the analysis' name() property.

Analysis & setBeams	(	PdgId	beam1,
		PdgId	beam2
	)			`[protected, inherited]`

Set the colliding beam pair.

Deprecated:: Use .info file and AnalysisInfo class instead

Todo:: Deprecate?

Definition at line 211 of file Analysis.cc.

References Analysis::_info.

Referenced by ALEPH_1991_S2435284::ALEPH_1991_S2435284(), ALEPH_1996_S3196992::ALEPH_1996_S3196992(), ALEPH_1996_S3486095::ALEPH_1996_S3486095(), ALEPH_2004_S5765862::ALEPH_2004_S5765862(), BELLE_2006_S6265367::BELLE_2006_S6265367(), CDF_1988_S1865951::CDF_1988_S1865951(), CDF_1990_S2089246::CDF_1990_S2089246(), CDF_1991_S2313472::CDF_1991_S2313472(), CDF_1993_S2742446::CDF_1993_S2742446(), CDF_1994_S2952106::CDF_1994_S2952106(), CDF_1996_S3108457::CDF_1996_S3108457(), CDF_1996_S3349578::CDF_1996_S3349578(), CDF_1996_S3418421::CDF_1996_S3418421(), CDF_1997_S3541940::CDF_1997_S3541940(), CDF_1998_S3618439::CDF_1998_S3618439(), CDF_2000_S4155203::CDF_2000_S4155203(), CDF_2000_S4266730::CDF_2000_S4266730(), CDF_2001_S4517016::CDF_2001_S4517016(), CDF_2001_S4563131::CDF_2001_S4563131(), CDF_2001_S4751469::CDF_2001_S4751469(), CDF_2002_S4796047::CDF_2002_S4796047(), CDF_2004_S5839831::CDF_2004_S5839831(), CDF_2005_S6080774::CDF_2005_S6080774(), CDF_2005_S6217184::CDF_2005_S6217184(), CDF_2006_S6450792::CDF_2006_S6450792(), CDF_2006_S6653332::CDF_2006_S6653332(), CDF_2007_S7057202::CDF_2007_S7057202(), CDF_2008_LEADINGJETS::CDF_2008_LEADINGJETS(), CDF_2008_NOTE_9351::CDF_2008_NOTE_9351(), CDF_2008_S7540469::CDF_2008_S7540469(), CDF_2008_S7541902::CDF_2008_S7541902(), CDF_2008_S7782535::CDF_2008_S7782535(), CDF_2008_S7828950::CDF_2008_S7828950(), CDF_2008_S8093652::CDF_2008_S8093652(), CDF_2008_S8095620::CDF_2008_S8095620(), CDF_2009_NOTE_9936::CDF_2009_NOTE_9936(), CDF_2009_S8057893::CDF_2009_S8057893::CDF_2009_S8057893(), CDF_2009_S8233977::CDF_2009_S8233977(), CDF_2009_S8383952::CDF_2009_S8383952(), CDF_2009_S8436959::CDF_2009_S8436959(), D0_1996_S3214044::D0_1996_S3214044(), D0_1996_S3324664::D0_1996_S3324664(), D0_1998_S3711838::D0_1998_S3711838(), D0_2001_S4674421::D0_2001_S4674421(), D0_2004_S5992206::D0_2004_S5992206(), D0_2006_S6438750::D0_2006_S6438750(), D0_2007_S7075677::D0_2007_S7075677(), D0_2008_S6879055::D0_2008_S6879055(), D0_2008_S7554427::D0_2008_S7554427(), D0_2008_S7662670::D0_2008_S7662670(), D0_2008_S7719523::D0_2008_S7719523(), D0_2008_S7837160::D0_2008_S7837160(), D0_2008_S7863608::D0_2008_S7863608(), D0_2009_S8202443::D0_2009_S8202443(), D0_2009_S8320160::D0_2009_S8320160(), D0_2009_S8349509::D0_2009_S8349509(), D0_2010_S8566488::D0_2010_S8566488(), D0_2010_S8570965::D0_2010_S8570965(), D0_2010_S8671338::D0_2010_S8671338(), DELPHI_1995_S3137023::DELPHI_1995_S3137023(), DELPHI_2002_069_CONF_603::DELPHI_2002_069_CONF_603(), E735_1998_S3905616::E735_1998_S3905616(), H1_1994_S2919893::H1_1994_S2919893(), H1_1995_S3167097::H1_1995_S3167097(), H1_2000_S4129130::H1_2000_S4129130(), JADE_OPAL_2000_S4300807::JADE_OPAL_2000_S4300807(), OPAL_1993_S2692198::OPAL_1993_S2692198(), OPAL_1998_S3780481::OPAL_1998_S3780481(), OPAL_2001_S4553896::OPAL_2001_S4553896(), PDG_HADRON_MULTIPLICITIES::PDG_HADRON_MULTIPLICITIES(), PDG_HADRON_MULTIPLICITIES_RATIOS::PDG_HADRON_MULTIPLICITIES_RATIOS(), SFM_1984_S1178091::SFM_1984_S1178091(), STAR_2006_S6500200::STAR_2006_S6500200(), STAR_2006_S6860818::STAR_2006_S6860818(), STAR_2006_S6870392::STAR_2006_S6870392(), STAR_2008_S7869363::STAR_2008_S7869363(), STAR_2008_S7993412::STAR_2008_S7993412(), STAR_2009_UE_HELEN::STAR_2009_UE_HELEN(), UA1_1990_S2044935::UA1_1990_S2044935(), UA5_1986_S1583476::UA5_1986_S1583476(), UA5_1987_S1640666::UA5_1987_S1640666(), UA5_1988_S1867512::UA5_1988_S1867512(), UA5_1989_S1926373::UA5_1989_S1926373(), and ZEUS_2001_S4815815::ZEUS_2001_S4815815().

00211                                                        {
00212     assert(_info.get() != 0);
00213     _info->_beams.clear();
00214     _info->_beams += make_pair(beam1, beam2);
00215     return *this;
00216   }

Analysis & setNeedsCrossSection ( bool needed ) [protected, inherited]

Declare whether this analysis needs to know the process cross-section from the generator.

Todo:: Deprecate, eventually

Definition at line 249 of file Analysis.cc.

References Analysis::_needsCrossSection.

Referenced by ATLAS_2010_S8591806::ATLAS_2010_S8591806(), CDF_1991_S2313472::CDF_1991_S2313472(), CDF_1993_S2742446::CDF_1993_S2742446(), CDF_1996_S3108457::CDF_1996_S3108457(), CDF_1998_S3618439::CDF_1998_S3618439(), CDF_2000_S4155203::CDF_2000_S4155203(), CDF_2000_S4266730::CDF_2000_S4266730(), CDF_2001_S4517016::CDF_2001_S4517016(), CDF_2001_S4563131::CDF_2001_S4563131(), CDF_2005_S6080774::CDF_2005_S6080774(), CDF_2006_S6450792::CDF_2006_S6450792(), CDF_2006_S6653332::CDF_2006_S6653332(), CDF_2007_S7057202::CDF_2007_S7057202(), CDF_2008_S7540469::CDF_2008_S7540469(), CDF_2008_S7541902::CDF_2008_S7541902(), CDF_2008_S7828950::CDF_2008_S7828950(), CDF_2008_S8093652::CDF_2008_S8093652(), CDF_2009_NOTE_9936::CDF_2009_NOTE_9936(), CDF_2009_S8233977::CDF_2009_S8233977(), CDF_2009_S8383952::CDF_2009_S8383952(), CDF_2009_S8436959::CDF_2009_S8436959(), D0_1996_S3214044::D0_1996_S3214044(), D0_1996_S3324664::D0_1996_S3324664(), D0_1998_S3711838::D0_1998_S3711838(), D0_2000_S4480767::D0_2000_S4480767(), D0_2001_S4674421::D0_2001_S4674421(), D0_2006_S6438750::D0_2006_S6438750(), D0_2008_S7662670::D0_2008_S7662670(), D0_2008_S7719523::D0_2008_S7719523(), D0_2008_S7863608::D0_2008_S7863608(), D0_2010_S8566488::D0_2010_S8566488(), D0_2010_S8570965::D0_2010_S8570965(), MC_DIPHOTON::MC_DIPHOTON(), MC_HJETS::MC_HJETS(), MC_JetAnalysis::MC_JetAnalysis(), MC_JETS::MC_JETS(), MC_PHOTONJETS::MC_PHOTONJETS(), MC_WJETS::MC_WJETS(), MC_WWJETS::MC_WWJETS(), MC_ZJETS::MC_ZJETS(), MC_ZZJETS::MC_ZZJETS(), OPAL_2001_S4553896::OPAL_2001_S4553896(), STAR_2006_S6870392::STAR_2006_S6870392(), STAR_2008_S7869363::STAR_2008_S7869363(), and UA1_1990_S2044935::UA1_1990_S2044935().

00249                                                       {
00250     _needsCrossSection = needed;
00251     return *this;
00252   }

std::set<ConstProjectionPtr> getProjections ( ) const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 58 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00058                                                       {
00059       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00060     }

const PROJ& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 65 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by Rivet::pcmp(), and Hemispheres::project().

00065                                                            {
00066       const Projection& p = getProjHandler().getProjection(*this, name);
00067       return pcast<PROJ>(p);
00068     }

const Projection& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 73 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00073                                                                  {
00074       return getProjHandler().getProjection(*this, name);
00075     }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)			const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 83 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00083                                                                           {
00084       return pcast<PROJ>(_applyProjection(evt, proj));
00085     }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)			const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 90 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00090                                                                                 {
00091       return pcast<PROJ>(_applyProjection(evt, proj));
00092     }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)			const `[inline, inherited]`

Apply the named projection on event.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00097                                                                                {
00098       return pcast<PROJ>(_applyProjection(evt, name));
00099     }

ProjectionHandler& getProjHandler ( ) const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 110 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00110                                               {
00111       assert(_projhandler);
00112       return *_projhandler;
00113     }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)			`[inline, protected, inherited]`

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 130 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8591806::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< Rivet::ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), and VetoedFinalState::VetoedFinalState().

00130                                                                        {
00131       const Projection& reg = _addProjection(proj, name);
00132       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00133       return rtn;
00134     }

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)			`[protected, inherited]`

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, Log::ERROR, ProjectionApplier::getLog(), ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       getLog() << Log::ERROR << "Trying to register projection '"
00037                << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }
