Rivet::TriggerProjection Class Reference

Base class for projections returning a bool corresponding to a trigger. More...

#include <TriggerProjection.hh>

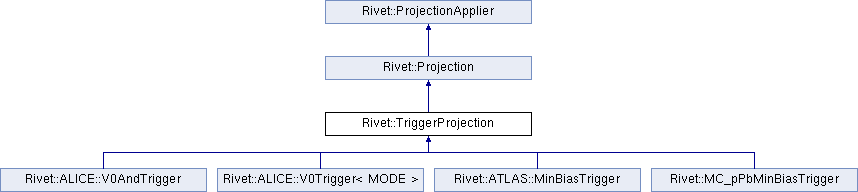

Inheritance diagram for Rivet::TriggerProjection:

Public Member Functions
	TriggerProjection ()
	The default constructor.
	DEFAULT_RIVET_PROJ_CLONE (TriggerProjection)
	Clone on the heap.
bool	operator() () const
Public Member Functions inherited from Rivet::Projection
virtual std::string	name () const
	Get the name of the projection.
	Projection ()
	The default constructor.
virtual unique_ptr< Projection >	clone () const =0
	Clone on the heap.
virtual	~Projection ()
	The destructor.
bool	before (const Projection &p) const
virtual const std::set< PdgIdPair >	beamPairs () const
Projection &	addPdgIdPair (PdgId beam1, PdgId beam2)
Public Member Functions inherited from Rivet::ProjectionApplier
	ProjectionApplier ()
	Constructor.
void	markAsOwned () const
	Mark this object as owned by a proj-handler.
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
bool	hasProjection (const std::string &name) const
	Does this applier have a projection registered under the name name?
template<typename PROJ >
const PROJ &	getProjection (const std::string &name) const
template<typename PROJ >
const PROJ &	get (const std::string &name) const
const Projection &	getProjection (const std::string &name) const
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event evt. More...
template<typename PROJ >
const PROJ &	apply (const Event &evt, const Projection &proj) const
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event evt. More...
template<typename PROJ >
const PROJ &	apply (const Event &evt, const PROJ &proj) const
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
template<typename PROJ >
const PROJ &	apply (const Event &evt, const std::string &name) const
template<typename PROJ >
const PROJ &	apply (const std::string &name, const Event &evt) const

Protected Member Functions
virtual void	project (const Event &e)
void	pass ()
	Indicate that the event has passed the trigger.
virtual int	compare (const Projection &) const
	Compare projections.
void	fail ()
	Indicate that the event has failed the trigger.
Protected Member Functions inherited from Rivet::Projection
Log &	getLog () const
	Get a Log object based on the getName() property of the calling projection object.
void	setName (const std::string &name)
	Used by derived classes to set their name.
Cmp< Projection >	mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection >	mkPCmp (const Projection &otherparent, const std::string &pname) const
virtual Projection &	operator= (const Projection &)
	Block Projection copying.
Protected Member Functions inherited from Rivet::ProjectionApplier
Log &	getLog () const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
template<typename PROJ >
const PROJ &	declareProjection (const PROJ &proj, const std::string &name)
	Register a contained projection. More...
template<typename PROJ >
const PROJ &	declare (const PROJ &proj, const std::string &name)
	Register a contained projection (user-facing version) More...
template<typename PROJ >
const PROJ &	declare (const std::string &name, const PROJ &proj)
	Register a contained projection (user-facing, arg-reordered version) More...
template<typename PROJ >
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
	Register a contained projection (user-facing version) More...

Detailed Description

Base class for projections returning a bool corresponding to a trigger.

Author

Leif Lönnblad

Project an event down to a single true or false value accessible through the operator() function, where true means that the event has passed some trigger criterion.

Member Function Documentation

operator()()

bool Rivet::TriggerProjection::operator() ( ) const

inline

Return true if the event has passed some trigger or selection criteria.

project()

virtual void Rivet::TriggerProjection::project ( const Event &  e )

inlineprotectedvirtual

Take the information available in the Event and make the calculations necessary to obtain the projection. Note that this function must never be called except inside the Event::applyProjection(Projection *) function.

Implements Rivet::Projection.

Reimplemented in Rivet::ALICE::V0AndTrigger, Rivet::ALICE::V0Trigger< MODE >, Rivet::ATLAS::MinBiasTrigger, and Rivet::MC_pPbMinBiasTrigger.

References pass().

---

The documentation for this class was generated from the following file:

• include/Rivet/Projections/TriggerProjection.hh
