ATLAS_2012_I1094568 Class Reference Top pair production with central jet veto. More...
Inheritance diagram for ATLAS_2012_I1094568:

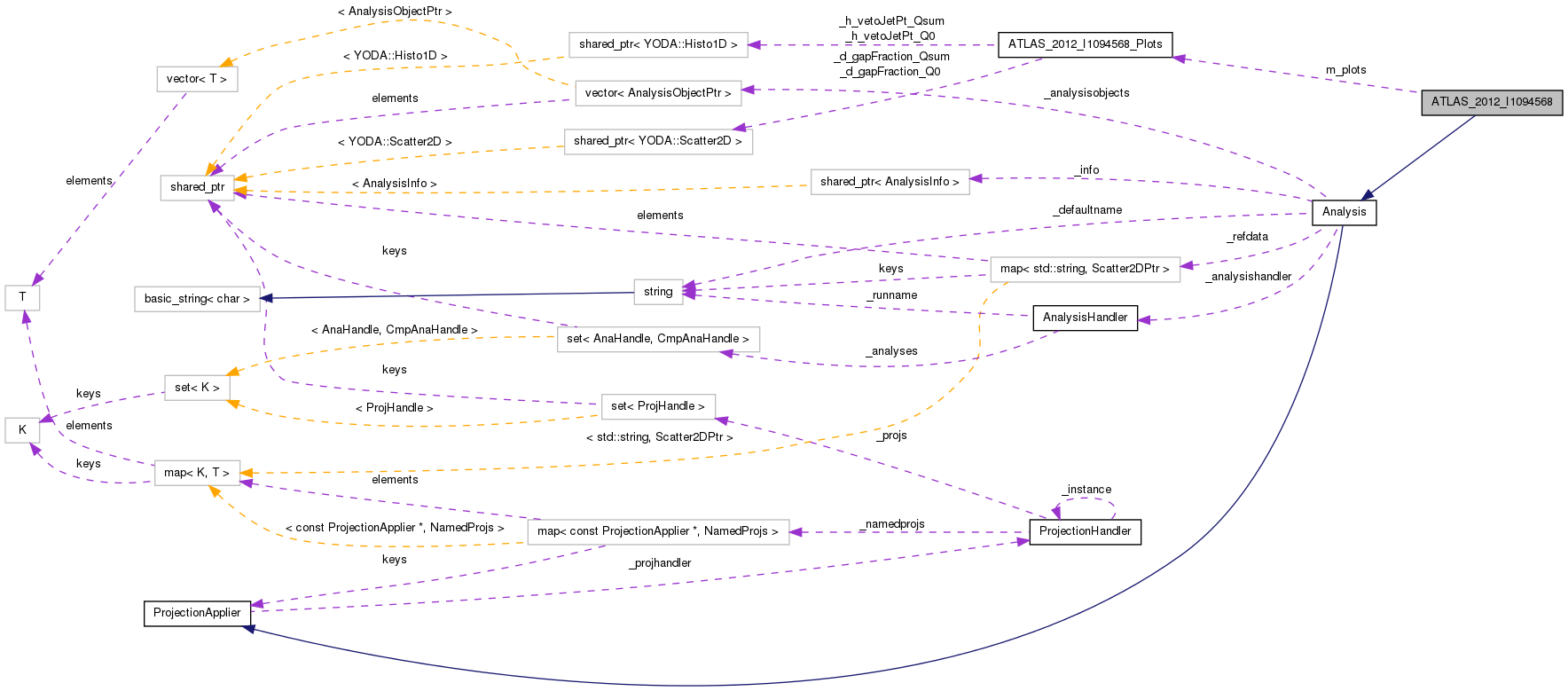

Collaboration diagram for ATLAS_2012_I1094568:
Detailed DescriptionTop pair production with central jet veto. Definition at line 39 of file ATLAS_2012_I1094568.cc. Constructor & Destructor Documentation
Constructor. Definition at line 43 of file ATLAS_2012_I1094568.cc. : Analysis("ATLAS_2012_I1094568") { } Member Function Documentation
Untemplated function to do the work... Definition at line 33 of file ProjectionApplier.cc. References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection(). Referenced by ProjectionApplier::addProjection(). {
if (!_allowProjReg) {
cerr << "Trying to register projection '"
<< proj.name() << "' before init phase in '" << this->name() << "'." << endl;
exit(2);
}
const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
return reg;
}
Register a data object in the histogram system.
Definition at line 721 of file Analysis.cc. References Analysis::_analysisobjects. Referenced by Analysis::bookHisto1D(), Analysis::bookHisto2D(), Analysis::bookProfile1D(), Analysis::bookProfile2D(), Analysis::bookScatter2D(), and H1_1995_S3167097::finalize(). {
_analysisobjects.push_back(ao);
}
Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling Definition at line 116 of file ProjectionApplier.hh. References ProjectionApplier::_addProjection(). Referenced by FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), DressedLeptons::DressedLeptons(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), HeavyHadrons::HeavyHadrons(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), ATLAS_2010_S8894728::init(), ALICE_2012_I1181770::init(), ATLAS_2011_S8994773::init(), CMS_2011_S8950903::init(), CMS_2012_PAS_QCD_11_010::init(), ATLAS_2014_I1298811::init(), ATLAS_2011_I894867::init(), ALICE_2011_S8909580::init(), LHCB_2013_I1208105::init(), CMS_2011_S8941262::init(), CMS_2011_S8973270::init(), CMS_2012_I1090423::init(), ATLAS_2010_CONF_2010_049::init(), CMS_2011_S8968497::init(), CMS_2012_I1193338::init(), CMS_2012_I1184941::init(), CMSTOTEM_2014_I1294140::init(), CDF_2007_S7057202::init(), CMS_2011_S9086218::init(), TOTEM_2012_I1115294::init(), CMS_2011_S9215166::init(), CMS_2012_I1087342::init(), ATLAS_2014_I1282441::init(), ALICE_2011_S8945144::init(), ATLAS_2012_I1091481::init(), MC_MUONS::init(), MC_TAUS::init(), ATLAS_2010_S8591806::init(), ATLAS_2011_S9002537::init(), CMS_2011_I954992::init(), CMS_2011_S8957746::init(), CMS_2011_S8978280::init(), TOTEM_2012_002::init(), CMS_2011_S9088458::init(), CMS_2013_I1265659::init(), D0_2011_I895662::init(), ATLAS_2011_I930220::init(), LHCF_2012_I1115479::init(), MC_ELECTRONS::init(), D0_2010_S8570965::init(), ATLAS_2011_I925932::init(), MC_JETTAGS::init(), CDF_2012_NOTE10874::init(), CMS_2013_I1273574::init(), ATLAS_2012_I1124167::init(), STAR_2006_S6500200::init(), STAR_2008_S7993412::init(), CMS_2013_I1256943::init(), CMS_QCD_10_024::init(), UA5_1987_S1640666::init(), CDF_1997_S3541940::init(), MC_HINC::init(), MC_JETS::init(), MC_KTSPLITTINGS::init(), CDF_2005_S6080774::init(), CDF_2006_S6450792::init(), SFM_1984_S1178091::init(), ARGUS_1993_S2789213::init(), ATLAS_2011_S9128077::init(), CMS_2013_I1261026::init(), CMS_2013_I1258128::init(), CMS_2014_I1298810::init(), D0_2000_S4480767::init(), BABAR_2007_S7266081::init(), BELLE_2008_I786560::init(), CDF_1993_S2742446::init(), CDF_2000_S4155203::init(), MC_WWINC::init(), CDF_2008_S7782535::init(), MC_ZJETS::init(), CDF_2008_S8093652::init(), MC_ZZINC::init(), STAR_2006_S6870392::init(), UA5_1982_S875503::init(), UA5_1989_S1926373::init(), ATLAS_2013_I1190187::init(), CMS_2013_I1209721::init(), D0_2008_S6879055::init(), ATLAS_2012_I1204447::init(), ARGUS_1993_S2669951::init(), LHCB_2012_I1208102::init(), ATLAS_2011_I944826::init(), MC_ZINC::init(), ALEPH_1991_S2435284::init(), MC_WINC::init(), MC_WJETS::init(), MC_WWKTSPLITTINGS::init(), MC_ZZJETS::init(), ATLAS_2012_I1183818::init(), ATLAS_2011_S9035664::init(), ATLAS_2012_I1204784::init(), CMS_2012_I1102908::init(), ATLAS_2013_I1219109::init(), CMS_2013_I1272853::init(), ATLAS_2013_I1243871::init(), ATLAS_2014_I1268975::init(), D0_2000_I499943::init(), ATLAS_2014_I1325553::init(), E735_1998_S3905616::init(), MC_ZZKTSPLITTINGS::init(), MC_DIJET::init(), MC_DIPHOTON::init(), DELPHI_1999_S3960137::init(), ALEPH_1996_S3196992::init(), UA5_1986_S1583476::init(), EXAMPLE_CUTS::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), MC_ZKTSPLITTINGS::init(), MC_HJETS::init(), MC_HKTSPLITTINGS::init(), CDF_2005_S6217184::init(), MC_PHOTONINC::init(), MC_WKTSPLITTINGS::init(), ATLAS_2011_S8924791::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_1998_S3749908::init(), OPAL_2000_S4418603::init(), ATLAS_2010_S8817804::init(), PDG_TAUS::init(), D0_1996_S3324664::init(), D0_2007_S7075677::init(), D0_2009_S8202443::init(), D0_2010_S8821313::init(), ALEPH_2002_S4823664::init(), ATLAS_2011_I945498::init(), MC_PHOTONKTSPLITTINGS::init(), MC_PHOTONJETS::init(), MC_WWJETS::init(), CMS_2012_I1107658::init(), D0_2008_S7554427::init(), D0_2008_S7863608::init(), D0_2010_S8671338::init(), MC_IDENTIFIED::init(), H1_1995_S3167097::init(), CDF_1994_S2952106::init(), ATLAS_2011_I954993::init(), D0_2001_S4674421::init(), ATLAS_2014_I1300647::init(), D0_2008_S7837160::init(), ATLAS_2011_S9131140::init(), ATLAS_2011_S9212353::init(), ATLAS_2014_I1306615::init(), ATLAS_2014_I1307756::init(), ZEUS_2001_S4815815::init(), ATLAS_2012_CONF_2012_104::init(), LHCB_2011_I919315::init(), ATLAS_2012_CONF_2012_105::init(), ATLAS_2012_I1119557::init(), UA1_1990_S2044935::init(), MC_GENERIC::init(), MC_LEADJETUE::init(), MC_TTBAR::init(), CDF_2008_S7828950::init(), ATLAS_2012_I1180197::init(), MC_PHOTONJETUE::init(), ATLAS_2012_I1188891::init(), CDF_2008_S7540469::init(), ATLAS_2012_I1126136::init(), ATLAS_2012_I1186556::init(), OPAL_1997_S3396100::init(), ATLAS_2012_CONF_2012_103::init(), STAR_2006_S6860818::init(), CDF_2008_S8095620::init(), ATLAS_2013_I1217863_W::init(), ATLAS_2011_S8983313::init(), CMS_2012_I941555::init(), ATLAS_2013_I1217863_Z::init(), CMS_2014_I1303894::init(), D0_1996_S3214044::init(), ATLAS_2011_CONF_2011_098::init(), DELPHI_1995_S3137023::init(), EXAMPLE::init(), ATLAS_2012_I1095236::init(), STAR_2009_UE_HELEN::init(), ALICE_2010_S8624100::init(), JADE_1998_S3612880::init(), ATLAS_2012_CONF_2012_109::init(), JADE_OPAL_2000_S4300807::init(), CDF_1996_S3108457::init(), ATLAS_2011_I926145::init(), MC_QCD_PARTONS::init(), ALEPH_2004_S5765862::init(), ATLAS_2012_I1190891::init(), LHCB_2013_I1218996::init(), CMS_2013_I1218372::init(), ALICE_2010_S8706239::init(), ATLAS_2012_I1125575::init(), ATLAS_2014_I1288706::init(), ATLAS_2012_I1125961::init(), ATLAS_2011_S9212183::init(), ATLAS_2012_CONF_2012_001::init(), MC_HFJETS::init(), ATLAS_2012_I1112263::init(), ALICE_2010_S8625980::init(), CDF_2009_NOTE_9936::init(), CDF_1996_S3349578::init(), ATLAS_2011_S8971293::init(), CDF_2009_S8383952::init(), CDF_2009_S8436959::init(), CDF_1998_S3618439::init(), ATLAS_2013_I1263495::init(), D0_2009_S8320160::init(), CDF_2000_S4266730::init(), CDF_2001_S4563131::init(), D0_2009_S8349509::init(), MC_SUSY::init(), ALEPH_2001_S4656318::init(), ATLAS_2010_S8919674::init(), CDF_2001_S4517016::init(), D0_2006_S6438750::init(), SLD_2002_S4869273::init(), DELPHI_2002_069_CONF_603::init(), ATLAS_2012_I1082936::init(), D0_2010_S8566488::init(), MC_PHOTONS::init(), CDF_1996_S3418421::init(), LHCB_2011_I917009::init(), LHCB_2014_I1281685::init(), UA5_1988_S1867512::init(), SLD_1996_S3398250::init(), ATLAS_2011_I921594::init(), LHCB_2012_I1119400::init(), ATLAS_2014_I1304688::init(), D0_2008_S7662670::init(), CDF_2006_S6653332::init(), ATLAS_2014_I1306294::init(), ATLAS_2011_S9108483::init(), MC_WPOL::init(), CDF_2008_S7541902::init(), ATLAS_2013_I1230812::init(), ATLAS_2012_I1199269::init(), ATLAS_2014_I1307243::init(), ATLAS_2012_I1117704::init(), ATLAS_2011_S9225137::init(), ATLAS_2011_S9019561::init(), ATLAS_2012_I1082009::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2012_I943401::init(), ATLAS_2012_I946427::init(), OPAL_2002_S5361494::init(), DELPHI_2000_S4328825::init(), TASSO_1990_S2148048::init(), ATLAS_2012_I1083318::init(), ATLAS_2012_CONF_2012_153::init(), ATLAS_2012_I1084540::init(), CMS_2013_I1224539_WJET::init(), CMS_2013_I1224539_DIJET::init(), CDF_2009_S8233977::init(), ATLAS_2013_I1217867::init(), CMS_2013_I1224539_ZJET::init(), CDF_2010_S8591881_DY::init(), CDF_2010_S8591881_QCD::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), ATLAS_2014_I1312627::init(), ATLAS_2011_S9120807::init(), CDF_2001_S4751469::init(), D0_2008_S7719523::init(), ATLAS_2010_S8918562::init(), ATLAS_2011_S9041966::init(), ATLAS_2012_I1094568::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), ATLAS_2012_I1093738::init(), OPAL_2004_S6132243::init(), OPAL_1994_S2927284::init(), BELLE_2013_I1216515::init(), STAR_2008_S7869363::init(), BABAR_2007_S6895344::init(), ATLAS_2011_S9126244::init(), MC_VH2BB::init(), BELLE_2001_S4598261::init(), BABAR_2005_S6181155::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), BABAR_2013_I1238276::init(), DELPHI_2003_WUD_03_11::init(), ATLAS_2012_I1203852::init(), CDF_2004_S5839831::init(), BABAR_2003_I593379::init(), ATLAS_2012_I1094061::init(), ARGUS_1993_S2653028::init(), CLEO_2004_S5809304::init(), OPAL_1998_S3780481::init(), ATLAS_2012_I1093734::init(), OPAL_1993_S2692198::init(), ATLAS_2014_I1279489::init(), ATLAS_2012_I1094564::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), SLD_2004_S5693039::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), PrimaryHadrons::PrimaryHadrons(), PromptFinalState::PromptFinalState(), Sphericity::Sphericity(), Spherocity::Spherocity(), TauFinder::TauFinder(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), VisibleFinalState::VisibleFinalState(), WFinder::WFinder(), and ZFinder::ZFinder(). {
const Projection& reg = _addProjection(proj, name);
const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
return rtn;
}
List of registered analysis data objects. Definition at line 694 of file Analysis.hh. References Analysis::_analysisobjects. Referenced by Analysis::getAnalysisObject(). {
return _analysisobjects;
}
Perform the per-event analysis. Get the various sets of final state particles
Implements Analysis. Definition at line 129 of file ATLAS_2012_I1094568.cc. References ATLAS_2012_I1094568_Plots::_h_vetoJetPt_Q0, ATLAS_2012_I1094568_Plots::_h_vetoJetPt_Qsum, ParticleBase::absrap(), Rivet::PID::charge(), Rivet::deltaR(), Rivet::GeV, Rivet::PID::hasBottom(), Rivet::inRange(), Rivet::PID::isHadron(), Rivet::m, ATLAS_2012_I1094568::m_plots, ATLAS_2012_I1094568::m_total_weight, Rivet::Cuts::mass, Particle::momentum(), Jet::momentum(), Rivet::particles(), Rivet::Cuts::pt, ParticleBase::pT(), FourMomentum::pT(), ParticleBase::rapidity(), Rivet::rapidity(), ATLAS_2012_I1094568_Plots::vetoJetPt_Q0, and ATLAS_2012_I1094568_Plots::vetoJetPt_Qsum. {
const double weight = event.weight();
/// Get the various sets of final state particles
const Particles& elecFS = applyProjection<IdentifiedFinalState>(event, "ELEC_FS").particlesByPt();
const Particles& muonFS = applyProjection<IdentifiedFinalState>(event, "MUON_FS").particlesByPt();
const Particles& neutrinoFS = applyProjection<IdentifiedFinalState>(event, "NEUTRINO_FS").particlesByPt();
// Get all jets with pT > 25 GeV
const Jets& jets = applyProjection<FastJets>(event, "JETS").jetsByPt(25.0*GeV);
// Keep any jets that pass the initial rapidity cut
vector<const Jet*> central_jets;
foreach(const Jet& j, jets) {
if (j.absrap() < 2.4) central_jets.push_back(&j);
}
// For each of the jets that pass the rapidity cut, only keep those that are not
// too close to any leptons
vector<const Jet*> good_jets;
foreach(const Jet* j, central_jets) {
bool goodJet = true;
foreach (const Particle& e, elecFS) {
double elec_jet_dR = deltaR(e.momentum(), j->momentum());
if (elec_jet_dR < 0.4) { goodJet = false; break; }
}
if (!goodJet) continue;
if (!goodJet) continue;
foreach (const Particle& m, muonFS) {
double muon_jet_dR = deltaR(m.momentum(), j->momentum());
if (muon_jet_dR < 0.4) { goodJet = false; break; }
}
if (!goodJet) continue;
good_jets.push_back(j);
}
// Get b hadrons with pT > 5 GeV
/// @todo This is a hack -- replace with UnstableFinalState
vector<HepMC::GenParticle*> B_hadrons;
vector<HepMC::GenParticle*> allParticles = particles(event.genEvent());
for (size_t i = 0; i < allParticles.size(); i++) {
GenParticle* p = allParticles[i];
if (!PID::isHadron(p->pdg_id()) || !PID::hasBottom(p->pdg_id())) continue;
if (p->momentum().perp() < 5*GeV) continue;
B_hadrons.push_back(p);
}
// For each of the good jets, check whether any are b-jets (via dR matching)
vector<const Jet*> b_jets;
foreach(const Jet* j, good_jets) {
bool isbJet = false;
foreach(HepMC::GenParticle* b, B_hadrons) {
if (deltaR(j->momentum(), FourMomentum(b->momentum())) < 0.3) isbJet = true;
}
if (isbJet) b_jets.push_back(j);
}
// Check the good jets again and keep track of the "additional jets"
// i.e. those which are not either of the 2 highest pT b-jets
vector<const Jet*> veto_jets;
int n_bjets_matched = 0;
foreach(const Jet* j, good_jets) {
bool isBJet = false;
foreach(const Jet* b, b_jets) {
if (n_bjets_matched == 2) break;
if (b == j){isBJet = true; ++ n_bjets_matched;}
}
if (!isBJet) veto_jets.push_back(j);
}
// Get the MET by taking the vector sum of all neutrinos
/// @todo Use MissingMomentum instead?
double MET = 0;
FourMomentum p_MET;
foreach (const Particle& p, neutrinoFS) {
p_MET = p_MET + p.momentum();
}
MET = p_MET.pT();
// Now we have everything we need to start doing the event selections
bool passed_ee = false;
vector<const Jet*> vetoJets_ee;
// We want exactly 2 electrons...
if (elecFS.size() == 2) {
// ... with opposite sign charges.
if (charge(elecFS[0]) != charge(elecFS[1])) {
// Check the MET
if (MET >= 40*GeV) {
// Do some dilepton mass cuts
const double dilepton_mass = (elecFS[0].momentum() + elecFS[1].momentum()).mass();
if (dilepton_mass >= 15*GeV) {
if (fabs(dilepton_mass - 91.0*GeV) >= 10.0*GeV) {
// We need at least 2 b-jets
if (b_jets.size() > 1) {
// This event has passed all the cuts;
passed_ee = true;
}
}
}
}
}
}
bool passed_mumu = false;
// Now do the same checks for the mumu channel
vector<const Jet*> vetoJets_mumu;
// So we now want 2 good muons...
if (muonFS.size() == 2) {
// ...with opposite sign charges.
if (charge(muonFS[0]) != charge(muonFS[1])) {
// Check the MET
if (MET >= 40*GeV) {
// and do some di-muon mass cuts
const double dilepton_mass = (muonFS.at(0).momentum() + muonFS.at(1).momentum()).mass();
if (dilepton_mass >= 15*GeV) {
if (fabs(dilepton_mass - 91.0*GeV) >= 10.0*GeV) {
// Need at least 2 b-jets
if (b_jets.size() > 1) {
// This event has passed all mumu-channel cuts
passed_mumu = true;
}
}
}
}
}
}
bool passed_emu = false;
// Finally, the same again with the emu channel
vector<const Jet*> vetoJets_emu;
// We want exactly 1 electron and 1 muon
if (elecFS.size() == 1 && muonFS.size() == 1) {
// With opposite sign charges
if (charge(elecFS[0]) != charge(muonFS[0])) {
// Calculate HT: scalar sum of the pTs of the leptons and all good jets
double HT = 0;
HT += elecFS[0].pT();
HT += muonFS[0].pT();
foreach (const Jet* j, good_jets)
HT += fabs(j->pT());
// Keep events with HT > 130 GeV
if (HT > 130.0*GeV) {
// And again we want 2 or more b-jets
if (b_jets.size() > 1) {
passed_emu = true;
}
}
}
}
if (passed_ee == true || passed_mumu == true || passed_emu == true) {
// If the event passes the selection, we use it for all gap fractions
m_total_weight += weight;
// Loop over each veto jet
foreach (const Jet* j, veto_jets) {
const double pt = j->pT();
const double rapidity = fabs(j->rapidity());
// Loop over each region
for (size_t i = 0; i < 4; ++i) {
// If the jet falls into this region, get its pT and increment sum(pT)
if (inRange(rapidity, m_plots[i].y_low, m_plots[i].y_high)) {
m_plots[i].vetoJetPt_Qsum += pt;
// If we've already got a veto jet, don't replace it
if (m_plots[i].vetoJetPt_Q0 == 0.0) m_plots[i].vetoJetPt_Q0 = pt;
}
}
}
for (size_t i = 0; i < 4; ++i) {
m_plots[i]._h_vetoJetPt_Q0->fill(m_plots[i].vetoJetPt_Q0, weight);
m_plots[i]._h_vetoJetPt_Qsum->fill(m_plots[i].vetoJetPt_Qsum, weight);
m_plots[i].vetoJetPt_Q0 = 0.0;
m_plots[i].vetoJetPt_Qsum = 0.0;
}
}
}
Apply the supplied projection on event. Definition at line 70 of file ProjectionApplier.hh. References ProjectionApplier::_applyProjection(). Referenced by DISFinalState::project(). {
return pcast<PROJ>(_applyProjection(evt, proj));
}
Apply the supplied projection on event. Definition at line 77 of file ProjectionApplier.hh. References ProjectionApplier::_applyProjection(). {
return pcast<PROJ>(_applyProjection(evt, proj));
}
Apply the named projection on event. Definition at line 84 of file ProjectionApplier.hh. References ProjectionApplier::_applyProjection(). {
return pcast<PROJ>(_applyProjection(evt, name));
}
Helper for histogram asymmetry calculation.
Definition at line 639 of file Analysis.cc. {
const string path = s->path();
*s = YODA::asymm(*h1, *h2);
s->setPath(path);
}
Helper for histogram asymmetry calculation.
Names & emails of paper/analysis authors. Names and email of authors in 'NAME <EMAIL>' format. The first name in the list should be the primary contact person. Definition at line 132 of file Analysis.hh. References AnalysisInfo::authors(), and Analysis::info(). Incoming beam IDs for this run. Definition at line 35 of file Analysis.cc. References AnalysisHandler::beamIds(), and Analysis::handler(). Referenced by UA5_1982_S875503::finalize(), and UA5_1982_S875503::init().
Incoming beams for this run. Definition at line 31 of file Analysis.cc. References AnalysisHandler::beams(), and Analysis::handler(). Referenced by BABAR_2005_S6181155::analyze(), BABAR_2007_S6895344::analyze(), CLEO_2004_S5809304::analyze(), BABAR_2013_I1238276::analyze(), BELLE_2013_I1216515::analyze(), OPAL_1994_S2927284::analyze(), SLD_2004_S5693039::analyze(), OPAL_1998_S3780481::analyze(), SLD_1999_S3743934::analyze(), OPAL_1995_S3198391::analyze(), OPAL_1997_S3608263::analyze(), OPAL_2000_S4418603::analyze(), ALEPH_2002_S4823664::analyze(), OPAL_1998_S3702294::analyze(), DELPHI_1999_S3960137::analyze(), OPAL_1996_S3257789::analyze(), DELPHI_1995_S3137023::analyze(), SLD_2002_S4869273::analyze(), ALEPH_2001_S4656318::analyze(), DELPHI_2002_069_CONF_603::analyze(), OPAL_1998_S3749908::analyze(), OPAL_1997_S3396100::analyze(), ALEPH_1999_S4193598::analyze(), MC_WPOL::analyze(), ALEPH_1996_S3486095::analyze(), ALEPH_2004_S5765862::analyze(), DELPHI_1996_S3430090::analyze(), MC_WPOL::init(), and Analysis::isCompatible().
BibTeX citation key for this article. Definition at line 185 of file Analysis.hh. References AnalysisInfo::bibKey(), and Analysis::info().
BibTeX citation entry for this article. Definition at line 190 of file Analysis.hh. References AnalysisInfo::bibTeX(), and Analysis::info().
Book a 1D histogram with nbins uniformly distributed across the range lower - upper . Definition at line 200 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). Referenced by ATLAS_2014_I1304688::_histogram(), Analysis::bookHisto1D(), ATLAS_2012_I1118269::init(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), LHCB_2010_I867355::init(), ALICE_2012_I1181770::init(), CMS_2011_S8950903::init(), CMS_2011_S8941262::init(), CMS_2011_S8968497::init(), CMS_2012_I1184941::init(), CMS_2012_I1090423::init(), CMSTOTEM_2014_I1294140::init(), CMS_2012_I1193338::init(), ATLAS_2011_I894867::init(), ATLAS_2014_I1298811::init(), ATLAS_2010_CONF_2010_049::init(), ALICE_2011_S8909580::init(), CMS_2011_S8973270::init(), TOTEM_2012_I1115294::init(), CMS_2011_S9086218::init(), CMS_2012_I1087342::init(), CMS_2011_S9215166::init(), ATLAS_2014_I1282441::init(), ALICE_2011_S8945144::init(), ATLAS_2012_I1091481::init(), CDF_2007_S7057202::init(), CMS_2013_I1265659::init(), D0_2011_I895662::init(), LHCF_2012_I1115479::init(), ATLAS_2011_I930220::init(), TOTEM_2012_002::init(), ATLAS_2010_S8591806::init(), CMS_2011_I954992::init(), CMS_2011_S8957746::init(), CMS_2011_S8978280::init(), CMS_2013_I1273574::init(), D0_2010_S8570965::init(), MC_JETTAGS::init(), ATLAS_2011_I925932::init(), STAR_2006_S6500200::init(), ATLAS_2012_I1124167::init(), UA5_1987_S1640666::init(), CMS_2013_I1256943::init(), CMS_QCD_10_024::init(), CDF_1997_S3541940::init(), SFM_1984_S1178091::init(), ARGUS_1993_S2789213::init(), CMS_2013_I1261026::init(), CMS_2013_I1258128::init(), CMS_2014_I1298810::init(), D0_2000_S4480767::init(), ATLAS_2011_S9128077::init(), BABAR_2007_S7266081::init(), BELLE_2008_I786560::init(), MC_HINC::init(), CDF_1993_S2742446::init(), CDF_2000_S4155203::init(), CDF_2006_S6450792::init(), CDF_2005_S6080774::init(), UA5_1989_S1926373::init(), ARGUS_1993_S2669951::init(), ATLAS_2012_I1204447::init(), CMS_2013_I1209721::init(), ATLAS_2013_I1190187::init(), D0_2008_S6879055::init(), LHCB_2012_I1208102::init(), MC_JetSplittings::init(), MC_PDFS::init(), MC_WWINC::init(), MC_ZJETS::init(), MC_ZZINC::init(), CDF_2008_S8093652::init(), STAR_2006_S6870392::init(), UA5_1982_S875503::init(), ATLAS_2011_I944826::init(), ALEPH_1991_S2435284::init(), ATLAS_2012_I1183818::init(), CMS_2012_I1102908::init(), ATLAS_2011_S9035664::init(), ATLAS_2012_I1204784::init(), CMS_2013_I1272853::init(), ATLAS_2013_I1219109::init(), D0_2000_I499943::init(), ATLAS_2014_I1268975::init(), ATLAS_2014_I1325553::init(), E735_1998_S3905616::init(), MC_DIJET::init(), MC_DIPHOTON::init(), MC_WINC::init(), MC_WJETS::init(), MC_ZINC::init(), MC_ZZJETS::init(), MC_ParticleAnalysis::init(), PDG_TAUS::init(), UA5_1986_S1583476::init(), ALEPH_1996_S3196992::init(), ATLAS_2010_S8817804::init(), D0_1996_S3324664::init(), D0_2007_S7075677::init(), D0_2009_S8202443::init(), D0_2010_S8821313::init(), DELPHI_1999_S3960137::init(), EXAMPLE_CUTS::init(), ALEPH_2002_S4823664::init(), MC_HJETS::init(), CDF_1988_S1865951::init(), MC_JetAnalysis::init(), CDF_1990_S2089246::init(), MC_PHOTONINC::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_1998_S3749908::init(), OPAL_2000_S4418603::init(), ATLAS_2011_I945498::init(), ATLAS_2011_I954993::init(), CMS_2012_I1107658::init(), D0_2008_S7554427::init(), D0_2008_S7863608::init(), D0_2010_S8671338::init(), H1_1995_S3167097::init(), MC_IDENTIFIED::init(), CDF_1994_S2952106::init(), MC_PHOTONJETS::init(), MC_WWJETS::init(), CDF_2008_S7828950::init(), ATLAS_2012_I1119557::init(), ZEUS_2001_S4815815::init(), ATLAS_2012_I1180197::init(), ATLAS_2012_I1188891::init(), CDF_2008_S7540469::init(), ATLAS_2012_CONF_2012_105::init(), ATLAS_2012_CONF_2012_104::init(), LHCB_2011_I919315::init(), ATLAS_2014_I1300647::init(), MC_PHOTONJETUE::init(), D0_2001_S4674421::init(), ATLAS_2011_S9131140::init(), D0_2008_S7837160::init(), ATLAS_2011_S9212353::init(), ATLAS_2014_I1306615::init(), UA1_1990_S2044935::init(), MC_GENERIC::init(), MC_TTBAR::init(), OPAL_1997_S3396100::init(), ATLAS_2012_I1095236::init(), ALICE_2010_S8624100::init(), ATLAS_2012_I1126136::init(), D0_1996_S3214044::init(), EXAMPLE::init(), ATLAS_2011_I926145::init(), ATLAS_2013_I1217863_Z::init(), JADE_OPAL_2000_S4300807::init(), ATLAS_2012_CONF_2012_103::init(), CMS_2012_I941555::init(), JADE_1998_S3612880::init(), STAR_2006_S6860818::init(), ATLAS_2013_I1217863_W::init(), CDF_1996_S3108457::init(), CDF_2008_S8095620::init(), CMS_2014_I1303894::init(), ATLAS_2011_S8983313::init(), ALEPH_2004_S5765862::init(), DELPHI_1995_S3137023::init(), ATLAS_2012_CONF_2012_109::init(), ATLAS_2012_I1186556::init(), MC_XS::init(), ATLAS_2011_CONF_2011_098::init(), ALICE_2010_S8625980::init(), CDF_2009_NOTE_9936::init(), ATLAS_2012_I1190891::init(), ATLAS_2012_I1112263::init(), MC_HFJETS::init(), ATLAS_2012_CONF_2012_001::init(), CMS_2013_I1218372::init(), ALICE_2010_S8706239::init(), CDF_1996_S3349578::init(), ATLAS_2014_I1288706::init(), ATLAS_2011_S9212183::init(), LHCB_2013_I1218996::init(), ATLAS_2012_I1125961::init(), D0_2009_S8320160::init(), MC_SUSY::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), ATLAS_2011_S8971293::init(), CDF_2000_S4266730::init(), ATLAS_2013_I1263495::init(), CDF_2001_S4563131::init(), CDF_1998_S3618439::init(), D0_2009_S8349509::init(), D0_2010_S8566488::init(), ATLAS_2012_I1082936::init(), D0_2006_S6438750::init(), ALEPH_2001_S4656318::init(), CDF_2001_S4517016::init(), SLD_2002_S4869273::init(), ATLAS_2010_S8919674::init(), DELPHI_2002_069_CONF_603::init(), CDF_1996_S3418421::init(), LHCB_2012_I1119400::init(), ATLAS_2011_I921594::init(), LHCB_2014_I1281685::init(), MC_PHOTONS::init(), SLD_1996_S3398250::init(), D0_2008_S7662670::init(), ATLAS_2014_I1306294::init(), ATLAS_2011_S9108483::init(), CDF_2008_S7541902::init(), CDF_2006_S6653332::init(), MC_WPOL::init(), ATLAS_2013_I1230812::init(), ATLAS_2014_I1307243::init(), ATLAS_2012_I1199269::init(), ATLAS_2012_I1082009::init(), ATLAS_2012_I943401::init(), ATLAS_2012_I946427::init(), ATLAS_2011_S9225137::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2011_S9019561::init(), ATLAS_2012_I1117704::init(), TASSO_1990_S2148048::init(), CMS_2013_I1224539_WJET::init(), ATLAS_2012_CONF_2012_153::init(), CMS_2013_I1224539_DIJET::init(), ATLAS_2012_I1084540::init(), ATLAS_2012_I1083318::init(), ATLAS_2013_I1217867::init(), CDF_2009_S8233977::init(), CMS_2013_I1224539_ZJET::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), ATLAS_2014_I1312627::init(), ATLAS_2010_S8918562::init(), ATLAS_2011_S9120807::init(), CDF_2001_S4751469::init(), D0_2008_S7719523::init(), ATLAS_2011_S9041966::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), ATLAS_2012_I1093738::init(), OPAL_2004_S6132243::init(), OPAL_1994_S2927284::init(), BELLE_2013_I1216515::init(), STAR_2008_S7869363::init(), BABAR_2007_S6895344::init(), MC_VH2BB::init(), BABAR_2005_S6181155::init(), BELLE_2001_S4598261::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), BABAR_2013_I1238276::init(), DELPHI_2003_WUD_03_11::init(), ATLAS_2012_I1203852::init(), CDF_2004_S5839831::init(), BABAR_2003_I593379::init(), ARGUS_1993_S2653028::init(), CLEO_2004_S5809304::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), ATLAS_2012_I1094564::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), SLD_2004_S5693039::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), ATLAS_2014_I1279489::initialisePlots(), ATLAS_2012_I1125575::initializeHistograms(), ATLAS_2012_I1094568::initializePlots(), and ATLAS_2011_S9126244::initializePlots(). {
const string path = histoPath(hname);
Histo1DPtr hist( new Histo1D(nbins, lower, upper, path, title) );
addAnalysisObject(hist);
MSG_TRACE("Made histogram " << hname << " for " << name());
hist->setAnnotation("XLabel", xtitle);
hist->setAnnotation("YLabel", ytitle);
return hist;
}
Book a 1D histogram with non-uniform bins defined by the vector of bin edges binedges . Definition at line 215 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Histo1DPtr hist( new Histo1D(binedges, path, title) );
addAnalysisObject(hist);
MSG_TRACE("Made histogram " << hname << " for " << name());
hist->setAnnotation("XLabel", xtitle);
hist->setAnnotation("YLabel", ytitle);
return hist;
}
Book a 1D histogram with binning from a reference scatter. Definition at line 230 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Histo1DPtr hist( new Histo1D(refscatter, path) );
addAnalysisObject(hist);
MSG_TRACE("Made histogram " << hname << " for " << name());
hist->setTitle(title);
hist->setAnnotation("XLabel", xtitle);
hist->setAnnotation("YLabel", ytitle);
return hist;
}
Book a 1D histogram, using the binnings in the reference data histogram. Definition at line 246 of file Analysis.cc. References Analysis::bookHisto1D(), and Analysis::refData(). {
const Scatter2D& refdata = refData(hname);
return bookHisto1D(hname, refdata, title, xtitle, ytitle);
}
Book a 1D histogram, using the binnings in the reference data histogram. The paper, dataset and x/y-axis IDs will be used to build the histo name in the HepData standard way. Definition at line 255 of file Analysis.cc. References Analysis::bookHisto1D(), and Analysis::makeAxisCode(). {
const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
return bookHisto1D(axisCode, title, xtitle, ytitle);
}
Book a 2D histogram with nxbins and nybins uniformly distributed across the ranges xlower - xupper and ylower - yupper respectively along the x- and y-axis.
Definition at line 270 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). Referenced by MC_PDFS::init(). {
const string path = histoPath(hname);
Histo2DPtr hist( new Histo2D(nxbins, xlower, xupper, nybins, ylower, yupper, path, title) );
addAnalysisObject(hist);
MSG_TRACE("Made 2D histogram " << hname << " for " << name());
hist->setAnnotation("XLabel", xtitle);
hist->setAnnotation("YLabel", ytitle);
hist->setAnnotation("ZLabel", ztitle);
return hist;
}
Book a 2D histogram with non-uniform bins defined by the vectorx of bin edges xbinedges and ybinedges. Definition at line 289 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Histo2DPtr hist( new Histo2D(xbinedges, ybinedges, path, title) );
addAnalysisObject(hist);
MSG_TRACE("Made 2D histogram " << hname << " for " << name());
hist->setAnnotation("XLabel", xtitle);
hist->setAnnotation("YLabel", ytitle);
hist->setAnnotation("ZLabel", ztitle);
return hist;
}
Book a 1D profile histogram with nbins uniformly distributed across the range lower - upper . Definition at line 349 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). Referenced by Analysis::bookProfile1D(), ATLAS_2010_S8894728::init(), CMS_2012_PAS_QCD_11_010::init(), ATLAS_2011_S8994773::init(), ATLAS_2014_I1298811::init(), ALICE_2011_S8945144::init(), ATLAS_2010_S8591806::init(), CDF_2012_NOTE10874::init(), STAR_2008_S7993412::init(), ATLAS_2012_I1124167::init(), CMS_2013_I1261026::init(), CDF_2008_S7782535::init(), ATLAS_2013_I1243871::init(), CDF_2005_S6217184::init(), D0_1996_S3324664::init(), ATLAS_2011_S8924791::init(), CMS_2012_I1107658::init(), MC_GENERIC::init(), MC_LEADJETUE::init(), UA1_1990_S2044935::init(), MC_PHOTONJETUE::init(), STAR_2006_S6860818::init(), STAR_2009_UE_HELEN::init(), ALICE_2010_S8706239::init(), ALEPH_2001_S4656318::init(), DELPHI_2002_069_CONF_603::init(), MC_PHOTONS::init(), MC_WPOL::init(), ATLAS_2014_I1307243::init(), CDF_2009_S8233977::init(), CDF_2010_S8591881_DY::init(), CDF_2010_S8591881_QCD::init(), CDF_2001_S4751469::init(), ATLAS_2010_S8918562::init(), DELPHI_1996_S3430090::init(), CDF_2004_S5839831::init(), H1_1994_S2919893::init(), H1_2000_S4129130::init(), ATLAS_2014_I1279489::initialisePlots(), ATLAS_2011_S9126244::initializePlots(), and ATLAS_2012_I1125575::initializeProfiles(). {
const string path = histoPath(hname);
Profile1DPtr prof( new Profile1D(nbins, lower, upper, path, title) );
addAnalysisObject(prof);
MSG_TRACE("Made profile histogram " << hname << " for " << name());
prof->setAnnotation("XLabel", xtitle);
prof->setAnnotation("YLabel", ytitle);
return prof;
}
Book a 1D profile histogram with non-uniform bins defined by the vector of bin edges binedges . Definition at line 364 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Profile1DPtr prof( new Profile1D(binedges, path, title) );
addAnalysisObject(prof);
MSG_TRACE("Made profile histogram " << hname << " for " << name());
prof->setAnnotation("XLabel", xtitle);
prof->setAnnotation("YLabel", ytitle);
return prof;
}
Book a 1D profile histogram with binning from a reference scatter. Definition at line 379 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Profile1DPtr prof( new Profile1D(refscatter, path) );
addAnalysisObject(prof);
MSG_TRACE("Made profile histogram " << hname << " for " << name());
prof->setTitle(title);
prof->setAnnotation("XLabel", xtitle);
prof->setAnnotation("YLabel", ytitle);
return prof;
}
Book a 1D profile histogram, using the binnings in the reference data histogram. Definition at line 395 of file Analysis.cc. References Analysis::bookProfile1D(), and Analysis::refData(). {
const Scatter2D& refdata = refData(hname);
return bookProfile1D(hname, refdata, title, xtitle, ytitle);
}
Book a 1D profile histogram, using the binnings in the reference data histogram. The paper, dataset and x/y-axis IDs will be used to build the histo name in the HepData standard way. Definition at line 404 of file Analysis.cc. References Analysis::bookProfile1D(), and Analysis::makeAxisCode(). {
const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
return bookProfile1D(axisCode, title, xtitle, ytitle);
}
Book a 2D profile histogram with nxbins and nybins uniformly distributed across the ranges xlower - xupper and ylower - yupper respectively along the x- and y-axis. Definition at line 417 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Profile2DPtr prof( new Profile2D(nxbins, xlower, xupper, nybins, ylower, yupper, path, title) );
addAnalysisObject(prof);
MSG_TRACE("Made 2D profile histogram " << hname << " for " << name());
prof->setAnnotation("XLabel", xtitle);
prof->setAnnotation("YLabel", ytitle);
prof->setAnnotation("ZLabel", ztitle);
return prof;
}
Book a 2D profile histogram with non-uniform bins defined by the vectorx of bin edges xbinedges and ybinedges. Definition at line 436 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, and Analysis::name(). {
const string path = histoPath(hname);
Profile2DPtr prof( new Profile2D(xbinedges, ybinedges, path, title) );
addAnalysisObject(prof);
MSG_TRACE("Made 2D profile histogram " << hname << " for " << name());
prof->setAnnotation("XLabel", xtitle);
prof->setAnnotation("YLabel", ytitle);
prof->setAnnotation("ZLabel", ztitle);
return prof;
}
Book a 2-dimensional data point set with the given name.
Definition at line 506 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, Analysis::name(), Analysis::refData(), and Rivet::s. Referenced by Analysis::bookScatter2D(), MC_JetAnalysis::finalize(), MC_ParticleAnalysis::finalize(), DELPHI_2000_S4328825::finalize(), OPAL_2002_S5361494::finalize(), BABAR_2007_S7266081::finalize(), LHCB_2011_I917009::finalize(), ARGUS_1993_S2669951::finalize(), ATLAS_2014_I1307243::finalize(), ALEPH_2004_S5765862::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2011_S9126244::finalize(), SLD_1999_S3743934::finalize(), ATLAS_2014_I1279489::finalizeEfficiencies(), ATLAS_2014_I1312627::hInit(), ATLAS_2010_S8894728::init(), ALICE_2012_I1181770::init(), ALICE_2011_S8909580::init(), LHCB_2013_I1208105::init(), ATLAS_2011_S9002537::init(), CMS_2011_S8978280::init(), CMS_2011_S9088458::init(), STAR_2006_S6500200::init(), CMS_2014_I1298810::init(), ATLAS_2011_S9128077::init(), MC_JetSplittings::init(), CDF_2008_S7782535::init(), MC_WINC::init(), ATLAS_2011_I944826::init(), CMS_2012_I1102908::init(), CDF_2005_S6217184::init(), MC_ParticleAnalysis::init(), MC_JetAnalysis::init(), CDF_1994_S2952106::init(), ATLAS_2011_I945498::init(), ATLAS_2012_I1188891::init(), D0_2001_S4674421::init(), D0_2008_S7837160::init(), MC_GENERIC::init(), STAR_2006_S6860818::init(), MC_XS::init(), CMS_2013_I1218372::init(), CDF_1996_S3418421::init(), LHCB_2012_I1119400::init(), UA5_1988_S1867512::init(), CDF_2008_S7541902::init(), ATLAS_2013_I1230812::init(), ATLAS_2014_I1307243::init(), ATLAS_2012_I1083318::init(), D0_2008_S7719523::init(), ATLAS_2012_I1093734::init(), SLD_2004_S5693039::init(), SLD_1999_S3743934::init(), ATLAS_2012_I1094568::initializePlots(), ATLAS_2011_S9126244::initializePlots(), and SLD_1996_S3398250::multiplicity_subtract(). {
Scatter2DPtr s;
const string path = histoPath(hname);
if (copy_pts) {
const Scatter2D& refdata = refData(hname);
s.reset( new Scatter2D(refdata, path) );
foreach (Point2D& p, s->points()) p.setY(0, 0);
} else {
s.reset( new Scatter2D(path) );
}
addAnalysisObject(s);
MSG_TRACE("Made scatter " << hname << " for " << name());
s->setTitle(title);
s->setAnnotation("XLabel", xtitle);
s->setAnnotation("YLabel", ytitle);
return s;
}
Book a 2-dimensional data point set, using the binnings in the reference data histogram. The paper, dataset and x/y-axis IDs will be used to build the histo name in the HepData standard way.
Definition at line 496 of file Analysis.cc. References Analysis::bookScatter2D(), and Analysis::makeAxisCode(). {
const string axisCode = makeAxisCode(datasetId, xAxisId, yAxisId);
return bookScatter2D(axisCode, copy_pts, title, xtitle, ytitle);
}
Book a 2-dimensional data point set with equally spaced x-points in a range. The y values and errors will be set to 0. Definition at line 529 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, Analysis::name(), Rivet::Cuts::pt, and Rivet::s. {
const string path = histoPath(hname);
Scatter2DPtr s( new Scatter2D(path) );
const double binwidth = (upper-lower)/npts;
for (size_t pt = 0; pt < npts; ++pt) {
const double bincentre = lower + (pt + 0.5) * binwidth;
s->addPoint(bincentre, 0, binwidth/2.0, 0);
}
addAnalysisObject(s);
MSG_TRACE("Made scatter " << hname << " for " << name());
s->setTitle(title);
s->setAnnotation("XLabel", xtitle);
s->setAnnotation("YLabel", ytitle);
return s;
}
Book a 2-dimensional data point set based on provided contiguous "bin edges". The y values and errors will be set to 0. Definition at line 550 of file Analysis.cc. References Analysis::addAnalysisObject(), Analysis::histoPath(), MSG_TRACE, Analysis::name(), Rivet::Cuts::pt, and Rivet::s. {
const string path = histoPath(hname);
Scatter2DPtr s( new Scatter2D(path) );
for (size_t pt = 0; pt < binedges.size()-1; ++pt) {
const double bincentre = (binedges[pt] + binedges[pt+1]) / 2.0;
const double binwidth = binedges[pt+1] - binedges[pt];
s->addPoint(bincentre, 0, binwidth/2.0, 0);
}
addAnalysisObject(s);
MSG_TRACE("Made scatter " << hname << " for " << name());
s->setTitle(title);
s->setAnnotation("XLabel", xtitle);
s->setAnnotation("YLabel", ytitle);
return s;
}
Collider on which the experiment ran. Definition at line 170 of file Analysis.hh. References AnalysisInfo::collider(), and Analysis::info().
Get the process cross-section in pb. Throws if this hasn't been set. Definition at line 155 of file Analysis.cc. References Analysis::_crossSection, Analysis::_gotCrossSection, and Analysis::name(). Referenced by MC_JetSplittings::finalize(), MC_JetAnalysis::finalize(), MC_ParticleAnalysis::finalize(), CDF_2006_S6450792::finalize(), D0_2000_S4480767::finalize(), TOTEM_2012_002::finalize(), CMS_2011_S9086218::finalize(), CDF_2001_S4563131::finalize(), CDF_2008_S7828950::finalize(), D0_2010_S8671338::finalize(), MC_XS::finalize(), CDF_2008_S8093652::finalize(), BELLE_2013_I1216515::finalize(), CDF_2000_S4155203::finalize(), CDF_2000_S4266730::finalize(), CMS_2011_S8941262::finalize(), CMS_2012_I1184941::finalize(), CDF_1998_S3618439::finalize(), CMS_2012_I1087342::finalize(), LHCB_2012_I1208102::finalize(), MC_HINC::finalize(), MC_ZJETS::finalize(), CMS_2011_I954992::finalize(), MC_HJETS::finalize(), MC_WJETS::finalize(), ATLAS_2012_I1118269::finalize(), ATLAS_2011_I894867::finalize(), BABAR_2005_S6181155::finalize(), CDF_2009_S8383952::finalize(), CDF_2001_S4517016::finalize(), STAR_2006_S6870392::finalize(), D0_2010_S8566488::finalize(), MC_ZINC::finalize(), LHCB_2010_I867355::finalize(), CDF_2009_S8436959::finalize(), CMS_2012_I1193338::finalize(), D0_2011_I895662::finalize(), CDF_2005_S6080774::finalize(), ATLAS_2014_I1288706::finalize(), ATLAS_2014_I1325553::finalize(), ATLAS_2014_I1282441::finalize(), D0_2006_S6438750::finalize(), CMS_2013_I1273574::finalize(), MC_DIPHOTON::finalize(), D0_2000_I499943::finalize(), ALICE_2012_I1181770::finalize(), CLEO_2004_S5809304::finalize(), D0_2008_S7662670::finalize(), D0_2008_S7863608::finalize(), MC_ZZJETS::finalize(), MC_WINC::finalize(), ATLAS_2011_S9035664::finalize(), ATLAS_2010_CONF_2010_049::finalize(), ATLAS_2011_I954993::finalize(), MC_WWJETS::finalize(), CDF_2009_S8233977::finalize(), CMS_2014_I1298810::finalize(), LHCB_2013_I1218996::finalize(), ATLAS_2013_I1219109::finalize(), D0_2010_S8570965::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2012_I946427::finalize(), CDF_2008_S7541902::finalize(), ATLAS_2010_S8919674::finalize(), ATLAS_2011_I921594::finalize(), ATLAS_2013_I1263495::finalize(), MC_ZZINC::finalize(), MC_WWINC::finalize(), ATLAS_2014_I1312627::finalize(), ATLAS_2013_I1217863_Z::finalize(), CDF_2006_S6653332::finalize(), D0_2008_S7719523::finalize(), ATLAS_2013_I1217863_W::finalize(), ATLAS_2014_I1307756::finalize(), ATLAS_2011_I926145::finalize(), CMS_2013_I1256943::finalize(), ATLAS_2014_I1306294::finalize(), ATLAS_2011_S9108483::finalize(), CDF_2008_S7540469::finalize(), ATLAS_2012_I1199269::finalize(), ATLAS_2010_S8914702::finalize(), ATLAS_2014_I1307243::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2014_I1304688::finalize(), ATLAS_2012_CONF_2012_105::finalize(), CMS_2014_I1303894::finalize(), ATLAS_2012_CONF_2012_104::finalize(), ATLAS_2011_S9120807::finalize(), ATLAS_2012_I1186556::finalize(), ATLAS_2012_I1084540::finalize(), MC_VH2BB::finalize(), ATLAS_2012_CONF_2012_103::finalize(), ATLAS_2012_I1117704::finalize(), ATLAS_2013_I1190187::finalize(), ATLAS_2012_I1093738::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2011_S9225137::finalize(), ATLAS_2012_CONF_2012_001::finalize(), ATLAS_2012_I1203852::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), ATLAS_2012_CONF_2012_153::finalize(), ATLAS_2012_I1204447::finalize(), ATLAS_2011_S9212353::finalize(), ATLAS_2011_S9041966::finalize(), and ATLAS_2011_I919017::finalize(). {
if (!_gotCrossSection || std::isnan(_crossSection)) {
string errMsg = "You did not set the cross section for the analysis " + name();
throw Error(errMsg);
}
return _crossSection;
}
Get the process cross-section per generated event in pb. Throws if this hasn't been set. Definition at line 163 of file Analysis.cc. References Analysis::_crossSection, and Analysis::sumOfWeights(). Referenced by CDF_2007_S7057202::finalize(), CDF_1988_S1865951::finalize(), LHCB_2011_I919315::finalize(), MC_PHOTONINC::finalize(), ATLAS_2014_I1268975::finalize(), ATLAS_2010_S8817804::finalize(), MC_PHOTONJETS::finalize(), ATLAS_2012_I1082936::finalize(), ATLAS_2011_I930220::finalize(), D0_2009_S8349509::finalize(), UA1_1990_S2044935::finalize(), D0_2001_S4674421::finalize(), MC_WPOL::finalize(), ATLAS_2011_S9128077::finalize(), ATLAS_2013_I1230812::finalize(), ATLAS_2011_I945498::finalize(), and ATLAS_2014_I1306615::finalize(). {
const double sumW = sumOfWeights();
assert(sumW != 0.0);
return _crossSection / sumW;
}
Get a full description of the analysis. Full textual description of this analysis, what it is useful for, what experimental techniques are applied, etc. Should be treated as a chunk of restructuredText (http://docutils.sourceforge.net/rst.html), with equations to be rendered as LaTeX with amsmath operators. Definition at line 151 of file Analysis.hh. References AnalysisInfo::description(), and Analysis::info(). {
return info().description();
}
Helper for histogram division.
Definition at line 574 of file Analysis.cc. Referenced by D0_2008_S7837160::calc_asymm(), MC_JetAnalysis::finalize(), MC_ParticleAnalysis::finalize(), CMS_2011_S9088458::finalize(), ATLAS_2012_I1094061::HistoPair::finalize(), CDF_1996_S3418421::finalize(), ALICE_2011_S8909580::finalize(), STAR_2006_S6500200::finalize(), CMS_2011_S8978280::finalize(), ALICE_2012_I1181770::finalize(), MC_WINC::finalize(), CMS_2014_I1298810::finalize(), LHCB_2011_I917009::finalize(), MC_GENERIC::finalize(), ATLAS_2014_I1312627::finalize(), ATLAS_2012_I1188891::finalize(), D0_2008_S7719523::finalize(), STAR_2006_S6860818::finalize(), LHCB_2012_I1119400::finalize(), CMS_2013_I1218372::finalize(), ATLAS_2011_S9128077::finalize(), ATLAS_2014_I1307243::finalize(), ATLAS_2011_I944826::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2011_S9126244::finalize(), SLD_1999_S3743934::finalize(), and ATLAS_2014_I1279489::finalizeEfficiencies().
Helper for histogram division with raw YODA objects.
Helper for profile histogram division.
Helper for profile histogram division with raw YODA objects.
Helper for 2D histogram division.
Helper for 2D histogram division with raw YODA objects.
Helper for 2D profile histogram division.
Helper for 2D profile histogram division with raw YODA objects
Helper for histogram efficiency calculation.
Definition at line 626 of file Analysis.cc. Referenced by CMS_2012_I1102908::finalize(), and ATLAS_2014_I1307243::finalize(). {
const string path = s->path();
*s = YODA::efficiency(*h1, *h2);
s->setPath(path);
}
Helper for histogram efficiency calculation.
Experiment which performed and published this analysis. Definition at line 165 of file Analysis.hh. References AnalysisInfo::experiment(), and Analysis::info(). {
return info().experiment();
}
Normalise histograms etc., after the run. Reimplemented from Analysis. Definition at line 315 of file ATLAS_2012_I1094568.cc. References ATLAS_2012_I1094568::finalizeGapFraction(), ATLAS_2012_I1094568::m_plots, and ATLAS_2012_I1094568::m_total_weight. {
for (size_t i = 0; i < 4; ++i) {
finalizeGapFraction(m_total_weight, m_plots[i]._d_gapFraction_Q0, m_plots[i]._h_vetoJetPt_Q0);
finalizeGapFraction(m_total_weight, m_plots[i]._d_gapFraction_Qsum, m_plots[i]._h_vetoJetPt_Qsum);
}
}
Convert temporary histos to cumulative efficiency scatters
Definition at line 325 of file ATLAS_2012_I1094568.cc. References Rivet::fuzzyEquals(). Referenced by ATLAS_2012_I1094568::finalize(). {
// Stores the cumulative frequency of the veto jet pT histogram
double vetoPtWeightSum = 0.0;
// Keep track of which gap fraction point we're currently populating (#final_points != #tmp_bins)
size_t fgap_point = 0;
for (size_t i = 0; i < vetoPt->numBins(); ++i) {
// If we've done the last "final" point, stop
if (fgap_point == gapFraction->numPoints()) break;
// Increment the cumulative vetoPt counter for this temp histo bin
/// @todo Get rid of this and use vetoPt->integral(i+1) when points and bins line up?
vetoPtWeightSum += vetoPt->bin(i).sumW();
// If this temp histo bin's upper edge doesn't correspond to the reference point, don't finalise the scatter.
// Note that points are ON the bin edges and have no width: they represent the integral up to exactly that point.
if ( !fuzzyEquals(vetoPt->bin(i).xMax(), gapFraction->point(fgap_point).x()) ) continue;
// Calculate the gap fraction and its uncertainty
const double frac = (total_weight != 0.0) ? vetoPtWeightSum/total_weight : 0;
const double fracErr = (total_weight != 0.0) ? sqrt(frac*(1-frac)/total_weight) : 0;
gapFraction->point(fgap_point).setY(frac, fracErr);
++fgap_point;
}
}
Get a data object from the histogram system
Definition at line 711 of file Analysis.hh. References Analysis::analysisObjects(), and Analysis::histoPath(). {
foreach (const AnalysisObjectPtr& ao, analysisObjects()) {
if (ao->path() == histoPath(name)) return dynamic_pointer_cast<AO>(ao);
}
throw Exception("Data object " + histoPath(name) + " not found");
}
Get a data object from the histogram system (non-const)
Definition at line 722 of file Analysis.hh. References Analysis::analysisObjects(), and Analysis::histoPath(). {
foreach (const AnalysisObjectPtr& ao, analysisObjects()) {
if (ao->path() == histoPath(name)) return dynamic_pointer_cast<AO>(ao);
}
throw Exception("Data object " + histoPath(name) + " not found");
}
Get a named Histo1D object from the histogram system. Definition at line 737 of file Analysis.hh. References Analysis::name(). {
return getAnalysisObject<Histo1D>(name);
}
Get a named Histo1D object from the histogram system (non-const) Definition at line 742 of file Analysis.hh. References Analysis::name(). {
return getAnalysisObject<Histo1D>(name);
}
Get a Histo1D object from the histogram system by axis ID codes (non-const) Definition at line 747 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Histo1D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Get a Histo1D object from the histogram system by axis ID codes (non-const) Definition at line 752 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Histo1D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Get a Log object based on the name() property of the calling analysis object. Reimplemented from ProjectionApplier. Definition at line 82 of file Analysis.cc. References Analysis::name(). {
string logname = "Rivet.Analysis." + name();
return Log::getLog(logname);
}
Get a named Profile1D object from the histogram system. Definition at line 779 of file Analysis.hh. References Analysis::name(). {
return getAnalysisObject<Profile1D>(name);
}
Get a named Profile1D object from the histogram system (non-const) Definition at line 784 of file Analysis.hh. References Analysis::name(). {
return getAnalysisObject<Profile1D>(name);
}
Get a Profile1D object from the histogram system by axis ID codes (non-const) Definition at line 789 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Profile1D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Get a Profile1D object from the histogram system by axis ID codes (non-const) Definition at line 794 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Profile1D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Get the named projection, specifying return type via a template argument. Definition at line 52 of file ProjectionApplier.hh. References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler(). Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project(). {
const Projection& p = getProjHandler().getProjection(*this, name);
return pcast<PROJ>(p);
}
Get the named projection (non-templated, so returns as a reference to a Projection base class). Definition at line 60 of file ProjectionApplier.hh. References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler(). {
return getProjHandler().getProjection(*this, name);
}
Get the contained projections, including recursion. Definition at line 45 of file ProjectionApplier.hh. References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler(). Referenced by Projection::beamPairs(). {
return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
}
Get a reference to the ProjectionHandler for this thread. Definition at line 97 of file ProjectionApplier.hh. References ProjectionApplier::_projhandler. Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier(). {
return _projhandler;
}
Get a named Scatter2D object from the histogram system. Definition at line 821 of file Analysis.hh. References Analysis::name(). Referenced by ATLAS_2014_I1279489::finalizeEfficiencies(). {
return getAnalysisObject<Scatter2D>(name);
}
Get a named Scatter2D object from the histogram system (non-const) Definition at line 826 of file Analysis.hh. References Analysis::name(). {
return getAnalysisObject<Scatter2D>(name);
}
Get a Scatter2D object from the histogram system by axis ID codes (non-const) Definition at line 831 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Scatter2D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Get a Scatter2D object from the histogram system by axis ID codes (non-const) Definition at line 836 of file Analysis.hh. References Analysis::makeAxisCode(). {
return getAnalysisObject<Scatter2D>(makeAxisCode(datasetId, xAxisId, yAxisId));
}
Access the controlling AnalysisHandler object. Definition at line 288 of file Analysis.hh. References Analysis::_analysishandler. Referenced by Analysis::beamIds(), Analysis::beams(), Analysis::histoDir(), Analysis::numEvents(), Analysis::sqrtS(), and Analysis::sumOfWeights(). { return *_analysishandler; }
Get the canonical histogram "directory" path for this analysis.
Definition at line 40 of file Analysis.cc. References Analysis::handler(), Analysis::name(), and AnalysisHandler::runName(). Referenced by Analysis::histoPath().
Get the canonical histogram path for the named histogram in this analysis. Definition at line 56 of file Analysis.cc. References Analysis::histoDir(). Referenced by Analysis::bookHisto1D(), Analysis::bookHisto2D(), Analysis::bookProfile1D(), Analysis::bookProfile2D(), Analysis::bookScatter2D(), ATLAS_2012_I1094061::HistoPair::finalize(), H1_1995_S3167097::finalize(), and Analysis::getAnalysisObject(). {
const string path = histoDir() + "/" + hname;
return path;
}
Get the canonical histogram path for the numbered histogram in this analysis. Definition at line 62 of file Analysis.cc. References Analysis::histoDir(), and Analysis::makeAxisCode(). {
return histoDir() + "/" + makeAxisCode(datasetId, xAxisId, yAxisId);
}
Get the actual AnalysisInfo object in which all this metadata is stored. Definition at line 104 of file Analysis.hh. References Analysis::_info. Referenced by Analysis::authors(), Analysis::bibKey(), Analysis::bibTeX(), Analysis::collider(), Analysis::description(), Analysis::experiment(), Analysis::inspireId(), Analysis::name(), Analysis::needsCrossSection(), Analysis::references(), Analysis::requiredBeams(), Analysis::requiredEnergies(), Analysis::runInfo(), Analysis::setNeedsCrossSection(), Analysis::setRequiredBeams(), Analysis::setRequiredEnergies(), Analysis::spiresId(), Analysis::status(), Analysis::summary(), Analysis::todos(), and Analysis::year().
Get the actual AnalysisInfo object in which all this metadata is stored (non-const). Definition at line 246 of file Analysis.hh. References Analysis::_info.
Book histograms and initialise projections before the run. Get electrons from truth record Get muons which pass the initial kinematic cuts: Get all neutrinos. These will not be used to form jets. We'll use the highest 2 pT neutrinos to calculate the MET Reimplemented from Analysis. Definition at line 49 of file ATLAS_2012_I1094568.cc. References Rivet::Cuts::abseta, IdentifiedFinalState::acceptIdPair(), IdentifiedFinalState::acceptNeutrinos(), ProjectionApplier::addProjection(), VetoedFinalState::addVetoPairId(), FastJets::ANTIKT, Rivet::PID::ELECTRON, Rivet::GeV, ATLAS_2012_I1094568::initializePlots(), ATLAS_2012_I1094568::m_plots, ATLAS_2012_I1094568::m_total_weight, Rivet::PID::MUON, ATLAS_2012_I1094568_Plots::region_index, VetoedFinalState::vetoNeutrinos(), ATLAS_2012_I1094568_Plots::y_high, and ATLAS_2012_I1094568_Plots::y_low. {
const FinalState fs(Cuts::abseta < 4.5);
addProjection(fs, "ALL_FS");
/// Get electrons from truth record
IdentifiedFinalState elec_fs(Cuts::abseta < 2.47 && Cuts::pT > 25*GeV);
elec_fs.acceptIdPair(PID::ELECTRON);
addProjection(elec_fs, "ELEC_FS");
/// Get muons which pass the initial kinematic cuts:
IdentifiedFinalState muon_fs(Cuts::abseta < 2.5 && Cuts::pT > 20*GeV);
muon_fs.acceptIdPair(PID::MUON);
addProjection(muon_fs, "MUON_FS");
/// Get all neutrinos. These will not be used to form jets.
/// We'll use the highest 2 pT neutrinos to calculate the MET
IdentifiedFinalState neutrino_fs(Cuts::abseta < 4.5);
neutrino_fs.acceptNeutrinos();
addProjection(neutrino_fs, "NEUTRINO_FS");
// Final state used as input for jet-finding.
// We include everything except the muons and neutrinos
VetoedFinalState jet_input(fs);
jet_input.vetoNeutrinos();
jet_input.addVetoPairId(PID::MUON);
addProjection(jet_input, "JET_INPUT");
// Get the jets
FastJets jets(jet_input, FastJets::ANTIKT, 0.4);
addProjection(jets, "JETS");
// Initialise weight counter
m_total_weight = 0.0;
// Init histogramming for the various regions
m_plots[0].region_index = 1;
m_plots[0].y_low = 0.0;
m_plots[0].y_high = 0.8;
initializePlots(m_plots[0]);
//
m_plots[1].region_index = 2;
m_plots[1].y_low = 0.8;
m_plots[1].y_high = 1.5;
initializePlots(m_plots[1]);
//
m_plots[2].region_index = 3;
m_plots[2].y_low = 1.5;
m_plots[2].y_high = 2.1;
initializePlots(m_plots[2]);
//
m_plots[3].region_index = 4;
m_plots[3].y_low = 0.0;
m_plots[3].y_high = 2.1;
initializePlots(m_plots[3]);
}
Definition at line 107 of file ATLAS_2012_I1094568.cc. References ATLAS_2012_I1094568_Plots::_d_gapFraction_Q0, ATLAS_2012_I1094568_Plots::_d_gapFraction_Qsum, ATLAS_2012_I1094568_Plots::_h_vetoJetPt_Q0, ATLAS_2012_I1094568_Plots::_h_vetoJetPt_Qsum, Analysis::bookHisto1D(), Analysis::bookScatter2D(), Analysis::refData(), ATLAS_2012_I1094568_Plots::region_index, Rivet::to_str(), ATLAS_2012_I1094568_Plots::vetoJetPt_Q0, and ATLAS_2012_I1094568_Plots::vetoJetPt_Qsum. Referenced by ATLAS_2012_I1094568::init(). {
const string vetoPt_Q0_name = "TMP/vetoJetPt_Q0_" + to_str(plots.region_index);
plots.vetoJetPt_Q0 = 0.0;
plots._h_vetoJetPt_Q0 = bookHisto1D(vetoPt_Q0_name, 200, 0.0, 1000.0);
plots._d_gapFraction_Q0 = bookScatter2D(plots.region_index, 1, 1);
foreach (Point2D p, refData(plots.region_index, 1, 1).points()) {
p.setY(0, 0);
plots._d_gapFraction_Q0->addPoint(p);
}
const string vetoPt_Qsum_name = "TMP/vetoJetPt_Qsum_" + to_str(plots.region_index);
plots._h_vetoJetPt_Qsum = bookHisto1D(vetoPt_Qsum_name, 200, 0.0, 1000.0);
plots._d_gapFraction_Qsum = bookScatter2D(plots.region_index, 2, 1);
plots.vetoJetPt_Qsum = 0.0;
foreach (Point2D p, refData(plots.region_index, 2, 1).points()) {
p.setY(0, 0);
plots._d_gapFraction_Qsum->addPoint(p);
}
}
Get the Inspire ID code for this analysis. Definition at line 119 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::inspireId().
Helper for converting a differential histo to an integral one.
Definition at line 700 of file Analysis.cc.
Helper for converting a differential histo to an integral one.
Definition at line 707 of file Analysis.cc.
Check if analysis is compatible with the provided beam particle IDs and energies. Definition at line 101 of file Analysis.cc. Referenced by Analysis::isCompatible(). {
return isCompatible(beams.first.pid(), beams.second.pid(),
beams.first.energy(), beams.second.energy());
}
Check if analysis is compatible with the provided beam particle IDs and energies. Definition at line 107 of file Analysis.cc. References Analysis::beams(), and Analysis::isCompatible(). {
PdgIdPair beams(beam1, beam2);
pair<double,double> energies(e1, e2);
return isCompatible(beams, energies);
}
Check if analysis is compatible with the provided beam particle IDs and energies.
Get the internal histogram name for given d, x and y (cf. HepData) Definition at line 67 of file Analysis.cc. Referenced by Analysis::bookHisto1D(), Analysis::bookProfile1D(), Analysis::bookScatter2D(), Analysis::getHisto1D(), Analysis::getProfile1D(), Analysis::getScatter2D(), Analysis::histoPath(), and Analysis::refData(). {
stringstream axisCode;
axisCode << "d";
if (datasetId < 10) axisCode << 0;
axisCode << datasetId;
axisCode << "-x";
if (xAxisId < 10) axisCode << 0;
axisCode << xAxisId;
axisCode << "-y";
if (yAxisId < 10) axisCode << 0;
axisCode << yAxisId;
return axisCode.str();
}
Get the name of the analysis. By default this is computed by combining the results of the experiment, year and Spires ID metadata methods and you should only override it if there's a good reason why those won't work. Implements ProjectionApplier. Definition at line 114 of file Analysis.hh. References Analysis::_defaultname, Analysis::info(), and AnalysisInfo::name(). Referenced by Analysis::_cacheRefData(), Analysis::Analysis(), Analysis::bookHisto1D(), Analysis::bookHisto2D(), Analysis::bookProfile1D(), Analysis::bookProfile2D(), Analysis::bookScatter2D(), Analysis::crossSection(), Analysis::getHisto1D(), Analysis::getLog(), Analysis::getProfile1D(), Analysis::getScatter2D(), Analysis::histoDir(), Analysis::normalize(), Analysis::refData(), and Analysis::scale(). {
return (info().name().empty()) ? _defaultname : info().name();
}
Return true if this analysis needs to know the process cross-section.
Definition at line 229 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::needsCrossSection(). {
return info().needsCrossSection();
}
Normalize the given histogram, histo, to area = norm.
Definition at line 652 of file Analysis.cc. References MSG_ERROR, MSG_TRACE, MSG_WARNING, and Analysis::name(). Referenced by CMS_2011_S8950903::finalize(), TOTEM_2012_002::finalize(), CMS_2011_S8968497::finalize(), CMS_2012_I1090423::finalize(), D0_2010_S8671338::finalize(), D0_2007_S7075677::finalize(), MC_JETTAGS::finalize(), CDF_2009_NOTE_9936::finalize(), D0_2008_S7554427::finalize(), MC_HINC::finalize(), MC_ZJETS::finalize(), EXAMPLE_CUTS::finalize(), MC_HJETS::finalize(), BABAR_2005_S6181155::finalize(), CMS_2013_I1265659::finalize(), MC_ZINC::finalize(), ALICE_2010_S8624100::finalize(), ATLAS_2011_S8971293::finalize(), ALICE_2010_S8625980::finalize(), CDF_1996_S3418421::finalize(), D0_2009_S8320160::finalize(), CDF_1993_S2742446::finalize(), CMS_2011_S8957746::finalize(), D0_1996_S3324664::finalize(), ATLAS_2012_I1119557::finalize(), CMS_2013_I1273574::finalize(), DELPHI_1995_S3137023::finalize(), D0_2010_S8821313::finalize(), SLD_2002_S4869273::finalize(), MC_ZZJETS::finalize(), ATLAS_2011_I925932::finalize(), CMS_2013_I1272853::finalize(), D0_1996_S3214044::finalize(), D0_2008_S6879055::finalize(), CDF_1996_S3108457::finalize(), ATLAS_2014_I1300647::finalize(), ATLAS_2012_I1204784::finalize(), EXAMPLE::finalize(), CDF_1994_S2952106::finalize(), CMS_2013_I1224539_DIJET::finalize(), JADE_1998_S3612880::finalize(), ALEPH_2001_S4656318::finalize(), DELPHI_2002_069_CONF_603::finalize(), D0_2004_S5992206::finalize(), OPAL_1997_S3396100::finalize(), MC_PHOTONS::finalize(), MC_HFJETS::finalize(), MC_GENERIC::finalize(), D0_2001_S4674421::finalize(), MC_ZZINC::finalize(), OPAL_2001_S4553896::finalize(), ATLAS_2013_I1217867::finalize(), CMS_2012_I1107658::finalize(), TASSO_1990_S2148048::finalize(), CMS_2013_I1209721::finalize(), ATLAS_2013_I1217863_Z::finalize(), STAR_2008_S7869363::finalize(), ATLAS_2013_I1217863_W::finalize(), OPAL_1998_S3780481::finalize(), CDF_1997_S3541940::finalize(), CMS_2013_I1224539_WJET::finalize(), CMS_2013_I1256943::finalize(), CMS_2013_I1224539_ZJET::finalize(), DELPHI_2003_WUD_03_11::finalize(), JADE_OPAL_2000_S4300807::finalize(), ATLAS_2014_I1298811::finalize(), ATLAS_2012_I1124167::finalize(), CMS_2014_I1303894::finalize(), H1_1994_S2919893::finalize(), CDF_2001_S4751469::finalize(), MC_TTBAR::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2013_I1190187::finalize(), CDF_2004_S5839831::finalize(), CDF_1996_S3349578::finalize(), ATLAS_2012_I1094564::finalize(), ATLAS_2012_I1203852::finalize(), ALEPH_1996_S3486095::finalize(), DELPHI_1996_S3430090::finalize(), ATLAS_2014_I1279489::finalizePlots(), CMS_2013_I1258128::normalizeByContents(), and ATLAS_2011_I919017::safeinvscale(). {
if (!histo) {
MSG_ERROR("Failed to normalize histo=NULL in analysis " << name() << " (norm=" << norm << ")");
return;
}
MSG_TRACE("Normalizing histo " << histo->path() << " to " << norm);
try {
histo->normalize(norm, includeoverflows);
} catch (YODA::Exception& we) {
MSG_WARNING("Could not normalize histo " << histo->path());
return;
}
}
Normalize the given histogram, histo, to area = norm.
Get the number of events seen (via the analysis handler). Use in the finalize phase only. Definition at line 88 of file Analysis.cc. References Analysis::handler(), and AnalysisHandler::numEvents(). Referenced by STAR_2008_S7993412::analyze(), STAR_2006_S6870392::analyze(), CDF_2008_S7540469::analyze(), D0_2008_S7863608::analyze(), D0_2009_S8349509::analyze(), ATLAS_2014_I1325553::finalize(), ATLAS_2013_I1219109::finalize(), ATLAS_2013_I1217863_Z::finalize(), ATLAS_2013_I1217863_W::finalize(), ATLAS_2014_I1307756::finalize(), and ATLAS_2014_I1307243::finalize().
Get reference data for a named histo. Definition at line 183 of file Analysis.cc. References Analysis::_cacheRefData(), Analysis::_refdata, MSG_ERROR, MSG_TRACE, and Analysis::name(). Referenced by ATLAS_2011_S8994773::analyze(), CDF_2001_S4751469::analyze(), ATLAS_2010_S8894728::analyze(), Analysis::bookHisto1D(), Analysis::bookProfile1D(), Analysis::bookScatter2D(), OPAL_2002_S5361494::finalize(), DELPHI_2000_S4328825::finalize(), ATLAS_2011_S9128077::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2010_S8894728::init(), ALICE_2011_S8909580::init(), LHCB_2013_I1208105::init(), ATLAS_2011_S9002537::init(), CMS_2011_S9088458::init(), STAR_2006_S6500200::init(), ATLAS_2011_S9128077::init(), CMS_2012_I1102908::init(), CDF_1994_S2952106::init(), ATLAS_2012_I1188891::init(), D0_2008_S7837160::init(), CMS_2013_I1218372::init(), LHCB_2011_I917009::init(), LHCB_2012_I1119400::init(), CDF_1996_S3418421::init(), ATLAS_2012_I1093734::init(), SLD_1999_S3743934::init(), ATLAS_2014_I1279489::initialisePlots(), ATLAS_2012_I1125575::initializeHistograms(), ATLAS_2012_I1094568::initializePlots(), ATLAS_2011_S9126244::initializePlots(), and Analysis::refData().
Get reference data for a numbered histo. Definition at line 194 of file Analysis.cc. References Analysis::makeAxisCode(), and Analysis::refData(). {
const string hname = makeAxisCode(datasetId, xAxisId, yAxisId);
return refData(hname);
}
Journal, and preprint references. Definition at line 180 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::references(). {
return info().references();
}
Unregister a data object from the histogram system (by name) Definition at line 725 of file Analysis.cc. References Analysis::_analysisobjects. Referenced by ATLAS_2014_I1279489::finalizeEfficiencies(). {
for (vector<AnalysisObjectPtr>::iterator it = _analysisobjects.begin(); it != _analysisobjects.end(); ++it) {
if ((*it)->path() == path) {
_analysisobjects.erase(it);
break;
}
}
}
Unregister a data object from the histogram system (by pointer) Definition at line 734 of file Analysis.cc. References Analysis::_analysisobjects. {
for (vector<AnalysisObjectPtr>::iterator it = _analysisobjects.begin(); it != _analysisobjects.end(); ++it) {
if (*it == ao) {
_analysisobjects.erase(it);
break;
}
}
}
Return the allowed pairs of incoming beams required by this analysis. Definition at line 206 of file Analysis.hh. References AnalysisInfo::beams(), and Analysis::info().
Sets of valid beam energy pairs, in GeV. Definition at line 217 of file Analysis.hh. References AnalysisInfo::energies(), and Analysis::info(). Referenced by Analysis::setRequiredEnergies().
Information about the events needed as input for this analysis. Event types, energies, kinematic cuts, particles to be considered stable, etc. etc. Should be treated as a restructuredText bullet list (http://docutils.sourceforge.net/rst.html) Definition at line 160 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::runInfo().
Multiplicatively scale the given histogram, histo, by factor scale.
Definition at line 667 of file Analysis.cc. References MSG_ERROR, MSG_TRACE, MSG_WARNING, and Analysis::name(). Referenced by MC_JetSplittings::finalize(), MC_JetAnalysis::finalize(), MC_ParticleAnalysis::finalize(), CDF_2006_S6450792::finalize(), ALEPH_1991_S2435284::finalize(), D0_2000_S4480767::finalize(), TOTEM_2012_I1115294::finalize(), E735_1998_S3905616::finalize(), D0_2010_S8671338::finalize(), ATLAS_2010_S8591806::finalize(), CDF_2001_S4563131::finalize(), MC_XS::finalize(), UA5_1987_S1640666::finalize(), CDF_2007_S7057202::finalize(), CDF_2008_S8093652::finalize(), BELLE_2013_I1216515::finalize(), CDF_2000_S4155203::finalize(), BABAR_2007_S6895344::finalize(), CDF_2000_S4266730::finalize(), CMS_2011_S8941262::finalize(), BELLE_2008_I786560::finalize(), CDF_1998_S3618439::finalize(), CMS_2012_I1184941::finalize(), LHCB_2012_I1208102::finalize(), CDF_1990_S2089246::finalize(), CMS_2012_I1087342::finalize(), CMS_2010_S8656010::finalize(), CMS_2011_I954992::finalize(), CDF_1988_S1865951::finalize(), UA5_1982_S875503::finalize(), ATLAS_2012_I1118269::finalize(), MC_WJETS::finalize(), BABAR_2005_S6181155::finalize(), ATLAS_2011_I894867::finalize(), CMSTOTEM_2014_I1294140::finalize(), CDF_2009_S8383952::finalize(), STAR_2006_S6870392::finalize(), CMS_QCD_10_024::finalize(), LHCB_2010_I867355::finalize(), BELLE_2001_S4598261::finalize(), OPAL_1995_S3198391::finalize(), CMS_2010_S8547297::finalize(), OPAL_1994_S2927284::finalize(), OPAL_1997_S3608263::finalize(), OPAL_2000_S4418603::finalize(), CDF_2009_S8436959::finalize(), CMS_2012_I1193338::finalize(), LHCB_2011_I919315::finalize(), ALICE_2010_S8625980::finalize(), D0_2011_I895662::finalize(), MC_PDFS::finalize(), ALEPH_2002_S4823664::finalize(), ALICE_2010_S8706239::finalize(), OPAL_1996_S3257789::finalize(), UA5_1989_S1926373::finalize(), ATLAS_2014_I1288706::finalize(), CDF_2005_S6080774::finalize(), DELPHI_1999_S3960137::finalize(), ATLAS_2014_I1282441::finalize(), ALICE_2011_S8945144::finalize(), MC_IDENTIFIED::finalize(), OPAL_1998_S3702294::finalize(), BABAR_2013_I1238276::finalize(), D0_2006_S6438750::finalize(), MC_DIPHOTON::finalize(), CMS_2013_I1273574::finalize(), ALICE_2011_S8909580::finalize(), STAR_2006_S6500200::finalize(), UA5_1986_S1583476::finalize(), MC_PHOTONINC::finalize(), ATLAS_2011_S9131140::finalize(), CMS_2011_S8978280::finalize(), D0_2000_I499943::finalize(), H1_1995_S3167097::finalize(), BABAR_2003_I593379::finalize(), PDG_TAUS::finalize(), ALICE_2012_I1181770::finalize(), D0_2008_S7863608::finalize(), D0_2008_S7662670::finalize(), MC_WINC::finalize(), ARGUS_1993_S2653028::finalize(), CLEO_2004_S5809304::finalize(), ATLAS_2011_S9035664::finalize(), D0_2009_S8202443::finalize(), D0_2008_S6879055::finalize(), CMS_2011_S9215166::finalize(), MC_PHOTONJETS::finalize(), ATLAS_2010_CONF_2010_049::finalize(), ATLAS_2011_I954993::finalize(), MC_WWJETS::finalize(), ALEPH_1999_S4193598::finalize(), BABAR_2007_S7266081::finalize(), CDF_2009_S8233977::finalize(), CMS_2014_I1298810::finalize(), SLD_1996_S3398250::finalize(), CMS_2013_I1261026::finalize(), ATLAS_2011_I930220::finalize(), ATLAS_2013_I1219109::finalize(), SFM_1984_S1178091::finalize(), CMS_2012_I941555::finalize(), OPAL_1998_S3749908::finalize(), D0_2010_S8570965::finalize(), D0_2009_S8349509::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2012_I946427::finalize(), ATLAS_2012_I1082009::finalize(), CDF_2008_S7541902::finalize(), ARGUS_1993_S2669951::finalize(), ATLAS_2010_S8919674::finalize(), UA1_1990_S2044935::finalize(), ATLAS_2011_I921594::finalize(), ATLAS_2013_I1263495::finalize(), MC_WPOL::finalize(), MC_WWINC::finalize(), CMS_2012_I1107658::finalize(), ATLAS_2014_I1312627::finalize(), ALEPH_1996_S3196992::finalize(), CDF_2006_S6653332::finalize(), ATLAS_2013_I1217863_Z::finalize(), OPAL_1993_S2692198::finalize(), D0_2008_S7719523::finalize(), ATLAS_2013_I1217863_W::finalize(), CDF_2008_S8095620::finalize(), OPAL_1998_S3780481::finalize(), STAR_2006_S6860818::finalize(), CMS_2013_I1218372::finalize(), ATLAS_2012_I1091481::finalize(), ATLAS_2011_S9128077::finalize(), ATLAS_2011_I926145::finalize(), LHCB_2014_I1281685::finalize(), ATLAS_2010_S8918562::finalize(), JADE_OPAL_2000_S4300807::finalize(), ATLAS_2014_I1306294::finalize(), ATLAS_2011_S9108483::finalize(), CDF_2008_S7540469::finalize(), ATLAS_2012_I1199269::finalize(), ATLAS_2010_S8914702::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2014_I1304688::finalize(), ATLAS_2012_I1183818::finalize(), ATLAS_2012_CONF_2012_105::finalize(), OPAL_2004_S6132243::finalize(), ARGUS_1993_S2789213::finalize(), ATLAS_2012_CONF_2012_104::finalize(), H1_1994_S2919893::finalize(), ATLAS_2011_S9120807::finalize(), ATLAS_2012_I1186556::finalize(), ATLAS_2012_I1084540::finalize(), MC_VH2BB::finalize(), ATLAS_2012_CONF_2012_103::finalize(), ATLAS_2011_I944826::finalize(), H1_2000_S4129130::finalize(), ATLAS_2013_I1230812::finalize(), ATLAS_2012_I1117704::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2011_I945498::finalize(), ATLAS_2013_I1190187::finalize(), ATLAS_2012_I1093738::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2011_S9225137::finalize(), ATLAS_2014_I1306615::finalize(), ATLAS_2012_CONF_2012_001::finalize(), ATLAS_2012_I1203852::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), ALEPH_1996_S3486095::finalize(), ATLAS_2012_CONF_2012_153::finalize(), DELPHI_1996_S3430090::finalize(), SLD_1999_S3743934::finalize(), ATLAS_2012_I1204447::finalize(), ATLAS_2011_S9212353::finalize(), ATLAS_2011_S9041966::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), ATLAS_2012_I1125575::finalizeHistograms(), ATLAS_2011_I919017::safeinvscale(), and BinnedHistogram< T >::scale(). {
if (!histo) {
MSG_ERROR("Failed to scale histo=NULL in analysis " << name() << " (scale=" << scale << ")");
return;
}
if (std::isnan(scale) || std::isinf(scale)) {
MSG_ERROR("Failed to scale histo=" << histo->path() << " in analysis: " << name() << " (invalid scale factor = " << scale << ")");
scale = 0;
}
MSG_TRACE("Scaling histo " << histo->path() << " by factor " << scale);
try {
histo->scaleW(scale);
} catch (YODA::Exception& we) {
MSG_WARNING("Could not scale histo " << histo->path());
return;
}
// // Transforming the histo into a scatter after scaling
// vector<double> x, y, ex, ey;
// for (size_t i = 0, N = histo->numBins(); i < N; ++i) {
// x.push_back( histo->bin(i).midpoint() );
// ex.push_back(histo->bin(i).width()*0.5);
// y.push_back(histo->bin(i).height()*scale);
// ey.push_back(histo->bin(i).heightErr()*scale);
// }
// string title = histo->title();
// Scatter2DPtr dps( new Scatter2D(x, y, ex, ey, hpath, title) );
// addAnalysisObject(dps);
}
Multiplicatively scale the given histogram, histo, by factor scale.
Set the cross section from the generator. Definition at line 149 of file Analysis.cc. References Analysis::_crossSection, and Analysis::_gotCrossSection. {
_crossSection = xs;
_gotCrossSection = true;
return *this;
}
Declare whether this analysis needs to know the process cross-section from the generator.
Definition at line 234 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::setNeedsCrossSection(). Referenced by ATLAS_2011_I954993::ATLAS_2011_I954993(), ATLAS_2014_I1306294::ATLAS_2014_I1306294(), ATLAS_2014_I1312627::ATLAS_2014_I1312627(), MC_JetAnalysis::MC_JetAnalysis(), MC_JetSplittings::MC_JetSplittings(), and MC_ParticleAnalysis::MC_ParticleAnalysis(). {
info().setNeedsCrossSection(needed);
return *this;
}
Declare the allowed pairs of incoming beams required by this analysis. Definition at line 210 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::setBeams().
Declare the list of valid beam energy pairs, in GeV. Definition at line 221 of file Analysis.hh. References Analysis::info(), Analysis::requiredEnergies(), and AnalysisInfo::setEnergies(). {
info().setEnergies(requiredEnergies);
return *this;
}
Get the SPIRES ID code for this analysis (~deprecated). Definition at line 124 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::spiresId().
Centre of mass energy for this run. Definition at line 27 of file Analysis.cc. References Analysis::handler(), and AnalysisHandler::sqrtS(). Referenced by ATLAS_2011_I894867::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), CMS_2012_I1193338::analyze(), TOTEM_2012_002::analyze(), CMS_2012_I1184941::analyze(), SLD_2004_S5693039::analyze(), CMS_2011_I954992::analyze(), ALICE_2012_I1181770::analyze(), CMS_2011_S9215166::analyze(), SFM_1984_S1178091::analyze(), ALICE_2010_S8625980::analyze(), UA1_1990_S2044935::analyze(), CMS_2013_I1218372::analyze(), JADE_1998_S3612880::analyze(), TASSO_1990_S2148048::analyze(), ATLAS_2013_I1190187::analyze(), MC_TTBAR::analyze(), ATLAS_2010_S8894728::analyze(), ATLAS_2010_S8918562::analyze(), ALEPH_2004_S5765862::analyze(), CDF_2004_S5839831::analyze(), ATLAS_2012_I1203852::analyze(), ALICE_2010_S8625980::finalize(), DELPHI_2000_S4328825::finalize(), OPAL_2002_S5361494::finalize(), JADE_1998_S3612880::finalize(), UA1_1990_S2044935::finalize(), ATLAS_2010_S8918562::finalize(), ATLAS_2012_I1093734::finalize(), ALEPH_2004_S5765862::finalize(), CDF_2004_S5839831::finalize(), PDG_HADRON_MULTIPLICITIES_RATIOS::finalize(), PDG_HADRON_MULTIPLICITIES::finalize(), ATLAS_2010_S8894728::init(), CMS_2010_S8547297::init(), ALICE_2012_I1181770::init(), ATLAS_2011_S8994773::init(), CMSTOTEM_2014_I1294140::init(), CMS_2011_S9215166::init(), ATLAS_2012_I1091481::init(), CMS_2011_S8978280::init(), CDF_2012_NOTE10874::init(), CMS_QCD_10_024::init(), SFM_1984_S1178091::init(), MC_HINC::init(), UA5_1989_S1926373::init(), MC_JetSplittings::init(), MC_WWINC::init(), MC_ZZINC::init(), ATLAS_2011_I944826::init(), MC_WINC::init(), MC_DIPHOTON::init(), MC_ZINC::init(), MC_ZZJETS::init(), MC_JetAnalysis::init(), MC_PHOTONINC::init(), UA5_1986_S1583476::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), MC_ParticleAnalysis::init(), MC_WWJETS::init(), UA1_1990_S2044935::init(), ALEPH_2004_S5765862::init(), JADE_1998_S3612880::init(), ALICE_2010_S8624100::init(), JADE_OPAL_2000_S4300807::init(), ALICE_2010_S8625980::init(), CMS_2013_I1218372::init(), LHCB_2012_I1119400::init(), UA5_1988_S1867512::init(), LHCB_2011_I917009::init(), MC_PHOTONS::init(), MC_WPOL::init(), TASSO_1990_S2148048::init(), ATLAS_2010_S8918562::init(), OPAL_2004_S6132243::init(), CDF_2004_S5839831::init(), ATLAS_2012_I1094061::init(), ATLAS_2012_I1093734::init(), PDG_HADRON_MULTIPLICITIES::init(), and PDG_HADRON_MULTIPLICITIES_RATIOS::init().
Whether this analysis is trusted (in any way!) Definition at line 195 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::status().
Get a short description of the analysis. Short (one sentence) description used as an index entry. Use description() to provide full descriptive paragraphs of analysis details. Definition at line 141 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::summary().
Get the sum of event weights seen (via the analysis handler). Use in the finalize phase only. Definition at line 93 of file Analysis.cc. References Analysis::handler(), and AnalysisHandler::sumOfWeights(). Referenced by Analysis::crossSectionPerEvent(), MC_JetSplittings::finalize(), MC_JetAnalysis::finalize(), MC_ParticleAnalysis::finalize(), CDF_2006_S6450792::finalize(), ALEPH_1991_S2435284::finalize(), D0_2000_S4480767::finalize(), CMS_2011_S9086218::finalize(), CDF_2001_S4563131::finalize(), CDF_2008_S7828950::finalize(), D0_2010_S8671338::finalize(), LHCF_2012_I1115479::finalize(), MC_XS::finalize(), BELLE_2013_I1216515::finalize(), CDF_2008_S8093652::finalize(), CDF_2000_S4155203::finalize(), BABAR_2007_S6895344::finalize(), CDF_2000_S4266730::finalize(), CMS_2011_S8941262::finalize(), CDF_1998_S3618439::finalize(), CMS_2012_I1184941::finalize(), CMS_2012_I1087342::finalize(), LHCB_2012_I1208102::finalize(), CMS_2010_S8656010::finalize(), CMS_2011_I954992::finalize(), ATLAS_2012_I1118269::finalize(), MC_WJETS::finalize(), BABAR_2005_S6181155::finalize(), ATLAS_2011_I894867::finalize(), CDF_2001_S4517016::finalize(), CDF_2009_S8383952::finalize(), STAR_2006_S6870392::finalize(), D0_2010_S8566488::finalize(), LHCB_2010_I867355::finalize(), OPAL_1995_S3198391::finalize(), CMS_2010_S8547297::finalize(), OPAL_1994_S2927284::finalize(), OPAL_1997_S3608263::finalize(), OPAL_2000_S4418603::finalize(), CDF_2009_S8436959::finalize(), CMS_2012_I1193338::finalize(), D0_2011_I895662::finalize(), MC_PDFS::finalize(), ALEPH_2002_S4823664::finalize(), OPAL_1996_S3257789::finalize(), CDF_2005_S6080774::finalize(), ATLAS_2014_I1288706::finalize(), ATLAS_2014_I1325553::finalize(), BABAR_2013_I1238276::finalize(), OPAL_1998_S3702294::finalize(), DELPHI_1999_S3960137::finalize(), ATLAS_2014_I1282441::finalize(), ALICE_2011_S8945144::finalize(), MC_IDENTIFIED::finalize(), D0_2006_S6438750::finalize(), MC_DIPHOTON::finalize(), CMS_2013_I1273574::finalize(), DELPHI_1995_S3137023::finalize(), ALICE_2011_S8909580::finalize(), CMS_2011_S8978280::finalize(), D0_2000_I499943::finalize(), ALICE_2012_I1181770::finalize(), MC_WINC::finalize(), CLEO_2004_S5809304::finalize(), D0_2008_S7662670::finalize(), D0_2008_S7863608::finalize(), ATLAS_2011_S9035664::finalize(), ATLAS_2010_CONF_2010_049::finalize(), ATLAS_2011_I954993::finalize(), MC_WWJETS::finalize(), CDF_2009_S8233977::finalize(), CMS_2014_I1298810::finalize(), LHCB_2013_I1218996::finalize(), ATLAS_2013_I1219109::finalize(), OPAL_1998_S3749908::finalize(), OPAL_1997_S3396100::finalize(), D0_2010_S8570965::finalize(), CMS_2011_S8973270::finalize(), ATLAS_2012_I946427::finalize(), CDF_2008_S7541902::finalize(), ATLAS_2010_S8919674::finalize(), ATLAS_2011_I921594::finalize(), ATLAS_2013_I1263495::finalize(), MC_WWINC::finalize(), ATLAS_2014_I1312627::finalize(), CDF_2006_S6653332::finalize(), ATLAS_2013_I1217863_Z::finalize(), ALEPH_1996_S3196992::finalize(), OPAL_1993_S2692198::finalize(), ATLAS_2013_I1217863_W::finalize(), D0_2008_S7719523::finalize(), OPAL_1998_S3780481::finalize(), STAR_2006_S6860818::finalize(), ATLAS_2014_I1307756::finalize(), ATLAS_2011_I926145::finalize(), CMS_2013_I1256943::finalize(), JADE_OPAL_2000_S4300807::finalize(), ATLAS_2014_I1306294::finalize(), ATLAS_2011_S9108483::finalize(), CDF_2008_S7540469::finalize(), ATLAS_2012_I1199269::finalize(), ATLAS_2010_S8914702::finalize(), ATLAS_2014_I1307243::finalize(), ATLAS_2012_I1083318::finalize(), ATLAS_2014_I1304688::finalize(), ATLAS_2012_CONF_2012_105::finalize(), CMS_2014_I1303894::finalize(), ATLAS_2012_CONF_2012_104::finalize(), ATLAS_2011_S9120807::finalize(), ATLAS_2012_I1186556::finalize(), ATLAS_2012_I1084540::finalize(), MC_VH2BB::finalize(), ATLAS_2012_CONF_2012_103::finalize(), ATLAS_2012_I1117704::finalize(), ALEPH_2004_S5765862::finalize(), ATLAS_2013_I1190187::finalize(), ATLAS_2012_I1093738::finalize(), SLD_2004_S5693039::finalize(), ATLAS_2012_I1125961::finalize(), ATLAS_2011_CONF_2011_098::finalize(), ATLAS_2011_S8983313::finalize(), ATLAS_2012_I1126136::finalize(), ATLAS_2012_I1095236::finalize(), ATLAS_2012_I1190891::finalize(), ATLAS_2011_S9019561::finalize(), ATLAS_2012_I1112263::finalize(), ATLAS_2011_S9212183::finalize(), ATLAS_2012_CONF_2012_109::finalize(), ATLAS_2011_CONF_2011_090::finalize(), ATLAS_2011_S9225137::finalize(), ATLAS_2012_CONF_2012_001::finalize(), ATLAS_2012_I1203852::finalize(), ATLAS_2012_I943401::finalize(), ATLAS_2012_I1180197::finalize(), ALEPH_1996_S3486095::finalize(), ATLAS_2012_CONF_2012_153::finalize(), SLD_1999_S3743934::finalize(), ATLAS_2012_I1204447::finalize(), ATLAS_2011_S9212353::finalize(), ATLAS_2011_S9041966::finalize(), and PDG_HADRON_MULTIPLICITIES::finalize(). {
return handler().sumOfWeights();
}
Any work to be done on this analysis. Definition at line 200 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::todos().
When the original experimental analysis was published. Definition at line 175 of file Analysis.hh. References Analysis::info(), and AnalysisInfo::year(). Member Data Documentation
Flag to forbid projection registration in analyses until the init phase. Definition at line 143 of file ProjectionApplier.hh. Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().
Definition at line 359 of file ATLAS_2012_I1094568.cc. Referenced by ATLAS_2012_I1094568::analyze(), ATLAS_2012_I1094568::finalize(), and ATLAS_2012_I1094568::init().
Definition at line 356 of file ATLAS_2012_I1094568.cc. Referenced by ATLAS_2012_I1094568::analyze(), ATLAS_2012_I1094568::finalize(), and ATLAS_2012_I1094568::init(). The documentation for this class was generated from the following file: Generated on Tue Mar 24 2015 17:36:08 for The Rivet MC analysis system by
1.7.6.1
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
