WFinder Class Reference

Convenience finder of leptonically decaying Ws. More...

#include <WFinder.hh>

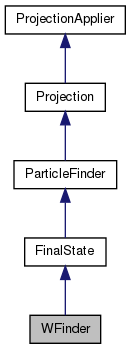

Inheritance diagram for WFinder:

Collaboration diagram for WFinder:

List of all members.

Public Types
enum	ClusterPhotons { NOCLUSTER = 0, CLUSTERNODECAY = 1, CLUSTERALL }
enum	PhotonTracking { NOTRACK = 0, TRACK = 1 }
enum	MassWindow { MASS = 0, TRANSMASS = 1 }
Public Member Functions
const Particles &	bosons () const
const Particle &	boson () const
	Access to the found boson (assuming it exists)
const Particles &	constituentLeptons () const
const Particle &	constituentLepton () const
	Access to the W constituent clustered lepton (assuming it exists)
const Particles &	constituentNeutrinos () const
const Particle &	constituentNeutrino () const
	Access to the W constituent neutrinos.
const FinalState &	remainingFinalState () const
double	mT () const
	Calculate the transverse mass of the W, from the charged lepton and neutrino.
void	clear ()
	Clear the projection.
virtual bool	accept (const Particle &p) const
	Decide if a particle is to be accepted or not.
bool	before (const Projection &p) const
virtual const std::set< PdgIdPair >	beamPairs () const
virtual std::string	name () const
	Get the name of the projection.
Projection &	addPdgIdPair (PdgId beam1, PdgId beam2)
	Add a colliding beam pair.
Log &	getLog () const
	Get a Log object based on the getName() property of the calling projection object.
void	setName (const std::string &name)
	Used by derived classes to set their name.
Constructors
	WFinder (const FinalState &inputfs, Cut cuts, PdgId pid, double minmass, double maxmass, double missingET, double dRmax=0.1, ClusterPhotons clusterPhotons=CLUSTERNODECAY, PhotonTracking trackPhotons=NOTRACK, MassWindow masstype=MASS, double masstarget=80.4 *GeV)
virtual const Projection *	clone () const
	Clone on the heap.
Particle accessors
virtual size_t	size () const
	Access the projected final-state particles.
virtual bool	empty () const
	Is this final state empty?
virtual bool	isEmpty () const
virtual const Particles &	particles () const
	Get the final-state particles in no particular order, with no cuts.
template<typename F >
Particles	particles (Cut c, F sorter) const
	Get the final-state particles, with optional cuts.
Particles	particlesByPt (Cut c=Cuts::open()) const
Particles	particlesByP (Cut c=Cuts::open()) const
Particles	particlesByE (Cut c=Cuts::open()) const
Particles	particlesByEt (Cut c=Cuts::open()) const
Particles	particlesByEta (Cut c=Cuts::open()) const
Particles	particlesByModEta (Cut c=Cuts::open()) const
Particles	particlesByRapidity (Cut c=Cuts::open()) const
Particles	particlesByModRapidity (Cut c=Cuts::open()) const
Projection "getting" functions
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ >
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
void	project (const Event &e)
	Apply the projection on the supplied event.
int	compare (const Projection &p) const
	Compare projections.
Cmp< Projection >	mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection >	mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
Projection registration functions
template<typename PROJ >
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
Cut	_cuts
	The applicable cuts.
Particles	_theParticles
	The final-state particles.
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Private Attributes
double	_minmass
	Transverse mass cuts.
double	_maxmass
double	_masstarget
bool	_useTransverseMass
double	_etMiss
	Missing ET cut.
PhotonTracking	_trackPhotons
PdgId	_pid
	Lepton flavour.
PdgId	_nu_pid
	Neutrino flavour.
Particles	_bosons
	list of found bosons (currently either 0 or 1)
Particles	_constituentLeptons
	Constituent leptons (currently either 0 or 1)
Particles	_constituentNeutrinos
	Constituent neutrinos (currently either 0 or 1)
Friends
class	Event
	Event is a friend.
class	Cmp< Projection >
	The Cmp specialization for Projection is a friend.
JetAlg compatibility
Minimum- requirement. Todo: Replace with cuts() accessor virtual Cut cuts() const { return _cuts; }
typedef Particle	entity_type
typedef Particles	collection_type
const collection_type &	entities () const
	Template-usable interface common to JetAlg.

---

Detailed Description

Convenience finder of leptonically decaying Ws.

Chain together different projections as convenience for finding W's from two leptons in the final state, including photon clustering.

Todo:

Inherit directly from ParticleFinder, not FinalState

Definition at line 16 of file WFinder.hh.

---

Member Typedef Documentation

typedef Particles collection_type [inherited]

Definition at line 131 of file ParticleFinder.hh.

typedef Particle entity_type [inherited]

Definition at line 130 of file ParticleFinder.hh.

---

Member Enumeration Documentation

enum ClusterPhotons

Enumerator:

NOCLUSTER
CLUSTERNODECAY
CLUSTERALL

Definition at line 19 of file WFinder.hh.

{ NOCLUSTER=0, CLUSTERNODECAY=1, CLUSTERALL };

enum MassWindow

Enumerator:

MASS
TRANSMASS

Definition at line 21 of file WFinder.hh.

{ MASS=0, TRANSMASS=1 };

enum PhotonTracking

Enumerator:

NOTRACK
TRACK

Definition at line 20 of file WFinder.hh.

{ NOTRACK=0, TRACK=1 };

---

Constructor & Destructor Documentation

WFinder	(	const FinalState &	inputfs,
		Cut	cuts,
		PdgId	pid,
		double	minmass,
		double	maxmass,
		double	missingET,
		double	dRmax = 0.1,
		ClusterPhotons	clusterPhotons = CLUSTERNODECAY,
		PhotonTracking	trackPhotons = NOTRACK,
		MassWindow	masstype = MASS,
		double	masstarget = 80.4*GeV
	)

Constructor taking cuts object

Parameters:

inputfs	Input final state
cuts	charged lepton cuts
pid	type of the charged lepton
minmass,maxmass	(transverse) mass window
missingET	minimal amount of missing ET (neutrinos) required
dRmax	maximum dR of photons around charged lepton to take into account for W reconstruction (only relevant if one of the following are true)
clusterPhotons	whether such photons are supposed to be clustered to the lepton object and thus W mom
trackPhotons	whether such photons should be added to _theParticles
masstype	whether mass window should be applied using m or mT

Definition at line 12 of file WFinder.cc.

References WFinder::_etMiss, WFinder::_masstarget, WFinder::_maxmass, WFinder::_minmass, WFinder::_nu_pid, WFinder::_pid, WFinder::_trackPhotons, WFinder::_useTransverseMass, IdentifiedFinalState::acceptIdPair(), IdentifiedFinalState::acceptNeutrinos(), ProjectionApplier::addProjection(), VetoedFinalState::addVetoOnThisFinalState(), WFinder::CLUSTERALL, Rivet::PID::ELECTRON, WFinder::MASS, Rivet::PID::MUON, WFinder::NOCLUSTER, Rivet::PID::NU_E, Rivet::PID::NU_MU, and Projection::setName().

Referenced by WFinder::clone().

                                      {
    setName("WFinder");

    _minmass = minmass;
    _maxmass = maxmass;
    _masstarget = masstarget;
    _pid = pid;
    _trackPhotons = trackPhotons;
    _useTransverseMass = (masstype == MASS);

    // Check that the arguments are legal
    assert(abs(_pid) == PID::ELECTRON || abs(_pid) == PID::MUON);
    _nu_pid = abs(_pid) + 1;
    assert(abs(_nu_pid) == PID::NU_E || abs(_nu_pid) == PID::NU_MU);

    // Don't make pT or eta cuts on the neutrino
    IdentifiedFinalState neutrinos(inputfs);
    neutrinos.acceptNeutrinos();
    addProjection(neutrinos, "Neutrinos");

    // Lepton clusters
    IdentifiedFinalState bareleptons(inputfs);
    bareleptons.acceptIdPair(pid);
    const bool doClustering = (clusterPhotons != NOCLUSTER);
    const bool useDecayPhotons = (clusterPhotons == CLUSTERALL);
    DressedLeptons leptons(inputfs, bareleptons, dRmax, doClustering, fsCut, useDecayPhotons);
    addProjection(leptons, "DressedLeptons");

    // Add MissingMomentum proj to calc MET
    MissingMomentum vismom(inputfs);
    addProjection(vismom, "MissingET");
    // Set ETmiss
    _etMiss = missingET;

    VetoedFinalState remainingFS;
    remainingFS.addVetoOnThisFinalState(*this);
    addProjection(remainingFS, "RFS");
  }

---

Member Function Documentation

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)		[protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

                                                                             {
    if (!_allowProjReg) {
      cerr << "Trying to register projection '"
           << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
      exit(2);
    }
    const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
    return reg;
  }

bool accept

(

const Particle &

p

)

const [virtual, inherited]

Decide if a particle is to be accepted or not.

Decide if a particle is to be accepted or not.

Todo:

Rename to _accept or acceptFinal?

Definition at line 99 of file FinalState.cc.

References ParticleFinder::_cuts, and Particle::genParticle().

Referenced by InvMassFinalState::calc(), FinalState::project(), LeadingParticlesFinalState::project(), and DressedLeptons::project().

                                                 {
    // Not having s.c. == 1 should never happen!
    assert(p.genParticle() == NULL || p.genParticle()->status() == 1);

    return _cuts->accept(p);
  }

Projection& addPdgIdPair	(	PdgId	beam1,
		PdgId	beam2
	)		[inline, inherited]

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

                                                       {
      _beamPairs.insert(PdgIdPair(beam1, beam2));
      return *this;
    }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)		[inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 116 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by TauFinder::_init(), FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), DressedLeptons::DressedLeptons(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), HeavyHadrons::HeavyHadrons(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ATLAS_2010_S8894728::init(), CMS_2010_S8547297::init(), CMS_2010_S8656010::init(), ALICE_2012_I1181770::init(), ATLAS_2011_S8994773::init(), CMS_2011_S8950903::init(), CMS_2012_PAS_QCD_11_010::init(), CMS_2011_S8941262::init(), CMS_2011_S8968497::init(), CMS_2011_S8973270::init(), CMS_2011_S8978280::init(), ATLAS_2014_I1298811::init(), ALICE_2011_S8909580::init(), CMS_2012_I1090423::init(), CMSTOTEM_2014_I1294140::init(), ATLAS_2010_CONF_2010_049::init(), ATLAS_2011_I894867::init(), LHCB_2013_I1208105::init(), CDF_2007_S7057202::init(), ALICE_2011_S8945144::init(), TOTEM_2012_I1115294::init(), ATLAS_2014_I1282441::init(), CMS_2011_S9086218::init(), CMS_2011_S9215166::init(), CMS_2012_I1087342::init(), CMS_2012_I1184941::init(), CMS_2012_I1193338::init(), ATLAS_2010_S8591806::init(), CMS_2013_I1265659::init(), D0_2011_I895662::init(), LHCF_2012_I1115479::init(), ATLAS_2011_I930220::init(), CMS_2011_I954992::init(), TOTEM_2012_002::init(), CMS_2011_S8957746::init(), CMS_2011_S9088458::init(), ATLAS_2011_S9002537::init(), CMS_2013_I1273574::init(), D0_2010_S8570965::init(), CDF_2012_NOTE10874::init(), ATLAS_2012_I1124167::init(), STAR_2006_S6500200::init(), STAR_2008_S7993412::init(), UA5_1987_S1640666::init(), CMS_QCD_10_024::init(), CDF_1997_S3541940::init(), ATLAS_2011_S9128077::init(), BELLE_2008_I786560::init(), CDF_1993_S2742446::init(), ARGUS_1993_S2789213::init(), CDF_2000_S4155203::init(), CDF_2005_S6080774::init(), CDF_2006_S6450792::init(), SFM_1984_S1178091::init(), BABAR_2007_S7266081::init(), CMS_2013_I1261026::init(), D0_2008_S6879055::init(), ATLAS_2012_I1091481::init(), UA5_1982_S875503::init(), CDF_2008_S7782535::init(), CDF_2008_S8093652::init(), ATLAS_2012_I1204447::init(), STAR_2006_S6870392::init(), ARGUS_1993_S2669951::init(), UA5_1989_S1926373::init(), CMS_2013_I1272853::init(), D0_2000_I499943::init(), ALEPH_1991_S2435284::init(), E735_1998_S3905616::init(), ATLAS_2012_I1183818::init(), ATLAS_2013_I1243871::init(), ATLAS_2014_I1268975::init(), CMS_2012_I1102908::init(), ATLAS_2011_S9035664::init(), ALEPH_2002_S4823664::init(), D0_1996_S3324664::init(), D0_2007_S7075677::init(), CDF_1988_S1865951::init(), CDF_1990_S2089246::init(), DELPHI_1999_S3960137::init(), ATLAS_2010_S8817804::init(), ATLAS_2011_S8924791::init(), ALEPH_1996_S3196992::init(), CDF_2005_S6217184::init(), OPAL_1995_S3198391::init(), OPAL_1996_S3257789::init(), OPAL_1997_S3608263::init(), OPAL_1998_S3702294::init(), OPAL_1998_S3749908::init(), OPAL_2000_S4418603::init(), UA5_1986_S1583476::init(), D0_2001_S4674421::init(), D0_2008_S7554427::init(), CDF_1994_S2952106::init(), H1_1995_S3167097::init(), UA1_1990_S2044935::init(), ZEUS_2001_S4815815::init(), LHCB_2011_I919315::init(), ATLAS_2012_I1119557::init(), CDF_2008_S7540469::init(), CDF_2008_S7828950::init(), ATLAS_2014_I1307756::init(), ATLAS_2012_I1188891::init(), CDF_2008_S8095620::init(), DELPHI_1995_S3137023::init(), EXAMPLE::init(), JADE_1998_S3612880::init(), JADE_OPAL_2000_S4300807::init(), STAR_2006_S6860818::init(), OPAL_1997_S3396100::init(), ALEPH_2004_S5765862::init(), ALICE_2010_S8624100::init(), D0_1996_S3214044::init(), STAR_2009_UE_HELEN::init(), ATLAS_2012_I1125575::init(), ALICE_2010_S8625980::init(), LHCB_2013_I1218996::init(), CDF_2009_NOTE_9936::init(), CMS_2013_I1218372::init(), ALICE_2010_S8706239::init(), D0_2009_S8320160::init(), CDF_1998_S3618439::init(), CDF_2000_S4266730::init(), CDF_2001_S4563131::init(), ATLAS_2011_S8971293::init(), CDF_2009_S8383952::init(), CDF_2009_S8436959::init(), ATLAS_2013_I1263495::init(), CDF_1996_S3108457::init(), CDF_1996_S3349578::init(), DELPHI_2002_069_CONF_603::init(), ALEPH_2001_S4656318::init(), SLD_2002_S4869273::init(), ATLAS_2012_I1082936::init(), D0_2010_S8566488::init(), CDF_2001_S4517016::init(), D0_2006_S6438750::init(), UA5_1988_S1867512::init(), LHCB_2011_I917009::init(), LHCB_2012_I1119400::init(), ATLAS_2011_I921594::init(), CDF_1996_S3418421::init(), SLD_1996_S3398250::init(), CDF_2008_S7541902::init(), ATLAS_2011_S9108483::init(), CDF_2006_S6653332::init(), D0_2008_S7662670::init(), OPAL_2002_S5361494::init(), ATLAS_2012_I1082009::init(), TASSO_1990_S2148048::init(), ATLAS_2012_I946427::init(), DELPHI_2000_S4328825::init(), ATLAS_2012_I1199269::init(), CMS_2013_I1224539_DIJET::init(), ATLAS_2012_I1084540::init(), CDF_2009_S8233977::init(), CDF_2010_S8591881_QCD::init(), D0_2004_S5992206::init(), ATLAS_2010_S8914702::init(), CDF_2001_S4751469::init(), D0_2008_S7719523::init(), ATLAS_2011_S9120807::init(), ATLAS_2010_S8918562::init(), ATLAS_2012_I1094568::init(), DELPHI_1996_S3430090::init(), ALEPH_1996_S3486095::init(), ALEPH_1999_S4193598::init(), ATLAS_2012_I1093738::init(), OPAL_2004_S6132243::init(), OPAL_1994_S2927284::init(), BELLE_2013_I1216515::init(), STAR_2008_S7869363::init(), ATLAS_2011_S9126244::init(), BABAR_2007_S6895344::init(), BELLE_2001_S4598261::init(), BABAR_2005_S6181155::init(), ATLAS_2011_I919017::init(), OPAL_2001_S4553896::init(), BABAR_2013_I1238276::init(), DELPHI_2003_WUD_03_11::init(), CDF_2004_S5839831::init(), BABAR_2003_I593379::init(), ATLAS_2012_I1094061::init(), ARGUS_1993_S2653028::init(), CLEO_2004_S5809304::init(), OPAL_1998_S3780481::init(), ATLAS_2012_I1093734::init(), OPAL_1993_S2692198::init(), ATLAS_2014_I1279489::init(), ATLAS_2012_I1094564::init(), SLD_2004_S5693039::init(), BELLE_2006_S6265367::init(), SLD_1999_S3743934::init(), PDG_HADRON_MULTIPLICITIES::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), PrimaryHadrons::PrimaryHadrons(), PromptFinalState::PromptFinalState(), Sphericity::Sphericity(), Spherocity::Spherocity(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), VisibleFinalState::VisibleFinalState(), WFinder::WFinder(), and ZFinder::ZFinder().

                                                                       {
      const Projection& reg = _addProjection(proj, name);
      const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
      return rtn;
    }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)		const [inline, inherited]

Apply the supplied projection on event.

Definition at line 70 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by DISFinalState::project().

                                                                          {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)		const [inline, inherited]

Apply the supplied projection on event.

Definition at line 77 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                                {
      return pcast<PROJ>(_applyProjection(evt, proj));
    }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)		const [inline, inherited]

Apply the named projection on event.

Definition at line 84 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

                                                                               {
      return pcast<PROJ>(_applyProjection(evt, name));
    }

const set< PdgIdPair > beamPairs

(

)

const [virtual, inherited]

Return the allowed beam pairs on which this projection can operate, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Todo:

Remove the beam constraints system from projections.

Definition at line 33 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

                                                   {
    set<PdgIdPair> ret = _beamPairs;
    set<ConstProjectionPtr> projs = getProjections();
    for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
      ConstProjectionPtr p = *ip;
      getLog() << Log::TRACE << "Proj addr = " << p << endl;
      if (p) ret = intersection(ret, p->beamPairs());
    }
    return ret;
  }

bool before

(

const Projection &

p

)

const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 22 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

                                                   {
    const std::type_info& thisid = typeid(*this);
    const std::type_info& otherid = typeid(p);
    if (thisid == otherid) {
      return compare(p) < 0;
    } else {
      return thisid.before(otherid);
    }
  }

const Particle& boson

(

)

const [inline]

Access to the found boson (assuming it exists)

Definition at line 63 of file WFinder.hh.

References WFinder::_bosons.

{ return _bosons[0]; }

const Particles& bosons

(

)

const [inline]

Access to the found bosons

Note:

Currently either 0 or 1 boson can be found.

Definition at line 60 of file WFinder.hh.

References WFinder::_bosons.

Referenced by MC_WKTSPLITTINGS::analyze(), D0_2000_S4480767::analyze(), MC_WJETS::analyze(), ATLAS_2011_I925932::analyze(), MC_WINC::analyze(), MC_WWKTSPLITTINGS::analyze(), D0_2008_S7837160::analyze(), MC_WWJETS::analyze(), ATLAS_2010_S8919674::analyze(), MC_WPOL::analyze(), MC_WWINC::analyze(), ATLAS_2011_I926145::analyze(), CMS_2013_I1224539_WJET::analyze(), CMS_2013_I1224539_WJET::isBackToBack_wj(), and WFinder::mT().

{ return _bosons; }

void clear

(

)

[inline]

Clear the projection.

Definition at line 112 of file WFinder.hh.

References WFinder::_bosons, WFinder::_constituentLeptons, WFinder::_constituentNeutrinos, and ParticleFinder::_theParticles.

Referenced by WFinder::project().

                 {
      _theParticles.clear();
      _bosons.clear();
      _constituentLeptons.clear();
      _constituentNeutrinos.clear();
    }

virtual const Projection* clone

(

)

const [inline, virtual]

Clone on the heap.

Reimplemented from FinalState.

Definition at line 50 of file WFinder.hh.

References WFinder::WFinder().

                                            {
      return new WFinder(*this);
    }

int compare

(

const Projection &

p

)

const [protected, virtual]

Compare projections.

Reimplemented from FinalState.

Definition at line 69 of file WFinder.cc.

References WFinder::_etMiss, WFinder::_maxmass, WFinder::_minmass, WFinder::_pid, WFinder::_trackPhotons, WFinder::_useTransverseMass, Rivet::cmp(), Rivet::EQUIVALENT, and Projection::mkNamedPCmp().

                                                {
    PCmp dlcmp = mkNamedPCmp(p, "DressedLeptons");
    if (dlcmp != EQUIVALENT) return dlcmp;

    const WFinder& other = dynamic_cast<const WFinder&>(p);
    return (cmp(_minmass, other._minmass) || cmp(_maxmass, other._maxmass) ||
            cmp(_useTransverseMass, other._useTransverseMass) ||
            cmp(_etMiss, other._etMiss) ||
            cmp(_pid, other._pid) || cmp(_trackPhotons, other._trackPhotons));
  }

const Particle& constituentLepton

(

)

const [inline]

Access to the W constituent clustered lepton (assuming it exists)

Definition at line 72 of file WFinder.hh.

References WFinder::_constituentLeptons.

{ return _constituentLeptons[0]; }

const Particles& constituentLeptons

(

)

const [inline]

Access to the W constituent clustered leptons

Note:

Either size 0 if no boson was found or 1 if one boson was found

Definition at line 69 of file WFinder.hh.

References WFinder::_constituentLeptons.

Referenced by MC_WINC::analyze(), D0_2008_S7837160::analyze(), MC_WWJETS::analyze(), ATLAS_2010_S8919674::analyze(), MC_WPOL::analyze(), MC_WWINC::analyze(), CMS_2013_I1224539_WJET::analyze(), CMS_2013_I1224539_WJET::isBackToBack_wj(), and WFinder::mT().

{ return _constituentLeptons; }

const Particle& constituentNeutrino

(

)

const [inline]

Access to the W constituent neutrinos.

Definition at line 81 of file WFinder.hh.

References WFinder::_constituentNeutrinos.

{ return _constituentNeutrinos[0]; }

const Particles& constituentNeutrinos

(

)

const [inline]

Access to the W constituent neutrinos

Note:

Either size 0 if no boson was found or 1 if one boson was found

Definition at line 78 of file WFinder.hh.

References WFinder::_constituentNeutrinos.

Referenced by ATLAS_2011_I925932::analyze(), MC_WWJETS::analyze(), ATLAS_2010_S8919674::analyze(), MC_WWINC::analyze(), CMS_2013_I1224539_WJET::isBackToBack_wj(), and WFinder::mT().

{ return _constituentNeutrinos; }

virtual bool empty

(

)

const [inline, virtual, inherited]

Is this final state empty?

Definition at line 37 of file ParticleFinder.hh.

References ParticleFinder::_theParticles.

Referenced by STAR_2008_S7993412::analyze(), STAR_2006_S6870392::analyze(), CDF_2008_S7540469::analyze(), ATLAS_2011_I925932::analyze(), CMS_2011_S9215166::analyze(), CMS_2013_I1272853::analyze(), MC_PHOTONINC::analyze(), MC_PHOTONKTSPLITTINGS::analyze(), CMS_2013_I1209721::analyze(), MC_PHOTONJETS::analyze(), D0_2008_S7662670::analyze(), CMS_2013_I1218372::analyze(), CMS_2013_I1261026::analyze(), CMS_2013_I1258128::makeZCut(), and WFinder::mT().

{ return _theParticles.empty(); }

const collection_type& entities

(

)

const [inline, inherited]

Template-usable interface common to JetAlg.

Definition at line 134 of file ParticleFinder.hh.

References ParticleFinder::particles().

                                            {
      return particles();
    }

Log& getLog

(

)

const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by Projection::beamPairs(), InvMassFinalState::calc(), ChargedFinalState::project(), InitialQuarks::project(), UnstableFinalState::project(), PromptFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), and VetoedFinalState::project().

                        {
      string logname = "Rivet.Projection." + name();
      return Log::getLog(logname);
    }

const PROJ& getProjection

(

const std::string &

name

)

const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 52 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

                                                           {
      const Projection& p = getProjHandler().getProjection(*this, name);
      return pcast<PROJ>(p);
    }

const Projection& getProjection

(

const std::string &

name

)

const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 60 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

                                                                 {
      return getProjHandler().getProjection(*this, name);
    }

std::set<ConstProjectionPtr> getProjections

(

)

const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 45 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

                                                      {
      return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
    }

ProjectionHandler& getProjHandler

(

)

const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

                                              {
      return _projhandler;
    }

virtual bool isEmpty

(

)

const [inline, virtual, inherited]

Deprecated:

Is this final state empty?

Definition at line 39 of file ParticleFinder.hh.

References ParticleFinder::_theParticles.

{ return _theParticles.empty(); }

Cmp< Projection > mkNamedPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 45 of file Projection.cc.

References Rivet::pcmp().

Referenced by ChargedFinalState::compare(), ChargedLeptons::compare(), BeamThrust::compare(), FParameter::compare(), CentralEtHCM::compare(), MergedFinalState::compare(), DISLepton::compare(), DISKinematics::compare(), NeutralFinalState::compare(), DISFinalState::compare(), VisibleFinalState::compare(), PromptFinalState::compare(), Spherocity::compare(), LeadingParticlesFinalState::compare(), ParisiTensor::compare(), FoxWolframMoments::compare(), LossyFinalState< ConstRandomFilter >::compare(), MissingMomentum::compare(), Thrust::compare(), InvMassFinalState::compare(), Sphericity::compare(), DressedLeptons::compare(), ZFinder::compare(), Hemispheres::compare(), WFinder::compare(), IdentifiedFinalState::compare(), VetoedFinalState::compare(), JetShape::compare(), and FastJets::compare().

                                                                     {
    return pcmp(*this, otherparent, pname);
  }

Cmp< Projection > mkPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)		const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 51 of file Projection.cc.

References Rivet::pcmp().

                                                                {
    return pcmp(*this, otherparent, pname);
  }

double mT

(

)

const [inline]

Calculate the transverse mass of the W, from the charged lepton and neutrino.

Defined as sqrt(2 pT_l pT_nu (1.0 - cos(dphi_lnu))). Return -1 if no boson found.

Definition at line 92 of file WFinder.hh.

References WFinder::bosons(), WFinder::constituentLeptons(), WFinder::constituentNeutrinos(), Rivet::deltaPhi(), ParticleFinder::empty(), and FourMomentum::pT().

Referenced by ATLAS_2011_I925932::analyze(), and ATLAS_2010_S8919674::analyze().

                      {
      if (bosons().empty()) return -1;
      const FourMomentum& l = constituentLeptons()[0].momentum();
      const FourMomentum& nu = constituentNeutrinos()[0].momentum();
      return sqrt( 2 * l.pT() * nu.pT() * (1 - cos(deltaPhi(l, nu))) );
    }

virtual std::string name

(

)

const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ProjectionHandler::registerProjection(), and Projection::setName().

                                   {
      return _name;
    }

virtual const Particles& particles

(

)

const [inline, virtual, inherited]

Get the final-state particles in no particular order, with no cuts.

Definition at line 42 of file ParticleFinder.hh.

References ParticleFinder::_theParticles.

Referenced by BABAR_2003_I593379::analyze(), BELLE_2001_S4598261::analyze(), BABAR_2005_S6181155::analyze(), CLEO_2004_S5809304::analyze(), BELLE_2006_S6265367::analyze(), BABAR_2007_S6895344::analyze(), ARGUS_1993_S2653028::analyze(), BABAR_2013_I1238276::analyze(), BELLE_2013_I1216515::analyze(), OPAL_1994_S2927284::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), OPAL_1993_S2692198::analyze(), TOTEM_2012_002::analyze(), H1_2000_S4129130::analyze(), BELLE_2008_I786560::analyze(), SLD_2004_S5693039::analyze(), TOTEM_2012_I1115294::analyze(), CMS_2010_S8656010::analyze(), OPAL_1998_S3780481::analyze(), ATLAS_2010_S8591806::analyze(), CMS_2012_PAS_QCD_11_010::analyze(), STAR_2008_S7993412::analyze(), LHCF_2012_I1115479::analyze(), ALICE_2011_S8909580::analyze(), SLD_1999_S3743934::analyze(), ALICE_2011_S8945144::analyze(), OPAL_2000_S4418603::analyze(), CMSTOTEM_2014_I1294140::analyze(), ARGUS_1993_S2669951::analyze(), OPAL_1995_S3198391::analyze(), OPAL_1997_S3608263::analyze(), ALEPH_2002_S4823664::analyze(), DELPHI_1999_S3960137::analyze(), OPAL_1996_S3257789::analyze(), OPAL_1998_S3702294::analyze(), E735_1998_S3905616::analyze(), H1_1994_S2919893::analyze(), ATLAS_2011_S9002537::analyze(), CMS_QCD_10_024::analyze(), BABAR_2007_S7266081::analyze(), DELPHI_1995_S3137023::analyze(), UA5_1982_S875503::analyze(), CMS_2010_S8547297::analyze(), SLD_2002_S4869273::analyze(), CDF_1990_S2089246::analyze(), CDF_1988_S1865951::analyze(), ALEPH_2001_S4656318::analyze(), ATLAS_2011_S9035664::analyze(), DELPHI_2002_069_CONF_603::analyze(), ALICE_2010_S8706239::analyze(), ATLAS_2011_I925932::analyze(), SLD_1996_S3398250::analyze(), DELPHI_2000_S4328825::analyze(), CDF_2008_S7540469::analyze(), CMS_2011_S8973270::analyze(), OPAL_2002_S5361494::analyze(), CMS_2011_S9215166::analyze(), SFM_1984_S1178091::analyze(), LHCB_2011_I919315::analyze(), OPAL_1998_S3749908::analyze(), CMS_2013_I1272853::analyze(), OPAL_1997_S3396100::analyze(), ALICE_2010_S8625980::analyze(), D0_2006_S6438750::analyze(), MC_PHOTONINC::analyze(), MC_PHOTONKTSPLITTINGS::analyze(), MC_DIJET::analyze(), MC_LEADJETUE::analyze(), STAR_2006_S6500200::analyze(), UA5_1986_S1583476::analyze(), CDF_2009_S8233977::analyze(), MC_IDENTIFIED::analyze(), CMS_2011_S8978280::analyze(), MC_PHOTONJETS::analyze(), STAR_2006_S6860818::analyze(), CMS_2011_S8884919::analyze(), ATLAS_2012_I1082009::analyze(), CDF_2008_S8095620::analyze(), LHCB_2010_S8758301::analyze(), LHCB_2011_I917009::analyze(), CMS_2013_I1256943::analyze(), STAR_2009_UE_HELEN::analyze(), CDF_2006_S6653332::analyze(), LHCB_2013_I1208105::analyze(), ARGUS_1993_S2789213::analyze(), ALEPH_1999_S4193598::analyze(), UA1_1990_S2044935::analyze(), D0_2001_S4674421::analyze(), CMS_2013_I1218372::analyze(), H1_1995_S3167097::analyze(), CDF_2008_S7541902::analyze(), LHCB_2013_I1218996::analyze(), ATLAS_2012_I1183818::analyze(), JADE_1998_S3612880::analyze(), MC_PHOTONJETUE::analyze(), CDF_2010_S8591881_QCD::analyze(), CDF_2010_S8591881_DY::analyze(), TASSO_1990_S2148048::analyze(), MC_GENERIC::analyze(), LHCB_2012_I1119400::analyze(), ATLAS_2012_I1084540::analyze(), STAR_2008_S7869363::analyze(), D0_2008_S7719523::analyze(), ATLAS_2011_I926145::analyze(), ATLAS_2010_S8894728::analyze(), DELPHI_2003_WUD_03_11::analyze(), MC_SUSY::analyze(), ATLAS_2012_I1093738::analyze(), ALEPH_1996_S3486095::analyze(), ATLAS_2011_I944826::analyze(), ALEPH_2004_S5765862::analyze(), ATLAS_2012_I1094061::analyze(), DELPHI_1996_S3430090::analyze(), ATLAS_2012_I1093734::analyze(), BeamThrust::calc(), FParameter::calc(), Spherocity::calc(), Thrust::calc(), Sphericity::calc(), ParticleFinder::entities(), CMS_2013_I1261026::eventDecomp(), ATLAS_2010_S8918562::fillPtEtaNch(), CMS_2013_I1258128::makePhotonCut(), ParticleFinder::particlesByE(), ParticleFinder::particlesByEt(), ParticleFinder::particlesByEta(), ParticleFinder::particlesByModEta(), ParticleFinder::particlesByModRapidity(), ParticleFinder::particlesByP(), ParticleFinder::particlesByPt(), ParticleFinder::particlesByRapidity(), ChargedFinalState::project(), ChargedLeptons::project(), CentralEtHCM::project(), FinalState::project(), MergedFinalState::project(), DISLepton::project(), TriggerCDFRun0Run1::project(), TriggerCDFRun2::project(), NeutralFinalState::project(), HadronicFinalState::project(), PrimaryHadrons::project(), NonHadronicFinalState::project(), TauFinder::project(), VisibleFinalState::project(), PromptFinalState::project(), TriggerUA5::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), FoxWolframMoments::project(), MissingMomentum::project(), InvMassFinalState::project(), DressedLeptons::project(), HeavyHadrons::project(), Hemispheres::project(), IdentifiedFinalState::project(), and VetoedFinalState::project().

{ return _theParticles; }

Particles particles	(	Cut	c,
		F	sorter
	)		const [inline, inherited]

Get the final-state particles, with optional cuts.

Note:

Returns a copy rather than a reference, due to cuts Get the final-state particles, ordered by supplied sorting function object.

Returns a copy rather than a reference, due to cuts and sorting

Todo:

Update to use Cuts

Definition at line 52 of file ParticleFinder.hh.

References ParticleFinder::_theParticles, Rivet::Cuts::open(), and ParticleFinder::size().

                                               {
      Particles result;
      result.reserve(size());
      if ( c == Cuts::open() )
        result.assign(_theParticles.begin(), _theParticles.end());
      else
    foreach (const Particle& p, _theParticles)
          if ( c->accept(p) ) result.push_back(p);
      std::sort(result.begin(), result.end(), sorter);
      return result;
    }

Particles particlesByE

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 80 of file ParticleFinder.hh.

References Rivet::cmpMomByE(), and ParticleFinder::particles().

                                                     {
      return particles(c, cmpMomByE);
    }

Particles particlesByEt

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 87 of file ParticleFinder.hh.

References Rivet::cmpMomByEt(), and ParticleFinder::particles().

                                                      {
      return particles(c, cmpMomByEt);
    }

Particles particlesByEta

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 94 of file ParticleFinder.hh.

References Rivet::cmpMomByAscPseudorapidity(), and ParticleFinder::particles().

Referenced by ATLAS_2011_I894867::analyze(), CMS_2012_I1193338::analyze(), CMS_2012_I1184941::analyze(), ALICE_2012_I1181770::analyze(), ATLAS_2012_I1091481::analyze(), and ATLAS_2012_I1084540::fillMap().

                                                       {
      return particles(c, cmpMomByAscPseudorapidity);
    }

Particles particlesByModEta

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 101 of file ParticleFinder.hh.

References Rivet::cmpMomByAscAbsPseudorapidity(), and ParticleFinder::particles().

                                                          {
      return particles(c, cmpMomByAscAbsPseudorapidity);
    }

Particles particlesByModRapidity

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 115 of file ParticleFinder.hh.

References Rivet::cmpMomByAscAbsRapidity(), and ParticleFinder::particles().

                                                               {
      return particles(c, cmpMomByAscAbsRapidity);
    }

Particles particlesByP

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 73 of file ParticleFinder.hh.

References Rivet::cmpMomByP(), and ParticleFinder::particles().

                                                     {
      return particles(c, cmpMomByP);
    }

Particles particlesByPt

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by decreasing .

Todo:

Update to use Cuts

Definition at line 66 of file ParticleFinder.hh.

References Rivet::cmpMomByPt(), and ParticleFinder::particles().

Referenced by ATLAS_2011_S8994773::analyze(), CDF_2012_NOTE10874::analyze(), MC_PHOTONJETUE::analyze(), ATLAS_2012_I1124167::analyze(), ATLAS_2010_S8894728::analyze(), and ATLAS_2012_I1091481::analyze().

                                                      {
      return particles(c, cmpMomByPt);
    }

Particles particlesByRapidity

(

Cut

c = Cuts::open()

)

const [inline, inherited]

Get the final-state particles, ordered by increasing .

Todo:

Update to use Cuts

Remove, since there is the templated method or sortByX methods available for these unusual cases?

Definition at line 108 of file ParticleFinder.hh.

References Rivet::cmpMomByAscRapidity(), and ParticleFinder::particles().

Referenced by ALICE_2012_I1181770::analyze(), and CMS_2013_I1218372::analyze().

                                                            {
      return particles(c, cmpMomByAscRapidity);
    }

void project

(

const Event &

e

)

[protected, virtual]

Apply the projection on the supplied event.

Todo:

Restrict missing momentum eta range? Use vectorET()?

Reimplemented from FinalState.

Definition at line 81 of file WFinder.cc.

References WFinder::_bosons, WFinder::_constituentLeptons, WFinder::_constituentNeutrinos, WFinder::_etMiss, WFinder::_masstarget, WFinder::_maxmass, WFinder::_minmass, WFinder::_nu_pid, WFinder::_pid, ParticleFinder::_theParticles, WFinder::_trackPhotons, WFinder::_useTransverseMass, InvMassFinalState::calc(), WFinder::clear(), DressedLeptons::clusteredLeptons(), DressedLepton::constituentLepton(), DressedLepton::constituentPhotons(), Rivet::GeV, Particle::momentum(), MSG_DEBUG, InvMassFinalState::particlePairs(), Particle::pid(), Rivet::PID::threeCharge(), InvMassFinalState::useTransverseMass(), Rivet::PID::WMINUSBOSON, and Rivet::PID::WPLUSBOSON.

                                      {
    clear();

    const DressedLeptons& leptons = applyProjection<DressedLeptons>(e, "DressedLeptons");
    const FinalState& neutrinos = applyProjection<FinalState>(e, "Neutrinos");

    // Make and register an invariant mass final state for the W decay leptons
    vector<pair<PdgId, PdgId> > l_nu_ids;
    l_nu_ids += make_pair(abs(_pid), -abs(_nu_pid));
    l_nu_ids += make_pair(-abs(_pid), abs(_nu_pid));
    InvMassFinalState imfs(l_nu_ids, _minmass, _maxmass, _masstarget);
    imfs.useTransverseMass(_useTransverseMass);
    Particles tmp;
    tmp.insert(tmp.end(), leptons.clusteredLeptons().begin(), leptons.clusteredLeptons().end());
    tmp.insert(tmp.end(), neutrinos.particles().begin(), neutrinos.particles().end());
    imfs.calc(tmp);

    if (imfs.particlePairs().size() < 1) return;

    ParticlePair Wconstituents(imfs.particlePairs()[0]);
    Particle p1(Wconstituents.first), p2(Wconstituents.second);

    if (threeCharge(p1) == 0) {
      _constituentLeptons += p2;
      _constituentNeutrinos += p1;
    } else {
      _constituentLeptons += p1;
      _constituentNeutrinos += p2;
    }

    FourMomentum pW = p1.momentum() + p2.momentum();
    const int w3charge = threeCharge(p1) + threeCharge(p2);
    assert(abs(w3charge) == 3);
    const int wcharge = w3charge/3;

    stringstream msg;
    string wsign = (wcharge == 1) ? "+" : "-";
    string wstr = "W" + wsign;
    msg << wstr << " reconstructed from: " << "\n"
        << "   " << p1.momentum() << " " << p1.pid() << "\n"
        << " + " << p2.momentum() << " " << p2.pid();
    MSG_DEBUG(msg.str());

    // Check missing ET
    const MissingMomentum& vismom = applyProjection<MissingMomentum>(e, "MissingET");
    /// @todo Restrict missing momentum eta range? Use vectorET()?
    if (vismom.scalarEt() < _etMiss) {
      MSG_DEBUG("Not enough missing ET: " << vismom.scalarEt()/GeV
                << " GeV vs. " << _etMiss/GeV << " GeV");
      return;
    }

    // Make W Particle and insert into particles list
    const PdgId wpid = (wcharge == 1) ? PID::WPLUSBOSON : PID::WMINUSBOSON;
    _bosons.push_back(Particle(wpid, pW));

    // Find the DressedLeptons and neutrinos which survived the IMFS cut such that we can
    // extract their original particles
    foreach (const Particle& p, _constituentNeutrinos) {
      _theParticles.push_back(p);
    }
    foreach (const Particle& p, _constituentLeptons) {
      foreach (const DressedLepton& l, leptons.clusteredLeptons()) {
        if (p.pid() == l.pid() && p.momentum() == l.momentum()) {
          _theParticles.push_back(l.constituentLepton());
          if (_trackPhotons) {
            _theParticles.insert(_theParticles.end(), l.constituentPhotons().begin(), l.constituentPhotons().end());
          }
        }
      }
    }
  }

const FinalState & remainingFinalState

(

)

const

Access to the particles other than the W leptons and clustered photons

Useful for e.g. input to a jet finder

Definition at line 64 of file WFinder.cc.

Referenced by MC_WKTSPLITTINGS::init(), MC_WJETS::init(), and CMS_2013_I1224539_WJET::init().

                                                       {
    return getProjection<FinalState>("RFS");
  }

void setName

(

const std::string &

name

)

[inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name, and Projection::name().

Referenced by TauFinder::_init(), FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), Beam::Beam(), BeamThrust::BeamThrust(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ConstLossyFinalState::ConstLossyFinalState(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), DressedLeptons::DressedLeptons(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), HeavyHadrons::HeavyHadrons(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), PrimaryHadrons::PrimaryHadrons(), PromptFinalState::PromptFinalState(), Sphericity::Sphericity(), Spherocity::Spherocity(), Thrust::Thrust(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), VetoedFinalState::VetoedFinalState(), VisibleFinalState::VisibleFinalState(), WFinder::WFinder(), and ZFinder::ZFinder().

                                        {
      _name = name;
    }

virtual size_t size

(

)

const [inline, virtual, inherited]

Access the projected final-state particles.

Definition at line 34 of file ParticleFinder.hh.

References ParticleFinder::_theParticles.

Referenced by ATLAS_2011_I894867::analyze(), CMS_2012_I1193338::analyze(), TOTEM_2012_002::analyze(), TOTEM_2012_I1115294::analyze(), ATLAS_2010_S8591806::analyze(), CMS_2011_I954992::analyze(), ALEPH_1991_S2435284::analyze(), ALICE_2012_I1181770::analyze(), ATLAS_2011_S9002537::analyze(), UA5_1982_S875503::analyze(), ATLAS_2011_S8994773::analyze(), CDF_2009_NOTE_9936::analyze(), OPAL_2002_S5361494::analyze(), SLD_1996_S3398250::analyze(), CDF_2012_NOTE10874::analyze(), DELPHI_2000_S4328825::analyze(), ALICE_2010_S8625980::analyze(), STAR_2006_S6500200::analyze(), CDF_2009_S8233977::analyze(), UA5_1986_S1583476::analyze(), ALICE_2010_S8624100::analyze(), STAR_2006_S6860818::analyze(), ALEPH_1999_S4193598::analyze(), UA1_1990_S2044935::analyze(), CMS_2013_I1261026::analyze(), ATLAS_2012_I1183818::analyze(), MC_PHOTONJETUE::analyze(), ATLAS_2012_I1124167::analyze(), MC_GENERIC::analyze(), ATLAS_2011_I926145::analyze(), ATLAS_2010_S8894728::analyze(), OPAL_2004_S6132243::analyze(), MC_SUSY::analyze(), ATLAS_2010_S8918562::analyze(), ATLAS_2010_S8918562::fillPtEtaNch(), and ParticleFinder::particles().

{ return _theParticles.size(); }

---

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 35 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 32 of file Projection.hh.

---

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 143 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

Particles _bosons [private]

list of found bosons (currently either 0 or 1)

Definition at line 143 of file WFinder.hh.

Referenced by WFinder::boson(), WFinder::bosons(), WFinder::clear(), and WFinder::project().

Particles _constituentLeptons [private]

Constituent leptons (currently either 0 or 1)

Definition at line 146 of file WFinder.hh.

Referenced by WFinder::clear(), WFinder::constituentLepton(), WFinder::constituentLeptons(), and WFinder::project().

Particles _constituentNeutrinos [private]

Constituent neutrinos (currently either 0 or 1)

Definition at line 149 of file WFinder.hh.

Referenced by WFinder::clear(), WFinder::constituentNeutrino(), WFinder::constituentNeutrinos(), and WFinder::project().

Cut _cuts [protected, inherited]

The applicable cuts.

Definition at line 151 of file ParticleFinder.hh.

Referenced by FinalState::accept(), FinalState::compare(), ParticleFinder::compare(), FinalState::FinalState(), FinalState::project(), and UnstableFinalState::project().

double _etMiss [private]

Missing ET cut.

Definition at line 126 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

double _masstarget [private]

Definition at line 122 of file WFinder.hh.

Referenced by WFinder::project(), and WFinder::WFinder().

double _maxmass [private]

Definition at line 122 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

double _minmass [private]

Transverse mass cuts.

Definition at line 122 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

PdgId _nu_pid [private]

Neutrino flavour.

Definition at line 140 of file WFinder.hh.

Referenced by WFinder::project(), and WFinder::WFinder().

PdgId _pid [private]

Lepton flavour.

Definition at line 137 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

Particles _theParticles [protected, inherited]

The final-state particles.

Definition at line 154 of file ParticleFinder.hh.

Referenced by InvMassFinalState::calc(), ChargedLeptons::chargedLeptons(), TauFinder::clear(), ZFinder::clear(), WFinder::clear(), ParticleFinder::empty(), ParticleFinder::isEmpty(), ParticleFinder::particles(), ChargedFinalState::project(), ChargedLeptons::project(), FinalState::project(), MergedFinalState::project(), NeutralFinalState::project(), DISFinalState::project(), PrimaryHadrons::project(), HadronicFinalState::project(), NonHadronicFinalState::project(), VisibleFinalState::project(), UnstableFinalState::project(), PromptFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), DressedLeptons::project(), HeavyHadrons::project(), ZFinder::project(), WFinder::project(), IdentifiedFinalState::project(), VetoedFinalState::project(), and ParticleFinder::size().

PhotonTracking _trackPhotons [private]

Switch for tracking of photons (whether to add them to _theParticles) This is relevant when the ZFinder::_theParticles are to be excluded from e.g. the input to a jet finder, to specify whether the clustered photons are to be excluded as well. (Yes, some experiments make a difference between clusterPhotons and trackPhotons!)

Definition at line 134 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

bool _useTransverseMass [private]

Definition at line 123 of file WFinder.hh.

Referenced by WFinder::compare(), WFinder::project(), and WFinder::WFinder().

---

The documentation for this class was generated from the following files:

• WFinder.hh
• WFinder.cc
