#include <BinnedHistogram.hh>

Inheritance diagram for BinnedHistogram< T >:

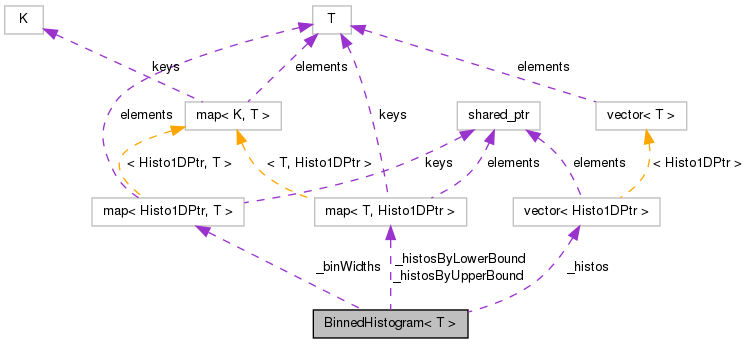

Collaboration diagram for BinnedHistogram< T >:

Public Member Functions
	BinnedHistogram ()
	Create a new empty BinnedHistogram.
const BinnedHistogram< T > &	addHistogram (const T &binMin, const T &binMax, Histo1DPtr histo)
Histo1DPtr	fill (const T &bin, const T &val, double weight)
void	scale (const T &scale, Analysis *ana)
const vector< Histo1DPtr > &	getHistograms () const
vector< Histo1DPtr > &	getHistograms ()
Private Attributes
map< T, Histo1DPtr >	_histosByUpperBound
map< T, Histo1DPtr >	_histosByLowerBound
vector< Histo1DPtr >	_histos
map< Histo1DPtr, T >	_binWidths

Detailed Description

template<typename T>
class Rivet::BinnedHistogram< T >

BinnedHistogram contains a series of histograms of the same quantity each in a different region of a second quantity. For example, a BinnedHistogram may contain histograms of the cross section differential in $ p_T $ in different $\eta$ regions.

Definition at line 19 of file BinnedHistogram.hh.

Constructor & Destructor Documentation

BinnedHistogram ( ) [inline]

Create a new empty BinnedHistogram.

Definition at line 23 of file BinnedHistogram.hh.

                      {
      return;
    }

Member Function Documentation

const BinnedHistogram< T > & addHistogram	(	const T &	binMin,
		const T &	binMax,
		Histo1DPtr	histo
	)

Add a histogram in the region between binMin and binMax to this set of BinnedHistograms.

Definition at line 11 of file BinnedHistogram.cc.

Referenced by CMS_2011_S8950903::init(), CMS_2012_I1090423::init(), CMS_2011_S8968497::init(), CDF_2007_S7057202::init(), CMS_2011_S9086218::init(), ATLAS_2011_I930220::init(), LHCF_2012_I1115479::init(), D0_2010_S8570965::init(), ATLAS_2014_I1268975::init(), ATLAS_2010_S8817804::init(), D0_1996_S3324664::init(), CDF_2008_S7828950::init(), LHCB_2011_I919315::init(), LHCB_2013_I1218996::init(), D0_2009_S8320160::init(), ATLAS_2011_S8971293::init(), ATLAS_2012_I1082936::init(), D0_2010_S8566488::init(), CDF_2001_S4517016::init(), CDF_1996_S3418421::init(), ATLAS_2012_I1094564::init(), ATLAS_2012_I1125575::initializeHistograms(), and ATLAS_2011_S9126244::initializePlots().

                                                                              {
    if (binMin > binMax) {
      throw Error
        ("Cannot add a binned histogram where the lower bin edge is above the upper edge");
    }
    _histosByUpperBound[binMax] = histo;
    _histosByLowerBound[binMin] = histo;
    bool found = false;
    foreach (Histo1DPtr hist, _histos) {
      if (hist == histo) {
        found = true;
        break;
      }
    }

    if (!found){
      _histos.push_back(histo);
      _binWidths[histo]=binMax-binMin;
    }

    return *this;
  }

Histo1DPtr fill	(	const T &	bin,
		const T &	val,
		double	weight
	)

Fill the histogram that lies in the same region as bin with the value val of weight weight.

Definition at line 39 of file BinnedHistogram.cc.

Referenced by CMS_2011_S8950903::analyze(), LHCF_2012_I1115479::analyze(), CMS_2012_I1090423::analyze(), CMS_2011_S8968497::analyze(), CMS_2011_S9086218::analyze(), CDF_2007_S7057202::analyze(), D0_1996_S3324664::analyze(), CDF_2008_S7828950::analyze(), CDF_2001_S4517016::analyze(), ATLAS_2011_I930220::analyze(), D0_2010_S8570965::analyze(), LHCB_2011_I919315::analyze(), D0_2010_S8566488::analyze(), CDF_1996_S3418421::analyze(), ATLAS_2011_S8971293::analyze(), D0_2009_S8320160::analyze(), ATLAS_2014_I1268975::analyze(), ATLAS_2010_S8817804::analyze(), ATLAS_2012_I1082936::analyze(), LHCB_2013_I1218996::analyze(), ATLAS_2012_I1094564::analyze(), ATLAS_2011_S9126244::analyzeJets(), ATLAS_2012_I1125575::fillHistograms(), and ATLAS_2012_I1204784::fillPlots().

                                                                    {

    typename map<T, Histo1DPtr>::iterator histIt =
      _histosByUpperBound.upper_bound(bin);
    //check that the bin is not out of range
    if (histIt == _histosByUpperBound.end()) {
      return Histo1DPtr();
    }

    Histo1DPtr histo = histIt->second;
    histIt = _histosByLowerBound.lower_bound(bin);

    // No need to check going beyond the upper bound if we already passed above
    // (given that upper bound > lower bound is checked)
    // Check it is not before the start of the map
    if (histIt == _histosByLowerBound.begin()) {
      return Histo1DPtr();
    }
    // By-lower-bound actually gives us the iterator one above the nearest element,
    // so decrement it. This is safe because we already checked we're not at the start!
    --histIt;

    if (histo != histIt->second) {
      return Histo1DPtr();
    }

    histo->fill(val, weight);

    return histo;
  }

const vector<Histo1DPtr>& getHistograms ( ) const [inline]

Definition at line 43 of file BinnedHistogram.hh.

Referenced by CMS_2011_S8950903::finalize(), CMS_2011_S8968497::finalize(), CMS_2012_I1090423::finalize(), ATLAS_2011_S8971293::finalize(), CDF_1996_S3418421::finalize(), D0_2009_S8320160::finalize(), D0_1996_S3324664::finalize(), LHCB_2013_I1218996::finalize(), ATLAS_2011_S9126244::finalize(), ATLAS_2012_I1094564::finalize(), and ATLAS_2012_I1125575::finalizeHistograms().

{ return _histos; }

vector<Histo1DPtr>& getHistograms ( ) [inline]

Definition at line 44 of file BinnedHistogram.hh.

{ return _histos; }

void scale	(	const T &	scale,
		Analysis *	ana
	)

Scale histograms taking into account its "external" binwidth, i.e. by scale/binWidth

Definition at line 74 of file BinnedHistogram.cc.

References Analysis::scale().

Referenced by CMS_2011_S9086218::finalize(), CDF_2008_S7828950::finalize(), LHCF_2012_I1115479::finalize(), CDF_2007_S7057202::finalize(), D0_2010_S8566488::finalize(), CDF_2001_S4517016::finalize(), LHCB_2011_I919315::finalize(), ATLAS_2014_I1268975::finalize(), ATLAS_2010_S8817804::finalize(), ATLAS_2012_I1082936::finalize(), ATLAS_2011_I930220::finalize(), and D0_2010_S8570965::finalize().

                                                              {
    foreach (Histo1DPtr hist, getHistograms()) {
      ana->scale(hist, scale/_binWidths[hist]);
    }
  }
