Spherocity Class Reference

Get the transverse spherocity scalars for hadron-colliders. More...

#include <Spherocity.hh>

Inheritance diagram for Spherocity:
Inheritance graph
[legend]

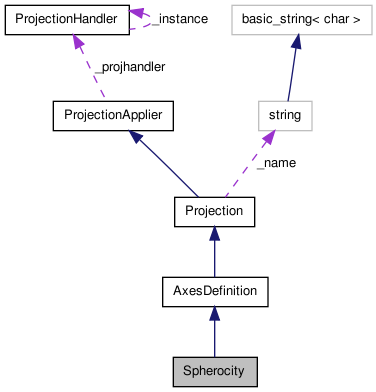

Collaboration diagram for Spherocity:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Spherocity (const FinalState &fsp)
 Constructor.
virtual const Projection * clone () const
 Clone on the heap.
bool before (const Projection &p) const
virtual const std::set< PdgIdPair > beamPairs () const
virtual std::string name () const
 Get the name of the projection.
Projection & addPdgIdPair (PdgId beam1, PdgId beam2)
 Add a colliding beam pair.
Log & getLog () const
 Get a Log object based on the getName() property of the calling projection object.
void setName (const std::string &name)
 Used by derived classes to set their name.

double spherocity () const

const Vector3 & spherocityAxis () const
const Vector3 & spherocityMajorAxis () const
 The spherocity major axis (axis of max spherocity perpendicular to spherocity axis).
const Vector3 & spherocityMinorAxis () const
 The spherocity minor axis (axis perpendicular to spherocity and spherocity major).

const Vector3 & axis1 () const
 AxesDefinition axis accessors.
const Vector3 & axis2 () const
 The 2nd most significant ("major") axis.
const Vector3 & axis3 () const
 The least significant ("minor") axis.
Direct methods

Ways to do the calculation directly, without engaging the caching system

void calc (const FinalState &fs)
 Manually calculate the spherocity, without engaging the caching system.
void calc (const vector< Particle > &fsparticles)
 Manually calculate the spherocity, without engaging the caching system.
void calc (const vector< FourMomentum > &fsmomenta)
 Manually calculate the spherocity, without engaging the caching system.
void calc (const vector< Vector3 > &threeMomenta)
 Manually calculate the spherocity, without engaging the caching system.
Projection "getting" functions

std::set< ConstProjectionPtr > getProjections () const
 Get the contained projections, including recursion.
template<typename PROJ >
const PROJ & getProjection (const std::string &name) const
 Get the named projection, specifying return type via a template argument.
const Projection & getProjection (const std::string &name) const
Projection applying functions

template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const PROJ &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const Projection &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const std::string &name) const
 Apply the named projection on event.

Protected Member Functions

void project (const Event &e)
 Perform the projection on the Event.
int compare (const Projection &p) const
 Compare projections.
Cmp< Projection > mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection > mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler & getProjHandler () const
 Get a reference to the ProjectionHandler for this thread.
Projection registration functions

template<typename PROJ >
const PROJ & addProjection (const PROJ &proj, const std::string &name)
const Projection & _addProjection (const Projection &proj, const std::string &name)
 Untemplated function to do the work...

Protected Attributes

bool _allowProjReg
 Flag to forbid projection registration in analyses until the init phase.

Private Member Functions

void _calcSpherocity (const vector< Vector3 > &fsmomenta)
 Explicitly calculate the spherocity values.

Private Attributes

vector< double > _spherocities
 The spherocity scalars.
vector< Vector3 > _spherocityAxes
 The spherocity axes.
bool _calculatedSpherocity
 Caching flag to avoid costly recalculations.

Friends

class Event
 Event is a friend.
class Cmp< Projection >
 The Cmp specialization for Projection is a friend.

Detailed Description

Get the transverse spherocity scalars for hadron-colliders.

Author:
Holger Schulz

The scalar (maximum) transverse spherocity is defined as

\[ T = \mathrm{max}_{\vec{n_\perp}} \frac{\sum_i \left|\vec{p}_{\perp,i} \cdot \vec{n} \right|}{\sum_i |\vec{p}_{\perp,i}|} \]

, with the direction of the unit vector $ \vec{n_\perp} $ which maximises $ T $ being identified as the spherocity axis. The unit vector which maximises the spherocity scalar in the plane perpendicular to $ \vec{n} $ is the "spherocity major" direction, and the vector perpendicular to both the spherocity and spherocity major directions is the spherocity minor. Both the major and minor directions have associated spherocity scalars.

Care must be taken in the case of Drell-Yan processes - there we should use the newly proposed observable $ a_T $.

Definition at line 33 of file Spherocity.hh.

Constructor & Destructor Documentation

Spherocity ( const FinalState &  fsp  )  [inline]

Constructor.

Definition at line 37 of file Spherocity.hh.

References ProjectionApplier::addProjection(), and Projection::setName().

Referenced by Spherocity::clone().

00038       : _calculatedSpherocity(false)
00039     {
00040       setName("Spherocity");
00041       addProjection(fsp, "FS");
00042     }

Member Function Documentation

const Projection & _addProjection ( const Projection &  proj,
const std::string &  name
) [protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       cerr << "Trying to register projection '"
00037            << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

void _calcSpherocity ( const vector< Vector3 > &  fsmomenta  )  [private]

Explicitly calculate the spherocity values.

Todo:
Improve this --- special directions bad... (a,b,c) _|_ 1/(a^2+b^2) (b,-a,0) etc., but which combination minimises error?

Definition at line 109 of file Spherocity.cc.

References Rivet::_calcS(), Spherocity::_spherocities, Spherocity::_spherocityAxes, Rivet::cross(), Vector3::cross(), Rivet::mod(), MSG_DEBUG, MSG_WARNING, Rivet::PI, Spherocity::spherocity(), Rivet::unit(), Vector3::unit(), Vector3::x(), Vector3::y(), and Vector3::z().

Referenced by Spherocity::calc().

00109                                                                    {
00110
00111     // Make a vector of the three-momenta in the final state
00112     // Explicitly set the z-component (parallel to beam axis) to zero
00113     // This creates a 3D-vector representation of the transverse momentum
00114     // but take the full information momentum vectors as input
00115
00116     vector<Vector3> fsperpmomenta;
00117     // A small iteration over full momenta but set z-coord. to 0.0 to get transverse momenta
00118     foreach (const Vector3& p, fsmomenta) {
00119       fsperpmomenta.push_back(Vector3(p.x(), p.y(), 0.0));
00120     }
00121
00122     // This returns the scalar sum of (transverse) momenta
00123     double perpmomentumSum(0.0);
00124     foreach (const Vector3& p, fsperpmomenta) {
00125       perpmomentumSum += mod(p);
00126     }
00127
00128     // Clear the caches
00129     _spherocities.clear();
00130     _spherocityAxes.clear();
00131
00132     // If there are fewer than 2 visible particles, we can't do much
00133     // This is blindly copied from the Thrust projection
00134     if (fsmomenta.size() < 2) {
00135       for (int i = 0; i < 3; ++i) {
00136         _spherocities.push_back(-1);
00137         _spherocityAxes.push_back(Vector3(0,0,0));
00138       }
00139       return;
00140     }
00141
00142     // Handle special case of spherocity = 1 if there are only 2 particles
00143     // This is blindly copied from the Thrust projection
00144     if (fsmomenta.size() == 2) {
00145       Vector3 axis(0,0,0);
00146       _spherocities.push_back(1.0);
00147       _spherocities.push_back(0.0);
00148       _spherocities.push_back(0.0);
00149       axis = fsmomenta[0].unit();
00150       if (axis.z() < 0) axis = -axis;
00151       _spherocityAxes.push_back(axis);
00152       /// @todo Improve this --- special directions bad...
00153       /// (a,b,c) _|_ 1/(a^2+b^2) (b,-a,0) etc., but which combination minimises error?
00154       if (axis.z() < 0.75)
00155         _spherocityAxes.push_back( (axis.cross(Vector3(0,0,1))).unit() );
00156       else
00157         _spherocityAxes.push_back( (axis.cross(Vector3(0,1,0))).unit() );
00158       _spherocityAxes.push_back( _spherocityAxes[0].cross(_spherocityAxes[1]) );
00159       return;
00160     }
00161
00162     // Temporary variables for calcs
00163     Vector3 axis(0,0,0);
00164     double val = 0.;
00165
00166     // Get spherocity
00167     _calcS(fsperpmomenta, val, axis);
00168     MSG_DEBUG("Mom sum = " << perpmomentumSum);
00169     double spherocity = PI*PI* val*val / (4 * perpmomentumSum*perpmomentumSum);
00170     _spherocities.push_back(spherocity);
00171
00172     // See if calclulated spherocity value makes sense
00173     if (spherocity < 0.0 || spherocity > 1.0) {
00174       MSG_WARNING("Spherocity = " << spherocity);
00175     }
00176
00177     MSG_DEBUG("Spherocity value = " << spherocity);
00178
00179     MSG_DEBUG("Sperocity axis = " << axis);
00180
00181     _spherocityAxes.push_back(axis);
00182
00183
00184     //// Get spherocity minor
00185     ////
00186     ////
00187     //// The Beam axis is eZ = (0, 0, 1)
00188     ////
00189     //double perpMinor = 0.0;
00190     //const Vector3 ez = Vector3(0, 0, 1);
00191     //foreach (const Vector3& v, fsperpmomenta) {
00192       //Vector3 temp = Vector3(v[0], v[1], 0.0);
00193       //perpMinor += mod(temp.cross(_spherocityAxes[0]));
00194     //}
00195     //_spherocitys.push_back(perpMinor / perpmomentumSum);
00196
00197
00198     //// Manual check
00199     //double test = 0.;
00200     //Vector<2>  ex;
00201     //ex.set(0, 1.0);
00202     //ex.set(1, 0);
00203     //foreach (const Vector<2> & v, fsperpmomenta2D) {
00204       //test+=fabs(dot(ex, v));
00205     //}
00206     //if (test/perpmomentumSum < _spherocities[0]) {
00207       //std::cout << "Warning: " << test/perpmomentumSum << " > " << _spherocitys[0] << "     " << _spherocityAxes[0] << endl;
00208     //}
00209
00210   }

Projection& addPdgIdPair ( PdgId  beam1,
PdgId  beam2
) [inline, inherited]

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

00107                                                        {
00108       _beamPairs.insert(PdgIdPair(beam1, beam2));
00109       return *this;
00110     }

const PROJ& addProjection ( const PROJ &  proj,
const std::string &  name
) [inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 113 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), TASSO_1990_S2148048::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WPOL::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), LHCB_2010_S8758301::init(), JADE_OPAL_2000_S4300807::init(), JADE_1998_S3612880::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2003_WUD_03_11::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1996_S3430090::init(), DELPHI_1995_S3137023::init(), D0_2010_S8821313::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CMS_2011_S8978280::init(), CMS_2011_S8968497::init(), CMS_2011_S8957746::init(), CMS_2011_S8884919::init(), CMS_2010_S8656010::init(), CMS_2010_S8547297::init(), CDF_2010_S8591881_QCD::init(), CDF_2010_S8591881_DY::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2011_S9120807::init(), ATLAS_2011_S9019561::init(), ATLAS_2011_S9002537::init(), ATLAS_2011_S8994773::init(), ATLAS_2011_S8983313::init(), ATLAS_2011_S8971293::init(), ATLAS_2011_S8924791::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2010_S8919674::init(), ATLAS_2010_S8918562::init(), ATLAS_2010_S8914702::init(), ATLAS_2010_S8894728::init(), ATLAS_2010_S8817804::init(), ATLAS_2010_S8591806::init(), ATLAS_2010_CONF_2010_049::init(), ALICE_2010_S8706239::init(), ALICE_2010_S8625980::init(), ALICE_2010_S8624100::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), Spherocity::Spherocity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

00113                                                                        {
00114       const Projection& reg = _addProjection(proj, name);
00115       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00116       return rtn;
00117     }

const PROJ& applyProjection ( const Event &  evt,
const std::string &  name
) const [inline, inherited]

Apply the named projection on event.

Definition at line 81 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00081                                                                                {
00082       return pcast<PROJ>(_applyProjection(evt, name));
00083     }

const PROJ& applyProjection ( const Event &  evt,
const Projection &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 74 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00074                                                                                 {
00075       return pcast<PROJ>(_applyProjection(evt, proj));
00076     }

const PROJ& applyProjection ( const Event &  evt,
const PROJ &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 67 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00067                                                                           {
00068       return pcast<PROJ>(_applyProjection(evt, proj));
00069     }

const Vector3& axis1 (  )  const [inline, virtual]

AxesDefinition axis accessors.

Implements AxesDefinition.

Definition at line 85 of file Spherocity.hh.

References Spherocity::spherocityAxis().

00085 { return spherocityAxis(); }

const Vector3& axis2 (  )  const [inline, virtual]

The 2nd most significant ("major") axis.

Implements AxesDefinition.

Definition at line 86 of file Spherocity.hh.

References Spherocity::spherocityMajorAxis().

00086 { return spherocityMajorAxis(); }

const Vector3& axis3 (  )  const [inline, virtual]

The least significant ("minor") axis.

Implements AxesDefinition.

Definition at line 87 of file Spherocity.hh.

References Spherocity::spherocityMinorAxis().

00087 { return spherocityMinorAxis(); }

const set< PdgIdPair > beamPairs (  )  const [virtual, inherited]

Return the BeamConstraints for this projection, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Definition at line 39 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

00039                                                    {
00040     set<PdgIdPair> ret = _beamPairs;
00041     set<ConstProjectionPtr> projs = getProjections();
00042     for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
00043       ConstProjectionPtr p = *ip;
00044       getLog() << Log::TRACE << "Proj addr = " << p << endl;
00045       if (p) ret = intersection(ret, p->beamPairs());
00046     }
00047     return ret;
00048   }

bool before ( const Projection &  p  )  const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 28 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

00028                                                    {
00029     const std::type_info& thisid = typeid(*this);
00030     const std::type_info& otherid = typeid(p);
00031     if (thisid == otherid) {
00032       return compare(p) < 0;
00033     } else {
00034       return thisid.before(otherid);
00035     }
00036   }

void calc ( const vector< Vector3 > &  threeMomenta  )

Manually calculate the spherocity, without engaging the caching system.

Definition at line 36 of file Spherocity.cc.

References Spherocity::_calcSpherocity().

00036                                                         {
00037     _calcSpherocity(fsmomenta);
00038   }

void calc ( const vector< FourMomentum > &  fsmomenta  )

Manually calculate the spherocity, without engaging the caching system.

Definition at line 26 of file Spherocity.cc.

References Spherocity::_calcSpherocity(), and FourVector::vector3().

00026                                                              {
00027     vector<Vector3> threeMomenta;
00028     threeMomenta.reserve(fsmomenta.size());
00029     foreach (const FourMomentum& v, fsmomenta) {
00030       threeMomenta.push_back(v.vector3());
00031     }
00032     _calcSpherocity(threeMomenta);
00033   }

void calc ( const vector< Particle > &  fsparticles  )

Manually calculate the spherocity, without engaging the caching system.

Definition at line 15 of file Spherocity.cc.

References Spherocity::_calcSpherocity(), Particle::momentum(), and FourVector::vector3().

00015                                                            {
00016     vector<Vector3> threeMomenta;
00017     threeMomenta.reserve(fsparticles.size());
00018     foreach (const Particle& p, fsparticles) {
00019       const Vector3 p3 = p.momentum().vector3();
00020       threeMomenta.push_back(p3);
00021     }
00022     _calcSpherocity(threeMomenta);
00023   }

void calc ( const FinalState &  fs  )

Manually calculate the spherocity, without engaging the caching system.

Definition at line 10 of file Spherocity.cc.

References FinalState::particles().

Referenced by Spherocity::project().

00010                                             {
00011     calc(fs.particles());
00012   }

virtual const Projection* clone (  )  const [inline, virtual]

Clone on the heap.

Implements AxesDefinition.

Definition at line 45 of file Spherocity.hh.

References Spherocity::Spherocity().

00045                                             {
00046       return new Spherocity(*this);
00047     }

int compare ( const Projection &  p  )  const [inline, protected, virtual]

Compare projections.

Implements Projection.

Definition at line 61 of file Spherocity.hh.

References Projection::mkNamedPCmp().

00061                                            {
00062       return mkNamedPCmp(p, "FS");
00063     }

Log& getLog (  )  const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by FParameter::_calcFParameter(), Sphericity::_calcSphericity(), Thrust::_calcThrust(), Projection::beamPairs(), InvMassFinalState::calc(), FinalState::FinalState(), JetAlg::JetAlg(), ZFinder::project(), WFinder::project(), VetoedFinalState::project(), UnstableFinalState::project(), TriggerUA5::project(), TriggerCDFRun2::project(), TriggerCDFRun0Run1::project(), PVertex::project(), NeutralFinalState::project(), MergedFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), IsolationProjection< PROJ1, PROJ2, EST >::project(), InitialQuarks::project(), Hemispheres::project(), HadronicFinalState::project(), FoxWolframMoments::project(), ClusteredPhotons::project(), ChargedFinalState::project(), and TotalVisibleMomentum::TotalVisibleMomentum().

00114                         {
00115       string logname = "Rivet.Projection." + name();
00116       return Log::getLog(logname);
00117     }

const Projection& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 57 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00057                                                                  {
00058       return getProjHandler().getProjection(*this, name);
00059     }

const PROJ& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 49 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

00049                                                            {
00050       const Projection& p = getProjHandler().getProjection(*this, name);
00051       return pcast<PROJ>(p);
00052     }

std::set<ConstProjectionPtr> getProjections (  )  const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 42 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00042                                                       {
00043       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00044     }

ProjectionHandler& getProjHandler (  )  const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 94 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00094                                               {
00095       return _projhandler;
00096     }

Cmp< Projection > mkNamedPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 51 of file Projection.cc.

References Rivet::pcmp().

Referenced by ZFinder::compare(), WFinder::compare(), VisibleFinalState::compare(), VetoedFinalState::compare(), TotalVisibleMomentum::compare(), Thrust::compare(), SVertex::compare(), Spherocity::compare(), Sphericity::compare(), ParisiTensor::compare(), NeutralFinalState::compare(), Multiplicity::compare(), MissingMomentum::compare(), MergedFinalState::compare(), LossyFinalState< ConstRandomFilter >::compare(), LeptonClusters::compare(), LeadingParticlesFinalState::compare(), JetShape::compare(), IsolationProjection< PROJ1, PROJ2, EST >::compare(), InvMassFinalState::compare(), IdentifiedFinalState::compare(), Hemispheres::compare(), FParameter::compare(), FoxWolframMoments::compare(), FinalStateHCM::compare(), FastJets::compare(), DISLepton::compare(), DISKinematics::compare(), ClusteredPhotons::compare(), ChargedLeptons::compare(), ChargedFinalState::compare(), CentralEtHCM::compare(), and BeamThrust::compare().

00052                                                                      {
00053     return pcmp(*this, otherparent, pname);
00054   }

Cmp< Projection > mkPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 57 of file Projection.cc.

References Rivet::pcmp().

00058                                                                 {
00059     return pcmp(*this, otherparent, pname);
00060   }

virtual std::string name (  )  const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ZFinder::project(), ClusteredPhotons::project(), and ProjectionHandler::registerProjection().

00101                                    {
00102       return _name;
00103     }

void project ( const Event &  e  )  [inline, protected, virtual]

Perform the projection on the Event.

Implements Projection.

Definition at line 53 of file Spherocity.hh.

References Spherocity::calc(), and Rivet::particles().

00053                                  {
00054       const vector<Particle> ps
00055         = applyProjection<FinalState>(e, "FS").particles();
00056       calc(ps);
00057     }

void setName ( const std::string &  name  )  [inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name.

Referenced by ZFinder::_init(), WFinder::_init(), FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), Beam::Beam(), BeamThrust::BeamThrust(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), ConstLossyFinalState::ConstLossyFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), PVertex::PVertex(), Sphericity::Sphericity(), Spherocity::Spherocity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

00120                                         {
00121       _name = name;
00122     }

double spherocity (  )  const [inline]

Spherocity scalar accessors The spherocity scalar, $ S $, (minimum spherocity).

Definition at line 70 of file Spherocity.hh.

References Spherocity::_spherocities.

Referenced by Spherocity::_calcSpherocity().

00070 { return _spherocities[0]; }

const Vector3& spherocityAxis (  )  const [inline]

Spherocity axis accessors The spherocity axis.

Definition at line 76 of file Spherocity.hh.

References Spherocity::_spherocityAxes.

Referenced by Spherocity::axis1().

00076 { return _spherocityAxes[0]; }

const Vector3& spherocityMajorAxis (  )  const [inline]

The spherocity major axis (axis of max spherocity perpendicular to spherocity axis).

Definition at line 78 of file Spherocity.hh.

References Spherocity::_spherocityAxes.

Referenced by Spherocity::axis2().

00078 { return _spherocityAxes[1]; }

const Vector3& spherocityMinorAxis (  )  const [inline]

The spherocity minor axis (axis perpendicular to spherocity and spherocity major).

Definition at line 80 of file Spherocity.hh.

References Spherocity::_spherocityAxes.

Referenced by Spherocity::axis3().

00080 { return _spherocityAxes[2]; }

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 36 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 33 of file Projection.hh.

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 140 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

bool _calculatedSpherocity [private]

Caching flag to avoid costly recalculations.

Definition at line 121 of file Spherocity.hh.

vector<double> _spherocities [private]

The spherocity scalars.

Definition at line 115 of file Spherocity.hh.

Referenced by Spherocity::_calcSpherocity(), and Spherocity::spherocity().

vector<Vector3> _spherocityAxes [private]

The spherocity axes.

Definition at line 118 of file Spherocity.hh.

Referenced by Spherocity::_calcSpherocity(), Spherocity::spherocityAxis(), Spherocity::spherocityMajorAxis(), and Spherocity::spherocityMinorAxis().

The documentation for this class was generated from the following files:
