FinalStateHCM Class Reference

Final state particles boosted to the hadronic center of mass system. More...

#include <FinalStateHCM.hh>

Inheritance diagram for FinalStateHCM:
Inheritance graph
[legend]

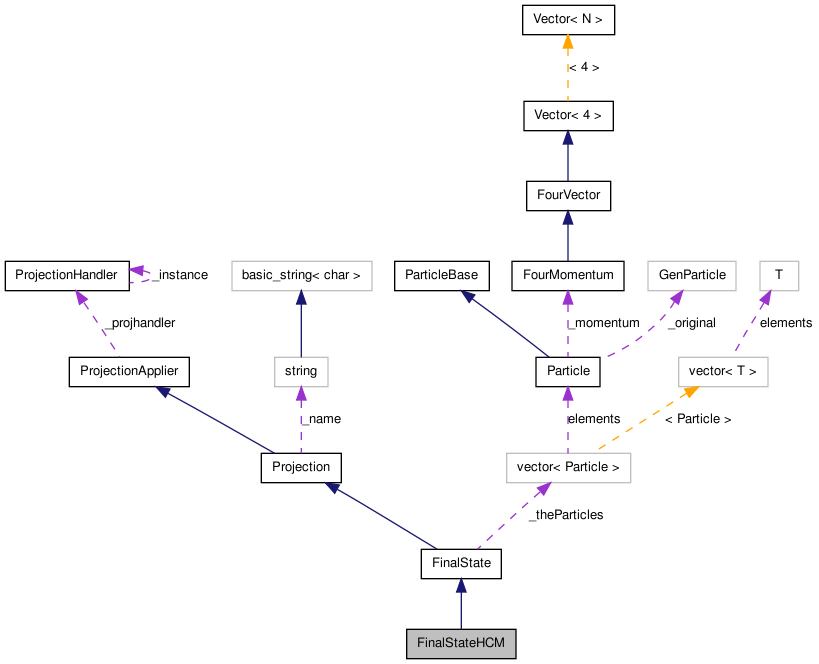

Collaboration diagram for FinalStateHCM:
Collaboration graph
[legend]

List of all members.

Public Types

typedef Particle entity_type
typedef ParticleVector collection_type

Public Member Functions

 FinalStateHCM (const DISKinematics &kinematicsp)
 Constructor.
virtual const Projection * clone () const
 Clone on the heap.
virtual const ParticleVector & particles () const
 Get the final-state particles.
template<typename F >
const ParticleVector & particles (F sorter) const
 Get the final-state particles, ordered by supplied sorting function object.
const ParticleVector & particlesByPt () const
 Get the final-state particles, ordered by decreasing $ p_T $.
const ParticleVector & particlesByE () const
 Get the final-state particles, ordered by decreasing $ E $.
const ParticleVector & particlesByEt () const
 Get the final-state particles, ordered by decreasing $ E_T $.
const ParticleVector & particlesByEta () const
 Get the final-state particles, ordered by increasing $ \eta $.
const ParticleVector & particlesByModEta () const
 Get the final-state particles, ordered by increasing $ |\eta| $.
virtual size_t size () const
 Access the projected final-state particles.
virtual bool empty () const
 Is this final state empty?
virtual bool isEmpty () const
virtual size_t ptMin () const
 Minimum-$ p_\perp $ requirement.
const collection_type & entities () const
 Template-usable interface common to JetAlg.
bool before (const Projection &p) const
virtual const std::set< PdgIdPair > beamPairs () const
virtual std::string name () const
 Get the name of the projection.
Projection & addPdgIdPair (PdgId beam1, PdgId beam2)
 Add a colliding beam pair.
Log & getLog () const
 Get a Log object based on the getName() property of the calling projection object.
void setName (const std::string &name)
 Used by derived classes to set their name.
Projection "getting" functions

std::set< ConstProjectionPtr > getProjections () const
 Get the contained projections, including recursion.
template<typename PROJ >
const PROJ & getProjection (const std::string &name) const
 Get the named projection, specifying return type via a template argument.
const Projection & getProjection (const std::string &name) const
Projection applying functions

template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const PROJ &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const Projection &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const std::string &name) const
 Apply the named projection on event.

Protected Member Functions

void project (const Event &e)
 Apply the projection on the supplied event.
int compare (const Projection &p) const
 Compare projections.
bool accept (const Particle &p) const
 Decide if a particle is to be accepted or not.
Cmp< Projection > mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection > mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler & getProjHandler () const
 Get a reference to the ProjectionHandler for this thread.
Projection registration functions

template<typename PROJ >
const PROJ & addProjection (const PROJ &proj, const std::string &name)
const Projection & _addProjection (const Projection &proj, const std::string &name)
 Untemplated function to do the work...

Protected Attributes

vector< pair< double, double > > _etaRanges
 The ranges allowed for pseudorapidity.
double _ptmin
 The minimum allowed transverse momentum.
ParticleVector _theParticles
 The final-state particles.
bool _allowProjReg
 Flag to forbid projection registration in analyses until the init phase.

Friends

class Event
 Event is a friend.
class Cmp< Projection >
 The Cmp specialization for Projection is a friend.
class Projectionhandler

Detailed Description

Final state particles boosted to the hadronic center of mass system.

NB. The DIS scattered lepton is not included in the final state particles.

Definition at line 16 of file FinalStateHCM.hh.

Member Typedef Documentation

typedef ParticleVector collection_type [inherited]

Definition at line 88 of file FinalState.hh.

typedef Particle entity_type [inherited]

Definition at line 87 of file FinalState.hh.

Constructor & Destructor Documentation

FinalStateHCM ( const DISKinematics &  kinematicsp  )  [inline]

Constructor.

Definition at line 21 of file FinalStateHCM.hh.

References ProjectionApplier::addProjection(), and Projection::setName().

Referenced by FinalStateHCM::clone().

00022     {
00023       setName("FinalStateHCM");
00024       addProjection(kinematicsp, "Kinematics");
00025     }

Member Function Documentation

const Projection & _addProjection ( const Projection &  proj,
const std::string &  name
) [protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, Log::ERROR, ProjectionApplier::getLog(), ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       getLog() << Log::ERROR << "Trying to register projection '"
00037                << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

bool accept ( const Particle &  p  )  const [protected, inherited]

Decide if a particle is to be accepted or not.

Definition at line 99 of file FinalState.cc.

References FinalState::_etaRanges, FinalState::_ptmin, FourVector::eta(), Rivet::eta(), Particle::genParticle(), Particle::momentum(), FourMomentum::pT(), and Rivet::pT().

Referenced by LeadingParticlesFinalState::project(), InvMassFinalState::project(), and FinalState::project().

00099                                                  {
00100     // Not having s.c. == 1 should never happen!
00101     assert(p.genParticle().status() == 1);
00102
00103     // Check pT cut
00104     if (_ptmin > 0.0) {
00105       const double pT = p.momentum().pT();
00106       if (pT < _ptmin) return false;
00107     }
00108
00109     // Check eta cuts
00110     if (!_etaRanges.empty()) {
00111       bool eta_pass = false;
00112       const double eta = p.momentum().eta();
00113       typedef pair<double,double> EtaPair;
00114       foreach (const EtaPair& etacuts, _etaRanges) {
00115         if (eta > etacuts.first && eta < etacuts.second) {
00116           eta_pass = true;
00117           break;
00118         }
00119       }
00120       if (!eta_pass) return false;
00121     }
00122
00123     return true;
00124   }

Projection& addPdgIdPair ( PdgId  beam1,
PdgId  beam2
) [inline, inherited]

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

00107                                                        {
00108       _beamPairs.insert(PdgIdPair(beam1, beam2));
00109       return *this;
00110     }

const PROJ& addProjection ( const PROJ &  proj,
const std::string &  name
) [inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 130 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClosestJetShape::ClosestJetShape(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), LHCB_2010_S8758301::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8817804::init(), ATLAS_2010_S8591806::init(), ATLAS_2010_CONF_2010_083::init(), ATLAS_2010_CONF_2010_081::init(), ATLAS_2010_CONF_2010_049::init(), ATLAS_2010_CONF_2010_031::init(), ALICE_2010_S8706239::init(), ALICE_2010_S8625980::init(), ALICE_2010_S8624100::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), and VetoedFinalState::VetoedFinalState().

00130                                                                        {
00131       const Projection& reg = _addProjection(proj, name);
00132       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00133       return rtn;
00134     }

const PROJ& applyProjection ( const Event &  evt,
const std::string &  name
) const [inline, inherited]

Apply the named projection on event.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00097                                                                                {
00098       return pcast<PROJ>(_applyProjection(evt, name));
00099     }

const PROJ& applyProjection ( const Event &  evt,
const Projection &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 90 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00090                                                                                 {
00091       return pcast<PROJ>(_applyProjection(evt, proj));
00092     }

const PROJ& applyProjection ( const Event &  evt,
const PROJ &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 83 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00083                                                                           {
00084       return pcast<PROJ>(_applyProjection(evt, proj));
00085     }

const set< PdgIdPair > beamPairs (  )  const [virtual, inherited]

Return the BeamConstraints for this projection, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Definition at line 39 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

00039                                                    {
00040     set<PdgIdPair> ret = _beamPairs;
00041     set<ConstProjectionPtr> projs = getProjections();
00042     for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
00043       ConstProjectionPtr p = *ip;
00044       getLog() << Log::TRACE << "Proj addr = " << p << endl;
00045       if (p) ret = intersection(ret, p->beamPairs());
00046     }
00047     return ret;
00048   }

bool before ( const Projection &  p  )  const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 28 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

00028                                                    {
00029     const std::type_info& thisid = typeid(*this);
00030     const std::type_info& otherid = typeid(p);
00031     if (thisid == otherid) {
00032       return compare(p) < 0;
00033     } else {
00034       return thisid.before(otherid);
00035     }
00036   }

virtual const Projection* clone (  )  const [inline, virtual]

Clone on the heap.

Reimplemented from FinalState.

Definition at line 28 of file FinalStateHCM.hh.

References FinalStateHCM::FinalStateHCM().

00028                                             {
00029       return new FinalStateHCM(*this);
00030     }

int compare ( const Projection &  p  )  const [protected, virtual]

Compare projections.

Reimplemented from FinalState.

Definition at line 9 of file FinalStateHCM.cc.

References Projection::mkNamedPCmp().

00009                                                       {
00010     return mkNamedPCmp(p, "Kinematics");
00011   }

virtual bool empty (  )  const [inline, virtual, inherited]

Is this final state empty?

Definition at line 77 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by STAR_2008_S7993412::analyze(), STAR_2006_S6870392::analyze(), MC_PHOTONJETS::analyze(), D0_2008_S7662670::analyze(), D0_2008_S6879055::analyze(), D0_2001_S4674421::analyze(), and CDF_2008_S7540469::analyze().

00077 { return _theParticles.empty(); }

const collection_type& entities (  )  const [inline, inherited]

Template-usable interface common to JetAlg.

Definition at line 91 of file FinalState.hh.

References FinalState::particles().

00091                                             {
00092       return particles();
00093     }

Log& getLog (  )  const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by Sphericity::_calcSphericity(), Thrust::_calcThrust(), Projection::beamPairs(), FastJets::calc(), FastJets::FastJets(), FinalState::FinalState(), JetAlg::JetAlg(), ZFinder::project(), WFinder::project(), VetoedFinalState::project(), UnstableFinalState::project(), TriggerUA5::project(), TriggerCDFRun2::project(), TriggerCDFRun0Run1::project(), PVertex::project(), NeutralFinalState::project(), MergedFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), IsolationProjection< PROJ1, PROJ2, EST >::project(), InvMassFinalState::project(), InitialQuarks::project(), Hemispheres::project(), HadronicFinalState::project(), FoxWolframMoments::project(), ClusteredPhotons::project(), ChargedFinalState::project(), FastJets::splitJet(), and TotalVisibleMomentum::TotalVisibleMomentum().

00114                         {
00115       string logname = "Rivet.Projection." + name();
00116       return Log::getLog(logname);
00117     }

const Projection& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 73 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00073                                                                  {
00074       return getProjHandler().getProjection(*this, name);
00075     }

const PROJ& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 65 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

00065                                                            {
00066       const Projection& p = getProjHandler().getProjection(*this, name);
00067       return pcast<PROJ>(p);
00068     }

std::set<ConstProjectionPtr> getProjections (  )  const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 58 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00058                                                       {
00059       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00060     }

ProjectionHandler& getProjHandler (  )  const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 110 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00110                                               {
00111       assert(_projhandler);
00112       return *_projhandler;
00113     }

virtual bool isEmpty (  )  const [inline, virtual, inherited]
Deprecated:
Is this final state empty?

Definition at line 79 of file FinalState.hh.

References FinalState::_theParticles.

00079 { return _theParticles.empty(); }

Cmp< Projection > mkNamedPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 51 of file Projection.cc.

References Rivet::pcmp().

Referenced by ZFinder::compare(), WFinder::compare(), VetoedFinalState::compare(), TotalVisibleMomentum::compare(), Thrust::compare(), SVertex::compare(), Sphericity::compare(), ParisiTensor::compare(), NeutralFinalState::compare(), Multiplicity::compare(), MergedFinalState::compare(), LossyFinalState< ConstRandomFilter >::compare(), LeadingParticlesFinalState::compare(), JetShape::compare(), IsolationProjection< PROJ1, PROJ2, EST >::compare(), InvMassFinalState::compare(), IdentifiedFinalState::compare(), Hemispheres::compare(), FoxWolframMoments::compare(), FinalStateHCM::compare(), FastJets::compare(), DISLepton::compare(), DISKinematics::compare(), ClusteredPhotons::compare(), ClosestJetShape::compare(), ChargedLeptons::compare(), ChargedFinalState::compare(), and CentralEtHCM::compare().

00052                                                                      {
00053     return pcmp(*this, otherparent, pname);
00054   }

Cmp< Projection > mkPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 57 of file Projection.cc.

References Rivet::pcmp().

00058                                                                 {
00059     return pcmp(*this, otherparent, pname);
00060   }

virtual std::string name (  )  const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ZFinder::project(), ClusteredPhotons::project(), and ProjectionHandler::registerProjection().

00101                                    {
00102       return _name;
00103     }

const ParticleVector& particles ( F  sorter  )  const [inline, inherited]

Get the final-state particles, ordered by supplied sorting function object.

Definition at line 43 of file FinalState.hh.

References FinalState::_theParticles.

00043                                                     {
00044       std::sort(_theParticles.begin(), _theParticles.end(), sorter);
00045       return _theParticles;
00046     }

virtual const ParticleVector& particles (  )  const [inline, virtual, inherited]

Get the final-state particles.

Definition at line 39 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by UA5_1986_S1583476::analyze(), UA5_1982_S875503::analyze(), UA1_1990_S2044935::analyze(), STAR_2009_UE_HELEN::analyze(), STAR_2008_S7993412::analyze(), STAR_2008_S7869363::analyze(), STAR_2006_S6500200::analyze(), SFM_1984_S1178091::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), OPAL_1998_S3780481::analyze(), OPAL_1993_S2692198::analyze(), MC_ZZJETS::analyze(), MC_ZJETS::analyze(), MC_WWJETS::analyze(), MC_WJETS::analyze(), MC_TTBAR::analyze(), MC_SUSY::analyze(), MC_PHOTONJETUE::analyze(), MC_PHOTONJETS::analyze(), MC_LEADINGJETS::analyze(), MC_HJETS::analyze(), MC_GENERIC::analyze(), MC_DIJET::analyze(), H1_2000_S4129130::analyze(), H1_1995_S3167097::analyze(), H1_1994_S2919893::analyze(), E735_1998_S3905616::analyze(), DELPHI_2002_069_CONF_603::analyze(), DELPHI_1995_S3137023::analyze(), D0_2010_S8671338::analyze(), D0_2009_S8349509::analyze(), D0_2009_S8202443::analyze(), D0_2008_S7863608::analyze(), D0_2008_S7837160::analyze(), D0_2008_S7719523::analyze(), D0_2008_S7554427::analyze(), D0_2008_S6879055::analyze(), D0_2007_S7075677::analyze(), D0_2006_S6438750::analyze(), D0_2001_S4674421::analyze(), D0_2000_S4480767::analyze(), D0_1998_S3711838::analyze(), CDF_2009_S8383952::analyze(), CDF_2009_S8233977::analyze(), CDF_2008_S8095620::analyze(), CDF_2008_S7541902::analyze(), CDF_2008_S7540469::analyze(), CDF_2008_NOTE_9351::analyze(), CDF_2008_LEADINGJETS::analyze(), CDF_2006_S6653332::analyze(), CDF_2002_S4796047::analyze(), CDF_2000_S4155203::analyze(), CDF_1991_S2313472::analyze(), CDF_1990_S2089246::analyze(), CDF_1988_S1865951::analyze(), ATLAS_2010_S8591806::analyze(), ATLAS_2010_CONF_2010_031::analyze(), ALICE_2010_S8706239::analyze(), ALICE_2010_S8625980::analyze(), ALEPH_2004_S5765862::analyze(), ALEPH_1996_S3486095::analyze(), Thrust::calc(), Sphericity::calc(), FinalState::entities(), FinalState::particlesByE(), FinalState::particlesByEt(), FinalState::particlesByEta(), FinalState::particlesByModEta(), FinalState::particlesByPt(), ZFinder::project(), WFinder::project(), VetoedFinalState::project(), TriggerUA5::project(), TriggerCDFRun2::project(), TriggerCDFRun0Run1::project(), TotalVisibleMomentum::project(), SVertex::project(), NeutralFinalState::project(), Multiplicity::project(), MergedFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), InvMassFinalState::project(), IdentifiedFinalState::project(), Hemispheres::project(), HadronicFinalState::project(), FoxWolframMoments::project(), FinalStateHCM::project(), FinalState::project(), DISLepton::project(), ClusteredPhotons::project(), ClosestJetShape::project(), ChargedLeptons::project(), ChargedFinalState::project(), and CentralEtHCM::project().

00039 { return _theParticles; }

const ParticleVector& particlesByE (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ E $.

Definition at line 54 of file FinalState.hh.

References Rivet::cmpParticleByE(), and FinalState::particles().

00054                                                {
00055       return particles(cmpParticleByE);
00056     }

const ParticleVector& particlesByEt (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ E_T $.

Definition at line 59 of file FinalState.hh.

References Rivet::cmpParticleByEt(), and FinalState::particles().

00059                                                 {
00060       return particles(cmpParticleByEt);
00061     }

const ParticleVector& particlesByEta (  )  const [inline, inherited]

Get the final-state particles, ordered by increasing $ \eta $.

Definition at line 64 of file FinalState.hh.

References Rivet::cmpParticleByAscPseudorapidity(), and FinalState::particles().

00064                                                  {
00065       return particles(cmpParticleByAscPseudorapidity);
00066     }

const ParticleVector& particlesByModEta (  )  const [inline, inherited]

Get the final-state particles, ordered by increasing $ |\eta| $.

Definition at line 69 of file FinalState.hh.

References Rivet::cmpParticleByAscAbsPseudorapidity(), and FinalState::particles().

00069                                                     {
00070       return particles(cmpParticleByAscAbsPseudorapidity);
00071     }

const ParticleVector& particlesByPt (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ p_T $.

Definition at line 49 of file FinalState.hh.

References Rivet::cmpParticleByPt(), and FinalState::particles().

Referenced by MC_PHOTONJETUE::analyze(), and ATLAS_2010_CONF_2010_081::analyze().

00049                                                 {
00050       return particles(cmpParticleByPt);
00051     }

void project ( const Event &  e  )  [protected, virtual]

Apply the projection on the supplied event.

Reimplemented from FinalState.

Definition at line 14 of file FinalStateHCM.cc.

References FinalState::_theParticles, ProjectionApplier::applyProjection(), DISKinematics::boostHCM(), Particle::genParticle(), Particle::momentum(), DISLepton::out(), FinalState::particles(), and Particle::setMomentum().

00014                                             {
00015     const DISKinematics& diskin = applyProjection<DISKinematics>(e, "Kinematics");
00016     const LorentzTransform hcmboost = diskin.boostHCM();
00017     const DISLepton& dislep = diskin.applyProjection<DISLepton>(e, "Lepton");
00018     const GenParticle& dislepGP = dislep.out().genParticle();
00019     const FinalState& fs = dislep.applyProjection<FinalState>(e, "FS");
00020
00021     // Fill the particle list with all particles _other_ than the DIS scattered
00022     // lepton, with momenta boosted into the HCM frame.
00023     _theParticles.clear();
00024     _theParticles.reserve(fs.particles().size());
00025     for (ParticleVector::const_iterator p = fs.particles().begin(); p != fs.particles().end(); ++p) {
00026       const GenParticle& loopGP = p->genParticle();
00027       if (&loopGP != &dislepGP) { //< Ensure that we skip the DIS lepton
00028         Particle temp = *p;
00029         const FourMomentum hcmMom = hcmboost.transform(temp.momentum());
00030         temp.setMomentum(hcmMom);
00031         _theParticles.push_back(temp);
00032       }
00033     }
00034   }

virtual size_t ptMin (  )  const [inline, virtual, inherited]

Minimum-$ p_\perp $ requirement.

Definition at line 82 of file FinalState.hh.

References FinalState::_ptmin.

00082 { return _ptmin; }

void setName ( const std::string &  name  )  [inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name.

Referenced by ZFinder::_init(), WFinder::_init(), Beam::Beam(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClosestJetShape::ClosestJetShape(), ClusteredPhotons::ClusteredPhotons(), ConstLossyFinalState::ConstLossyFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FastJets::FastJets(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), PVertex::PVertex(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), and VetoedFinalState::VetoedFinalState().

00120                                         {
00121       _name = name;
00122     }

virtual size_t size (  )  const [inline, virtual, inherited]

Access the projected final-state particles.

Definition at line 74 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by UA5_1986_S1583476::analyze(), UA5_1982_S875503::analyze(), UA1_1990_S2044935::analyze(), STAR_2006_S6860818::analyze(), STAR_2006_S6500200::analyze(), OPAL_2004_S6132243::analyze(), MC_SUSY::analyze(), MC_PHOTONJETUE::analyze(), MC_GENERIC::analyze(), D0_2008_S7837160::analyze(), D0_2000_S4480767::analyze(), D0_1998_S3711838::analyze(), CDF_2009_S8233977::analyze(), CDF_2009_NOTE_9936::analyze(), CDF_1991_S2313472::analyze(), ATLAS_2010_S8591806::analyze(), ATLAS_2010_CONF_2010_081::analyze(), ATLAS_2010_CONF_2010_031::analyze(), ALICE_2010_S8625980::analyze(), and ALICE_2010_S8624100::analyze().

00074 { return _theParticles.size(); }

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 36 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 33 of file Projection.hh.

friend class Projectionhandler [friend, inherited]

Definition at line 38 of file ProjectionApplier.hh.

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 157 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

vector<pair<double,double> > _etaRanges [protected, inherited]

The ranges allowed for pseudorapidity.

Definition at line 111 of file FinalState.hh.

Referenced by FinalState::accept(), FinalState::compare(), FinalState::FinalState(), and FinalState::project().

double _ptmin [protected, inherited]

The minimum allowed transverse momentum.

Definition at line 114 of file FinalState.hh.

Referenced by FinalState::accept(), FinalState::compare(), FinalState::project(), and FinalState::ptMin().

ParticleVector _theParticles [mutable, protected, inherited]

The final-state particles.

Definition at line 117 of file FinalState.hh.

Referenced by WFinder::clear(), FinalState::empty(), FinalState::isEmpty(), FinalState::particles(), ZFinder::project(), WFinder::project(), VetoedFinalState::project(), NeutralFinalState::project(), MergedFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), LeadingParticlesFinalState::project(), InvMassFinalState::project(), IdentifiedFinalState::project(), HadronicFinalState::project(), FinalStateHCM::project(), FinalState::project(), ClusteredPhotons::project(), ChargedFinalState::project(), and FinalState::size().

The documentation for this class was generated from the following files:
