ProjectionApplier Class Reference

Common base class for Projection and Analysis, used for internal polymorphism. More...

#include <ProjectionApplier.hh>

Inheritance diagram for ProjectionApplier:

[legend]

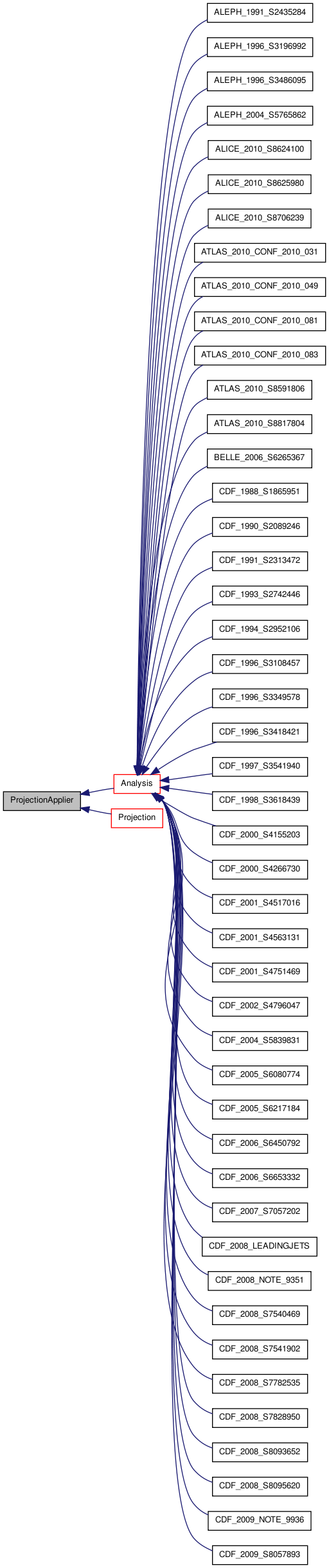

Collaboration diagram for ProjectionApplier:

[legend]

List of all members.

Public Member Functions
	ProjectionApplier ()
	Constructor.
virtual	~ProjectionApplier ()
Metadata functions

virtual std::string	name () const =0
	Get the name of this Projection or Analysis class.
Projection "getting" functions

std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ >
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions

template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ >
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
Log &	getLog () const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
Projection registration functions

template<typename PROJ >
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Private Member Functions
const Projection &	_applyProjection (const Event &evt, const std::string &name) const
const Projection &	_applyProjection (const Event &evt, const Projection &proj) const
Private Attributes
ProjectionHandler *	_projhandler
	Pointer to projection handler.
Friends
class	Projectionhandler

Detailed Description

Common base class for Projection and Analysis, used for internal polymorphism.

Empty interface used for storing Projection and Analysis pointers in the same container (used by the ProjectionHandler)

Definition at line 34 of file ProjectionApplier.hh.

Constructor & Destructor Documentation

ProjectionApplier ( )

Constructor.

Definition at line 10 of file ProjectionApplier.cc.

00011     : _allowProjReg(true),
00012       _projhandler(ProjectionHandler::create())
00013   {  }

~ProjectionApplier ( ) [virtual]

Definition at line 16 of file ProjectionApplier.cc.

References ProjectionApplier::getProjHandler(), and ProjectionHandler::removeProjectionApplier().

00016                                         {
00017     getProjHandler().removeProjectionApplier(*this);
00018   }

Member Function Documentation

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)			`[protected]`

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, Log::ERROR, ProjectionApplier::getLog(), ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       getLog() << Log::ERROR << "Trying to register projection '"
00037                << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

const Projection & _applyProjection	(	const Event &	evt,
		const Projection &	proj
	)			const `[private]`

Non-templated version of proj-based applyProjection, to work around header dependency issue.

Definition at line 27 of file ProjectionApplier.cc.

References Event::applyProjection().

00028                                                                                       {
00029     return evt.applyProjection(proj);
00030   }

const Projection & _applyProjection	(	const Event &	evt,
		const std::string &	name
	)			const `[private]`

Non-templated version of string-based applyProjection, to work around header dependency issue.

Definition at line 21 of file ProjectionApplier.cc.

References Event::applyProjection(), and ProjectionApplier::getProjection().

Referenced by ProjectionApplier::applyProjection().

00022                                                                                   {
00023     return evt.applyProjection(getProjection(name));
00024   }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)			`[inline, protected]`

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 130 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClosestJetShape::ClosestJetShape(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), LHCB_2010_S8758301::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8817804::init(), ATLAS_2010_S8591806::init(), ATLAS_2010_CONF_2010_083::init(), ATLAS_2010_CONF_2010_081::init(), ATLAS_2010_CONF_2010_049::init(), ATLAS_2010_CONF_2010_031::init(), ALICE_2010_S8706239::init(), ALICE_2010_S8625980::init(), ALICE_2010_S8624100::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), and VetoedFinalState::VetoedFinalState().

00130                                                                        {
00131       const Projection& reg = _addProjection(proj, name);
00132       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00133       return rtn;
00134     }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)			const `[inline]`

Apply the named projection on event.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00097                                                                                {
00098       return pcast<PROJ>(_applyProjection(evt, name));
00099     }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)			const `[inline]`

Apply the supplied projection on event.

Definition at line 90 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00090                                                                                 {
00091       return pcast<PROJ>(_applyProjection(evt, proj));
00092     }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)			const `[inline]`

Apply the supplied projection on event.

Definition at line 83 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00083                                                                           {
00084       return pcast<PROJ>(_applyProjection(evt, proj));
00085     }

Log& getLog ( ) const [inline, protected]

Reimplemented in Analysis, and Projection.

Definition at line 105 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection().

00105                         {
00106       return Log::getLog("Rivet.ProjectionHandler");
00107     }

const Projection& getProjection ( const std::string & name ) const [inline]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 73 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00073                                                                  {
00074       return getProjHandler().getProjection(*this, name);
00075     }

const PROJ& getProjection ( const std::string & name ) const [inline]

Get the named projection, specifying return type via a template argument.

Definition at line 65 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

00065                                                            {
00066       const Projection& p = getProjHandler().getProjection(*this, name);
00067       return pcast<PROJ>(p);
00068     }

std::set<ConstProjectionPtr> getProjections ( ) const [inline]

Get the contained projections, including recursion.

Definition at line 58 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00058                                                       {
00059       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00060     }

ProjectionHandler& getProjHandler ( ) const [inline, protected]

Get a reference to the ProjectionHandler for this thread.

Definition at line 110 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00110                                               {
00111       assert(_projhandler);
00112       return *_projhandler;
00113     }

virtual std::string name ( ) const [pure virtual]

Get the name of this Projection or Analysis class.

Implemented in Analysis, and Projection.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), and ProjectionHandler::registerProjection().

Friends And Related Function Documentation

friend class Projectionhandler [friend]

Definition at line 38 of file ProjectionApplier.hh.

Member Data Documentation

bool _allowProjReg [protected]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 157 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

ProjectionHandler* _projhandler [private]

Pointer to projection handler.

Definition at line 163 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::getProjHandler().
