UnstableFinalState Class Reference

Project out all physical-but-decayed particles in an event. More...

#include <UnstableFinalState.hh>

Inheritance diagram for UnstableFinalState:
Inheritance graph
[legend]

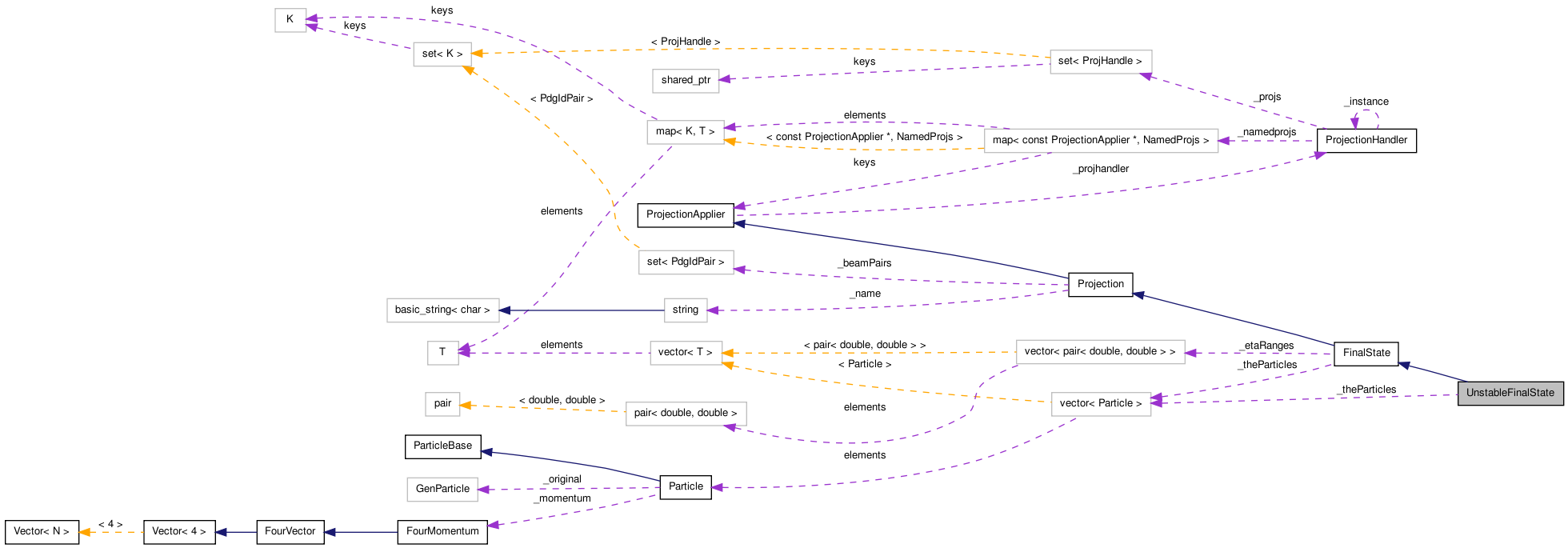

Collaboration diagram for UnstableFinalState:
Collaboration graph
[legend]

List of all members.

Public Types

typedef Particle entity_type
typedef ParticleVector collection_type

Public Member Functions

template<typename F >
const ParticleVector & particles (F sorter) const
 Get the final-state particles, ordered by supplied sorting function object.
const ParticleVector & particlesByPt () const
 Get the final-state particles, ordered by decreasing $ p_T $.
const ParticleVector & particlesByP () const
 Get the final-state particles, ordered by decreasing $ p $.
const ParticleVector & particlesByE () const
 Get the final-state particles, ordered by decreasing $ E $.
const ParticleVector & particlesByEt () const
 Get the final-state particles, ordered by decreasing $ E_T $.
const ParticleVector & particlesByEta () const
 Get the final-state particles, ordered by increasing $ \eta $.
const ParticleVector & particlesByModEta () const
 Get the final-state particles, ordered by increasing $ |\eta| $.
virtual size_t size () const
 Access the projected final-state particles.
virtual double ptMin () const
 Minimum-$ p_\perp $ requirement.
const collection_type & entities () const
 Template-usable interface common to JetAlg.
bool before (const Projection &p) const
virtual const std::set< PdgIdPair > beamPairs () const
virtual std::string name () const
 Get the name of the projection.
Projection & addPdgIdPair (PdgId beam1, PdgId beam2)
 Add a colliding beam pair.
Log & getLog () const
 Get a Log object based on the getName() property of the calling projection object.
void setName (const std::string &name)
 Used by derived classes to set their name.
Standard constructors and destructors.

 UnstableFinalState (double mineta=-MAXRAPIDITY, double maxeta=MAXRAPIDITY, double minpt=0.0 *GeV)
virtual const Projection * clone () const
 Clone on the heap.
Accessors

virtual const ParticleVector & particles () const
 Access the projected final-state particles.
virtual bool empty () const
 Is this final state empty?
virtual bool isEmpty () const
Projection "getting" functions

std::set< ConstProjectionPtr > getProjections () const
 Get the contained projections, including recursion.
template<typename PROJ >
const PROJ & getProjection (const std::string &name) const
 Get the named projection, specifying return type via a template argument.
const Projection & getProjection (const std::string &name) const
Projection applying functions

template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const PROJ &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const Projection &proj) const
 Apply the supplied projection on event.
template<typename PROJ >
const PROJ & applyProjection (const Event &evt, const std::string &name) const
 Apply the named projection on event.

Protected Member Functions

virtual void project (const Event &e)
 Apply the projection to the event.
virtual int compare (const Projection &p) const
 Compare projections.
bool accept (const Particle &p) const
 Decide if a particle is to be accepted or not.
Cmp< Projection > mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection > mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler & getProjHandler () const
 Get a reference to the ProjectionHandler for this thread.
Projection registration functions

template<typename PROJ >
const PROJ & addProjection (const PROJ &proj, const std::string &name)
const Projection & _addProjection (const Projection &proj, const std::string &name)
 Untemplated function to do the work...

Protected Attributes

double _etamin
 The minimum allowed pseudorapidity.
double _etamax
 The maximum allowed pseudorapidity.
double _ptmin
 The minimum allowed transverse momentum.
ParticleVector _theParticles
 The final-state particles.
vector< pair< double, double > > _etaRanges
 The ranges allowed for pseudorapidity.
bool _allowProjReg
 Flag to forbid projection registration in analyses until the init phase.

Friends

class Event
 Event is a friend.
class Cmp< Projection >
 The Cmp specialization for Projection is a friend.

Detailed Description

Project out all physical-but-decayed particles in an event.

The particles returned by the UFS are unique unstable particles, such as hadrons which are decayed by the generator. If, for example, you set Ks and Lambda particles stable in the generator, they will not be returned by the UFS. Also, you should be aware that all unstable particles in a decay chain are returned: if you are looking for something like the number of B hadrons in an event and there is a decay chain from e.g. B** -> B, you will count both B mesons unless you are careful to check for ancestor/descendent relations between the particles. Duplicate particles in the event record, i.e. those which differ only in bookkeeping details or photon emissions, are stripped from the returned particles collection.

Definition at line 24 of file UnstableFinalState.hh.

Member Typedef Documentation

typedef ParticleVector collection_type [inherited]

Definition at line 93 of file FinalState.hh.

typedef Particle entity_type [inherited]

Definition at line 92 of file FinalState.hh.

Constructor & Destructor Documentation

UnstableFinalState ( double  mineta = -MAXRAPIDITY,
double  maxeta = MAXRAPIDITY,
double  minpt = 0.0*GeV
) [inline]

The default constructor. May specify the minimum and maximum pseudorapidity $ \eta $ and the min $ p_T $ (in GeV).

Definition at line 32 of file UnstableFinalState.hh.

References Projection::setName().

Referenced by UnstableFinalState::clone().

00035       : _etamin(mineta), _etamax(maxeta), _ptmin(minpt)
00036     {
00037       setName("UnstableFinalState");
00038       // addCut("eta", MORE_EQ, mineta);
00039       // addCut("eta", LESS_EQ, maxeta);
00040       // addCut("pT",  MORE_EQ, minpt);
00041     }

Member Function Documentation

const Projection & _addProjection ( const Projection &  proj,
const std::string &  name
) [protected, inherited]

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       cerr << "Trying to register projection '"
00037            << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

bool accept ( const Particle &  p  )  const [protected, inherited]

Decide if a particle is to be accepted or not.

Definition at line 95 of file FinalState.cc.

References FinalState::_etaRanges, FinalState::_ptmin, FourVector::eta(), Rivet::eta(), Particle::genParticle(), Particle::hasGenParticle(), Particle::momentum(), FourMomentum::pT(), and Rivet::pT().

Referenced by InvMassFinalState::calc(), LeptonClusters::project(), LeadingParticlesFinalState::project(), and FinalState::project().

00095                                                  {
00096     // Not having s.c. == 1 should never happen!
00097     assert(!p.hasGenParticle() || p.genParticle().status() == 1);
00098
00099     // Check pT cut
00100     if (_ptmin > 0.0) {
00101       const double pT = p.momentum().pT();
00102       if (pT < _ptmin) return false;
00103     }
00104
00105     // Check eta cuts
00106     if (!_etaRanges.empty()) {
00107       bool eta_pass = false;
00108       const double eta = p.momentum().eta();
00109       typedef pair<double,double> EtaPair;
00110       foreach (const EtaPair& etacuts, _etaRanges) {
00111         if (eta > etacuts.first && eta < etacuts.second) {
00112           eta_pass = true;
00113           break;
00114         }
00115       }
00116       if (!eta_pass) return false;
00117     }
00118
00119     return true;
00120   }

Projection& addPdgIdPair ( PdgId  beam1,
PdgId  beam2
) [inline, inherited]

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

00107                                                        {
00108       _beamPairs.insert(PdgIdPair(beam1, beam2));
00109       return *this;
00110     }

const PROJ& addProjection ( const PROJ &  proj,
const std::string &  name
) [inline, protected, inherited]

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 113 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), BeamThrust::BeamThrust(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), TASSO_1990_S2148048::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WPOL::init(), MC_WJETS::init(), MC_VH2BB::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), LHCB_2010_S8758301::init(), JADE_OPAL_2000_S4300807::init(), JADE_1998_S3612880::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2003_WUD_03_11::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1996_S3430090::init(), DELPHI_1995_S3137023::init(), D0_2010_S8821313::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CMS_2011_S9120041::init(), CMS_2011_S9088458::init(), CMS_2011_S9086218::init(), CMS_2011_S8978280::init(), CMS_2011_S8968497::init(), CMS_2011_S8957746::init(), CMS_2011_S8950903::init(), CMS_2011_S8884919::init(), CMS_2010_S8656010::init(), CMS_2010_S8547297::init(), CDF_2010_S8591881_QCD::init(), CDF_2010_S8591881_DY::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2011_S9225137::init(), ATLAS_2011_S9212183::init(), ATLAS_2011_S9131140::init(), ATLAS_2011_S9128077::init(), ATLAS_2011_S9126244::init(), ATLAS_2011_S9120807::init(), ATLAS_2011_S9108483::init(), ATLAS_2011_S9041966::init(), ATLAS_2011_S9019561::init(), ATLAS_2011_S9002537::init(), ATLAS_2011_S8994773::init(), ATLAS_2011_S8983313::init(), ATLAS_2011_S8971293::init(), ATLAS_2011_S8924791::init(), ATLAS_2011_I925932::init(), ATLAS_2011_I919017::init(), ATLAS_2011_CONF_2011_098::init(), ATLAS_2011_CONF_2011_090::init(), ATLAS_2010_S8919674::init(), ATLAS_2010_S8918562::init(), ATLAS_2010_S8914702::init(), ATLAS_2010_S8894728::init(), ATLAS_2010_S8817804::init(), ATLAS_2010_S8591806::init(), ATLAS_2010_CONF_2010_049::init(), ALICE_2011_S8945144::init(), ALICE_2011_S8909580::init(), ALICE_2010_S8706239::init(), ALICE_2010_S8625980::init(), ALICE_2010_S8624100::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), Spherocity::Spherocity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

00113                                                                        {
00114       const Projection& reg = _addProjection(proj, name);
00115       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00116       return rtn;
00117     }

const PROJ& applyProjection ( const Event &  evt,
const std::string &  name
) const [inline, inherited]

Apply the named projection on event.

Definition at line 81 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00081                                                                                {
00082       return pcast<PROJ>(_applyProjection(evt, name));
00083     }

const PROJ& applyProjection ( const Event &  evt,
const Projection &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 74 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00074                                                                                 {
00075       return pcast<PROJ>(_applyProjection(evt, proj));
00076     }

const PROJ& applyProjection ( const Event &  evt,
const PROJ &  proj
) const [inline, inherited]

Apply the supplied projection on event.

Definition at line 67 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by DISFinalState::project().

00067                                                                           {
00068       return pcast<PROJ>(_applyProjection(evt, proj));
00069     }

const set< PdgIdPair > beamPairs (  )  const [virtual, inherited]

Return the BeamConstraints for this projection, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Definition at line 39 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

00039                                                    {
00040     set<PdgIdPair> ret = _beamPairs;
00041     set<ConstProjectionPtr> projs = getProjections();
00042     for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
00043       ConstProjectionPtr p = *ip;
00044       getLog() << Log::TRACE << "Proj addr = " << p << endl;
00045       if (p) ret = intersection(ret, p->beamPairs());
00046     }
00047     return ret;
00048   }

bool before ( const Projection &  p  )  const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 28 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

00028                                                    {
00029     const std::type_info& thisid = typeid(*this);
00030     const std::type_info& otherid = typeid(p);
00031     if (thisid == otherid) {
00032       return compare(p) < 0;
00033     } else {
00034       return thisid.before(otherid);
00035     }
00036   }

virtual const Projection* clone (  )  const [inline, virtual]

Clone on the heap.

Reimplemented from FinalState.

Definition at line 45 of file UnstableFinalState.hh.

References UnstableFinalState::UnstableFinalState().

00045                                             {
00046       return new UnstableFinalState(*this);
00047     }

int compare ( const Projection &  p  )  const [protected, virtual]

Compare projections.

Reimplemented from FinalState.

Definition at line 12 of file UnstableFinalState.cc.

References UnstableFinalState::_etamax, UnstableFinalState::_etamin, UnstableFinalState::_ptmin, and Rivet::cmp().

00012                                                            {
00013     const UnstableFinalState& other = dynamic_cast<const UnstableFinalState&>(p);
00014     return \
00015       cmp(_etamin, other._etamin) ||
00016       cmp(_etamax, other._etamax) ||
00017       cmp(_ptmin, other._ptmin);
00018   }

virtual bool empty (  )  const [inline, virtual]

Is this final state empty?

Reimplemented from FinalState.

Definition at line 59 of file UnstableFinalState.hh.

References UnstableFinalState::_theParticles.

00059 { return _theParticles.empty(); }

const collection_type& entities (  )  const [inline, inherited]

Template-usable interface common to JetAlg.

Definition at line 96 of file FinalState.hh.

References FinalState::particles().

00096                                             {
00097       return particles();
00098     }

Log& getLog (  )  const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Projection::name().

Referenced by Projection::beamPairs(), InvMassFinalState::calc(), VetoedFinalState::project(), UnstableFinalState::project(), LossyFinalState< ConstRandomFilter >::project(), IsolationProjection< PROJ1, PROJ2, EST >::project(), InitialQuarks::project(), ChargedFinalState::project(), and TotalVisibleMomentum::TotalVisibleMomentum().

00114                         {
00115       string logname = "Rivet.Projection." + name();
00116       return Log::getLog(logname);
00117     }

const Projection& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 57 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00057                                                                  {
00058       return getProjHandler().getProjection(*this, name);
00059     }

const PROJ& getProjection ( const std::string &  name  )  const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 49 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by ProjectionApplier::_applyProjection(), Rivet::pcmp(), and Hemispheres::project().

00049                                                            {
00050       const Projection& p = getProjHandler().getProjection(*this, name);
00051       return pcast<PROJ>(p);
00052     }

std::set<ConstProjectionPtr> getProjections (  )  const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 42 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00042                                                       {
00043       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00044     }

ProjectionHandler& getProjHandler (  )  const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 94 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00094                                               {
00095       return _projhandler;
00096     }

virtual bool isEmpty (  )  const [inline, virtual]
Deprecated:
Is this final state empty?

Reimplemented from FinalState.

Definition at line 62 of file UnstableFinalState.hh.

References UnstableFinalState::_theParticles.

00062 { return _theParticles.empty(); }

Cmp< Projection > mkNamedPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 51 of file Projection.cc.

References Rivet::pcmp().

Referenced by ZFinder::compare(), WFinder::compare(), VisibleFinalState::compare(), VetoedFinalState::compare(), TotalVisibleMomentum::compare(), Thrust::compare(), SVertex::compare(), Spherocity::compare(), Sphericity::compare(), ParisiTensor::compare(), NeutralFinalState::compare(), Multiplicity::compare(), MissingMomentum::compare(), MergedFinalState::compare(), LossyFinalState< ConstRandomFilter >::compare(), LeptonClusters::compare(), LeadingParticlesFinalState::compare(), JetShape::compare(), IsolationProjection< PROJ1, PROJ2, EST >::compare(), InvMassFinalState::compare(), IdentifiedFinalState::compare(), Hemispheres::compare(), FParameter::compare(), FoxWolframMoments::compare(), FastJets::compare(), DISLepton::compare(), DISKinematics::compare(), DISFinalState::compare(), ClusteredPhotons::compare(), ChargedLeptons::compare(), ChargedFinalState::compare(), CentralEtHCM::compare(), and BeamThrust::compare().

00052                                                                      {
00053     return pcmp(*this, otherparent, pname);
00054   }

Cmp< Projection > mkPCmp ( const Projection &  otherparent,
const std::string &  pname
) const [protected, inherited]

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Definition at line 57 of file Projection.cc.

References Rivet::pcmp().

00058                                                                 {
00059     return pcmp(*this, otherparent, pname);
00060   }

virtual std::string name (  )  const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ClusteredPhotons::project(), and ProjectionHandler::registerProjection().

00101                                    {
00102       return _name;
00103     }

const ParticleVector& particles ( F  sorter  )  const [inline, inherited]

Get the final-state particles, ordered by supplied sorting function object.

Definition at line 43 of file FinalState.hh.

References FinalState::_theParticles.

00043                                                     {
00044       std::sort(_theParticles.begin(), _theParticles.end(), sorter);
00045       return _theParticles;
00046     }

virtual const ParticleVector& particles (  )  const [inline, virtual]

Access the projected final-state particles.

Reimplemented from FinalState.

Definition at line 56 of file UnstableFinalState.hh.

References UnstableFinalState::_theParticles.

Referenced by STAR_2006_S6860818::analyze(), PDG_HADRON_MULTIPLICITIES_RATIOS::analyze(), PDG_HADRON_MULTIPLICITIES::analyze(), MC_GENERIC::analyze(), LHCB_2010_S8758301::analyze(), DELPHI_1996_S3430090::analyze(), DELPHI_1995_S3137023::analyze(), CMS_2011_S8978280::analyze(), BELLE_2006_S6265367::analyze(), ALICE_2011_S8909580::analyze(), and ALEPH_1996_S3486095::analyze().

00056 { return _theParticles; }

const ParticleVector& particlesByE (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ E $.

Definition at line 59 of file FinalState.hh.

References Rivet::cmpParticleByE(), and FinalState::particles().

00059                                                {
00060       return particles(cmpParticleByE);
00061     }

const ParticleVector& particlesByEt (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ E_T $.

Definition at line 64 of file FinalState.hh.

References Rivet::cmpParticleByEt(), and FinalState::particles().

00064                                                 {
00065       return particles(cmpParticleByEt);
00066     }

const ParticleVector& particlesByEta (  )  const [inline, inherited]

Get the final-state particles, ordered by increasing $ \eta $.

Definition at line 69 of file FinalState.hh.

References Rivet::cmpParticleByAscPseudorapidity(), and FinalState::particles().

00069                                                  {
00070       return particles(cmpParticleByAscPseudorapidity);
00071     }

const ParticleVector& particlesByModEta (  )  const [inline, inherited]

Get the final-state particles, ordered by increasing $ |\eta| $.

Definition at line 74 of file FinalState.hh.

References Rivet::cmpParticleByAscAbsPseudorapidity(), and FinalState::particles().

00074                                                     {
00075       return particles(cmpParticleByAscAbsPseudorapidity);
00076     }

const ParticleVector& particlesByP (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ p $.

Definition at line 54 of file FinalState.hh.

References Rivet::cmpParticleByP(), and FinalState::particles().

00054                                                {
00055       return particles(cmpParticleByP);
00056     }

const ParticleVector& particlesByPt (  )  const [inline, inherited]

Get the final-state particles, ordered by decreasing $ p_T $.

Definition at line 49 of file FinalState.hh.

References Rivet::cmpParticleByPt(), and FinalState::particles().

Referenced by MC_PHOTONJETUE::analyze(), ATLAS_2011_S8994773::analyze(), and ATLAS_2010_S8894728::analyze().

00049                                                 {
00050       return particles(cmpParticleByPt);
00051     }

void project ( const Event &  e  )  [protected, virtual]

Apply the projection to the event.

Reimplemented from FinalState.

Definition at line 21 of file UnstableFinalState.cc.

References UnstableFinalState::_etamax, UnstableFinalState::_etamin, UnstableFinalState::_ptmin, UnstableFinalState::_theParticles, Event::genEvent(), Projection::getLog(), IS_PARTON_PDGID, Rivet::isZero(), MSG_DEBUG, MSG_TRACE, Rivet::particles(), and Log::TRACE.

00021                                                  {
00022     _theParticles.clear();
00023
00024     foreach (GenParticle* p, Rivet::particles(e.genEvent())) {
00025       const int st = p->status();
00026       bool passed = \
00027         ( st == 1 || (st == 2 && abs(p->pdg_id()) != 22) ) &&
00028         !isZero(p->momentum().perp()) && p->momentum().perp() >= _ptmin &&
00029         p->momentum().eta() > _etamin && p->momentum().eta() < _etamax &&
00030         !IS_PARTON_PDGID(p->pdg_id());
00031
00032       // Avoid double counting by re-marking as unpassed if particle ID == parent ID
00033       const GenVertex* pv = p->production_vertex();
00034       const GenVertex* dv = p->end_vertex();
00035       if (passed && pv) {
00036         for (GenVertex::particles_in_const_iterator pp = pv->particles_in_const_begin() ;
00037              pp != pv->particles_in_const_end() ; ++pp) {
00038           if ( p->pdg_id() == (*pp)->pdg_id() ) {
00039             passed = false;
00040             break;
00041           }
00042         }
00043       }
00044
00045       // Add to output particles collection
00046       if (passed) {
00047         _theParticles.push_back(Particle(*p));
00048       }
00049
00050       // Log parents and children
00051       if (getLog().isActive(Log::TRACE)) {
00052         MSG_TRACE("ID = " << p->pdg_id()
00053                   << ", status = " << st
00054                   << ", pT = " << p->momentum().perp()
00055                   << ", eta = " << p->momentum().eta()
00056                   << ": result = " << std::boolalpha << passed);
00057         if (pv) {
00058           for (GenVertex::particles_in_const_iterator pp = pv->particles_in_const_begin() ;
00059                pp != pv->particles_in_const_end() ; ++pp) {
00060             MSG_TRACE("  parent ID = " << (*pp)->pdg_id());
00061           }
00062         }
00063         if (dv) {
00064           for (GenVertex::particles_out_const_iterator pp = dv->particles_out_const_begin() ;
00065                pp != dv->particles_out_const_end() ; ++pp) {
00066             MSG_TRACE("  child ID  = " << (*pp)->pdg_id());
00067           }
00068         }
00069       }
00070     }
00071     MSG_DEBUG("Number of final-state particles = " << _theParticles.size());
00072   }

virtual double ptMin (  )  const [inline, virtual, inherited]

Minimum-$ p_\perp $ requirement.

Definition at line 87 of file FinalState.hh.

References FinalState::_ptmin.

00087 { return _ptmin; }

void setName ( const std::string &  name  )  [inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name.

Referenced by ZFinder::_init(), WFinder::_init(), FastJets::_init1(), FastJets::_init2(), FastJets::_init3(), Beam::Beam(), BeamThrust::BeamThrust(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), ConstLossyFinalState::ConstLossyFinalState(), DISFinalState::DISFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FoxWolframMoments::FoxWolframMoments(), FParameter::FParameter(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), IsolationProjection< PROJ1, PROJ2, EST >::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LeptonClusters::LeptonClusters(), LossyFinalState< ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), MissingMomentum::MissingMomentum(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), NonHadronicFinalState::NonHadronicFinalState(), ParisiTensor::ParisiTensor(), PVertex::PVertex(), Sphericity::Sphericity(), Spherocity::Spherocity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), VetoedFinalState::VetoedFinalState(), and VisibleFinalState::VisibleFinalState().

00120                                         {
00121       _name = name;
00122     }

virtual size_t size (  )  const [inline, virtual, inherited]

Access the projected final-state particles.

Definition at line 79 of file FinalState.hh.

References FinalState::_theParticles.

Referenced by UA5_1986_S1583476::analyze(), UA5_1982_S875503::analyze(), UA1_1990_S2044935::analyze(), STAR_2006_S6860818::analyze(), STAR_2006_S6500200::analyze(), OPAL_2004_S6132243::analyze(), MC_SUSY::analyze(), MC_PHOTONJETUE::analyze(), MC_GENERIC::analyze(), CDF_2009_S8233977::analyze(), CDF_2009_NOTE_9936::analyze(), ATLAS_2011_S9002537::analyze(), ATLAS_2011_S8994773::analyze(), ATLAS_2010_S8919674::analyze(), ATLAS_2010_S8918562::analyze(), ATLAS_2010_S8894728::analyze(), ATLAS_2010_S8591806::analyze(), ALICE_2010_S8625980::analyze(), ALICE_2010_S8624100::analyze(), and ATLAS_2010_S8918562::fillPtEtaNch().

00079 { return _theParticles.size(); }

Friends And Related Function Documentation

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 36 of file Projection.hh.

friend class Event [friend, inherited]

Event is a friend.

Definition at line 33 of file Projection.hh.

Member Data Documentation

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 140 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection(), and Analysis::Analysis().

double _etamax [protected]

The maximum allowed pseudorapidity.

Definition at line 82 of file UnstableFinalState.hh.

Referenced by UnstableFinalState::compare(), and UnstableFinalState::project().

double _etamin [protected]

The minimum allowed pseudorapidity.

Definition at line 79 of file UnstableFinalState.hh.

Referenced by UnstableFinalState::compare(), and UnstableFinalState::project().

vector<pair<double,double> > _etaRanges [protected, inherited]

The ranges allowed for pseudorapidity.

Definition at line 116 of file FinalState.hh.

Referenced by FinalState::accept(), FinalState::compare(), FinalState::FinalState(), and FinalState::project().

double _ptmin [protected]

The minimum allowed transverse momentum.

Reimplemented from FinalState.

Definition at line 85 of file UnstableFinalState.hh.

Referenced by UnstableFinalState::compare(), and UnstableFinalState::project().

ParticleVector _theParticles [protected]

The final-state particles.

Reimplemented from FinalState.

Definition at line 88 of file UnstableFinalState.hh.

Referenced by UnstableFinalState::empty(), UnstableFinalState::isEmpty(), UnstableFinalState::particles(), and UnstableFinalState::project().

The documentation for this class was generated from the following files:
