SVertex Class Reference

#include <SVertex.hh>

Inheritance diagram for SVertex:

[legend]

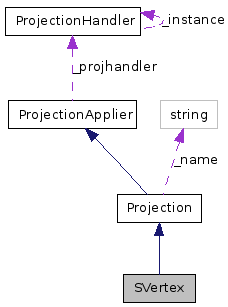

Collaboration diagram for SVertex:

[legend]

List of all members.

Detailed Description

Determine secondary vertices.

Makes use of PVertex projection.

Todo:: Replace function with a functor to improve equality comparisons.

Complex cuts on tracks and vertices to validate them have to be provided by an external function bool f(SVertex&, ParticleVector&, const HepMC::GenVertex&, FourMomentum); which can be embedded in the analysis code. An example can be found in the S6653332 analysis. A pointer to this function has to be given to the constructor of the SVertex projection. Its arguments are as follows:

in: reference to instance of SVertex projection, ParticleVector of vertex to be analyzed, primary (Gen)Vertex out: FourMomentum = visible Momentum of vertex (selected tracks), return bool: cuts passed? 1 : 0

In this way the SVertex projection can be kept as universal/flexible as possible.

The constructor expects also a list of (pre-selected) jets. Associated tracks and vertices to a jet are checked for displacement. A list of tagged jets can be obtained via the getTaggedJets() function

Definition at line 40 of file SVertex.hh.


Public Member Functions
const vector< FourMomentum > &	getTaggedJets () const
	Return vector of tagged jets (FourMomentum's).
bool	before (const Projection &p) const
virtual const std::set< PdgIdPair >	beamPairs () const
virtual std::string	name () const
	Get the name of the projection.
Projection &	addPdgIdPair (PdgId beam1, PdgId beam2)
	Add a colliding beam pair.
Log &	getLog () const
	Get a Log object based on the getName() property of the calling projection object.
void	setName (const std::string &name)
	Used by derived classes to set their name.
Standard constructors and destructors.
	SVertex (const ChargedFinalState &chfs, const vector< FourMomentum > &jetaxes, double deltaR, double detEta, double IPres, double DLS, double DLSres=0.0)
virtual const Projection *	clone () const
	Clone on the heap.
Projection "getting" functions
std::set< ConstProjectionPtr >	getProjections () const
	Get the contained projections, including recursion.
template<typename PROJ>
const PROJ &	getProjection (const std::string &name) const
	Get the named projection, specifying return type via a template argument.
const Projection &	getProjection (const std::string &name) const
Projection applying functions
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const PROJ &proj) const
	Apply the supplied projection on event.
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const Projection &proj) const
	Apply the supplied projection on event.
template<typename PROJ>
const PROJ &	applyProjection (const Event &evt, const std::string &name) const
	Apply the named projection on event.
Protected Member Functions
void	project (const Event &e)
	Apply the projection to the event.
int	compare (const Projection &p) const
	Compare projections.
Cmp< Projection >	mkNamedPCmp (const Projection &otherparent, const std::string &pname) const
Cmp< Projection >	mkPCmp (const Projection &otherparent, const std::string &pname) const
ProjectionHandler &	getProjHandler () const
	Get a reference to the ProjectionHandler for this thread.
Projection registration functions
template<typename PROJ>
const PROJ &	addProjection (const PROJ &proj, const std::string &name)
const Projection &	_addProjection (const Projection &proj, const std::string &name)
	Untemplated function to do the work...
Protected Attributes
bool	_allowProjReg
	Flag to forbid projection registration in analyses until the init phase.
Private Member Functions
bool	_applyVtxTrackCuts (const ParticleVector &, const Vector3 &, FourMomentum)
Private Attributes
const vector< FourMomentum > &	_jetaxes
	The jet axes of the jet algorithm projection.
double	_deltaR
	Max distance between vis. momentum of vertex and jet to be probed.
double	_detEta
	Geometrical acceptance of tracker.
double	_IPres
	Impact parameter resolution, (including beam size).
double	_DLS
	Decay length significance (cut value).
double	_DLSres
	Decay length significance uncertainty.
vector< FourMomentum >	_taggedjets
	Jets which have been tagged.
Friends
class	Event
	Event is a friend.
class	Cmp< Projection >
	The Cmp specialization for Projection is a friend.
class	Projectionhandler

Constructor & Destructor Documentation

SVertex	(	const ChargedFinalState &	chfs,
		const vector< FourMomentum > &	jetaxes,
		double	deltaR,
		double	detEta,
		double	IPres,
		double	DLS,
		double	DLSres = `0.0`
	)			`[inline]`

The default constructor. Must specify a PVertex projection object which is assumed to live through the run.

Definition at line 47 of file SVertex.hh.

References SVertex::_DLSres, SVertex::_IPres, ProjectionApplier::addProjection(), and Projection::setName().

Referenced by SVertex::clone().

00050       : _jetaxes(jetaxes), _deltaR(deltaR),
00051         _detEta(detEta), _IPres(IPres), _DLS(DLS),
00052         _DLSres(DLSres)
00053     {
00054       setName("SVertex");
00055       addProjection(PVertex(), "PV");
00056       addProjection(chfs, "FS");
00057       if (_DLSres == 0.0) {
00058         _DLSres = _IPres;
00059       }
00060     }

Member Function Documentation

virtual const Projection* clone ( ) const [inline, virtual]

Clone on the heap.

Implements Projection.

Definition at line 63 of file SVertex.hh.

References SVertex::SVertex().

00063                                             {
00064       return new SVertex(*this);
00065     }

const vector<FourMomentum>& getTaggedJets ( ) const [inline]

Return vector of tagged jets (FourMomentum's).

Definition at line 71 of file SVertex.hh.

References SVertex::_taggedjets.

00071                                                       {
00072       return _taggedjets;
00073     }

void project ( const Event & e ) [protected, virtual]

Apply the projection to the event.

Todo:: Use acceptance from the FinalState instead

Implements Projection.

Definition at line 79 of file SVertex.cc.

References SVertex::_applyVtxTrackCuts(), SVertex::_deltaR, SVertex::_detEta, SVertex::_DLS, SVertex::_DLSres, SVertex::_jetaxes, SVertex::_taggedjets, Rivet::deltaR(), Particle::genParticle(), Rivet::get2dDecayLength(), Particle::momentum(), FinalState::particles(), PVertex::position(), and FourVector::pseudorapidity().

00079                                       {
00080     const PVertex& pvtx = applyProjection<PVertex>(e, "PV");
00081     const Vector3 pvpos = pvtx.position();
00082     const ChargedFinalState& chfs = applyProjection<ChargedFinalState>(e, "FS");
00083
00084     // Produce vector of vertices, each containing a vector of all charged
00085     // final state particles belonging to this vertex
00086     typedef map<GenVertex*,ParticleVector> VtxPartsMap;
00087     VtxPartsMap vtxparts;
00088     foreach (const Particle& p, chfs.particles()) {
00089       // Consider only charged particles in tracker geometrical acceptance
00090       /// @todo Use acceptance from the FinalState instead
00091       if (fabs(p.momentum().pseudorapidity()) > _detEta) continue;
00092       HepMC::GenVertex* pvtx = p.genParticle().production_vertex();
00093       vtxparts[pvtx].push_back(p);
00094     }
00095
00096     // Check if jets are tagged, by means of selected vertices fulfilling track criteria
00097     _taggedjets.clear();
00098     for (VtxPartsMap::const_iterator vp = vtxparts.begin(); vp != vtxparts.end(); ++vp) {
00099       FourMomentum vtxVisMom;
00100       if (! _applyVtxTrackCuts(vp->second, pvpos, vtxVisMom) ) break;
00101       for (vector<FourMomentum>::const_iterator jaxis = _jetaxes.begin(); jaxis != _jetaxes.end(); ++jaxis) {
00102         // Delta{R} requirement between jet and visible vector sum of vertex tracks
00103         if (deltaR(*jaxis, vtxVisMom) < _deltaR) {
00104           const double dls = get2dDecayLength(vp->first->position(), pvpos, *jaxis) / _DLSres;
00105           if (dls > _DLS) _taggedjets.push_back(*jaxis);
00106         }
00107       }
00108     }
00109
00110   }

int compare ( const Projection & p ) const [protected, virtual]

Compare projections.

Implements Projection.

Definition at line 66 of file SVertex.cc.

References SVertex::_detEta, SVertex::_DLS, SVertex::_DLSres, SVertex::_IPres, Rivet::cmp(), Rivet::EQUIVALENT, and Projection::mkNamedPCmp().

00066                                                 {
00067     const PCmp fscmp = mkNamedPCmp(p, "PV");
00068     if (fscmp != EQUIVALENT) return fscmp;
00069     const SVertex& other = pcast<SVertex>(p);
00070     return \
00071       cmp(_detEta, other._detEta) ||
00072       cmp(_IPres, other._IPres) ||
00073       cmp(_DLS, other._DLS) ||
00074       cmp(_DLSres, _DLSres);
00075   }

bool _applyVtxTrackCuts	(	const ParticleVector &	vtxparts,
		const Vector3 &	pvtxpos,
		FourMomentum	vtxVisMom
	)			`[private]`

Analysis dependent cuts to be specified in analysis function

Todo:: Replace with inheritance-based cut method.

Analysis dependent cuts on vertex tracks in SVertex projection Since the analysis specific cuts are very complex, they are not implemented in the projection and are instead passed via a function (object). SVertex member function implementation below in: reference to instance of SVertex projection, ParticleVector of vertex to be analyzed, primary (Gen)Vertex out: FourMomentum = visible Momentum of vertex (selected tracks), return bool: cuts passed? 1 : 0

Todo:: Move this into the projection concrete class.

Definition at line 123 of file SVertex.cc.

References SVertex::_IPres, Particle::genParticle(), Rivet::get2dClosestApproach(), Particle::momentum(), and FourMomentum::pT().

Referenced by SVertex::project().

00126   {
00127     // Check vertex final state charged particles, if fulfilling track criteria
00128     size_t pass1trk1pTdcaSig25(0), pass1trk05pTdcaSig25(0),
00129       pass2trk15pTdcaSig3(0), pass2trk1pTdcaSig3(0);
00130
00131     foreach (const Particle& vp, vtxparts) {
00132       const double IPsig = get2dClosestApproach(vp.genParticle(), pvtxpos) / _IPres;
00133
00134       // Update "visible momentum" vector (returned by reference).
00135       if (vp.momentum().pT() > 0.5) {
00136         vtxVisMom += vp.momentum();
00137       }
00138       // 1st pass
00139       if (vtxparts.size() >= 3 && IPsig > 2.5) {
00140         if (vp.momentum().pT() > 1.0) pass1trk1pTdcaSig25++;
00141         else if (vp.momentum().pT() > 0.5) pass1trk05pTdcaSig25++;
00142       }
00143       // 2nd pass
00144       if (vtxparts.size() >= 2 && IPsig > 3.) {
00145         if (vp.momentum().pT() > 1.5) pass2trk15pTdcaSig3++;
00146         else if (vp.momentum().pT() > 1.0) pass2trk1pTdcaSig3++;
00147       }
00148     }
00149
00150     // Combine info from passes to make yes/no decision about whether this is significant:
00151     if (pass1trk1pTdcaSig25 >= 1 && pass1trk1pTdcaSig25 + pass1trk05pTdcaSig25>=3) return true;
00152     if (pass2trk15pTdcaSig3 >= 1 && pass2trk15pTdcaSig3 + pass2trk1pTdcaSig3>=2) return true;
00153     return false;
00154   }

bool before ( const Projection & p ) const [inherited]

Determine whether this object should be ordered before the object p given as argument. If p is of a different class than this, the before() function of the corresponding type_info objects is used. Otherwise, if the objects are of the same class, the virtual compare(const Projection &) will be returned.

Definition at line 28 of file Projection.cc.

References Projection::compare().

Referenced by less< const Rivet::Projection * >::operator()().

00028                                                    {
00029     const std::type_info& thisid = typeid(*this);
00030     const std::type_info& otherid = typeid(p);
00031     if (thisid == otherid) {
00032       return compare(p) < 0;
00033     } else {
00034       return thisid.before(otherid);
00035     }
00036   }

const set< PdgIdPair > beamPairs ( ) const [virtual, inherited]

Return the BeamConstraints for this projection, not including recursion. Derived classes should ensure that all contained projections are registered in the _projections set for the beam constraint chaining to work.

Definition at line 39 of file Projection.cc.

References Projection::_beamPairs, Projection::beamPairs(), Projection::getLog(), ProjectionApplier::getProjections(), Rivet::intersection(), and Log::TRACE.

Referenced by Projection::beamPairs().

00039                                                    {
00040     set<PdgIdPair> ret = _beamPairs;
00041     set<ConstProjectionPtr> projs = getProjections();
00042     for (set<ConstProjectionPtr>::const_iterator ip = projs.begin(); ip != projs.end(); ++ip) {
00043       ConstProjectionPtr p = *ip;
00044       getLog() << Log::TRACE << "Proj addr = " << p << endl;
00045       if (p) ret = intersection(ret, p->beamPairs());
00046     }
00047     return ret;
00048   }

virtual std::string name ( ) const [inline, virtual, inherited]

Get the name of the projection.

Implements ProjectionApplier.

Definition at line 101 of file Projection.hh.

References Projection::_name.

Referenced by ProjectionApplier::_addProjection(), ProjectionHandler::_checkDuplicate(), ProjectionHandler::_clone(), ProjectionHandler::_getEquiv(), VetoedFinalState::addVetoOnThisFinalState(), Projection::getLog(), ZFinder::project(), ClusteredPhotons::project(), and ProjectionHandler::registerProjection().

00101                                    {
00102       return _name;
00103     }

Projection& addPdgIdPair	(	PdgId	beam1,
		PdgId	beam2
	)			`[inline, inherited]`

Add a colliding beam pair.

Definition at line 107 of file Projection.hh.

References Projection::_beamPairs.

Referenced by Projection::Projection().

00107                                                        {
00108       _beamPairs.insert(PdgIdPair(beam1, beam2));
00109       return *this;
00110     }

Log& getLog ( ) const [inline, inherited]

Get a Log object based on the getName() property of the calling projection object.

Reimplemented from ProjectionApplier.

Definition at line 114 of file Projection.hh.

References Log::getLog(), and Projection::name().

00114                         {
00115       string logname = "Rivet.Projection." + name();
00116       return Log::getLog(logname);
00117     }

void setName ( const std::string & name ) [inline, inherited]

Used by derived classes to set their name.

Definition at line 120 of file Projection.hh.

References Projection::_name.

Referenced by ZFinder::_init(), WFinder::_init(), Beam::Beam(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), ConstLossyFinalState::ConstLossyFinalState(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FastJets::FastJets(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), InitialQuarks::InitialQuarks(), IsolationProjection::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< Rivet::ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), PVertex::PVertex(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), UnstableFinalState::UnstableFinalState(), and VetoedFinalState::VetoedFinalState().

00120                                         {
00121       _name = name;
00122     }

Cmp<Projection> mkNamedPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)			const `[protected, inherited]`

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

Referenced by ZFinder::compare(), WFinder::compare(), VetoedFinalState::compare(), TotalVisibleMomentum::compare(), Thrust::compare(), SVertex::compare(), Sphericity::compare(), ParisiTensor::compare(), NeutralFinalState::compare(), Multiplicity::compare(), MergedFinalState::compare(), LossyFinalState< Rivet::ConstRandomFilter >::compare(), LeadingParticlesFinalState::compare(), JetShape::compare(), IsolationProjection::compare(), InvMassFinalState::compare(), IdentifiedFinalState::compare(), Hemispheres::compare(), FoxWolframMoments::compare(), FinalStateHCM::compare(), FastJets::compare(), DISLepton::compare(), DISKinematics::compare(), ClusteredPhotons::compare(), ChargedLeptons::compare(), ChargedFinalState::compare(), and CentralEtHCM::compare().

Cmp<Projection> mkPCmp	(	const Projection &	otherparent,
		const std::string &	pname
	)			const `[protected, inherited]`

Shortcut to make a named Cmp<Projection> comparison with the *this object automatically passed as one of the parent projections.

std::set<ConstProjectionPtr> getProjections ( ) const [inline, inherited]

Get the contained projections, including recursion.

Definition at line 58 of file ProjectionApplier.hh.

References ProjectionHandler::DEEP, ProjectionHandler::getChildProjections(), and ProjectionApplier::getProjHandler().

Referenced by Projection::beamPairs().

00058                                                       {
00059       return getProjHandler().getChildProjections(*this, ProjectionHandler::DEEP);
00060     }

const PROJ& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection, specifying return type via a template argument.

Definition at line 65 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

Referenced by Rivet::pcmp(), and Hemispheres::project().

00065                                                            {
00066       const Projection& p = getProjHandler().getProjection(*this, name);
00067       return pcast<PROJ>(p);
00068     }

const Projection& getProjection ( const std::string & name ) const [inline, inherited]

Get the named projection (non-templated, so returns as a reference to a Projection base class).

Definition at line 73 of file ProjectionApplier.hh.

References ProjectionHandler::getProjection(), and ProjectionApplier::getProjHandler().

00073                                                                  {
00074       return getProjHandler().getProjection(*this, name);
00075     }

const PROJ& applyProjection	(	const Event &	evt,
		const PROJ &	proj
	)			const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 83 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

Referenced by HadronicFinalState::project(), and FinalStateHCM::project().

00083                                                                           {
00084       return pcast<PROJ>(_applyProjection(evt, proj));
00085     }

const PROJ& applyProjection	(	const Event &	evt,
		const Projection &	proj
	)			const `[inline, inherited]`

Apply the supplied projection on event.

Definition at line 90 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00090                                                                                 {
00091       return pcast<PROJ>(_applyProjection(evt, proj));
00092     }

const PROJ& applyProjection	(	const Event &	evt,
		const std::string &	name
	)			const `[inline, inherited]`

Apply the named projection on event.

Definition at line 97 of file ProjectionApplier.hh.

References ProjectionApplier::_applyProjection().

00097                                                                                {
00098       return pcast<PROJ>(_applyProjection(evt, name));
00099     }

ProjectionHandler& getProjHandler ( ) const [inline, protected, inherited]

Get a reference to the ProjectionHandler for this thread.

Definition at line 110 of file ProjectionApplier.hh.

References ProjectionApplier::_projhandler.

Referenced by ProjectionApplier::_addProjection(), ProjectionApplier::getProjection(), ProjectionApplier::getProjections(), and ProjectionApplier::~ProjectionApplier().

00110                                               {
00111       assert(_projhandler);
00112       return *_projhandler;
00113     }

const PROJ& addProjection	(	const PROJ &	proj,
		const std::string &	name
	)			`[inline, protected, inherited]`

Register a contained projection. The type of the argument is used to instantiate a new projection internally: this new object is applied to events rather than the argument object. Hence you are advised to only use locally-scoped Projection objects in your Projection and Analysis constructors, and to avoid polymorphism (e.g. handling ConcreteProjection via a pointer or reference to type Projection) since this will screw up the internal type management.

Definition at line 130 of file ProjectionApplier.hh.

References ProjectionApplier::_addProjection().

Referenced by ZFinder::_init(), WFinder::_init(), VetoedFinalState::addVetoOnThisFinalState(), CDF_2009_S8057893::CDF_2009_S8057893::init(), CentralEtHCM::CentralEtHCM(), ChargedFinalState::ChargedFinalState(), ChargedLeptons::ChargedLeptons(), ClusteredPhotons::ClusteredPhotons(), DISKinematics::DISKinematics(), DISLepton::DISLepton(), FinalState::FinalState(), FinalStateHCM::FinalStateHCM(), FoxWolframMoments::FoxWolframMoments(), HadronicFinalState::HadronicFinalState(), Hemispheres::Hemispheres(), IdentifiedFinalState::IdentifiedFinalState(), ZEUS_2001_S4815815::init(), UA5_1989_S1926373::init(), UA5_1988_S1867512::init(), UA5_1987_S1640666::init(), UA5_1986_S1583476::init(), UA5_1982_S875503::init(), UA1_1990_S2044935::init(), STAR_2009_UE_HELEN::init(), STAR_2008_S7993412::init(), STAR_2008_S7869363::init(), STAR_2006_S6870392::init(), STAR_2006_S6860818::init(), STAR_2006_S6500200::init(), SFM_1984_S1178091::init(), PDG_HADRON_MULTIPLICITIES_RATIOS::init(), PDG_HADRON_MULTIPLICITIES::init(), OPAL_2004_S6132243::init(), OPAL_2001_S4553896::init(), OPAL_1998_S3780481::init(), OPAL_1993_S2692198::init(), MC_ZZJETS::init(), MC_ZJETS::init(), MC_WWJETS::init(), MC_WJETS::init(), MC_TTBAR::init(), MC_SUSY::init(), MC_PHOTONJETUE::init(), MC_PHOTONJETS::init(), MC_LEADINGJETS::init(), MC_JETS::init(), MC_HJETS::init(), MC_GENERIC::init(), MC_DIPHOTON::init(), MC_DIJET::init(), JADE_OPAL_2000_S4300807::init(), H1_2000_S4129130::init(), H1_1995_S3167097::init(), H1_1994_S2919893::init(), ExampleAnalysis::init(), E735_1998_S3905616::init(), DELPHI_2002_069_CONF_603::init(), DELPHI_1995_S3137023::init(), D0_2010_S8671338::init(), D0_2010_S8570965::init(), D0_2010_S8566488::init(), D0_2009_S8349509::init(), D0_2009_S8320160::init(), D0_2009_S8202443::init(), D0_2008_S7863608::init(), D0_2008_S7837160::init(), D0_2008_S7719523::init(), D0_2008_S7662670::init(), D0_2008_S7554427::init(), D0_2008_S6879055::init(), D0_2007_S7075677::init(), D0_2006_S6438750::init(), D0_2004_S5992206::init(), D0_2001_S4674421::init(), D0_2000_S4480767::init(), D0_1998_S3711838::init(), D0_1996_S3324664::init(), D0_1996_S3214044::init(), CDF_2009_S8436959::init(), CDF_2009_S8383952::init(), CDF_2009_S8233977::init(), CDF_2009_NOTE_9936::init(), CDF_2008_S8095620::init(), CDF_2008_S8093652::init(), CDF_2008_S7828950::init(), CDF_2008_S7782535::init(), CDF_2008_S7541902::init(), CDF_2008_S7540469::init(), CDF_2008_NOTE_9351::init(), CDF_2008_LEADINGJETS::init(), CDF_2007_S7057202::init(), CDF_2006_S6653332::init(), CDF_2006_S6450792::init(), CDF_2005_S6217184::init(), CDF_2005_S6080774::init(), CDF_2004_S5839831::init(), CDF_2002_S4796047::init(), CDF_2001_S4751469::init(), CDF_2001_S4563131::init(), CDF_2001_S4517016::init(), CDF_2000_S4266730::init(), CDF_2000_S4155203::init(), CDF_1998_S3618439::init(), CDF_1997_S3541940::init(), CDF_1996_S3418421::init(), CDF_1996_S3349578::init(), CDF_1996_S3108457::init(), CDF_1994_S2952106::init(), CDF_1993_S2742446::init(), CDF_1991_S2313472::init(), CDF_1990_S2089246::init(), CDF_1988_S1865951::init(), BELLE_2006_S6265367::init(), ATLAS_2010_S8591806::init(), ALEPH_2004_S5765862::init(), ALEPH_1996_S3486095::init(), ALEPH_1996_S3196992::init(), ALEPH_1991_S2435284::init(), IsolationProjection::IsolationProjection(), JetAlg::JetAlg(), JetShape::JetShape(), LeadingParticlesFinalState::LeadingParticlesFinalState(), LossyFinalState< Rivet::ConstRandomFilter >::LossyFinalState(), MergedFinalState::MergedFinalState(), Multiplicity::Multiplicity(), NeutralFinalState::NeutralFinalState(), ParisiTensor::ParisiTensor(), Sphericity::Sphericity(), SVertex::SVertex(), Thrust::Thrust(), TotalVisibleMomentum::TotalVisibleMomentum(), TriggerCDFRun0Run1::TriggerCDFRun0Run1(), TriggerCDFRun2::TriggerCDFRun2(), TriggerUA5::TriggerUA5(), and VetoedFinalState::VetoedFinalState().

00130                                                                        {
00131       const Projection& reg = _addProjection(proj, name);
00132       const PROJ& rtn = dynamic_cast<const PROJ&>(reg);
00133       return rtn;
00134     }

const Projection & _addProjection	(	const Projection &	proj,
		const std::string &	name
	)			`[protected, inherited]`

Untemplated function to do the work...

Definition at line 33 of file ProjectionApplier.cc.

References ProjectionApplier::_allowProjReg, Log::ERROR, ProjectionApplier::getLog(), ProjectionApplier::getProjHandler(), ProjectionApplier::name(), Projection::name(), and ProjectionHandler::registerProjection().

Referenced by ProjectionApplier::addProjection().

00034                                                                              {
00035     if (!_allowProjReg) {
00036       getLog() << Log::ERROR << "Trying to register projection '"
00037                << proj.name() << "' before init phase in '" << this->name() << "'." << endl;
00038       exit(2);
00039     }
00040     const Projection& reg = getProjHandler().registerProjection(*this, proj, name);
00041     return reg;
00042   }

Friends And Related Function Documentation

friend class Event [friend, inherited]

Event is a friend.

Definition at line 33 of file Projection.hh.

friend class Cmp< Projection > [friend, inherited]

The Cmp specialization for Projection is a friend.

Definition at line 36 of file Projection.hh.

friend class Projectionhandler [friend, inherited]

Definition at line 38 of file ProjectionApplier.hh.

Member Data Documentation

const vector<FourMomentum>& _jetaxes [private]

The jet axes of the jet algorithm projection.

Definition at line 86 of file SVertex.hh.

Referenced by SVertex::project().

double _deltaR [private]

Max distance between vis. momentum of vertex and jet to be probed.

Definition at line 89 of file SVertex.hh.

Referenced by SVertex::project().

double _detEta [private]

Geometrical acceptance of tracker.

Definition at line 97 of file SVertex.hh.

Referenced by SVertex::compare(), and SVertex::project().

double _IPres [private]

Impact parameter resolution, (including beam size).

Definition at line 100 of file SVertex.hh.

Referenced by SVertex::_applyVtxTrackCuts(), SVertex::compare(), and SVertex::SVertex().

double _DLS [private]

Decay length significance (cut value).

Definition at line 103 of file SVertex.hh.

Referenced by SVertex::compare(), and SVertex::project().

double _DLSres [private]

Decay length significance uncertainty.

Definition at line 106 of file SVertex.hh.

Referenced by SVertex::compare(), SVertex::project(), and SVertex::SVertex().

vector<FourMomentum> _taggedjets [private]

Jets which have been tagged.

Definition at line 109 of file SVertex.hh.

Referenced by SVertex::getTaggedJets(), and SVertex::project().

bool _allowProjReg [protected, inherited]

Flag to forbid projection registration in analyses until the init phase.

Definition at line 157 of file ProjectionApplier.hh.

Referenced by ProjectionApplier::_addProjection().

The documentation for this class was generated from the following files:

SVertex Class Reference

Detailed Description

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
